Brand:GE Fanuc PLC Item No.:DS200TCQCG1BJG Product Origin:USA Product Dimensions:330 × 280 × 25 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

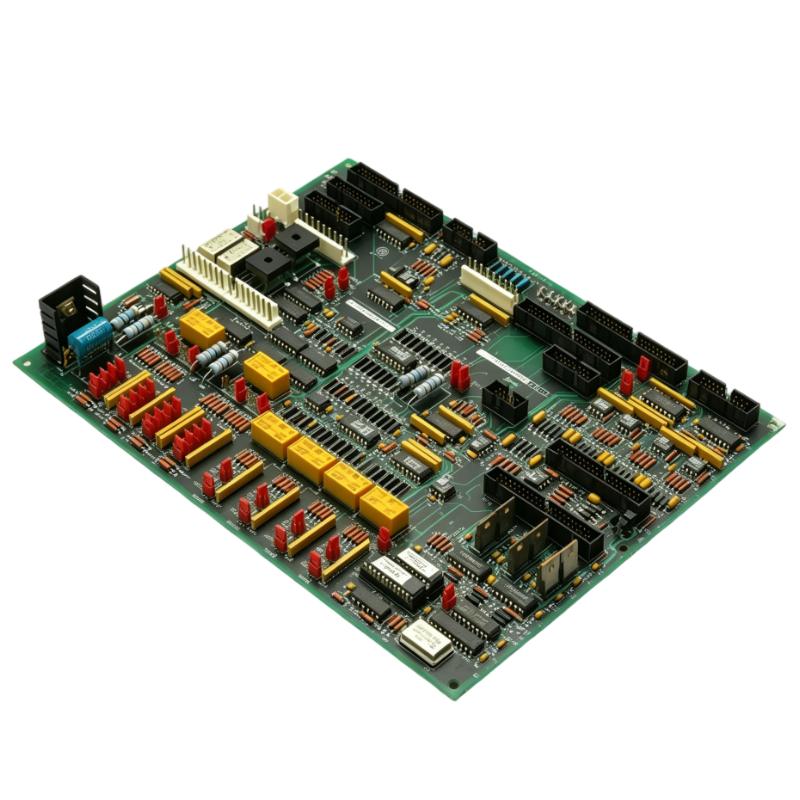

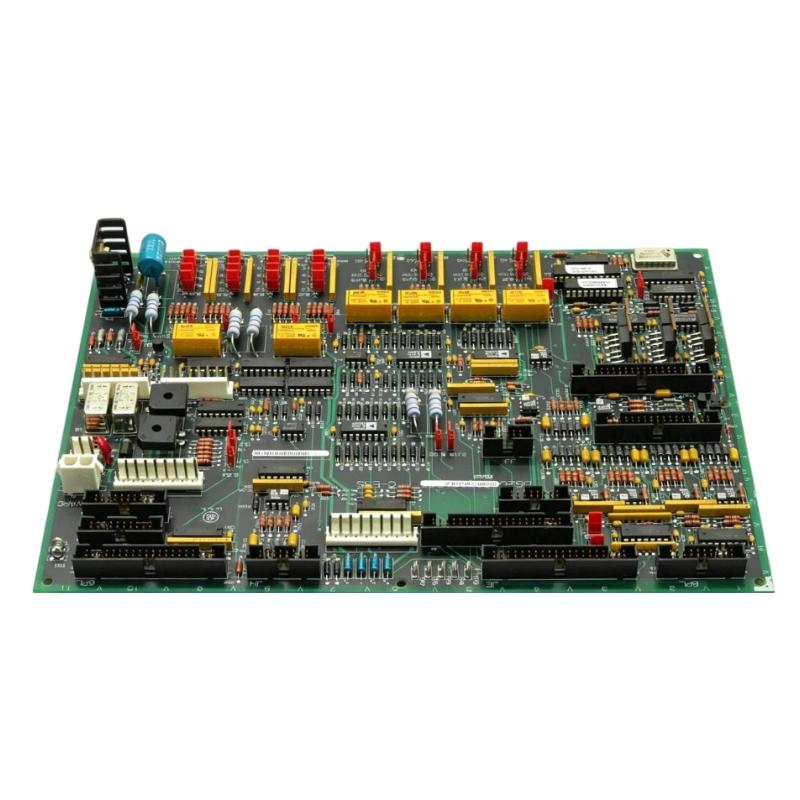

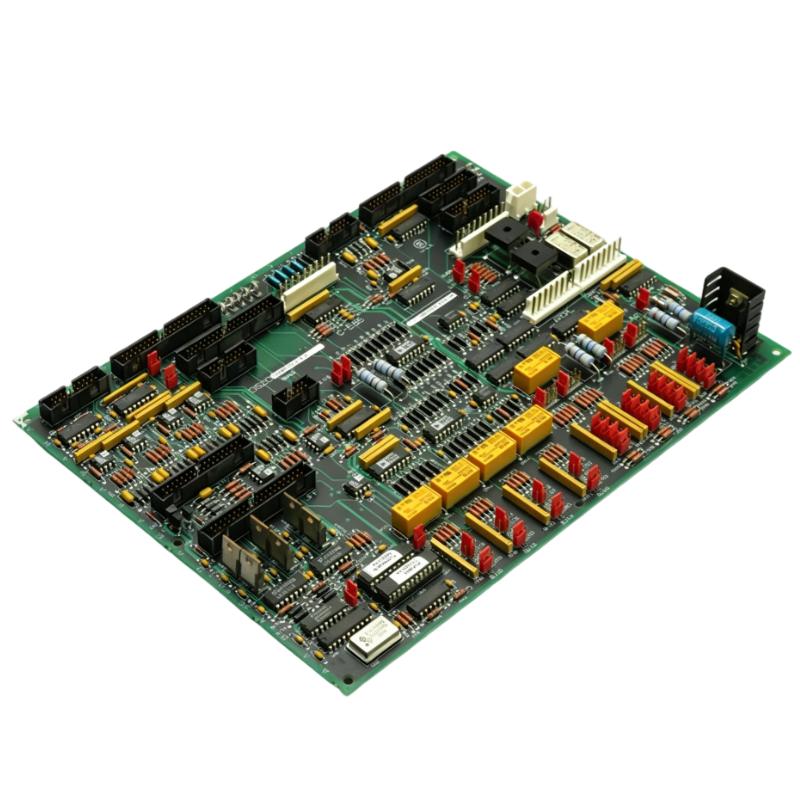

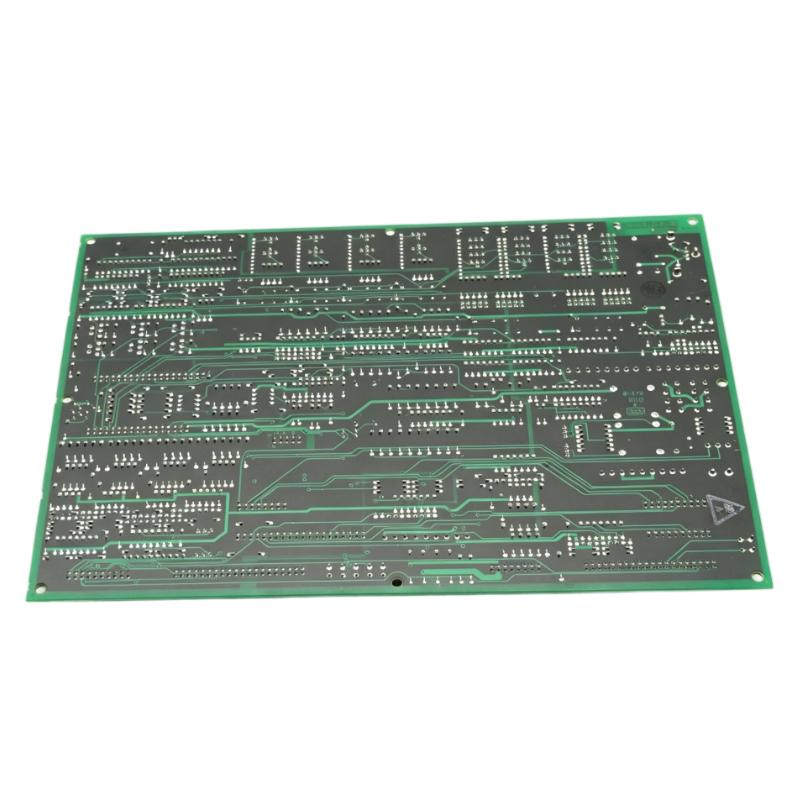

The GE DS200TCQCG1BJG Mark V RST Overflow Plate is a specialized circuit board developed for GE Speedtronic Mark V turbine control systems. It belongs to the DS200 family of industrial control hardware and is intended to provide additional I/O and signal-interface capability within the turbine control architecture.
The TCQC board is closely associated with RST overflow functions. In practical terms, this means it provides additional resources for handling signals within the R, S, and T sections of the Mark V control system. This capability is important in turbine applications where numerous feedback and control signals must be processed simultaneously.
The board is also associated with analog signal conversion for servo-control applications. Digital output information from the control architecture can be converted into current signals and subsequently processed through digital-to-analog conversion and amplification stages. This signal chain allows the control system to interact with servo equipment used in turbine operation.
Another important characteristic of the DS200TCQCG1BJG is its configurable hardware. Multiple jumpers and connectors are provided on the board, so replacement work requires more than simply installing a physically similar PCB. The existing configuration should be recorded before the original board is removed.
The complete DS200TCQCG1BJG identification should always be checked when sourcing a replacement. The DS200 family contains numerous boards with similar physical construction but different functions, revisions, and connection arrangements.
For maintenance departments supporting older GE Mark V installations, keeping the correct RST Overflow Plate available as a spare can help reduce troubleshooting and equipment-recovery time. Proper ESD handling, connector identification, and configuration verification should be part of the replacement procedure.
Technical Specifications
Parameter
Specification
Brand
GE
Model
DS200TCQCG1BJG
Product Type
Mark V RST Overflow Plate
Functional Acronym
TCQC
Product Series
GE DS200
Control Platform
Mark V Speedtronic
Primary Function
RST overflow and analog I/O expansion
Signal Function
Analog signal interfacing and conversion
Typical Application
GE turbine control
Servo Application
Servo valve control signal interface
Hardware Jumpers
37
40-Pin Connectors
3
34-Pin Connectors
3
16-Pin Connector
1
Dimensions
330 × 280 × 25 mm
Weight
0.45 kg / 0.99 lb
Installation
Compatible GE Mark V control-system assembly
Board Type
Industrial printed circuit board
Recommended Related Models
For GE Mark V maintenance projects involving RST overflow and analog I/O functions, the following related models may be considered:
GE DS200TCQCG1B — RST Overflow Board
GE DS200TCQCG1BBA — Analog I/O Expander Board
GE DS200TCQCG1BJF — Analog I/O Expander Board
GE DS200TCQCG1BKG — RST Overflow / Analog I/O Expander Board
GE DS200TCQCG1AHE — Analog I/O Expander Board
GE DS200TCQCG1AHD — Analog I/O Expander Board
These related boards should not automatically be regarded as direct substitutes. Verify the complete part number, revision, system configuration, and connector arrangement before installation.
Popular Related Models
Other GE Mark V DS200 boards commonly encountered in turbine-control maintenance include:
GE DS200TCQCG1BJG Mark V RST Overflow Plate
GE DS200TCQCG1BBA Analog I/O Expander Board
GE DS200TCQCG1BJF Analog I/O Expander Board
GE DS200TCQCG1BKG RST Overflow Board
GE DS200TCCAG2AJB I/O Board
GE DS200TCDAH1B Digital I/O Board
GE DS200TCRAG1A Relay Output Board
For replacement procurement, the safest approach is to match the complete DS200TCQCG1BJG part number, inspect the installed board's revision and jumper configuration, and confirm compatibility with the specific GE Mark V turbine-control system.
Applications
The GE DS200TCQCG1BJG Mark V RST Overflow Plate is a dedicated circuit board used within GE Speedtronic Mark V turbine control systems. The TCQC board is associated with RST overflow and analog I/O expansion functions, providing additional signal-handling capability within the turbine control architecture.
In a Mark V installation, this board works as part of a larger network of control, I/O, and interface boards. Its signal-processing functions are particularly relevant to turbine applications where digital control commands must be interfaced with analog field signals and servo-control equipment.
Typical applications include:
GE Mark V Speedtronic turbine control systems
Gas turbine control and monitoring
Steam turbine control applications
Industrial power-generation equipment
Servo valve control
Analog I/O signal expansion
LVDT/LVDR-related signal interfaces
Turbine retrofit and modernization projects
Mark V control-board replacement
Industrial automation maintenance
Advantages
Purpose-built Mark V design
The DS200TCQCG1BJG is designed specifically for the GE Mark V control architecture. It is therefore suited to legacy turbine-control installations where maintaining the original system structure is important.
RST overflow functionality
The board provides additional signal-handling resources within the R, S, and T control architecture, helping accommodate I/O requirements that exceed the capacity of the primary control boards.
Servo-control signal interface
The TCQC architecture is associated with converting digital control information into analog current signals used by downstream conversion and amplification circuitry for servo applications.
Multiple system connections
The board incorporates multiple cable and header interfaces, allowing it to communicate with associated control boards and field-interface hardware.
Configurable hardware
The board uses hardware jumpers for configuration. This gives maintenance personnel the ability to preserve installation-specific settings when replacing an existing board.
Suitable for legacy turbine maintenance
For facilities continuing to operate GE Mark V systems, the DS200TCQCG1BJG provides a practical replacement option for maintaining existing turbine-control equipment without unnecessarily replacing the complete control platform.
Technical FAQs
1. What is the GE DS200TCQCG1BJG?
The DS200TCQCG1BJG is a GE Mark V RST Overflow Plate used for analog I/O expansion and signal-interface functions within compatible Speedtronic turbine control systems.
2. What does RST Overflow mean in the Mark V system?
RST Overflow refers to additional I/O resources associated with the R, S, and T control sections of the Mark V architecture. The TCQC board provides additional signal-handling capability within this structure.
3. What type of turbine systems use the DS200TCQCG1BJG?
The board is intended for compatible GE Mark V Speedtronic turbine control systems, particularly installations used for industrial gas turbine applications.
4. Is the DS200TCQCG1BJG an analog I/O board?
Yes. It is associated with analog I/O expansion and signal conversion functions, although it is a dedicated Mark V board rather than a general-purpose PLC analog I/O module.
5. Does the board support servo valve control?
The TCQC architecture is associated with converting digital outputs into analog current signals that can be processed through digital-to-analog conversion and amplification circuitry for servo valve control.
6. How many configurable jumpers are associated with the board?
The DS200TCQCG1BJG is commonly identified with 37 hardware jumpers. Their settings should be documented carefully before replacing an installed board.
7. What connectors are used on the DS200TCQCG1BJG?
The board is associated with three 40-pin connectors, three 34-pin connectors, and one 16-pin connector. Cable positions should be documented before removal during maintenance.
8. What could cause this board to malfunction?
Potential causes include component aging, electrical overstress, power disturbances, excessive heat, contamination, connector problems, and faults in connected field wiring or external devices.
9. What should be checked before replacing the board?
Check the system diagnostic information, board power conditions, connectors, associated terminal boards, external wiring, signal paths, and jumper configuration. The complete part number should also be verified.
10. Is DS200TCQCG1BJG interchangeable with another TCQC board?
Not necessarily. Different DS200TCQC boards can have different revisions and configurations. The exact part number, hardware revision, connector arrangement, and application should be confirmed before substitution.
