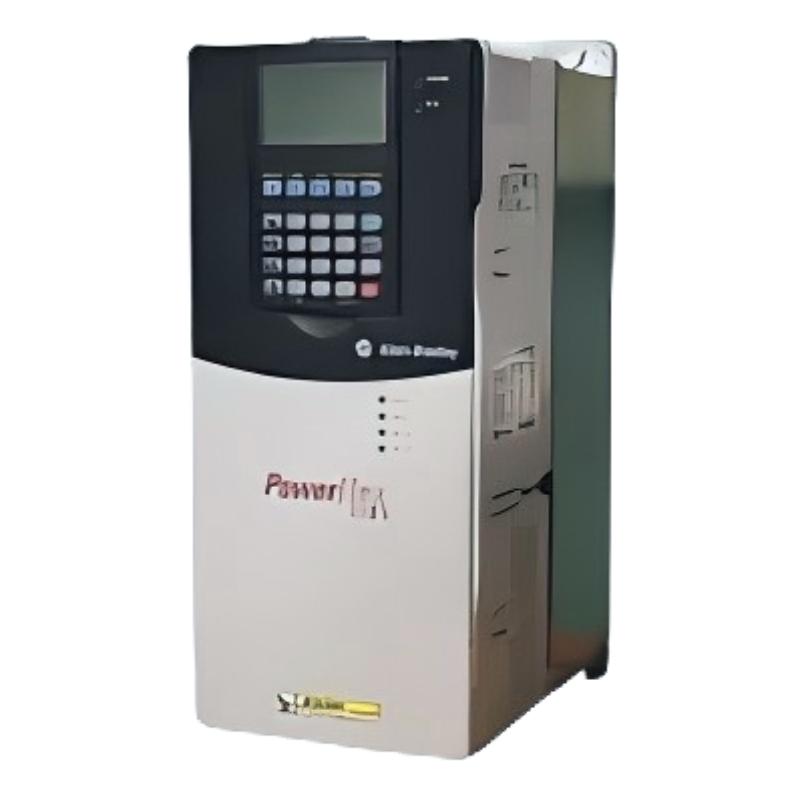

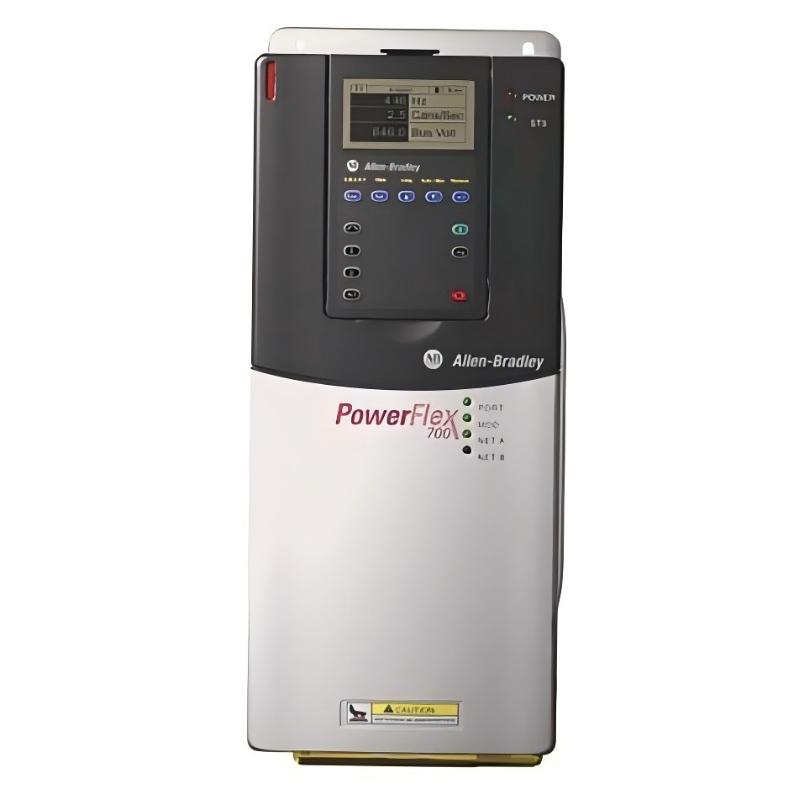

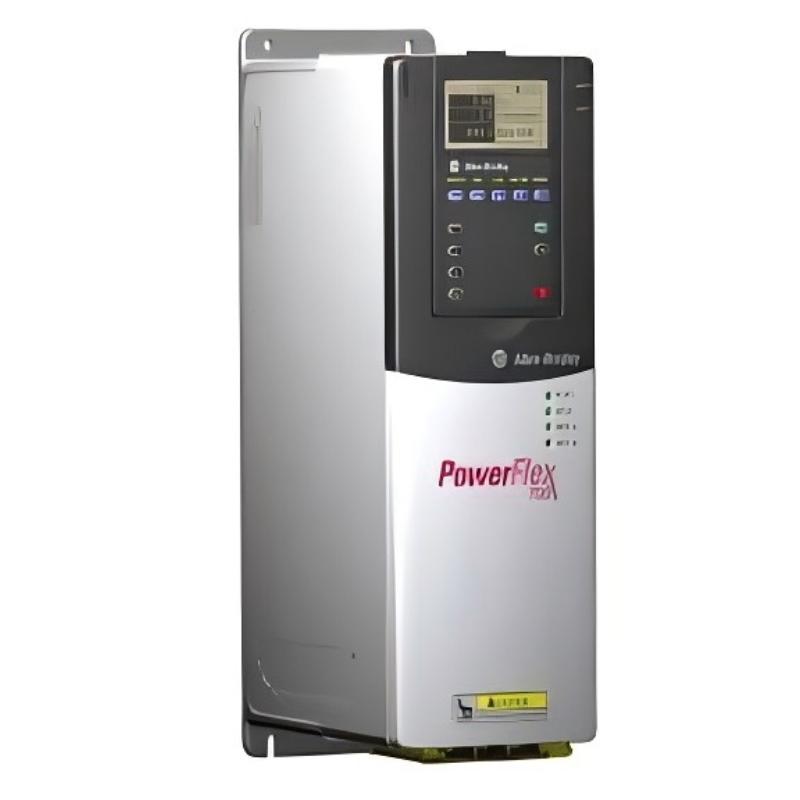

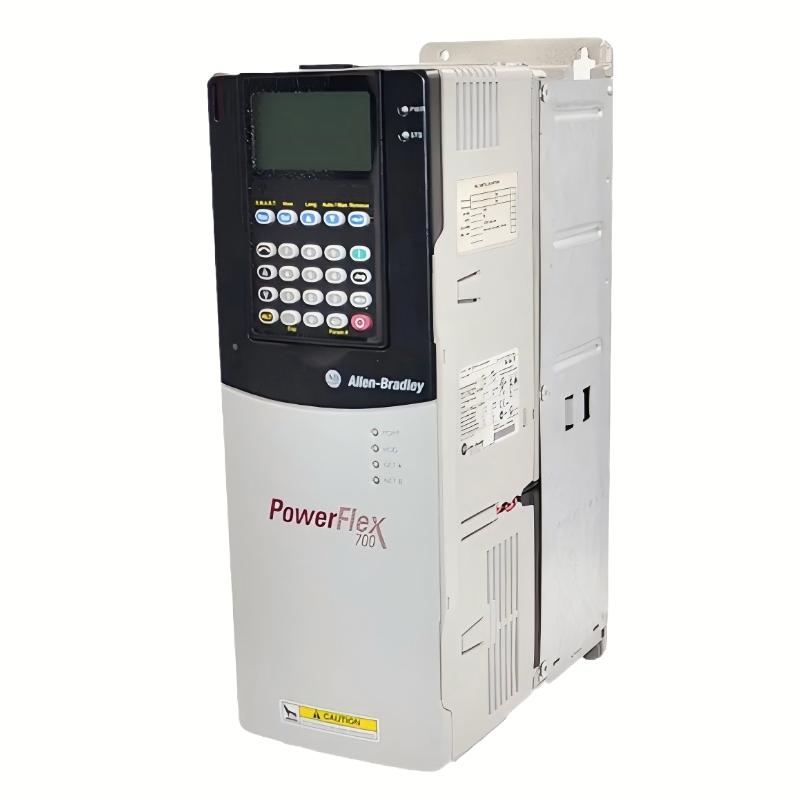

Allen Bradley 20BD022A3AYNAND1NNAD PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BD022A3AYNAND1NNAD PowerFlex 700 AC Drive can be used in a wide range of industrial motor-control systems where adjustable-speed operation and controlled acceleration or deceleration are required.

Typical applications include:

• Conveyor and material handling systems
• Industrial pumps and water-treatment equipment
• Fans and ventilation systems
• Compressors and process machinery
• Packaging and production equipment
• Machine tools and automated machinery
• Extrusion and manufacturing lines
• Hoisting and material-positioning applications
• General-purpose industrial motor control
• OEM machinery and automated production systems

The drive is particularly useful where the motor needs controlled starting, stopping, speed adjustment, or improved process control instead of operating continuously at a fixed line frequency.

For replacement projects, engineers should verify the existing motor data, drive rating, control method, enclosure requirements, I/O configuration, and system communication architecture before installation.

Advantages

Flexible AC Motor Control
The PowerFlex 700 platform provides programmable motor-control functions suitable for a variety of industrial applications. Parameters can be configured according to the motor, load characteristics, acceleration requirements, and control strategy.

Suitable for Industrial Automation Systems
The drive is designed to operate within larger automation systems and can be integrated with PLC-based control architectures. This makes it suitable for centralized machine control as well as distributed industrial equipment.

Programmable Operation
Motor speed, acceleration, deceleration, current limits, control modes, and other operating parameters can be configured according to application requirements.

Reliable Motor Starting and Stopping
Controlled acceleration and deceleration can reduce mechanical shock compared with direct-on-line motor starting, helping improve the operating behavior of connected machinery.

Useful for Replacement and Maintenance
For industrial plants maintaining older PowerFlex installations, the 20BD022A3AYNAND1NNAD can be considered when replacing an existing PowerFlex 700 drive, provided the complete catalog configuration and electrical requirements are matched.

Industrial Serviceability
The PowerFlex 700 family was designed for industrial environments where technicians need access to drive parameters, diagnostics, and operating information during commissioning and maintenance.

Broad Application Range
The same drive family can be applied to different types of motor-driven equipment, reducing the need for completely different drive platforms across an automation project.

Technical FAQs

1. What is the Allen Bradley 20BD022A3AYNAND1NNAD?
The 20BD022A3AYNAND1NNAD is an Allen Bradley PowerFlex 700 AC drive used for adjustable-speed control of industrial motors. It is intended for applications requiring controlled motor speed, acceleration, deceleration, and process operation.

2. What type of motor can be controlled by this PowerFlex 700 drive?
The drive is intended primarily for industrial AC motor applications. The exact motor type, voltage, current, power rating, and control method must be checked against the complete drive configuration and the motor nameplate before commissioning.

3. What should be checked before replacing an existing PowerFlex 700 drive?
Technicians should compare the complete catalog number, input voltage, output rating, motor current, enclosure configuration, control board configuration, I/O requirements, communication options, and firmware or parameter requirements.

4. Can the 20BD022A3AYNAND1NNAD be used with a PLC?
Yes. PowerFlex 700 drives are commonly incorporated into PLC-based industrial control systems. The actual control interface depends on the installed communication and I/O configuration.

5. What parameters should be configured during commissioning?
Important parameters normally include motor nameplate information, minimum and maximum frequency or speed, acceleration and deceleration times, control source, reference source, motor protection settings, current limits, and application-specific control parameters.

6. Why is correct motor nameplate data important?
Motor data directly affects drive control and protection functions. Incorrect voltage, current, frequency, speed, or power information can result in poor motor performance or inappropriate protection behavior.

7. What are common causes of a PowerFlex 700 drive fault?
Potential causes include motor overload, excessive current, input-power problems, incorrect motor parameters, excessive acceleration demand, mechanical overload, overtemperature, grounding problems, or communication-related conditions.

8. How should technicians approach troubleshooting?
Start by recording the displayed fault or alarm information, checking the drive status, reviewing recent parameter changes, inspecting incoming power and motor connections, and evaluating the mechanical load. Avoid replacing boards or major components before identifying the actual fault condition.

9. Can this drive be used for conveyor applications?
Yes. Adjustable-speed drives are commonly used on conveyors to provide controlled starting, stopping, and speed regulation. The final configuration should be selected according to conveyor load, motor rating, acceleration requirements, and braking requirements.

10. What should be considered when installing the drive in a control cabinet?
Technicians should provide appropriate ventilation, maintain required clearances, use suitable grounding, protect the drive from excessive dust and moisture, and route power and control wiring appropriately. Cabinet temperature and heat dissipation should also be considered during system design.
