Introduction

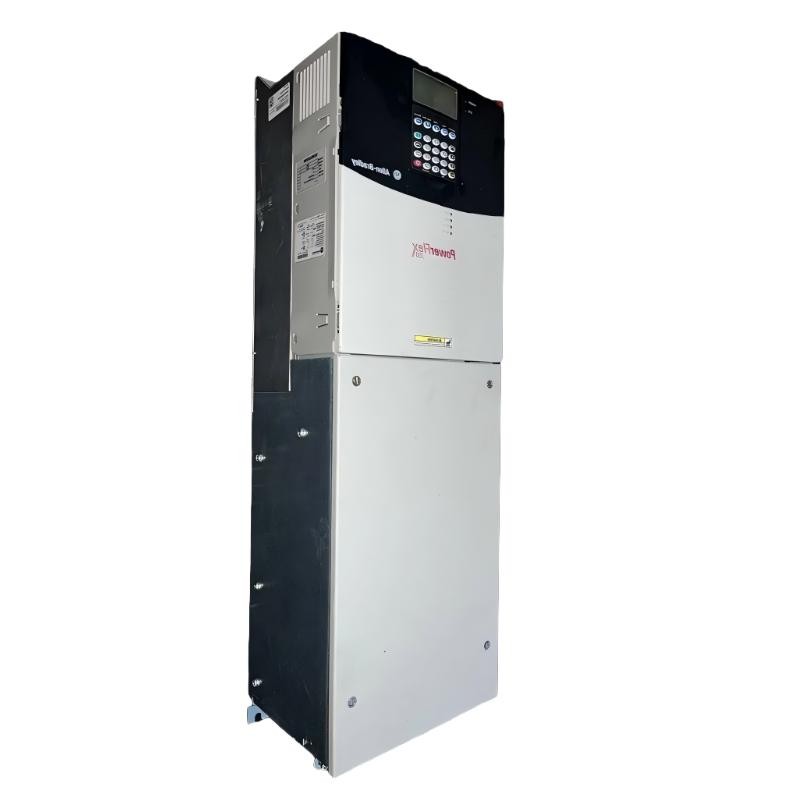

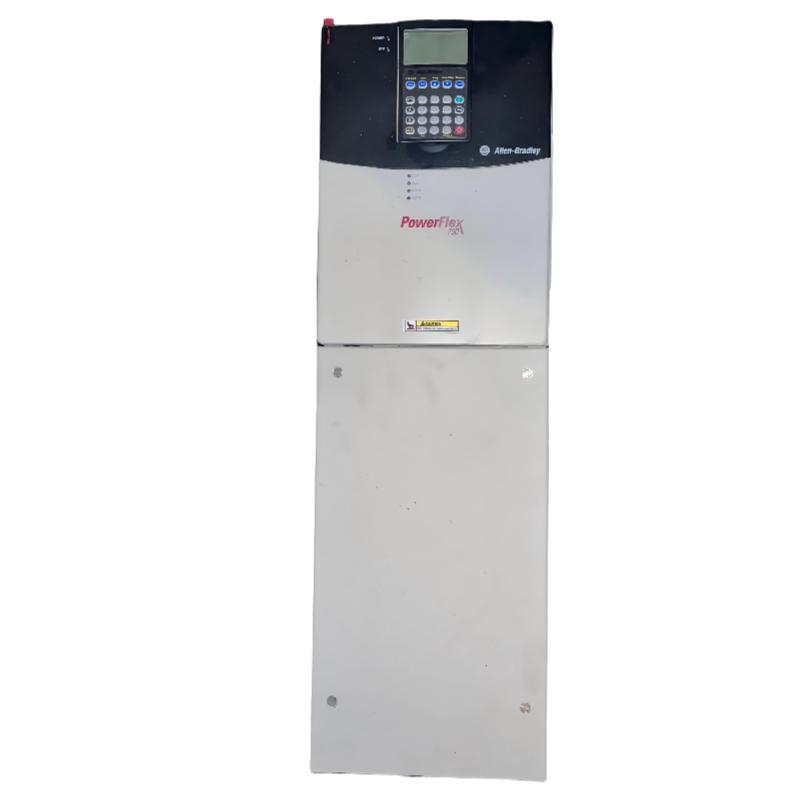

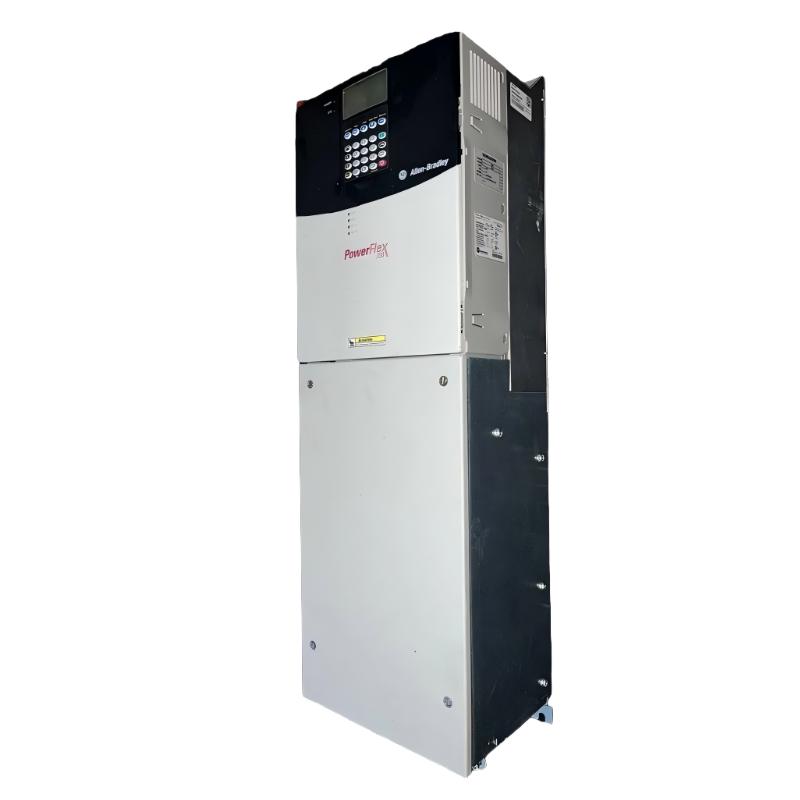

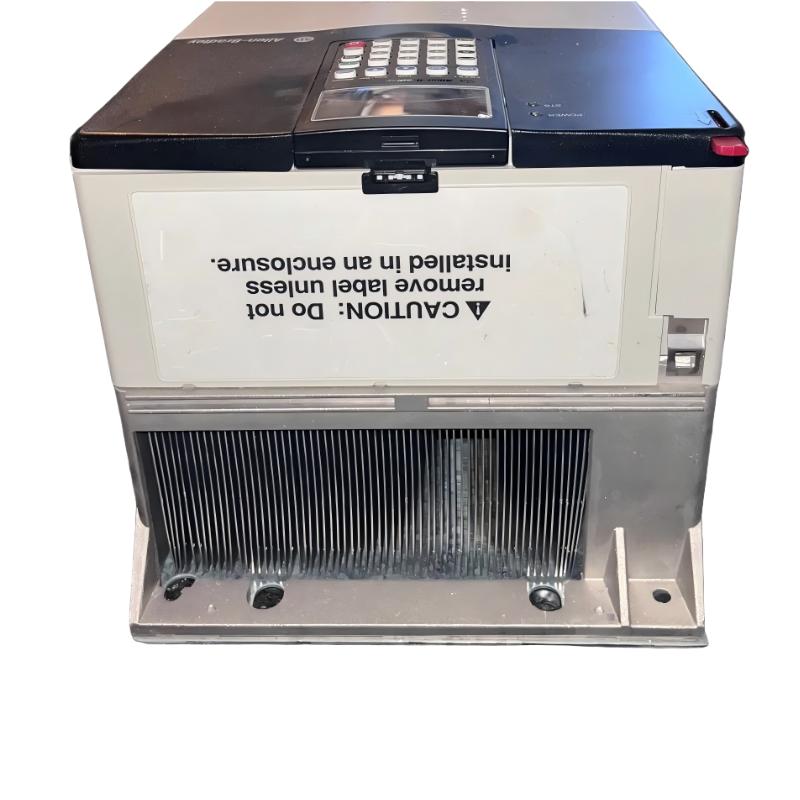

The Allen Bradley 20BD077A0ANNANA0 PowerFlex 700 AC Drive belongs to the PowerFlex 700 family of industrial variable frequency drives developed for adjustable-speed motor applications. It provides controlled voltage and frequency output to an AC motor, allowing industrial equipment to operate at a controlled speed rather than being restricted to the fixed speed of the incoming electrical supply.

This particular configuration is rated for 480 VAC three-phase operation and provides 77 A of output current. Its application rating is 60 HP for normal duty and 50 HP for heavy duty. These characteristics make it suitable for substantial industrial motor loads, including conveyors, pumps, fans, compressors, and manufacturing machinery.

An important characteristic of the 20BD077A0ANNANA0 is its configuration without a factory-installed communication module. Unlike PowerFlex 700 variants equipped with ControlNet, DeviceNet, or other communication options, this configuration provides a standard control arrangement with 24 V I/O. This makes it suitable for systems where the drive is controlled through discrete signals or where communication hardware is added separately according to project requirements.

The drive is also supplied without encoder feedback. For applications that do not require closed-loop speed regulation, sensorless vector control can provide a practical method of controlling motor speed and torque without installing an encoder on the motor.

Another configuration detail is the absence of a brake IGBT and drive-mounted braking resistor. This should be considered carefully in applications involving high-inertia loads, rapid deceleration, or frequent stopping. Where regenerative or dynamic braking is necessary, the braking solution should be designed around the actual motor and load characteristics.

The integrated EMC filter and common-mode choke are useful features for industrial installations where electromagnetic compatibility must be considered. Correct grounding, cable routing, cabinet design, and motor-cable installation remain important regardless of the drive's integrated filtering.

For maintenance teams, the full catalog number is essential when identifying this unit. PowerFlex 700 drives with similar current and horsepower ratings can have different communication, feedback, braking, and control configurations. A visually similar drive may therefore not be a suitable direct replacement.

Before commissioning a replacement 20BD077A0ANNANA0, technicians should record the motor nameplate information and existing drive parameters, inspect power and control wiring, verify grounding, and confirm the intended start/stop and speed-reference sources. These steps can reduce commissioning time and help prevent avoidable drive faults.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Product Family	PowerFlex 700
Model	20BD077A0ANNANA0
Product Type	AC Drive / Adjustable Frequency Drive
Drive Series	PowerFlex 700 / 20B
Input Voltage	480 VAC
Input Phase	3-Phase
Rated Output Current	77 A
Normal-Duty Rating	60 HP
Heavy-Duty Rating	50 HP
Motor Control	Sensorless Vector / V/Hz
Control I/O	Standard 24 V I/O
Communication Module	None Factory Installed
Feedback	No Encoder Feedback
Human Interface Module	Blank Plate / No HIM
Brake IGBT	None
Drive-Mounted Brake Resistor	None
EMC Filter	Integrated EMC Filter
Common-Mode Choke	Included
Enclosure	IP20 / NEMA Type 1
Dimensions	758.8 × 201.7 × 220 mm
Weight	24.49 kg / 53.99 lb

Configuration note: The electrical configuration should be verified from the actual product nameplate before installation. The dimensions and weight above are based on the supplied product data.

Recommended Related Models

The following PowerFlex models are useful for comparison when sourcing replacement equipment or evaluating similar drive configurations:

Allen Bradley 20BD077A0ANNANC0 PowerFlex 700 AC Drive
Allen Bradley 20BD077A0ANNACC1 PowerFlex 700 AC Drive
Allen Bradley 20BD077A0ANNANB0 PowerFlex 700 AC Drive
Allen Bradley 20BD096A0ANNANA0 PowerFlex 700 AC Drive
Allen Bradley 20BD125A0ANNANA0 PowerFlex 700 AC Drive
Allen Bradley 20AD065A0AYNANC0 PowerFlex 70 AC Drive

These models have different configurations and ratings. They should not be treated as automatic drop-in replacements without checking the complete electrical and control requirements.

Popular Related Models

For Allen Bradley industrial drive maintenance and automation applications, the following models are also relevant:

Allen Bradley 20AD5P0A0AYYNNG0 PowerFlex 70 AC Drive
Allen Bradley 20F1ANC205JA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20P21AD207RA0NNN PowerFlex DC Drive
Allen Bradley 25B PowerFlex 525 AC Drive
Allen Bradley 22B PowerFlex 40 AC Drive
Allen Bradley 20G PowerFlex 755 AC Drive

When purchasing a replacement for the 20BD077A0ANNANA0, always match the complete catalog number and verify the drive's voltage, current, duty rating, control configuration, feedback requirements, communication hardware, braking arrangement, and enclosure requirements.

Applications

The Allen Bradley 20BD077A0ANNANA0 is designed for adjustable-speed control of three-phase AC induction motors across a broad range of industrial equipment.

Typical applications include:

Conveyor systems
Industrial pumps
Cooling and ventilation fans
Compressors
Mixers and agitators
Packaging machinery
Material handling equipment
Manufacturing machinery
Process automation equipment
HVAC systems
Water and wastewater equipment
Mining and bulk-material handling
General-purpose OEM machinery

The 77 A output rating makes this drive suitable for relatively high-power motor applications where smaller PowerFlex drives may not provide sufficient current capacity.

For replacement installations, engineers should compare the complete catalog number and existing system configuration rather than selecting a drive based only on horsepower.

Advantages

High-Capacity Motor Control
With a 77 A output rating, the 20BD077A0ANNANA0 can support motors up to 60 HP in normal-duty applications and 50 HP in heavy-duty applications.

480 VAC Three-Phase Configuration
The drive is designed for industrial 480 VAC three-phase power systems, making it suitable for common North American industrial power architectures.

Sensorless Vector Control
The PowerFlex 700 platform provides sensorless vector control for applications requiring better motor speed and torque regulation than basic V/Hz control.

Standard 24 V I/O Control
The standard control configuration provides 24 V I/O for connection to external control circuits, PLC systems, interlocks, and machine-control equipment.

No Factory Communication Module
This specific catalog configuration does not include an internal communication module. This can be useful where the application uses hardwired I/O or where communication requirements are determined separately during system configuration.

No Encoder Feedback Requirement
The 20BD077A0ANNANA0 is configured without encoder feedback, making it appropriate for applications that can achieve the required speed regulation through sensorless control.

Integrated EMC Filtering
The drive includes an EMC filter and common-mode choke, helping support electromagnetic compatibility in suitable installations.

Industrial Protection Functions
PowerFlex 700 drives incorporate monitoring and protection functions for conditions such as overcurrent, overload, overvoltage, undervoltage, overheating, and ground faults.

Practical Replacement Solution
The complete catalog number identifies important configuration details, making the 20BD077A0ANNANA0 particularly relevant when matching an existing PowerFlex 700 installation.

Technical FAQs

1. What is the Allen Bradley 20BD077A0ANNANA0?
The 20BD077A0ANNANA0 is an Allen Bradley PowerFlex 700 adjustable frequency AC drive designed for three-phase industrial motor control. It is rated at 77 A and supports 60 HP normal-duty applications.

2. What is the input voltage of the 20BD077A0ANNANA0?
This model is configured for 480 VAC three-phase input power. The actual plant supply should always be verified against the drive nameplate before connection.

3. What is the output current rating?
The drive has a 77 A output rating. Motor selection should be based on actual motor full-load current and duty requirements in addition to the nominal horsepower.

4. What horsepower motor can this drive control?
The catalog configuration supports 60 HP under normal-duty conditions and 50 HP under heavy-duty conditions. Application loading and motor current should be evaluated before commissioning.

5. Does the 20BD077A0ANNANA0 include a communication module?
No. This configuration is supplied without a factory-installed communication module. Its standard control arrangement can be used with hardwired control, while suitable optional communication hardware can be considered when required by the automation architecture.

6. Does this model support encoder feedback?
The 20BD077A0ANNANA0 is configured without encoder feedback. It is therefore intended for applications where sensorless motor control provides adequate speed and torque performance.

7. Does the drive include a braking resistor?
No. This configuration does not include a drive-mounted brake resistor and does not have a brake IGBT. Applications requiring dynamic braking need an appropriately engineered external braking arrangement.

8. Does the drive include a Human Interface Module?
No. The catalog configuration uses a blank plate rather than a factory-installed HIM. A compatible interface can be selected separately when local parameter access or operator interaction is required.

9. What are common causes of PowerFlex 700 drive faults?
Common causes include motor overload, excessive current, incorrect motor parameters, mechanical problems, unstable incoming power, inadequate cooling, ground faults, and inappropriate acceleration or deceleration settings. Troubleshooting should begin with the actual fault code and operating conditions.

10. What should be checked when replacing this drive?
Verify the input voltage, output current, motor horsepower, duty rating, control I/O, feedback configuration, communication requirements, braking configuration, EMC requirements, and complete catalog number. Existing parameters should also be documented before replacing an operating drive whenever possible.
