Introduction

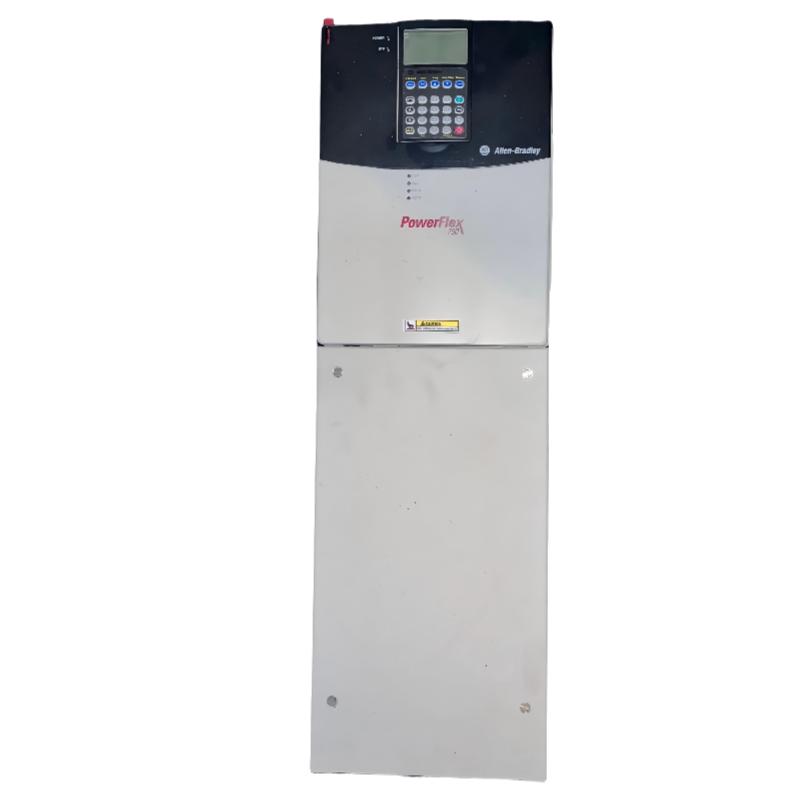

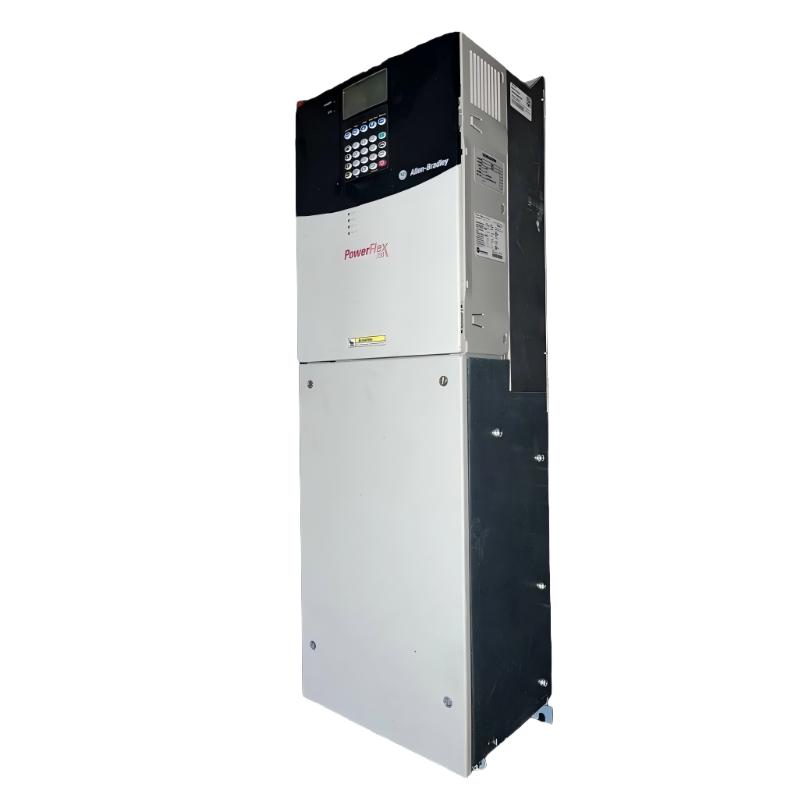

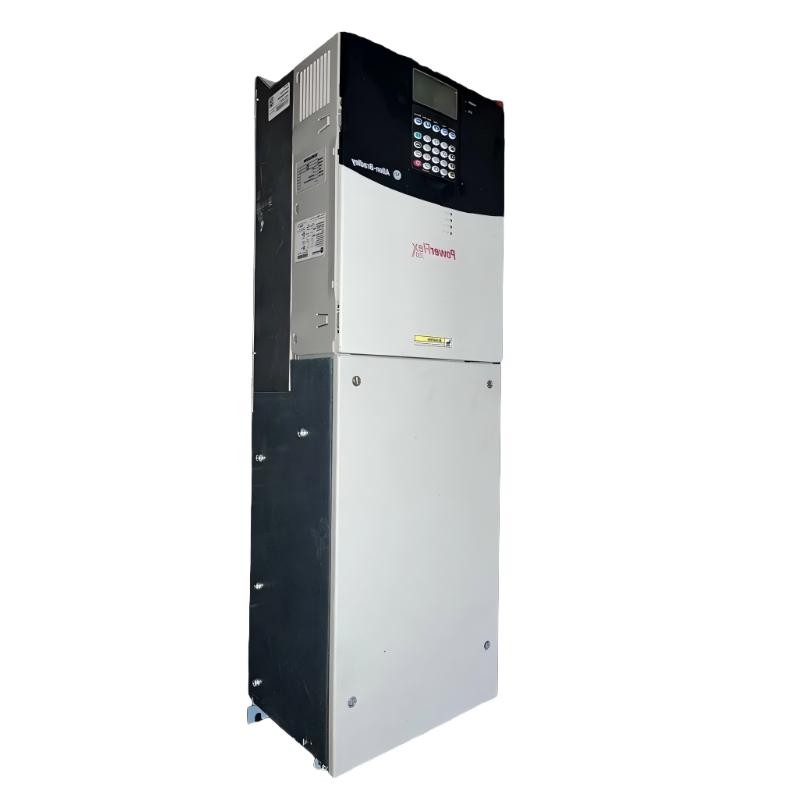

The Allen Bradley 20BD077A0ANNANB0 PowerFlex 700 AC Drive is designed for industrial applications requiring controlled-speed operation of three-phase AC motors. Instead of connecting the motor directly to a fixed-frequency supply, the drive regulates the electrical output supplied to the motor, allowing the operating speed and acceleration characteristics to be controlled according to the application.

With a 77 A output rating, this drive is intended for substantially larger motor loads than many compact variable frequency drives. It can therefore be considered for heavy industrial machinery, conveyors, pumps, fans, compressors, and process equipment where stable motor control is important.

The PowerFlex 700 platform provides programmable control functions that allow engineers to configure the drive around the requirements of the motor and mechanical load. During commissioning, motor nameplate information should be entered accurately, and the selected control mode should be appropriate for the application's speed and torque requirements.

In an automated production environment, the drive can operate as part of a larger control system. PLC commands can be used to initiate operation, select direction, control speed references, and monitor drive status through the available I/O or communication architecture.

For maintenance engineers, one of the most important aspects of this product is its complete catalog number. PowerFlex 700 drives with similar physical appearances can differ in communication options, feedback capability, braking hardware, input configuration, and other electrical characteristics. The 20BD077A0ANNANB0 should therefore be identified by its complete catalog number when ordering a replacement.

During replacement work, technicians should first isolate the incoming power and follow the plant's electrical safety procedures. Existing wiring should be documented before removal, particularly control wiring and any external interface connections. After installation, the motor data, control source, speed reference, and protective parameters should be checked before running the equipment under normal load.

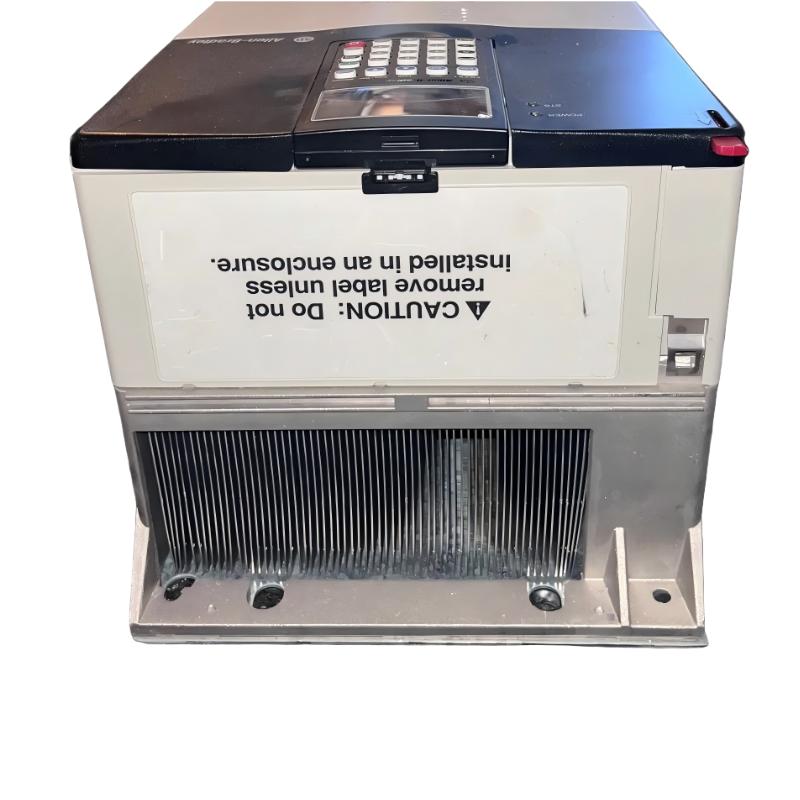

The drive's cabinet installation also requires attention to thermal management. A high-power variable frequency drive produces heat during operation, and inadequate cabinet ventilation can cause elevated internal temperatures and unnecessary stress on electronic components. Appropriate spacing, airflow, grounding, and cable routing should therefore be incorporated into the installation.

For applications involving high-inertia loads or frequent deceleration, engineers should also evaluate the braking requirements separately. The braking arrangement should be selected according to the motor, load inertia, stopping time, duty cycle, and regenerative energy produced during deceleration.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Product Family	PowerFlex 700
Model	20BD077A0ANNANB0
Product Type	AC Drive / Adjustable Frequency Drive
Drive Series	20B
Input Voltage Class	480 VAC
Input Phase	Three-Phase
Output Current	77 A
Normal-Duty Application	Up to 60 HP
Heavy-Duty Application	Up to 50 HP
Motor Control	Vector Control / V/Hz
Control I/O	24 V I/O
Communication	Configuration dependent
Feedback	Configuration dependent
Installation	Industrial Control Cabinet
Dimensions	758.8 × 201.7 × 220 mm
Weight	24.49 kg / 53.99 lb

Important: Always verify the actual drive nameplate and complete catalog configuration before installation. The dimensions and weight above are based on the product information supplied for this unit.

Recommended Related Models

The following Allen Bradley models may be considered when comparing PowerFlex 700 configurations or sourcing equipment for related motor-control applications:

Allen Bradley 20BD077A0ANNANA0 PowerFlex 700 AC Drive
Allen Bradley 20BD077A0ANNACC1 PowerFlex 700 AC Drive
Allen Bradley 20BD077A0ANNANC0 PowerFlex 700 AC Drive
Allen Bradley 20BD096A0ANNANA0 PowerFlex 700 AC Drive
Allen Bradley 20BD125A0ANNANA0 PowerFlex 700 AC Drive
Allen Bradley 20AD5P0A0AYYNNG0 PowerFlex 70 AC Drive

These models should not automatically be considered direct replacements. Voltage, current rating, duty class, communication, feedback, braking, enclosure, and control requirements must be compared before substitution.

Popular Related Models

For Allen Bradley industrial automation and variable frequency drive applications, the following models are also relevant:

Allen Bradley 20AD5P0A0AYYNNG0 PowerFlex 70 AC Drive
Allen Bradley 20F1ANC205JA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20P21AD207RA0NNN PowerFlex DC Drive
Allen Bradley 25B PowerFlex 525 AC Drive
Allen Bradley 22B PowerFlex 40 AC Drive
Allen Bradley 20G PowerFlex 755 AC Drive

When purchasing a replacement for the 20BD077A0ANNANB0, compare the complete catalog number rather than relying only on the PowerFlex 700 product family. Particular attention should be given to the input voltage, 77 A output rating, motor duty, control configuration, communication requirements, feedback, braking arrangement, and cabinet installation conditions.

Applications

The Allen Bradley 20BD077A0ANNANB0 can be used in industrial systems requiring reliable variable-speed control of larger AC motors.

Typical applications include:

Conveyor and material handling systems
Industrial pumps and pumping stations
Cooling tower and ventilation fans
Air and process compressors
Mixers and agitators
Extrusion equipment
Packaging machinery
Machine tools
Manufacturing production lines
Process-control equipment
Water and wastewater systems
Bulk-material handling equipment
Industrial HVAC systems
OEM machinery

The drive can provide controlled motor starting, stopping, acceleration, deceleration, and speed regulation. This makes it useful in applications where direct-on-line motor operation would provide insufficient process flexibility or excessive mechanical stress.

For replacement projects, the complete catalog number should be checked carefully because PowerFlex 700 drives with similar current ratings can have different hardware and control configurations.

Advantages

77 A Output Capacity
The 20BD077A0ANNANB0 is designed for relatively high-power industrial motor applications, providing a 77 A output rating suitable for demanding loads.

PowerFlex 700 Vector Control
The PowerFlex 700 platform supports advanced motor-control functions that can provide improved speed and torque regulation compared with basic fixed-frequency operation.

480 VAC Three-Phase Operation
The drive is suitable for industrial 480 VAC three-phase power systems commonly used in manufacturing and process facilities.

Programmable Motor Control
Technicians can configure motor and operating parameters according to the requirements of the connected equipment, including speed references, acceleration, deceleration, current limits, and protection settings.

24 V I/O Control
The control architecture provides 24 V I/O for connection to PLC systems, external control circuits, interlocks, pushbuttons, and other automation equipment.

Suitable for Large Industrial Loads
The 77 A capacity makes this PowerFlex 700 configuration appropriate for applications where smaller drives may not provide sufficient motor current.

Industrial Protection Functions
The drive monitors operating conditions and provides protective functions intended to help address conditions such as overcurrent, overload, overvoltage, undervoltage, overtemperature, and ground faults.

Practical for Maintenance and Replacement
The full catalog number identifies the specific drive configuration, making it useful when sourcing a spare unit for an existing PowerFlex 700 installation.

Flexible Integration
The PowerFlex 700 family can be integrated into larger Allen Bradley automation systems through appropriate I/O and communication configurations.

Technical FAQs

1. What is the Allen Bradley 20BD077A0ANNANB0?
The 20BD077A0ANNANB0 is an Allen Bradley PowerFlex 700 AC drive designed for adjustable-speed control of industrial three-phase AC motors.

2. What is the output current rating of this drive?
The specified drive has a 77 A output rating. Motor compatibility should be determined from the actual motor full-load current and required duty rating.

3. What type of power supply does the drive use?
This PowerFlex 700 configuration belongs to the 480 VAC three-phase class. The actual incoming supply should always be verified against the drive nameplate before energization.

4. What motor applications are suitable for this drive?
It can be applied to many industrial AC motor loads, including conveyors, pumps, fans, compressors, mixers, and manufacturing machinery. The appropriate control mode depends on the characteristics of the motor and load.

5. Can the 20BD077A0ANNANB0 be controlled by a PLC?
Yes. PowerFlex 700 drives can be integrated with PLC-based automation systems using appropriate hardwired I/O or compatible communication hardware.

6. Does the drive require an encoder?
Not every PowerFlex 700 application requires encoder feedback. The appropriate feedback configuration depends on the specific drive hardware and the required speed and torque regulation.

7. What should be checked before commissioning the drive?
Verify incoming voltage, motor nameplate data, motor connections, grounding, control wiring, start/stop commands, speed-reference source, acceleration and deceleration settings, and application-specific protection parameters.

8. What can cause an overcurrent fault?
Possible causes include an overloaded motor, excessive acceleration demand, mechanical binding, incorrect motor data, shorted motor wiring, ground faults, or an unsuitable control configuration. The actual fault code and operating conditions should be examined before replacing components.

9. How can overheating problems be reduced?
Ensure that the drive has adequate ventilation and clearance, that cooling paths are not obstructed, and that cabinet temperature remains within the specified operating range. Excessive ambient temperature and continuous operation near maximum load can increase thermal stress.

10. Why is the complete catalog number important when ordering a replacement?
PowerFlex 700 products are available with different voltage, current, communication, feedback, braking, filtering, and control configurations. Matching only the general PowerFlex 700 family is not sufficient for a reliable replacement.
