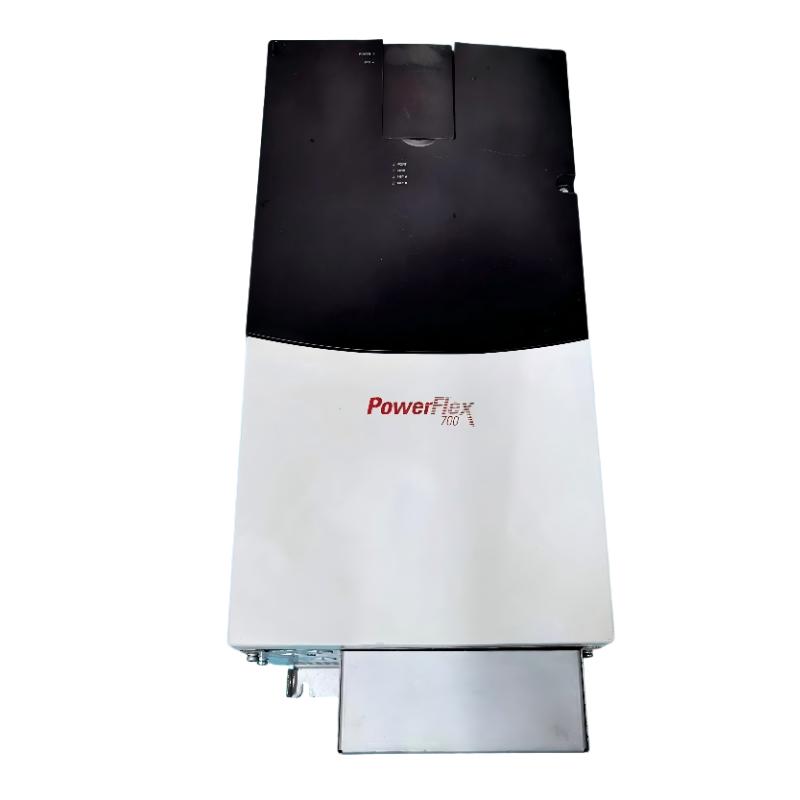

Allen Bradley 20BC140A3ANNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC140A3ANNADC0 PowerFlex 700 AC Drive is designed for industrial AC motor control applications that require reliable variable-speed operation, controlled acceleration and deceleration, and integration with automated production systems.

Typical applications include:

• Industrial conveyors and material-handling systems
• Pumps and water-treatment equipment
• Fans and blowers
• Compressors
• Extrusion and plastic-processing machinery
• Packaging and production equipment
• Mixers and agitators
• Machine tools
• Process manufacturing equipment
• Large rotating machinery
• Automated material-handling systems
• Industrial production lines

The 20BC140A3ANNADC0 is suitable for applications where a higher-power drive is required to regulate motor speed and torque. Before installation, engineers should verify the motor voltage, full-load current, duty requirements, enclosure arrangement, braking requirements, feedback configuration, and communication architecture against the existing system.

Advantages

High-current PowerFlex 700 platform

The 20BC140A3ANNADC0 belongs to the higher-current PowerFlex 700 family and is intended for demanding industrial motor-control applications. Its current class makes it suitable for larger motors and machinery than many compact PowerFlex products.

Controlled motor acceleration and deceleration

Using an AC drive allows the motor to accelerate and decelerate according to configured ramps. This can reduce mechanical shock on conveyors, pumps, fans, and other rotating equipment.

Flexible industrial motor control

PowerFlex 700 drives were designed for industrial applications requiring more advanced motor-control functionality than basic variable-speed applications. The drive can be incorporated into a broader automation system containing PLCs, HMIs, sensors, and other control equipment.

Suitable for industrial retrofit projects

The PowerFlex 700 series has been widely used in industrial installations. The 20BC140A3ANNADC0 can be considered for maintenance and retrofit projects when the complete catalog configuration and electrical requirements are properly matched.

Improved process control

Variable-speed operation allows machine speed to be adjusted according to process requirements. For applications such as conveyors, pumps, and fans, this can provide better control than fixed-speed motor operation.

Diagnostic capability

Drive status and fault information can assist maintenance personnel in identifying problems involving motor loading, control commands, configuration, power conditions, and other operating conditions.

Integration with Allen Bradley automation

The PowerFlex 700 family can be integrated into Allen Bradley control architectures. Depending on the specific drive configuration and installed communication hardware, the drive can exchange operating commands, references, status information, and diagnostic data with a PLC or other controller.

Technical FAQs

1. What is the Allen Bradley 20BC140A3ANNADC0?

The Allen Bradley 20BC140A3ANNADC0 is a PowerFlex 700 AC Drive used to control the speed and operation of industrial AC motors. It is intended for higher-power industrial motor-control applications.

2. What should be checked before installing this drive?

Verify the incoming supply voltage, motor voltage, motor full-load current, drive current rating, duty cycle, grounding, motor cable arrangement, cabinet ventilation, control wiring, braking requirements, feedback configuration, and communication requirements.

3. How should the drive be commissioned?

After confirming the power and control wiring, enter the motor nameplate information into the appropriate drive parameters. Check the run command and speed reference, verify motor rotation, perform a low-speed test, and then gradually test the machine across its required operating range.

4. Why is motor nameplate information important?

The drive uses motor information for its control algorithms. Incorrect voltage, current, frequency, or speed settings can lead to poor motor performance, excessive current, nuisance faults, or overheating.

5. What can cause an overcurrent condition?

Possible causes include excessive mechanical loading, a short circuit in the motor cable, motor insulation problems, an acceleration ramp that is too short, mechanical binding, incorrect motor parameters, or an unsuitable control configuration.

6. What should be checked when the motor does not run?

Check for active drive faults, missing enable signals, incorrect start-command sources, incorrect speed references, control interlocks, input power problems, and incorrect parameter settings. The drive's status information should be checked before replacing hardware.

7. Why might the drive overheat during normal operation?

Check cabinet temperature, airflow, cooling fans, heatsink contamination, installation clearances, motor load, drive loading, and switching-frequency settings. Persistent overheating should be investigated as a system-level problem rather than solved only by resetting the drive.

8. Can the 20BC140A3ANNADC0 communicate with a PLC?

PowerFlex 700 drives can be integrated with PLC-based automation systems. The actual communication method depends on the communication hardware installed in the particular drive configuration.

9. What can cause unstable motor speed?

Potential causes include incorrect motor parameters, unstable speed references, excessive load changes, inappropriate control settings, feedback problems where feedback is used, and insufficient tuning. Start troubleshooting by checking the drive's actual operating values and configuration.

10. Is this model interchangeable with other PowerFlex 700 drives?
