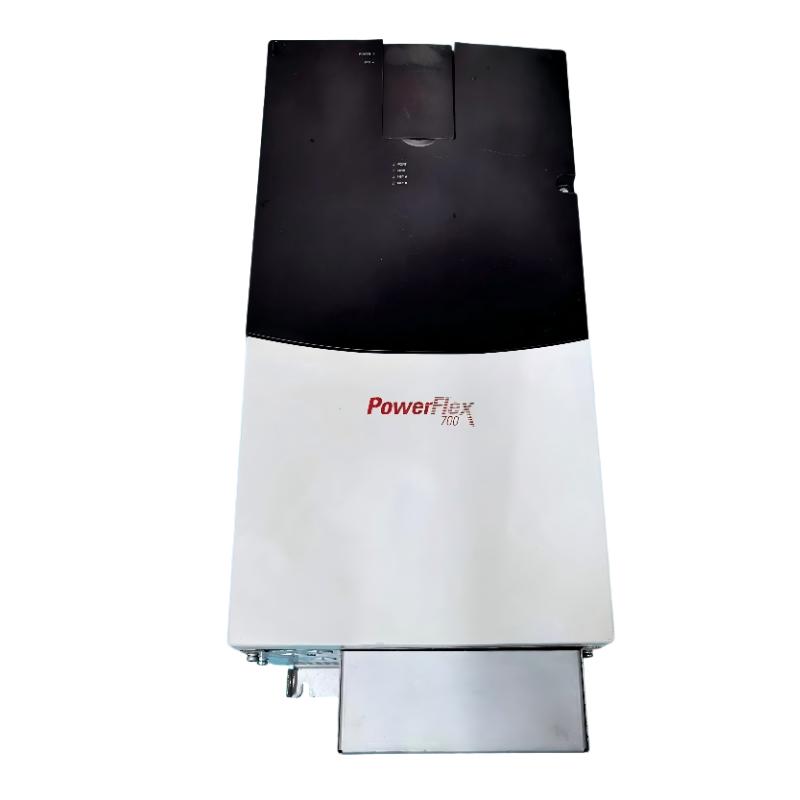

Allen Bradley 20BC140A3ANNAND0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC140A3ANNAND0 PowerFlex 700 AC Drive is an industrial variable frequency drive designed for controlling AC motors in demanding automation and manufacturing environments. As part of the PowerFlex 700 family, it is suitable for applications requiring reliable variable-speed operation, controlled acceleration and deceleration, and integration with industrial control systems.

Typical applications include:

• Conveyor and material-handling systems
• Industrial pumps and water-processing equipment
• Fans and blowers
• Compressors
• Extrusion and processing machinery
• Packaging and production lines
• Mixers and agitators
• Machine tools
• Industrial material-handling equipment
• Process-control machinery
• Large rotating equipment
• Automated manufacturing systems

The 20BC140A3ANNAND0 is particularly appropriate for higher-power motor-control applications where precise speed management and dependable operation are important. Before installation, engineers should verify the motor voltage, full-load current, duty requirements, braking configuration, feedback requirements, control architecture, and available cabinet space.

Advantages

High-current industrial motor control

The 20BC140A3ANNAND0 is part of the higher-current PowerFlex 700 range and is intended for industrial motor applications requiring substantial drive capacity. It can be applied to larger production machinery and continuous-duty equipment where compact low-power drives may not be appropriate.

Controlled acceleration and deceleration

The drive allows motor acceleration and deceleration to be configured according to the requirements of the machine. Proper ramp settings can reduce mechanical shock, improve process stability, and help protect belts, couplings, gearboxes, and other mechanical components.

Flexible variable-speed operation

Variable-frequency control allows motor speed to be adjusted according to production requirements. This is particularly useful for conveyors, pumps, fans, compressors, and processing machines where operating speed changes during production.

PowerFlex 700 industrial architecture

The PowerFlex 700 family was designed for industrial automation applications requiring flexible motor control and system integration. Depending on the specific configuration, the drive can work with PLCs, HMIs, communication networks, feedback devices, and other control equipment.

Suitable for retrofit applications

PowerFlex 700 drives have been widely used in industrial automation installations. The 20BC140A3ANNAND0 can be considered for maintenance and replacement projects where an existing PowerFlex-based system needs to be maintained or modernized.

Useful diagnostic functions

Drive status, operating parameters, and fault information provide maintenance technicians with useful information when investigating motor-control problems. Systematic diagnosis can help determine whether a problem originates from the drive, motor, wiring, control system, or mechanical load.

Integration with Allen Bradley control systems

The PowerFlex 700 platform can be integrated into Allen Bradley automation architectures. Depending on the installed configuration, operating commands, speed references, status signals, and diagnostic information can be exchanged with a PLC or other industrial controller.

Technical FAQs

1. What is the Allen Bradley 20BC140A3ANNAND0?

The Allen Bradley 20BC140A3ANNAND0 is a PowerFlex 700 AC Drive used for variable-speed control of industrial AC motors. It is designed for applications requiring higher motor-control capacity and integration with industrial automation systems.

2. What should be checked before installing the 20BC140A3ANNAND0?

Check the incoming supply, motor voltage, motor full-load current, drive rating, duty cycle, grounding, motor cable configuration, cabinet ventilation, control wiring, braking requirements, feedback requirements, and communication configuration.

3. How should this PowerFlex 700 drive be commissioned?

Verify the electrical installation first, including power, grounding, motor connections, control wiring, and safety interlocks. Enter the correct motor nameplate information, verify the command and reference sources, test motor rotation, and gradually increase operating speed during commissioning.

4. Why is correct motor data important?

Motor voltage, current, frequency, speed, and other nameplate information are important to the drive's motor-control algorithms. Incorrect settings can cause excessive current, poor speed regulation, nuisance trips, overheating, or unstable operation.

5. What can cause an overcurrent fault?

An overcurrent condition can result from excessive mechanical load, motor-cable faults, motor insulation problems, mechanical binding, aggressive acceleration settings, incorrect motor parameters, or an unsuitable control configuration. Both the electrical and mechanical systems should be inspected.

6. What should be checked if the motor does not start?

Check the drive status, active faults, run command, enable signal, speed reference, control source, interlocks, incoming power, and relevant parameters. If the drive is receiving the expected command but the motor still does not operate, further investigation of the drive output and motor circuit is required.

7. How can repeated overheating be diagnosed?

Check ambient temperature, cabinet ventilation, cooling fans, heatsink condition, installation clearance, motor load, drive loading, and operating settings. Continuous operation near the drive's maximum capacity may also require an engineering review of the application.

8. Can the 20BC140A3ANNAND0 be integrated with a PLC?

Yes. PowerFlex 700 drives can be integrated into PLC-based industrial automation systems. The specific communication method and available data depend on the communication hardware and configuration installed on the drive.

9. What causes unstable motor speed?

Possible causes include incorrect motor parameters, unstable speed-reference signals, large variations in mechanical load, inappropriate control settings, feedback problems where feedback is installed, or insufficient motor-control tuning.

10. Can the 20BC140A3ANNAND0 be directly substituted for another PowerFlex 700 drive?

Not necessarily. PowerFlex 700 catalog numbers can differ in voltage, current capacity, control configuration, braking, feedback, communication, filtering, and other options. The complete catalog number and application requirements should be checked before selecting a replacement.
