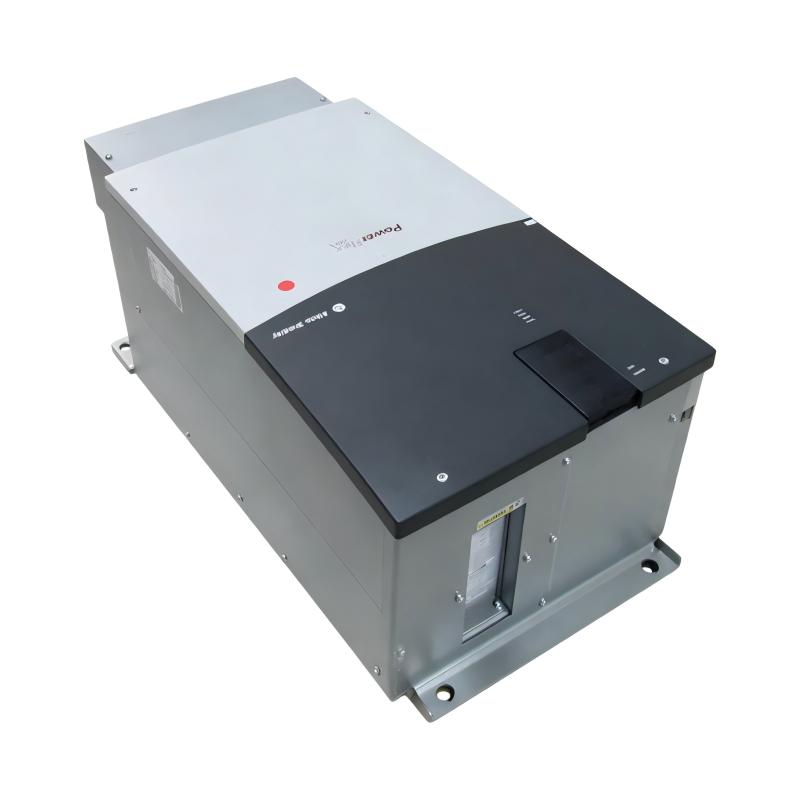

Allen Bradley 20BC260A3ANNAND0 PowerFlex 700 AC Drive

Applications

The 20BC260A3ANNAND0 is intended for industrial motor applications requiring controlled acceleration, deceleration, and variable-speed operation. Its PowerFlex 700 platform is particularly useful where motor performance needs to be coordinated with a PLC, distributed control system, or broader plant automation network.

Typical applications include:

• Industrial conveyor systems
• Pumps and process pumping equipment
• Fans and ventilation systems
• Compressors and rotating machinery
• Material handling equipment
• Machine tools and production machinery
• Packaging and processing lines
• Industrial mixers and agitators
• Large automated production systems
• Retrofit projects using Allen Bradley control equipment

In conveyor and material-handling applications, variable-speed control can help reduce mechanical shock during starting and stopping. In pumping and fan systems, controlled motor operation can also provide more precise process management than fixed-speed operation.

For replacement projects, the 20BC260A3ANNAND0 can be considered when maintaining an existing PowerFlex 700 installation is preferable to redesigning the entire motor-control system. Proper verification of motor ratings, incoming power, enclosure requirements, control configuration, and existing options should always be completed before replacement.

Advantages

High-capacity industrial motor control

The PowerFlex 700 platform is designed for industrial-duty applications where a reliable adjustable-speed drive is required. The 20BC260A3ANNAND0 provides a substantial drive package suitable for demanding motor-control installations.

Flexible automation integration

The PowerFlex 700 family was developed for integration with industrial automation systems. This makes it suitable for installations where drive operation needs to interact with PLC-based sequencing, process control, or supervisory systems.

Improved motor operation

Adjustable-frequency control allows the motor speed to be matched more closely to process requirements. This can improve equipment handling, process consistency, and overall machine control compared with simple across-the-line motor starting.

Useful for retrofit and maintenance projects

For facilities already using Allen Bradley PowerFlex equipment, retaining the same drive family can reduce the engineering effort associated with a replacement project. Technicians can work within a familiar Allen Bradley drive environment while maintaining established control practices.

Suitable for demanding production environments

The PowerFlex 700 series is widely associated with industrial machinery and process applications. Its configurable architecture provides a practical foundation for applications requiring more than basic motor starting and stopping.

Maintenance-friendly architecture

A properly documented PowerFlex installation can make troubleshooting considerably easier. Drive parameters, motor information, fault history, wiring documentation, and controller logic can be reviewed together to identify whether a problem originates in the drive, motor, control system, or field wiring.

Technical FAQs

1. What type of motor-control application is the 20BC260A3ANNAND0 intended for?

It is designed for adjustable-speed industrial motor applications. Typical uses include conveyors, pumps, fans, compressors, material-handling systems, and process machinery where controlled motor speed is required.

2. Can the 20BC260A3ANNAND0 be controlled by an Allen Bradley PLC?

Yes. PowerFlex 700 drives can be integrated into Allen Bradley automation architectures using appropriate control and communication arrangements. The exact method depends on the drive configuration, installed options, and PLC/network architecture.

3. What should be checked before commissioning this drive?

Engineers should verify incoming voltage, motor nameplate information, motor wiring, drive ratings, control terminals, grounding, installed options, parameter settings, and the intended control source. Mechanical conditions should also be checked before running the motor.

4. Why is correct motor data important when configuring a PowerFlex 700?

Motor nameplate information affects how the drive establishes motor-control parameters. Incorrect voltage, current, frequency, speed, or other motor data can result in poor performance, nuisance faults, excessive current, or unstable operation.

5. What can cause an overcurrent fault during acceleration?

Potential causes include excessive acceleration demand, an incorrect motor parameter configuration, mechanical overload, motor or cable problems, incorrect control settings, or a motor that is not suitable for the configured drive application.

6. How should a PowerFlex 700 be diagnosed when the motor does not start?

First determine whether the drive is receiving a valid start command. Then check for active faults or inhibits, verify the selected command source, inspect the speed reference, confirm enable conditions, and review the drive's status and parameter configuration.

7. Can a PowerFlex 700 operate a motor at variable speed?

Yes. Variable-frequency operation is one of the principal functions of the PowerFlex 700 platform. The operating frequency can be controlled according to the configured speed reference and application requirements.

8. What should be checked if the motor runs but speed control is unstable?

Check the speed reference source, motor parameters, acceleration and deceleration settings, control mode, feedback configuration where applicable, mechanical load characteristics, and motor wiring. Incorrect parameterization can produce unstable or unexpected motor behavior.

9. What is a common reason for repeated drive faults after replacing a PowerFlex 700?

A frequent issue is transferring hardware without correctly matching the new drive's configuration to the original application. Motor data, command sources, speed references, I/O functions, communication settings, and protection parameters should all be reviewed rather than assuming the replacement is configured identically.

10. What is the best approach when troubleshooting an intermittent PowerFlex 700 fault?

Record the exact fault code and operating conditions when the fault occurs. Review fault history, motor current, load behavior, incoming power, control signals, wiring, temperature, and communication status. Intermittent faults are easier to isolate when operating conditions are documented rather than repeatedly resetting the drive.
