Introduction

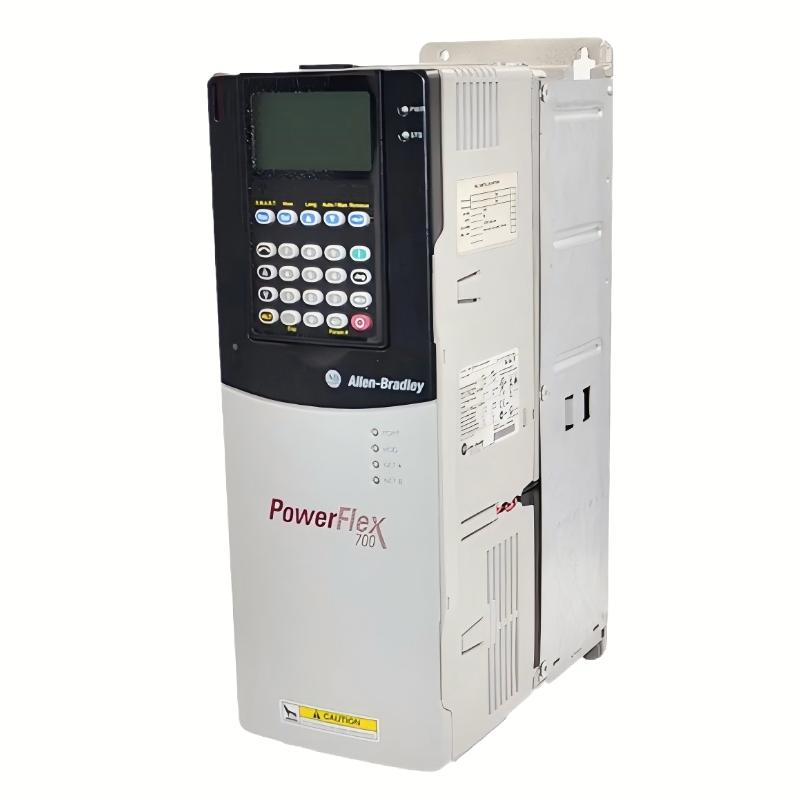

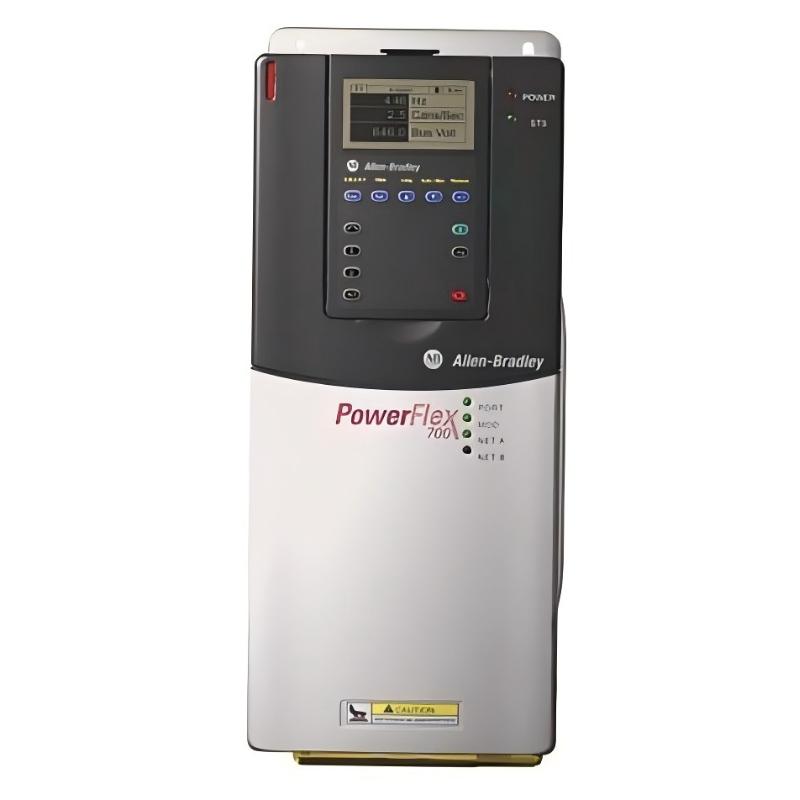

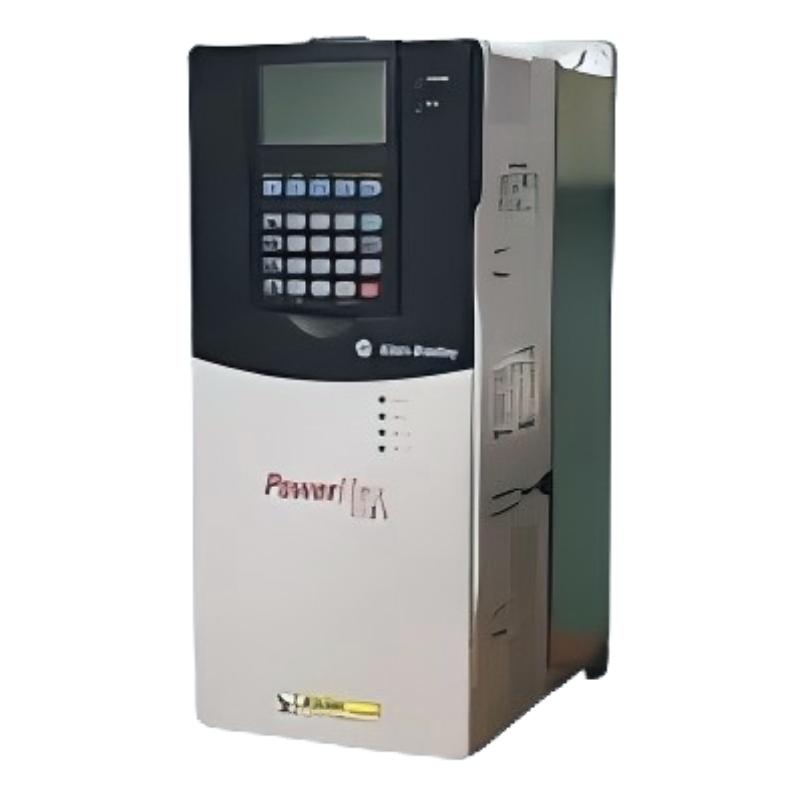

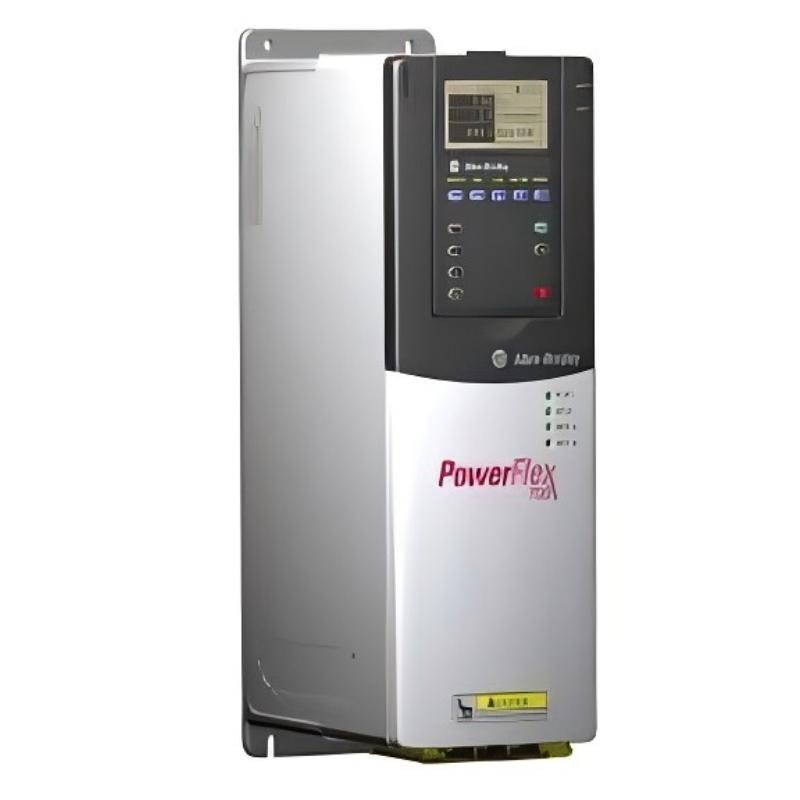

The Allen-Bradley 20BD014A0AYNAND0NNAD PowerFlex 700 AC Drive combines a 480 VAC three-phase power configuration with 14 A continuous output capability and vector-based motor control. With a 10 HP normal-duty rating, this model occupies an important range for industrial machinery that requires more controlled operation than a conventional motor starter can provide.

The PowerFlex 700 architecture is particularly useful when a motor must operate at different speeds according to production requirements. Instead of running continuously at full speed, the drive can regulate motor frequency and voltage to match the process.

This makes the 20BD014A0AYNAND0NNAD suitable for applications ranging from conveyors and pumps to process machinery and material-handling systems. Programmable acceleration and deceleration functions can also help equipment designers achieve smoother machine operation.

One of the notable features of this particular configuration is the integrated brake IGBT. Dynamic braking can be valuable when the driven load has significant inertia or when frequent stopping is required. With an appropriately engineered external braking resistor, regenerated energy can be dissipated during deceleration.

The 115 VAC I/O configuration is another defining characteristic. This can make the drive a natural fit for legacy control panels where 115 VAC control circuits are already established. Maintenance teams should nevertheless confirm the existing control architecture before replacement.

The drive also incorporates EMC filtering with a common-mode choke, which supports electromagnetic compatibility considerations in industrial installations. Correct grounding, cable routing, motor-cable practices, and cabinet design remain essential to achieving reliable performance.

For today's industrial maintenance market, the 20BD014A0AYNAND0NNAD is primarily relevant to existing PowerFlex 700 systems, equipment refurbishment, and replacement applications. Its discontinued status means buyers should pay particular attention to exact catalog-number identification and product condition when sourcing this model.

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley
Product Family	PowerFlex 700
Model	20BD014A0AYNAND0NNAD
Product Type	PowerFlex 700 AC Drive
Input Voltage	480 VAC
Input Phase	3 Phase
Line Frequency	60 Hz
Output Current	14 A Continuous
1-Minute Output Current	16.5 A
3-Second Output Current	22 A
Normal-Duty Rating	10 HP
Heavy-Duty Rating	7.5 HP
Drive Voltage Class	380–480 VAC
Frame Size	Frame 1
Control Type	Vector Control
Control I/O	115 VAC
Brake IGBT	Installed
Internal Brake Resistor	No
Feedback	No Feedback
Internal Communication Module	None
EMC Filter	CE Filter with Common-Mode Choke
Enclosure	IP20 / NEMA/UL Type 1
Approx. Dimensions	336 × 135 × 200 mm
Approx. Weight	7.03 kg (15.50 lb)

The dimensions and drive weight correspond to the Frame 1 IP20/NEMA Type 1 configuration.

Recommended Related Models

Model	Product Type	Typical Use
20BD011A0AYNAND0	PowerFlex 700 AC Drive	Lower-power 480 V motor applications
20BD014A0AYNAND0	PowerFlex 700 AC Drive	14 A, 10 HP normal-duty applications
20BD022A0AYNAND0	PowerFlex 700 AC Drive	Higher-power 480 V motor applications
20BC014A0AYNAND0	PowerFlex 700 AC Drive	Comparable PowerFlex 700 configuration selection

When selecting a related model, the complete catalog number should be checked rather than relying only on the first several characters. PowerFlex 700 variants can differ in I/O voltage, feedback, communication, braking, EMC filtering, and other configuration details.

Popular Related Models

Model	Product Type
20BD011A0AYNAND0	PowerFlex 700 AC Drive
20BD014A0AYNAND0	PowerFlex 700 AC Drive
20BD022A0AYNAND0	PowerFlex 700 AC Drive
20BC014A0AYNAND0	PowerFlex 700 AC Drive
20BC022A0AYNAND0	PowerFlex 700 AC Drive
20BC027A0AYNAND0	PowerFlex 700 AC Drive

The Allen-Bradley 20BD014A0AYNAND0NNAD is a strong fit for existing 480 VAC PowerFlex 700 installations requiring 14 A output capability, 10 HP normal-duty operation, vector control, 115 VAC I/O, and integrated brake IGBT functionality. For replacement and maintenance projects, confirming the complete catalog number is the most important step before purchase.

Applications

The Allen-Bradley 20BD014A0AYNAND0NNAD PowerFlex 700 AC Drive is a 480 VAC three-phase variable frequency drive designed for industrial motor control applications requiring dependable speed regulation and flexible control performance. This configuration provides a 14 A continuous output rating and is rated for 10 HP normal-duty operation, making it suitable for a wide range of medium-sized industrial machinery.

Typical applications include conveyors, pumps, fans, compressors, mixers, material-handling systems, machine tools, process equipment, and production machinery. The PowerFlex 700 platform was designed to handle applications ranging from straightforward speed control to more demanding torque-control requirements, giving this drive considerable flexibility within existing automation systems.

The 20BD014A0AYNAND0NNAD features vector control with 115 VAC I/O, an integrated brake IGBT, and CE EMC filtering with a common-mode choke. These features make it particularly useful where controlled motor operation and electrical noise management are important considerations.

For conveyor and material-handling applications, adjustable acceleration and deceleration can help reduce mechanical shock during starting and stopping. In pump and fan systems, variable-speed operation can provide better process control than operating motors continuously at a fixed speed.

The drive is also a practical option for maintenance and refurbishment of existing Allen-Bradley PowerFlex 700 installations. Since this is a discontinued PowerFlex 700 configuration, accurate catalog-number matching is especially important when sourcing a replacement. The 20BD014A0AYNAND0NNAD is specifically identified as a 480 VAC, three-phase, 14 A, 10 HP normal-duty PowerFlex 700 configuration.

For industrial buyers, keeping an accurately matched spare can be a valuable strategy for reducing downtime on legacy equipment. A replacement should not be selected solely according to horsepower; voltage, current, I/O, braking, feedback, communication, enclosure, and control configuration should all be reviewed.

Advantages

14 A output capacity

The 20BD014A0AYNAND0NNAD provides 14 A continuous output current, with higher short-term current capability available for demanding operating conditions. This gives the drive sufficient capacity for 10 HP normal-duty applications.

480 VAC three-phase design

Its 480 VAC three-phase input makes the drive suitable for common North American industrial power systems and compatible 380–480 V class applications.

Vector control with 115 VAC I/O

The vector-control configuration provides flexible motor-control performance while the 115 VAC I/O arrangement can integrate naturally with industrial control circuits designed around that control voltage.

Integrated brake IGBT

The drive includes a brake IGBT, allowing dynamic braking to be implemented with an appropriate external braking resistor. This can be useful for loads requiring faster or more controlled deceleration.

CE EMC filtering

The configuration incorporates a second-environment EMC filter and common-mode choke, helping address electromagnetic compatibility requirements in appropriately engineered installations.

No internal communication module

This specific catalog configuration does not include an internal communication module. That can be advantageous when the existing system uses hardwired control or when communication requirements are handled through an appropriate external option.

IP20 / NEMA Type 1 construction

The enclosure is intended for installation in an appropriate protected industrial environment or control cabinet. Proper cabinet ventilation and environmental protection remain important for reliable operation.

Well suited to legacy-system maintenance

For plants with existing PowerFlex 700 equipment, retaining a matching drive can simplify troubleshooting and replacement work. The familiar architecture can also reduce the commissioning effort for maintenance personnel already experienced with the PowerFlex platform.

Technical FAQs

1. What is the input voltage of the 20BD014A0AYNAND0NNAD?

The drive is designed for a 480 VAC, three-phase input supply and belongs to the 380–480 V drive class. The incoming power system should be verified before installation.

2. What is the continuous output current?

The continuous output rating is 14 A. The drive can provide 16.5 A for one minute and 22 A for three seconds under the specified conditions.

3. What motor power is associated with this configuration?

The drive is rated at 10 HP for normal-duty operation and 7.5 HP for heavy-duty operation. Motor selection should be based on actual current and load requirements rather than horsepower alone.

4. Does this model use vector control?

Yes. The catalog configuration uses vector control with 115 VAC I/O. It also supports selectable motor-control methods within the PowerFlex 700 architecture, depending on configuration and programming.

5. Does the drive include a brake IGBT?

Yes. The 20BD014A0AYNAND0NNAD includes an integrated brake IGBT. A properly sized external braking resistor is required when dynamic braking is used.

6. Is a braking resistor built into the drive?

No. The brake IGBT is installed, but the drive does not have an internal drive-mounted braking resistor. The external braking system should be selected according to the motor, load inertia, stopping frequency, and required deceleration performance.

7. Can this drive operate with a PLC control system?

Yes. The 115 VAC I/O configuration can be incorporated into an appropriate PLC or relay-based control architecture. The exact wiring depends on how the PLC and drive command/reference functions are configured.

8. What happens if the motor decelerates too quickly?

A motor can regenerate energy into the drive's DC bus during rapid deceleration, potentially causing a DC-bus overvoltage fault. Increasing the deceleration time or applying correctly engineered dynamic braking can help manage this condition.

9. Does this configuration have an internal communication module?

No. The specified catalog configuration has no internal communication module. Communication requirements should therefore be evaluated separately when integrating the drive into an automation network.

10. What should be verified before using this drive as a replacement?

Check the existing drive's input voltage, motor current, duty rating, control voltage, I/O arrangement, braking configuration, feedback requirements, communication options, enclosure, and complete catalog number. A visually similar PowerFlex 700 is not necessarily a direct functional replacement.
