Introduction

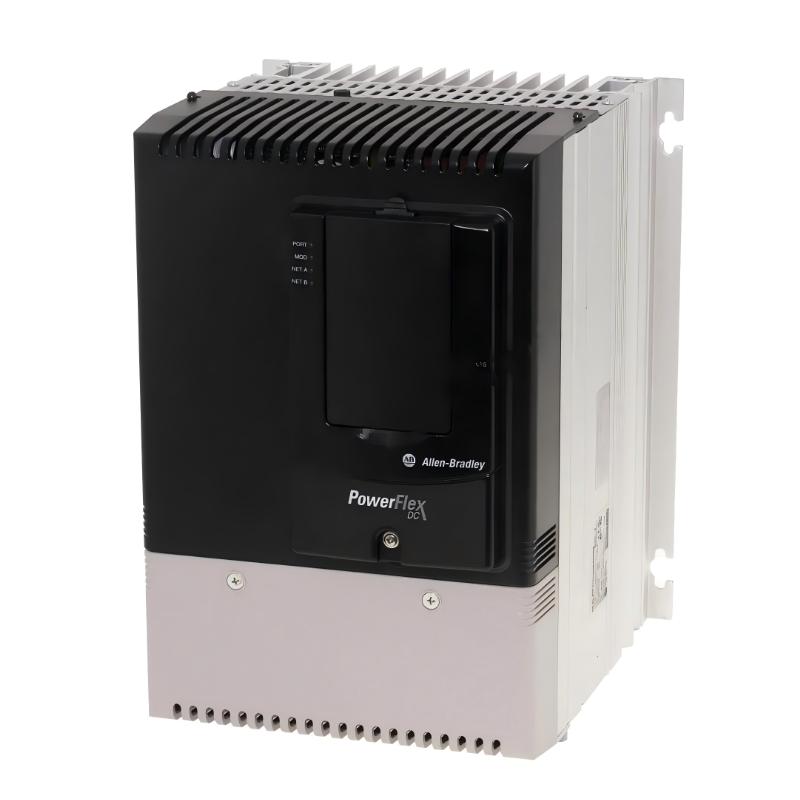

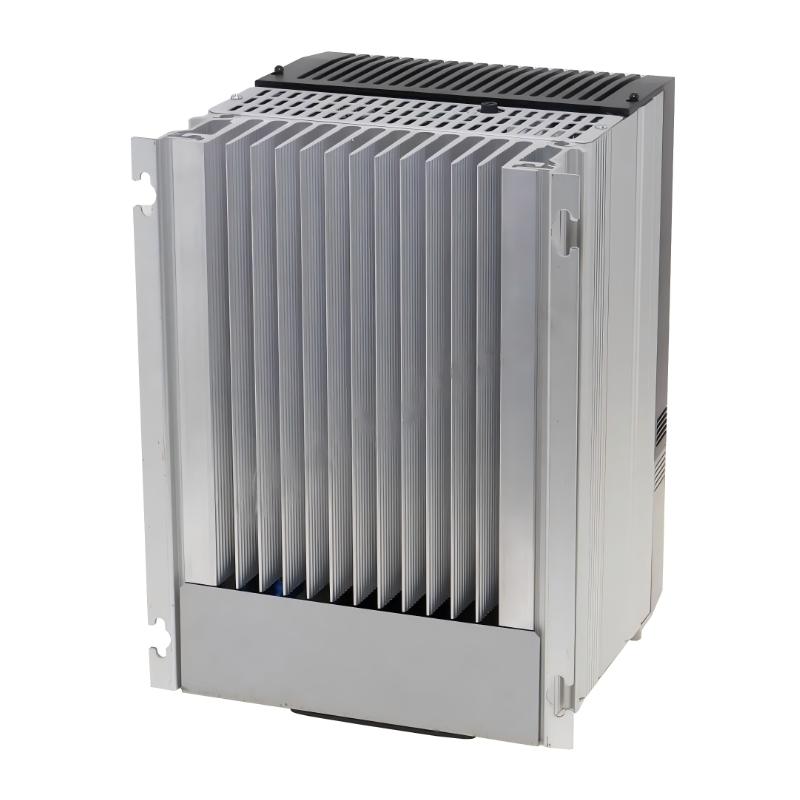

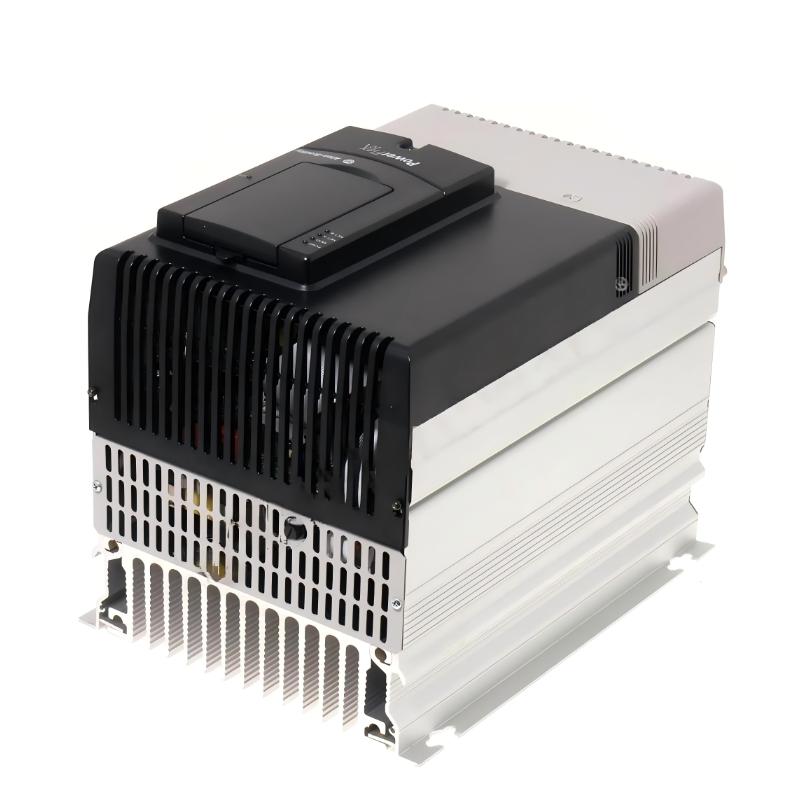

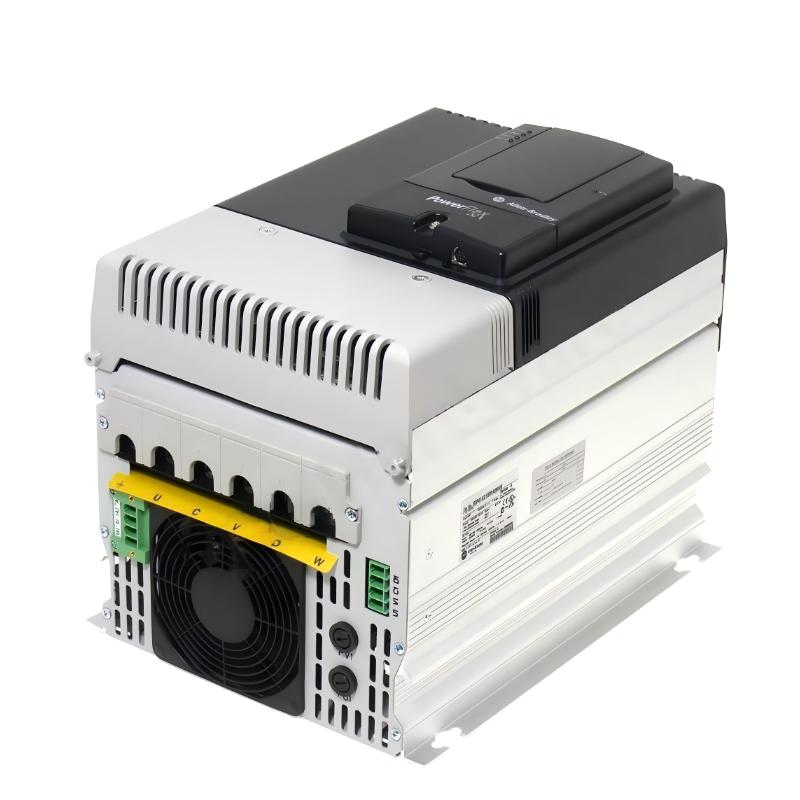

The Allen-Bradley 20P41AD100RA0NNN PowerFlex DC Drive is engineered for high-performance DC motor control in industrial environments. Rated for 480 VAC three-phase input, 100 A output, and 60 HP normal-duty operation, it occupies the higher-capacity range of the PowerFlex DC platform.

Unlike a conventional non-regenerative DC drive, this configuration is designed for four-quadrant operation. That distinction becomes particularly important in machinery where the motor must repeatedly accelerate, decelerate, reverse, or control an overhauling load.

A regenerative drive can provide significant advantages in these applications because the motor may operate as a generator during deceleration. The PowerFlex DC architecture is designed to manage this operating condition as part of the normal control strategy, making it suitable for machinery with demanding motion profiles.

The regulated field supply is another important part of the system. DC motor performance depends heavily on stable field excitation, particularly when accurate speed control is required. The integrated field supply helps establish a coordinated drive and motor-control arrangement.

The 20P41AD100RA0NNN also uses conformal-coated construction and an IP20/NEMA Type Open enclosure. It is therefore intended to be installed within an appropriate industrial environment with suitable cabinet protection, ventilation, grounding, and electrical isolation.

For maintenance engineers, the model is especially relevant when working with existing PowerFlex DC installations. Retaining the same drive family can simplify replacement because the surrounding motor-control architecture may require fewer changes than would be necessary when migrating to an unrelated drive platform.

The drive is supplied without a communication module and without a HIM operator interface, which makes the exact application configuration particularly important. Where a machine uses external PLC control, hardwired commands, or an existing supervisory system, this configuration can provide a straightforward basis for integration.

For industrial buyers, the complete catalog number should always be verified before procurement. PowerFlex DC drives with similar current and horsepower ratings can have substantially different regenerative, field-supply, feedback, and interface configurations.

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley
Product Family	PowerFlex DC
Model	20P41AD100RA0NNN
Product Type	Regenerative DC Drive
Input Voltage	480 VAC
Input Phase	3 Phase
Input Type	6 Pulse
Output Current	100 A
Normal-Duty Power	45 kW
Normal-Duty Horsepower	60 HP
Motor Operation	Four-Quadrant Operation / Regenerative
Field Supply	Single-Phase Regulated
Frame Size	Frame A
Enclosure	IP20 / NEMA/UL Type Open
Conformal Coating	Yes
HIM	No HIM / Blank Plate
Communication Module	None
Approx. Dimensions	359 × 267 × 287 mm
Approx. Weight	12.00 kg (26.46 lb)

Recommended Related Models

The following models belong to the same PowerFlex DC regenerative drive family and provide useful alternatives when selecting different DC motor current and power ratings:

Model	Product Type	Normal-Duty Rating
20P41AD073RA0NNN	PowerFlex DC Regenerative Drive	40 HP / 73 A
20P41AD086RA0NNN	PowerFlex DC Regenerative Drive	50 HP / 86 A
20P41AD100RA0NNN	PowerFlex DC Regenerative Drive	60 HP / 100 A
20P41AD129RA0NNN	PowerFlex DC Regenerative Drive	75 HP / 129 A
20P41AD167RA0NNN	PowerFlex DC Regenerative Drive	100 HP / 167 A

These models share the same 380–480 VAC three-phase regenerative PowerFlex DC platform. The current rating and motor capacity should be matched to the actual motor and load characteristics rather than selected from horsepower alone.

Popular Related Models

Model	Product Type
20P41AD035RA0NNN	PowerFlex DC Regenerative Drive
20P41AD045RA0NNN	PowerFlex DC Regenerative Drive
20P41AD052RA0NNN	PowerFlex DC Regenerative Drive
20P41AD073RA0NNN	PowerFlex DC Regenerative Drive
20P41AD086RA0NNN	PowerFlex DC Regenerative Drive
20P41AD100RA0NNN	PowerFlex DC Regenerative Drive
20P41AD129RA0NNN	PowerFlex DC Regenerative Drive

The Allen-Bradley 20P41AD100RA0NNN is a strong choice for existing industrial DC motor systems requiring 100 A output capability, 60 HP normal-duty operation, four-quadrant regenerative control, and a regulated field supply. Its established PowerFlex DC architecture makes it particularly valuable for maintenance, modernization, and replacement projects where dependable integration with existing machinery is a priority.

Applications

The Allen-Bradley 20P41AD100RA0NNN PowerFlex DC Drive is a high-capacity regenerative DC drive designed for industrial applications that require precise control of DC motors, controlled acceleration and deceleration, and four-quadrant operation. With a 480 VAC three-phase input and 100 A output rating, this 60 HP drive is suitable for demanding motor-control systems where both motoring and regenerative braking performance are important.

Typical applications include material-handling equipment, conveyors, hoists, elevators, winding machines, rolling machinery, printing equipment, extruders, process lines, and other industrial systems using regenerative DC motors. Its four-quadrant operating capability allows the drive to control motor torque in both forward and reverse directions while also handling regenerative operation during deceleration.

The 20P41AD100RA0NNN uses a six-pulse input configuration and provides a regulated single-phase field supply. This combination gives engineers a practical solution for DC motor installations where stable armature and field control are essential to the overall process.

The drive is particularly valuable in applications where the motor frequently changes speed or direction. Instead of treating braking energy as an unwanted condition, the regenerative architecture is designed to manage energy returned by the motor during deceleration.

For existing PowerFlex DC installations, the 20P41AD100RA0NNN is also a useful maintenance and replacement product. Its established architecture makes it suitable for industrial refurbishment projects where replacing an existing DC drive with a completely different control platform would require substantial engineering changes.

Advantages

High-current DC motor control

With a 100 A output rating and 60 HP normal-duty capacity, the 20P41AD100RA0NNN is designed for substantially larger DC motor applications than compact industrial drives. It provides the current capability required by demanding production machinery.

Four-quadrant regenerative operation

The regenerative configuration allows the drive to operate across four quadrants. This is especially useful for applications involving frequent braking, reversing, lowering loads, or rapid changes in motor speed.

480 VAC three-phase input

The drive is designed for a 480 VAC three-phase supply, making it appropriate for common industrial power systems used in heavy-duty North American manufacturing environments.

Regulated field supply

A single-phase regulated field supply is included as part of the drive configuration. This provides controlled field excitation for compatible DC motors and simplifies the overall motor-control arrangement.

Six-pulse input architecture

The six-pulse input design provides a conventional and widely used power-conversion arrangement for industrial DC drive applications.

Conformal-coated construction

The drive is specified with conformal coating, providing additional protection for the electronic assemblies in appropriately controlled industrial environments. This can be advantageous in applications where airborne contaminants and humidity are greater concerns than in a clean electrical room.

Flexible DC motor feedback

The PowerFlex DC platform incorporates motor feedback capabilities within its control architecture, supporting applications where accurate speed regulation is important. Proper feedback configuration and commissioning remain essential for achieving the expected control response.

No unnecessary communication hardware

This particular catalog configuration is supplied without a communication module and without a HIM, using a blank plate configuration. This can be appropriate for installations where the drive is controlled through the existing plant control architecture rather than a dedicated local operator interface.

Strong choice for legacy-system replacement

For industrial facilities operating older DC motor systems, the 20P41AD100RA0NNN provides a practical replacement option while retaining the PowerFlex DC platform. This can reduce the amount of modification required to established motor-control systems.

Technical FAQs

1. What type of motor is the 20P41AD100RA0NNN designed to control?

This model is designed for industrial DC motor applications. It is particularly suitable for systems requiring adjustable speed, controlled torque, regenerative braking, and four-quadrant operation.

2. What is the AC input rating of this drive?

The drive uses a 480 VAC three-phase input and a six-pulse input configuration. The incoming supply should be verified against the drive's electrical requirements before commissioning.

3. What is the DC output current rating?

The 20P41AD100RA0NNN has a 100 A output rating, supporting a 60 HP normal-duty motor application at the specified voltage class.

4. What does four-quadrant operation mean for this drive?

Four-quadrant operation allows the drive to control motor torque during forward and reverse motoring as well as forward and reverse regeneration. This makes it particularly useful for machinery requiring frequent braking or direction changes.

5. Does the drive support regenerative braking?

Yes. The 20P41AD100RA0NNN is a regenerative PowerFlex DC drive. During appropriate operating conditions, energy generated by the motor can be returned through the regenerative power section rather than being handled solely through a conventional braking resistor.

6. What type of field supply does this configuration use?

This configuration provides a single-phase regulated field supply. The motor field requirements must be checked carefully during installation to ensure compatibility with the selected DC motor.

7. Is the drive supplied with a HIM operator interface?

No. This catalog configuration is supplied without a HIM and uses a blank plate. If local operator access is required, the system should be designed around the appropriate interface and control arrangement.

8. Does the 20P41AD100RA0NNN include a communication module?

No. The specified configuration does not include a communication module. External or hardwired control arrangements can therefore be used according to the requirements of the existing automation system.

9. What should be checked when replacing an existing PowerFlex DC drive?

Input voltage, output current, motor horsepower, regenerative or non-regenerative configuration, field supply, feedback method, I/O voltage, control wiring, communication requirements, and complete catalog number should all be checked. A drive with the same horsepower rating is not necessarily a direct replacement.

10. What can cause unstable DC motor speed after commissioning?

Incorrect motor data, improper feedback configuration, unsuitable speed-loop tuning, unstable field excitation, incorrect current limits, or inappropriate acceleration and deceleration settings can contribute to unstable speed. The control parameters and feedback signals should be checked systematically before making major adjustments.
