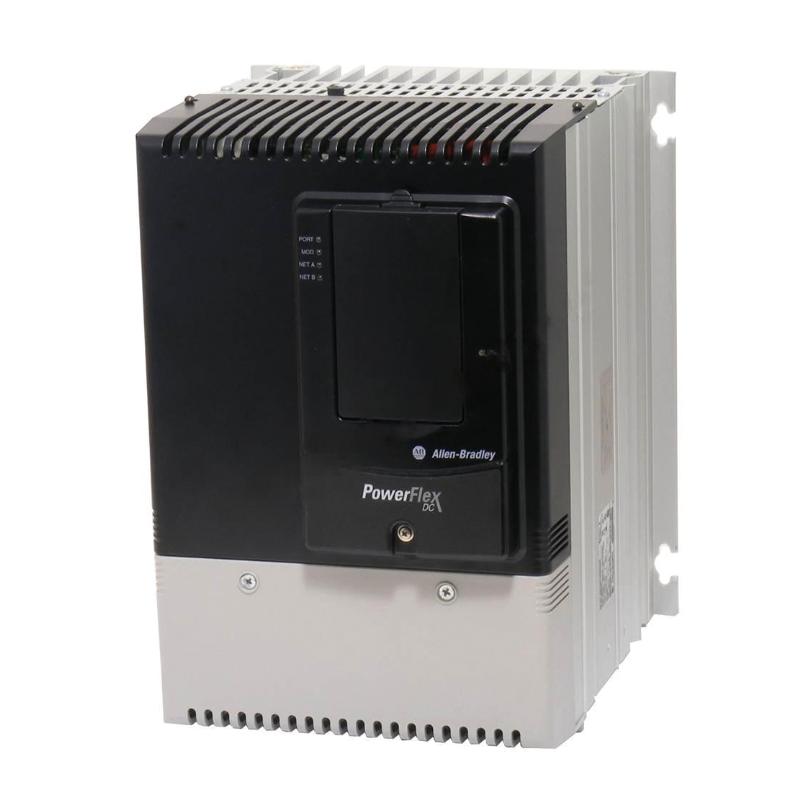

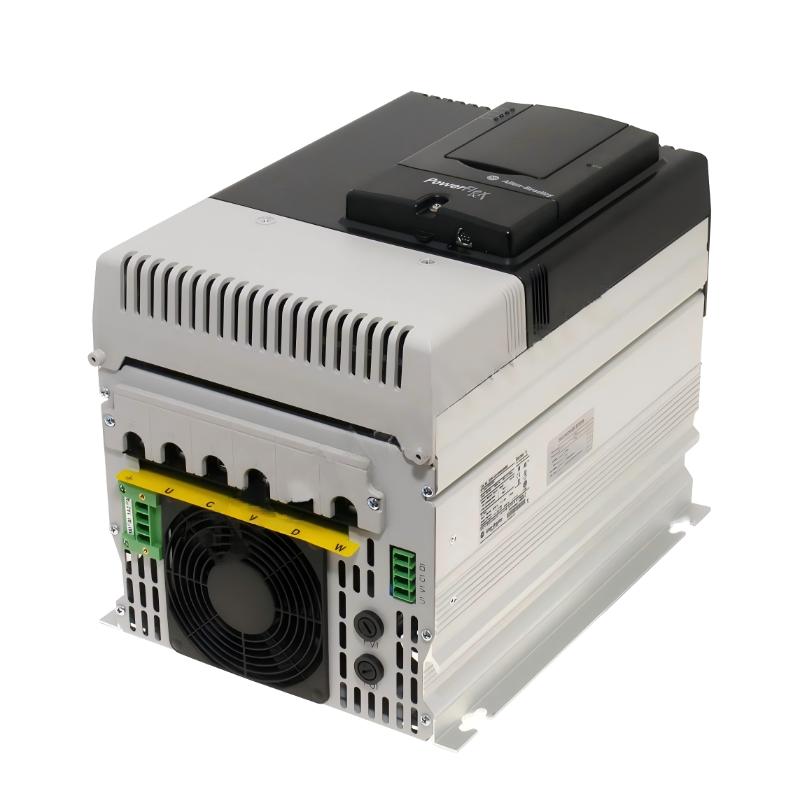

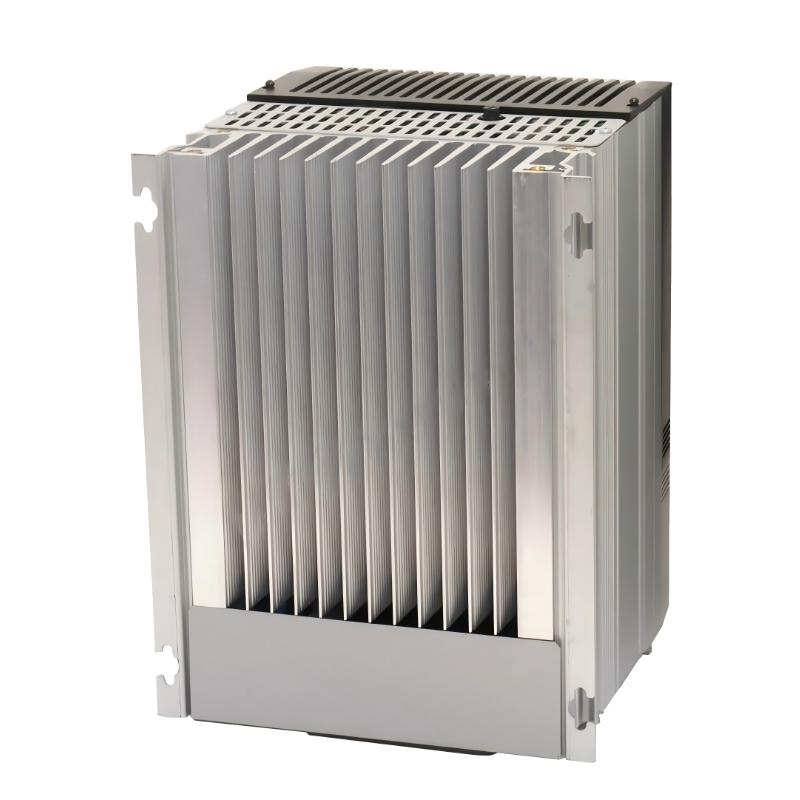

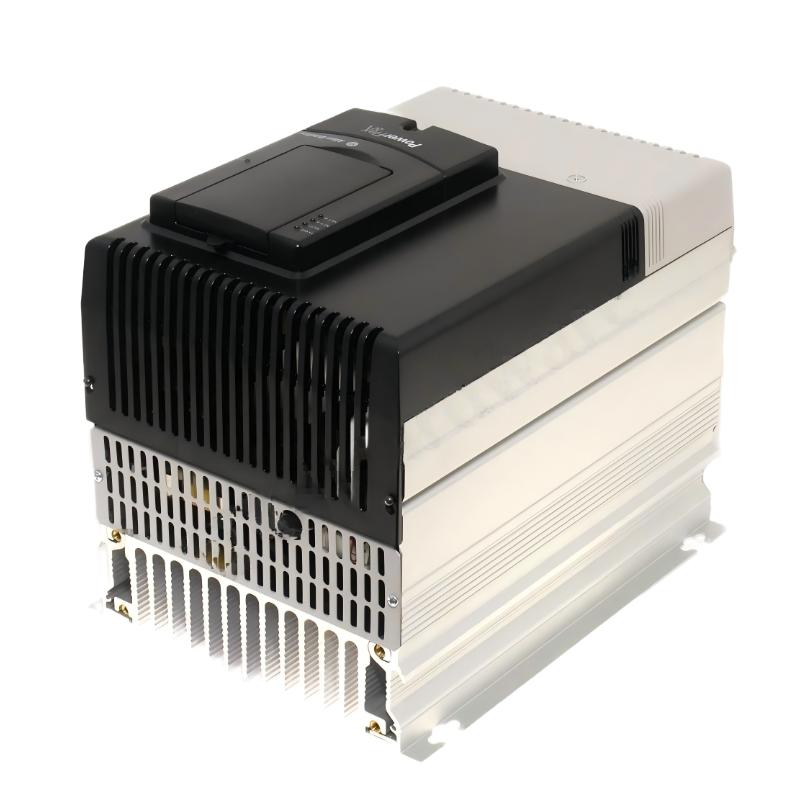

Allen Bradley 20P41AD129RA0NNN PowerFlex DC Driver
Allen Bradley 20P41AD129RA0NNN PowerFlex DC Driver
0.0
Points
Brand:Allen Bradley PLC Item No.:20P41AD129RA0NNN Product Origin:USA Product Dimensions:359 x 267 x 287 mm Product Weight:12 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 20P41AD129RA0NNN PowerFlex DC Drive is a 480 VAC regenerative DC drive intended for industrial applications requiring high-current motor control and four-quadrant operation. With a 129 A output rating and 75 HP normal-duty capacity, it provides the power-handling capability required by larger DC motor installations.
The defining characteristic of this drive is its regenerative architecture. In many industrial machines, the motor does not operate exclusively as a motor. During deceleration or when an external load drives the motor, electrical energy can flow back toward the drive. A regenerative DC drive is designed to accommodate this operating condition as part of its normal control strategy.
This makes the 20P41AD129RA0NNN particularly attractive for applications with frequent braking or reversing cycles. Winding machinery, hoists, material-handling equipment, rolling systems, and other dynamic processes can benefit from controlled four-quadrant operation.
The regulated field supply also plays an important role in overall motor performance. DC motors rely on appropriate field excitation, and the drive's field-control capability allows the motor's armature and field systems to be managed as part of an integrated control solution.
Another practical consideration is its use in existing automation installations. Many industrial plants continue to operate DC motor equipment because the machinery itself remains mechanically sound and productive. In these situations, replacing a failed drive with a correctly matched PowerFlex DC unit can be a more efficient approach than redesigning the entire motor-control system.
The 20P41AD129RA0NNN uses a Frame A construction and is specified with an IP20/NEMA Type Open enclosure. It should therefore be installed inside an appropriate protected control environment with adequate ventilation, grounding, electrical protection, and environmental management.
For maintenance teams, the complete catalog number is especially important. PowerFlex DC models with similar horsepower ratings may differ in output current, regenerative capability, field supply, feedback, control interface, and other electrical characteristics.
Technical Specifications
Parameter
Specification
Manufacturer
Allen-Bradley
Product Family
PowerFlex DC
Model
20P41AD129RA0NNN
Product Type
Regenerative DC Drive
Input Voltage
480 VAC
Input Phase
3 Phase
Input Configuration
6 Pulse
Output Current
129 A
Normal-Duty Rating
75 HP
Normal-Duty Power
Approximately 56 kW
Operating Mode
Four-Quadrant Regenerative
Field Supply
Single-Phase Regulated
Frame Size
Frame A
Enclosure
IP20 / NEMA/UL Type Open
Conformal Coating
Yes
HIM
No HIM / Blank Plate
Communication Module
None
Feedback
Configuration Dependent
Dimensions
359 × 267 × 287 mm
Weight
12.00 kg (26.46 lb)
Recommended Related Models
Model
Product Type
Normal-Duty Rating
20P41AD086RA0NNN
PowerFlex DC Regenerative Drive
50 HP
20P41AD100RA0NNN
PowerFlex DC Regenerative Drive
60 HP
20P41AD129RA0NNN
PowerFlex DC Regenerative Drive
75 HP
20P41AD167RA0NNN
PowerFlex DC Regenerative Drive
100 HP
20P41AD207RA0NNN
PowerFlex DC Regenerative Drive
125 HP
These models are suitable for comparison when selecting different current and motor-capacity levels within the same PowerFlex DC regenerative platform. The complete catalog number should be confirmed before ordering because configuration differences can affect electrical compatibility.
Popular Related Models
Model
Product Type
20P41AD052RA0NNN
PowerFlex DC Regenerative Drive
20P41AD073RA0NNN
PowerFlex DC Regenerative Drive
20P41AD086RA0NNN
PowerFlex DC Regenerative Drive
20P41AD100RA0NNN
PowerFlex DC Regenerative Drive
20P41AD129RA0NNN
PowerFlex DC Regenerative Drive
20P41AD167RA0NNN
PowerFlex DC Regenerative Drive
20P41AD207RA0NNN
PowerFlex DC Regenerative Drive
The Allen-Bradley 20P41AD129RA0NNN PowerFlex DC Drive is a capable solution for 480 VAC industrial DC motor systems requiring 129 A output capacity and four-quadrant regenerative control. Its combination of high-current operation, regulated field control, and established PowerFlex architecture makes it well suited to demanding production machinery as well as maintenance and replacement projects involving existing DC drive systems.
Applications
The Allen-Bradley 20P41AD129RA0NNN PowerFlex DC Drive is a high-capacity regenerative DC drive developed for industrial systems that demand controlled DC motor speed, stable torque response, and four-quadrant operation. With a 480 VAC three-phase input and 129 A output rating, this configuration is designed for normal-duty applications up to 75 HP.
This drive is well suited to demanding equipment such as conveyors, winding machines, material-handling systems, printing machinery, rolling equipment, hoists, process lines, and production machinery that relies on controlled DC motor operation. Its regenerative design is particularly valuable when the motor must frequently accelerate, decelerate, reverse, or absorb energy from an overhauling load.
In a winding or unwinding machine, for example, the motor may alternate between motoring and regenerative operation as the material changes speed or direction. Four-quadrant control allows the drive to manage these operating conditions without treating regeneration simply as an abnormal event.
The 20P41AD129RA0NNN is also appropriate for industrial equipment where maintaining an established DC drive architecture is more practical than replacing the complete motor-control system. For maintenance and refurbishment projects, using the correct PowerFlex DC configuration can reduce engineering changes and simplify integration with existing field wiring and control equipment.
Its 129 A output capability provides additional capacity for larger DC motors compared with lower-current PowerFlex DC models. However, motor current, duty cycle, field requirements, feedback arrangement, and load characteristics should always be evaluated before selecting the drive.
Advantages
129 A DC output capability
The 20P41AD129RA0NNN provides a 129 A output rating, placing it in a higher-capacity range of the PowerFlex DC platform. It is designed for 75 HP normal-duty applications and can accommodate demanding industrial motor loads when correctly configured.
Four-quadrant regenerative control
Four-quadrant operation allows the drive to manage forward and reverse motoring as well as forward and reverse regeneration. This is an important advantage for machinery involving rapid speed changes, reversing cycles, or sustained regenerative operation.
480 VAC three-phase input
The drive uses a 480 VAC three-phase input configuration, making it suitable for industrial power systems in the 380–480 V class.
Regulated motor field supply
The drive incorporates a regulated field supply for compatible DC motors. Stable field excitation is important for maintaining predictable motor performance and speed control.
Six-pulse input configuration
The six-pulse power architecture provides a conventional industrial arrangement for AC-to-DC power conversion and is well established in DC motor drive systems.
Conformal-coated electronics
The conformal-coated configuration provides additional protection for electronic components in appropriately managed industrial environments. This can be beneficial in installations where humidity or airborne contaminants present additional environmental concerns.
Designed for demanding production equipment
The drive's combination of high current capability and regenerative operation makes it suitable for production machinery where conventional fixed-speed motor control would not provide adequate process flexibility.
Useful for legacy PowerFlex DC systems
Existing PowerFlex DC installations can benefit from maintaining a correctly matched spare drive. This can reduce downtime and simplify maintenance when an installed unit requires replacement.
Compact high-power package
Despite its 129 A capacity, the drive maintains a relatively compact Frame A package. This can be advantageous when upgrading or maintaining equipment where cabinet space is limited.
Technical FAQs
1. What is the output current rating of the 20P41AD129RA0NNN?
The drive has a 129 A output rating and is designed for 75 HP normal-duty applications. The actual motor selection should be based on the motor's rated current and the application's operating duty.
2. What input supply does this PowerFlex DC drive require?
The drive is configured for a 480 VAC three-phase input with a six-pulse power structure. The plant supply should be verified before installation and commissioning.
3. Is the 20P41AD129RA0NNN regenerative?
Yes. This is a regenerative PowerFlex DC drive designed for four-quadrant operation. It can therefore support both motoring and regenerative operating conditions.
4. Why is four-quadrant operation useful?
Four-quadrant operation allows controlled torque in both rotational directions and supports regeneration in both directions. It is particularly useful for hoists, winders, conveyors, and machines that frequently reverse or decelerate.
5. Does this model provide a regulated field supply?
Yes. The configuration includes a regulated field supply intended for compatible DC motors. The motor's field voltage and current requirements must be confirmed before commissioning.
6. What can cause a DC bus or regenerative fault during operation?
Incorrect regenerative configuration, excessive load energy, unsuitable operating parameters, wiring problems, or abnormal power-system conditions can contribute to drive faults. The complete system should be checked before replacing the drive.
7. Can this drive be used with an existing PLC control system?
Yes. The PowerFlex DC platform can be integrated with industrial control systems through its available control I/O and appropriate communication or interface hardware. The exact connection method depends on the machine's existing architecture.
8. What should be checked when replacing a lower-current PowerFlex DC drive?
The new drive's output current, motor horsepower, input voltage, field rating, regenerative configuration, feedback method, control I/O, and physical installation requirements should all be checked. Increasing drive current capacity alone does not guarantee compatibility.
9. How does motor feedback affect DC drive performance?
Feedback provides the control system with information about actual motor speed or position. Correct feedback selection, wiring, and configuration can improve speed regulation and dynamic response, especially in applications requiring precise control.
10. What commissioning parameters deserve particular attention?
Motor armature voltage and current, field voltage and current, motor feedback, current limits, speed-loop settings, acceleration and deceleration behavior, and operating direction should all be verified. Incorrect parameterization can produce poor speed regulation or unnecessary protective trips.
