Ingersoll Rand 47663827001 22125249 Preventive Maintenance Kit

Where It Excels in Industrial Use

• Designed for scheduled 8,000-hour preventive maintenance on compatible Ingersoll Rand M200-250 series water-cooled rotary screw compressors.

• Incorporates the 22125249 temperature-sensing valve element into the extended maintenance configuration.

• Supports reliable temperature regulation in compressors operating under demanding industrial duty cycles.

• Well suited to manufacturing plants, process facilities, utilities, workshops, and other continuous compressed-air applications.

• Helps maintenance teams coordinate thermal-control service with filtration, oil separation, lubrication, pressure-control, and cooling-system maintenance.

Key Strengths at a Glance

• Complete product model: 47663827001 22125249.

• Configured for an 8,000-hour water-cooled preventive maintenance interval.

• Associated with compatible Ingersoll Rand M200-250 compressor applications.

• Includes one 22125249 temperature-sensing valve element in the documented configuration.

• 22125249 is identified as a 150°F thermostatic valve element for applicable M250 configurations.

• Supports planned temperature-control maintenance as part of a comprehensive extended service event.

Technical FAQs

1. What is the Ingersoll Rand 47663827001 22125249?

The Ingersoll Rand 47663827001 22125249 is an 8,000-hour water-cooled preventive maintenance kit configuration for compatible M200-250 series rotary screw compressors.

2. What maintenance interval is associated with this product?

The 47663827001 configuration is identified for the 8,000-hour preventive maintenance interval.

3. What is the function of 22125249?

22125249 is a temperature-sensing or thermostatic valve element used to regulate coolant temperature within the compressor cooling system. Parts documentation identifies it as a 150°F element for M250 applications.

4. Which compressor series is associated with this maintenance configuration?

The configuration is associated with Ingersoll Rand M200-250 series compressors and applicable water-cooled installations.

5. Why is the temperature-sensing valve element important?

The thermostatic element controls coolant flow according to temperature conditions, helping the compressor maintain the intended operating temperature range.

6. How many 22125249 elements are included in the documented configuration?

The documented 47663827001 configuration specifies one 22125249 temperature-sensing valve element.

7. What other components are associated with the 47663827001 configuration?

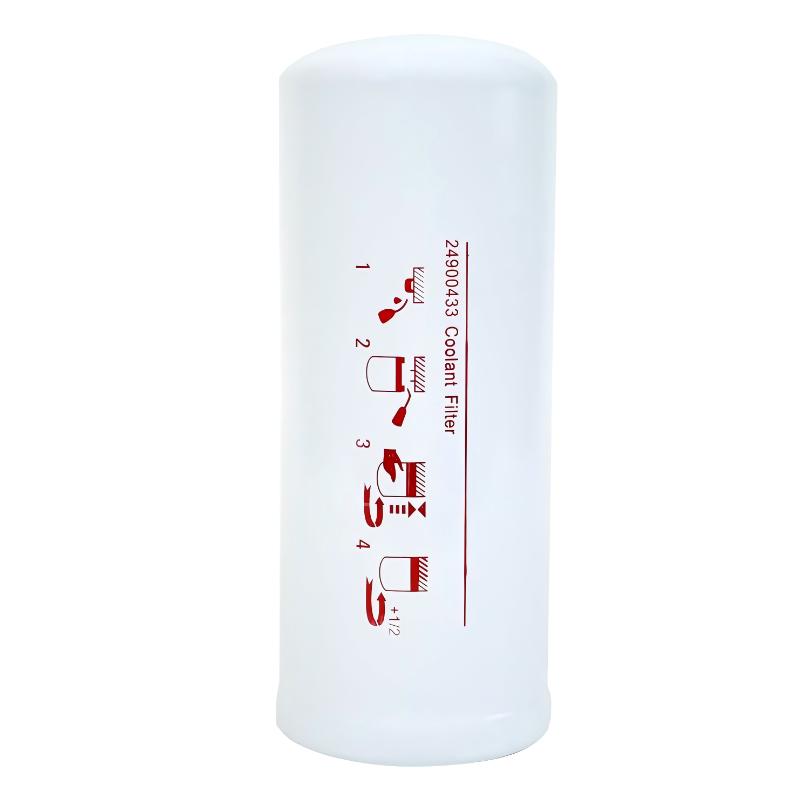

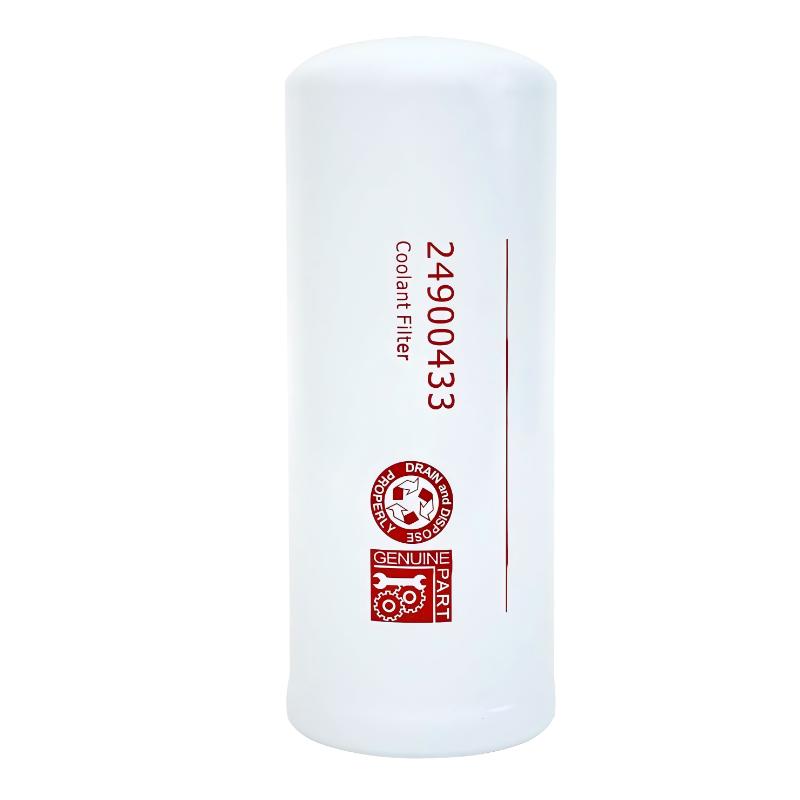

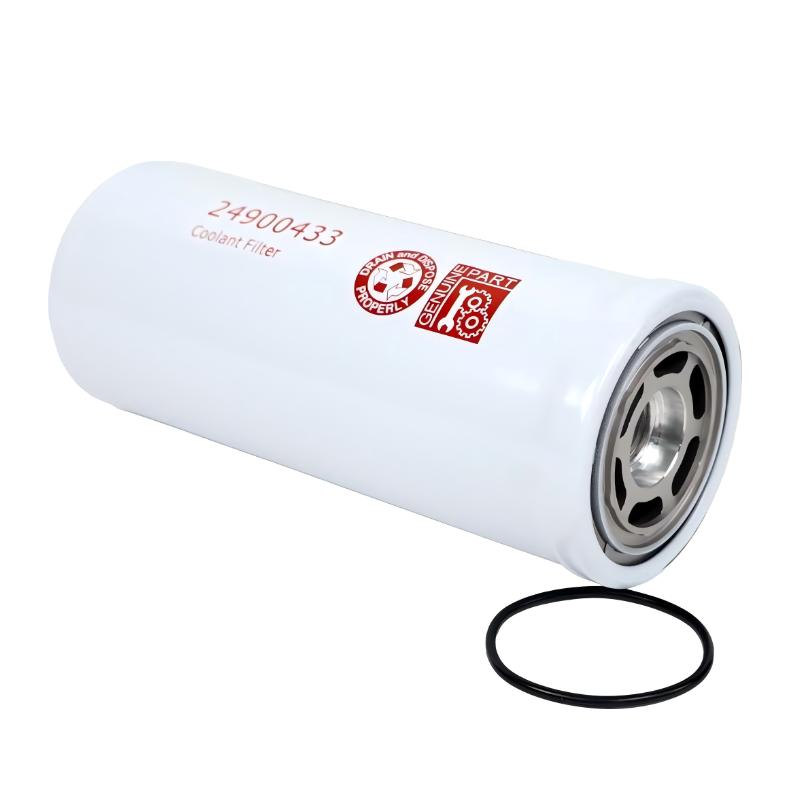

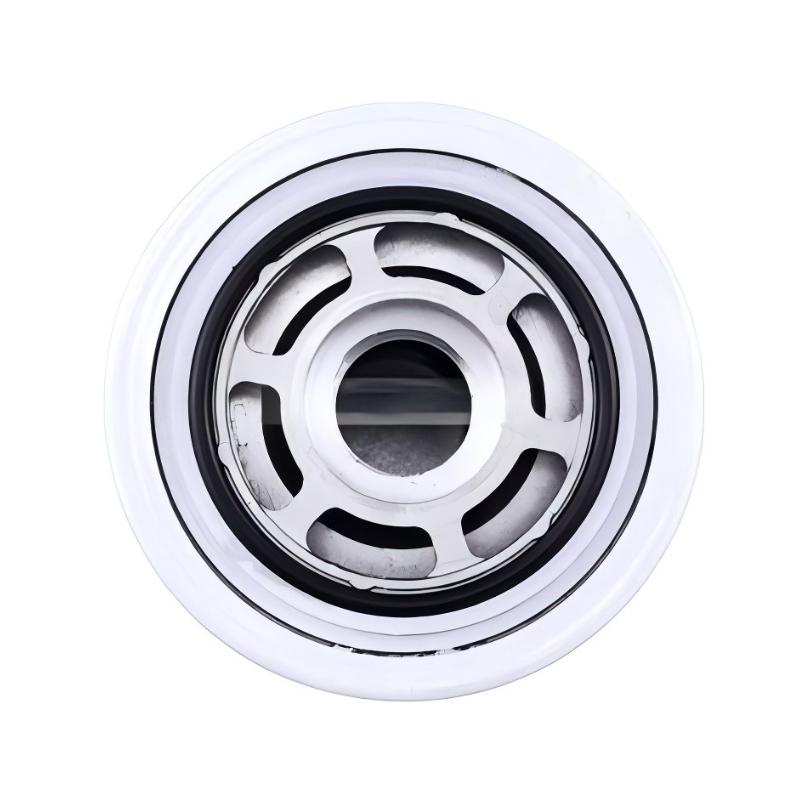

The documented service configuration includes air filter 39903265/47701890001, two 47621424001 coolant filter elements, one 22219174 separator element, one 99289894 minimum-pressure-valve repair kit, one 47556927001 water-cooler seal kit, and one 39218193 Motor Grease SHC220.

8. Is 47663827001 intended for water-cooled compressor systems?

Yes. 47663827001 is identified as an 8,000-hour water-cooled preventive maintenance kit.

9. Is 22125249 interchangeable with every thermostatic valve element?

No. Temperature rating, valve design, compressor configuration, and application must be verified before substitution. The available parts documentation specifically identifies 22125249 as a 150°F element for M250 applications.

10. What should be verified before ordering this product?

The complete model designation 47663827001 22125249, compressor model, serial information, cooling arrangement, production period, and applicable parts documentation should be checked before ordering.
