Introduction

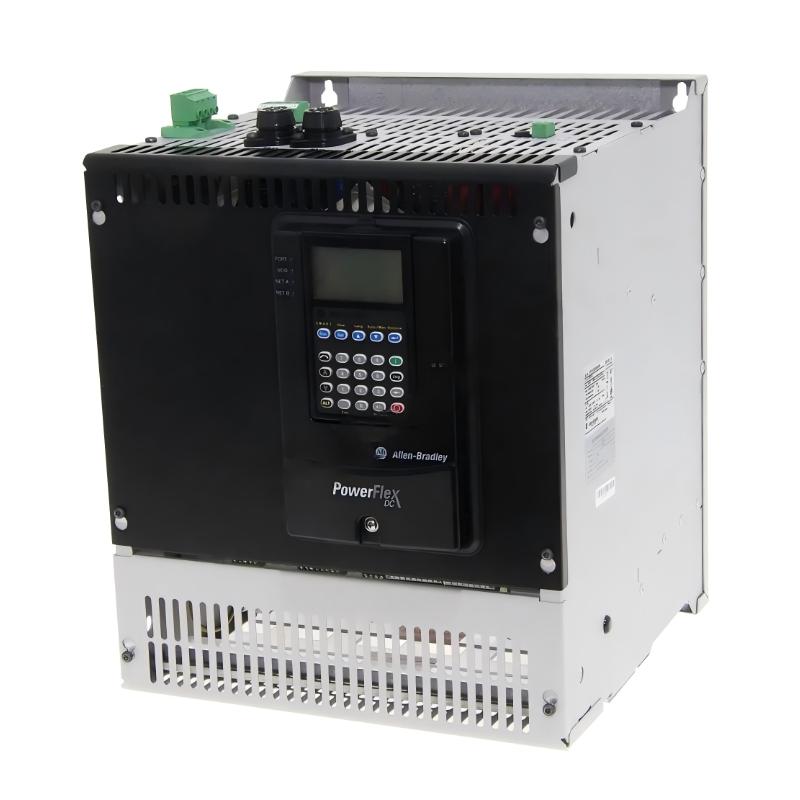

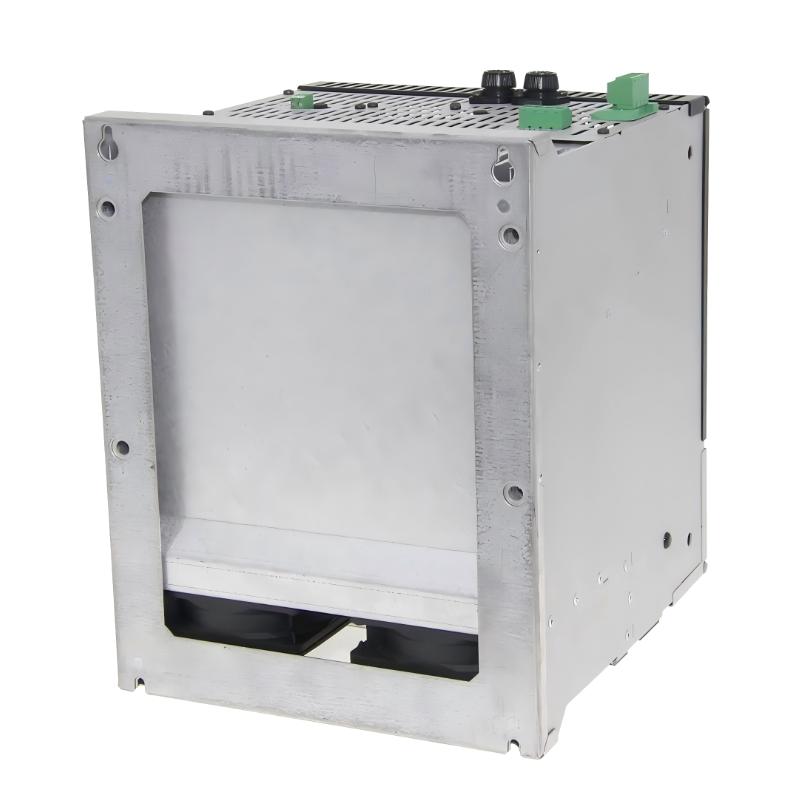

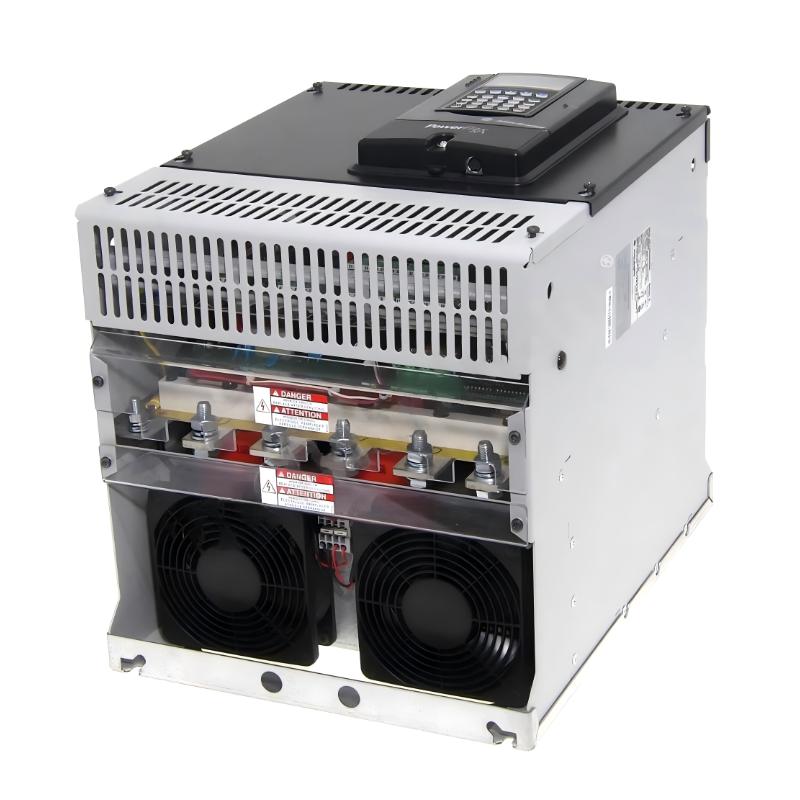

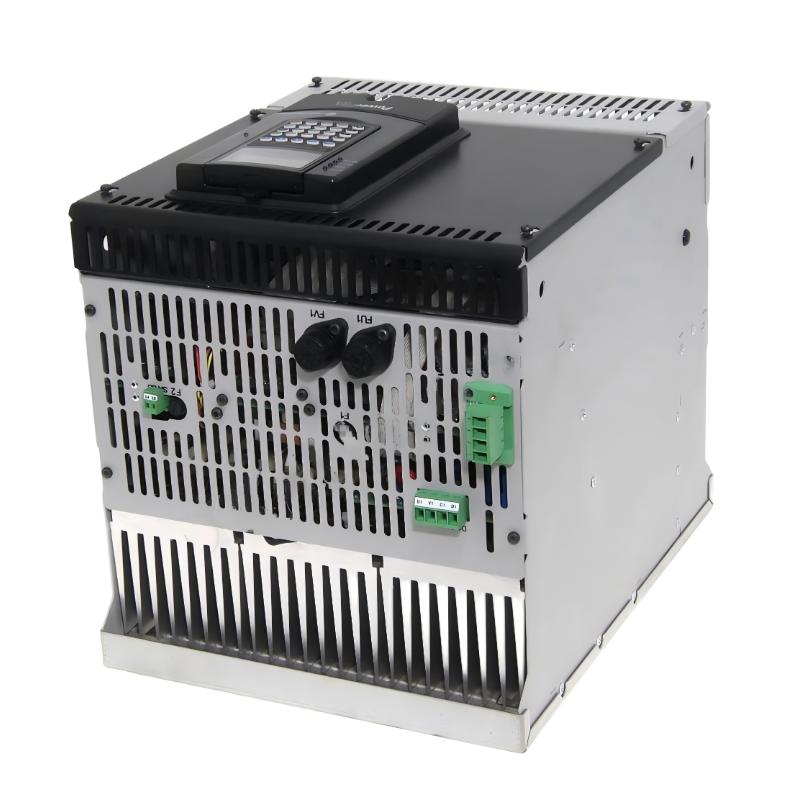

The Allen-Bradley 20P41AD250RA0NNN PowerFlex DC Drive is intended for large industrial DC motor applications requiring high current capacity and regenerative four-quadrant control. Its 250 A output rating places it among the higher-capacity configurations used for demanding production equipment.

Large DC motors are still found in many established industrial systems, particularly where the machine was originally engineered around DC motor technology. In these applications, replacing the drive does not necessarily mean replacing the motor or redesigning the complete control system. A correctly matched PowerFlex DC drive can provide a practical way to maintain the existing equipment architecture.

Regenerative operation is one of the most important characteristics of this drive. During deceleration, reversing, or overhauling-load conditions, the motor can return electrical energy to the drive. Four-quadrant operation allows this regenerative behavior to be incorporated into the machine's normal operating cycle.

This capability is particularly useful in rolling mills, winders, unwinders, hoists, elevators, and material-handling systems. These machines can experience rapid changes in torque and speed, and uncontrolled deceleration can create significant mechanical and electrical stress.

The 20P41AD250RA0NNN also provides regulated field control for compatible DC motors. Field excitation has a direct influence on motor performance, so accurate field configuration should be treated as an important part of commissioning rather than simply an auxiliary setting.

Its high current capacity makes installation engineering especially important. Power connections must be appropriately sized, protective equipment must be selected for the application, and the cabinet must provide sufficient thermal management. Grounding and control wiring should also follow the requirements of the complete machine.

The drive is particularly attractive for maintenance and refurbishment projects involving established PowerFlex DC equipment. Keeping the same platform can help technicians work with familiar control concepts and reduce the amount of modification required around the drive.

For replacement purchasing, the complete catalog number should always be confirmed. PowerFlex DC models can vary considerably in current capacity, field configuration, regenerative characteristics, feedback, and control options even when their general product descriptions appear similar.

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley
Product Family	PowerFlex DC
Model	20P41AD250RA0NNN
Product Type	Regenerative DC Drive
Input Voltage	480 VAC
Input Phase	3 Phase
Input Configuration	6 Pulse
Output Current	250 A
Drive Type	Four-Quadrant Regenerative
Field Supply	Regulated
Control Platform	PowerFlex DC
Enclosure	IP20 / NEMA/UL Type Open
Conformal Coating	Yes
HIM Configuration	No HIM / Blank Plate
Communication Module	None
Dimensions	311 × 388 × 350 mm
Weight	29.50 kg (65.04 lb)

Recommended Related Models

Model	Product Type	Typical Application
20P41AD167RA0NNN	PowerFlex DC Regenerative Drive	High-current DC motor control
20P41AD207RA0NNN	PowerFlex DC Regenerative Drive	Heavy industrial motor applications
20P41AD250RA0NNN	PowerFlex DC Regenerative Drive	Higher-current regenerative applications
20P41AD302RA0NNN	PowerFlex DC Regenerative Drive	Larger DC motor systems
20P41AD367RA0NNN	PowerFlex DC Regenerative Drive	High-capacity industrial applications

These related models can be considered when the application requires a different current capacity within the PowerFlex DC family. Motor armature current, field requirements, duty cycle, and regenerative characteristics should be evaluated before selecting an alternative.

Popular Related Models

Model	Product Type
20P41AD100RA0NNN	PowerFlex DC Regenerative Drive
20P41AD129RA0NNN	PowerFlex DC Regenerative Drive
20P41AD167RA0NNN	PowerFlex DC Regenerative Drive
20P41AD207RA0NNN	PowerFlex DC Regenerative Drive
20P41AD250RA0NNN	PowerFlex DC Regenerative Drive
20P41AD302RA0NNN	PowerFlex DC Regenerative Drive
20P41AD367RA0NNN	PowerFlex DC Regenerative Drive

The Allen-Bradley 20P41AD250RA0NNN PowerFlex DC Drive is a strong solution for high-current DC motor systems that require regenerative four-quadrant operation and controlled motor performance. Its 250 A capacity makes it appropriate for demanding industrial machinery, while the established PowerFlex DC platform provides a practical foundation for maintenance, refurbishment, and replacement applications.

Applications

The Allen-Bradley 20P41AD250RA0NNN PowerFlex DC Drive is a high-current regenerative drive designed for demanding industrial DC motor applications. With a 480 VAC three-phase input and 250 A output capability, it is intended for large motor-control systems where accurate speed regulation, controlled torque, and regenerative operation are essential.

This type of drive is well suited to heavy conveyors, rolling machinery, winding and unwinding equipment, hoists, elevators, printing systems, material-handling equipment, and continuous-process machinery. These applications often require frequent acceleration, deceleration, reversing, or operation against an overhauling load, making regenerative DC control particularly valuable.

In rolling and winding applications, motor speed and torque can directly influence production quality. A properly configured PowerFlex DC drive can provide the controlled motor response needed to maintain stable operation while the mechanical load changes.

The regenerative architecture is also useful during deceleration. Instead of treating returned motor energy purely as an abnormal condition, the drive is designed to operate in regenerative quadrants as part of its normal control strategy. This is particularly important for machines with substantial inertia or repeated braking cycles.

For existing PowerFlex DC installations, the 20P41AD250RA0NNN can be considered for maintenance, refurbishment, and replacement projects where retaining the established DC motor-control platform is desirable. Using a compatible drive can reduce modifications to existing control wiring and machine architecture.

Because this is a high-current drive, the installation requires careful engineering. Power conductors, protective devices, grounding, motor connections, field supply, feedback, cabinet cooling, and control interfaces should all be matched to the complete system.

Advantages

250 A output capability

The 20P41AD250RA0NNN provides substantial DC output capacity for large industrial motors. Its high-current design makes it suitable for applications where lower-rated PowerFlex DC drives would not provide sufficient operating margin.

Regenerative four-quadrant operation

Four-quadrant control allows the drive to manage forward and reverse motoring as well as regenerative operation in both directions. This capability is particularly valuable in machines that repeatedly accelerate, brake, and reverse.

480 VAC three-phase input

The drive is configured for a 480 VAC three-phase supply, providing compatibility with common industrial power systems used in large manufacturing facilities.

Controlled DC motor performance

The PowerFlex DC architecture provides coordinated control of motor armature and field functions, helping achieve stable speed and torque performance when the system is correctly commissioned.

Regulated field supply

A regulated field supply supports controlled excitation of compatible DC motors. Correct field voltage and current are essential for reliable operation and should be matched to the motor specifications.

Six-pulse input architecture

The six-pulse power configuration provides a proven industrial approach to AC-to-DC power conversion for large DC motor systems.

Conformal-coated electronics

Conformal coating provides additional protection for electronic assemblies against selected environmental influences. This can be useful in industrial environments where humidity or airborne contaminants may be present.

Suitable for demanding load cycles

High-current capacity combined with regenerative operation makes this drive suitable for machines with high inertia, frequent braking, or continuous changes in motor operating conditions.

Practical for legacy equipment

Industrial facilities with established PowerFlex DC systems can benefit from using compatible replacement equipment. This can reduce the engineering work associated with migrating an existing machine to a completely different drive platform.

Designed for industrial maintenance

For critical production machinery, maintaining a properly matched spare can help maintenance teams respond quickly to drive failures and minimize unplanned downtime.

Technical FAQs

1. What is the output current rating of the 20P41AD250RA0NNN?

The drive is rated for 250 A output. The actual motor should be selected according to its armature current, duty cycle, operating speed, and load characteristics.

2. What input voltage does this PowerFlex DC drive use?

The 20P41AD250RA0NNN is configured for a 480 VAC three-phase input. The plant supply should be verified before installation.

3. Is the 20P41AD250RA0NNN a regenerative drive?

Yes. It is designed as a regenerative PowerFlex DC drive with four-quadrant operating capability.

4. What is the benefit of four-quadrant control?

Four-quadrant control allows the drive to provide controlled torque during forward and reverse motoring and during forward and reverse regeneration. This makes it particularly useful for equipment with frequent reversing or braking cycles.

5. Does the drive support a DC motor field supply?

Yes. The PowerFlex DC configuration includes regulated field control for compatible DC motors. The motor field requirements must be checked before commissioning.

6. Can this drive be used for high-inertia machinery?

Yes, provided the motor, drive, and complete system are correctly sized. Acceleration, deceleration, current limits, feedback, and regenerative behavior should be evaluated for the actual load.

7. How should the drive be integrated with a PLC?

Integration can be accomplished through suitable control I/O and compatible communication or interface hardware. The exact method depends on the existing PLC architecture and machine-control requirements.

8. What should be verified before replacing an existing 250 A-class DC drive?

Verify the input voltage, armature current, motor rating, field supply, regenerative configuration, feedback, I/O arrangement, communication requirements, enclosure, and complete catalog number. These details are more important than horsepower alone when determining compatibility.

9. What could cause excessive motor current during operation?

Possible causes include excessive mechanical load, incorrect motor parameters, field problems, improper current-limit settings, mechanical binding, or an incorrectly configured control loop. Both the electrical and mechanical sides of the system should be investigated.

10. How can unstable speed be diagnosed on a DC drive system?

Start by checking motor feedback, field excitation, armature connections, motor data, speed-loop parameters, current limits, and command/reference signals. A systematic check of these areas can help distinguish between feedback, tuning, motor, and load-related problems.
