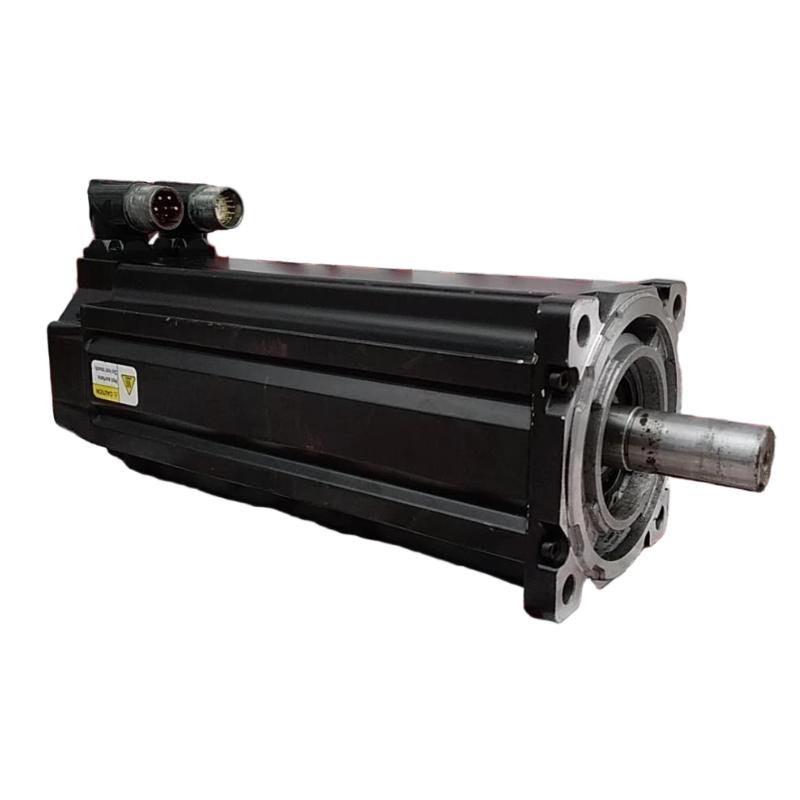

Allen Bradley MPL-A420P-MJ74AA Servo Motor

Applications

The Allen-Bradley MPL-A420P-MJ74AA Servo Motor is an MP-Series low-inertia servo motor developed for industrial motion applications where fast response, repeatable positioning, and accurate speed control are essential. Its 115 mm frame provides a compact solution for automated machinery that needs dynamic servo performance while keeping the motor footprint under control.

This motor is suitable for packaging machines, assembly equipment, indexing systems, material-handling machinery, printing and converting equipment, machine tools, and other automated production systems requiring coordinated movement.

The low-inertia design is especially useful in applications with frequent acceleration and deceleration. When a machine repeatedly starts, stops, changes speed, or reverses direction, the motor can respond rapidly to commands from the associated servo drive.

For packaging and indexing machinery, responsive servo movement can help maintain consistent cycle timing and positioning. In assembly systems, accurate motion can improve the repeatability of pick-and-place, insertion, feeding, and synchronization operations.

The MPL-A420P-MJ74AA is also a practical choice for replacement and refurbishment projects involving compatible Allen-Bradley MP-Series motion systems. Maintaining the appropriate motor configuration can reduce mechanical modifications and simplify recommissioning.

Before installation, the complete motion system should be evaluated. Motor winding, feedback, servo-drive compatibility, shaft arrangement, mechanical load, and duty cycle are all important factors when selecting a replacement servo motor.

Advantages

Low-inertia servo performance

The low-inertia rotor design allows the motor to respond quickly to changing speed and position commands. This characteristic is valuable in high-cycle automation where rapid motion changes are part of normal operation.

Compact 115 mm frame

The 115 mm frame provides a practical combination of motor capability and compact machine integration. It is useful for equipment where available mounting space is limited.

Responsive acceleration and deceleration

The motor is well suited to applications that require repeated acceleration and braking. Properly matched to the drive and load, it can contribute to shorter motion cycles and improved machine responsiveness.

Closed-loop motion capability

When used with a compatible servo drive and feedback system, the motor supports accurate regulation of position, velocity, and torque.

Suitable for precision automation

The motor can be incorporated into machinery requiring synchronized and repeatable movement, including packaging, assembly, indexing, and material-handling applications.

MP-Series system compatibility

As an MP-Series servo motor, the MPL-A420P-MJ74AA is intended for compatible Allen-Bradley motion-control architectures, providing a familiar platform for system integrators and maintenance engineers.

Practical replacement solution

For an existing machine using a compatible MP-Series motor, selecting the correct catalog number can help reduce mechanical changes and avoid unnecessary redesign work.

Built for repetitive motion

Servo motors are particularly valuable in applications where the same motion sequence is repeated thousands of times during a production shift. Correct sizing and tuning allow the motor to deliver consistent dynamic performance.

Technical FAQs

1. What type of servo motor is the MPL-A420P-MJ74AA?

The MPL-A420P-MJ74AA is an Allen-Bradley MP-Series low-inertia servo motor intended for industrial closed-loop motion-control applications.

2. What makes a low-inertia servo motor useful for automation?

Lower rotor inertia allows the motor to change speed rapidly. This is beneficial when the machine performs frequent acceleration, deceleration, indexing, or reversing movements.

3. Does the MPL-A420P-MJ74AA require a compatible servo drive?

Yes. The motor is designed to operate with a suitable servo drive that provides controlled power and processes its feedback information.

4. What factors should be checked when matching the motor to a drive?

The motor's complete catalog number, winding characteristics, voltage and current requirements, feedback configuration, connector arrangement, and supported motor profile should be checked against the selected servo drive.

5. What applications are appropriate for this motor?

It can be used in automated packaging, assembly, indexing, material handling, printing, converting, and other machinery requiring controlled and repeatable motion.

6. Can the motor be used in applications with frequent direction changes?

Yes. Its low-inertia servo construction is suitable for dynamic applications involving acceleration, deceleration, and direction changes, provided the actual duty cycle and peak torque remain within the system's operating limits.

7. What can cause inaccurate servo positioning?

Incorrect feedback configuration, poor servo tuning, mechanical backlash, excessive load inertia, coupling problems, incorrect scaling, or inappropriate motion parameters can all contribute to positioning errors.

8. What should be checked if the motor vibrates during operation?

Check the servo tuning parameters, feedback signals, mechanical alignment, coupling, load inertia, mounting rigidity, and acceleration settings. Excessive servo-loop gain can also produce oscillation.

9. Why is feedback essential to servo operation?

Feedback provides actual motor-position or speed information to the control system. The servo drive uses this information to correct motor operation and maintain the commanded motion profile.

10. Can another 115 mm MP-Series motor automatically replace this model?

No. Matching the frame size alone is insufficient. Winding, feedback, shaft configuration, connectors, brake options, and electrical characteristics may differ between motors. The complete motor and drive configuration should be verified before substitution.
