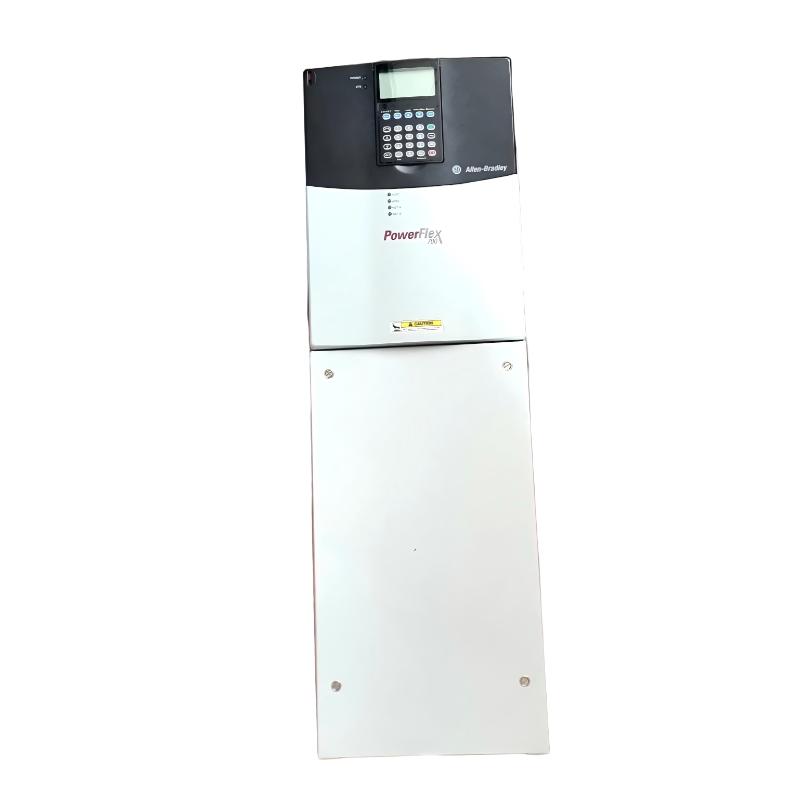

Allen Bradley 20BD077A0ANNANC0 PowerFlex 700 AC Drive

Applications and Industrial Use

The Allen Bradley 20BD077A0ANNANC0 is a PowerFlex 700 AC Drive designed for industrial motor-speed control applications where reliable variable-frequency drive performance, flexible control, and integration with plant automation systems are required.

As part of the PowerFlex 700 family, this drive is suited to applications where motors need controlled acceleration, deceleration, speed regulation, and torque management rather than simple across-the-line starting. It can be incorporated into automated production machinery, material-handling equipment, pumps, fans, conveyors, and other industrial systems that require adjustable motor control.

Typical applications include:

• Industrial conveyor systems
• Material-handling machinery
• Pumps and pumping systems
• Fans and air-handling equipment
• Process machinery
• Packaging and production equipment
• Machine tools and automated machinery
• Industrial motor speed regulation
• Retrofit and replacement projects for PowerFlex installations

For OEMs and system integrators, the PowerFlex 700 platform provides a practical solution when motor control needs to be integrated with a larger PLC, HMI, or plant control architecture. For maintenance teams, the 20BD077A0ANNANC0 can also serve as a replacement drive in existing Allen Bradley installations when its electrical and configuration requirements match the original application.

Key Advantages for Industrial Motor Control

Flexible variable-speed operation
The PowerFlex 700 platform is designed to provide controlled motor operation across a broad range of industrial applications, allowing equipment designers to match motor speed more closely to process requirements.

Improved starting and stopping control
Controlled acceleration and deceleration can reduce mechanical shock compared with direct motor starting, which is valuable for conveyors, rotating machinery, and other equipment with significant inertia.

Suitable for demanding automation environments
The drive can be incorporated into industrial control systems where coordinated motor operation is required alongside PLCs, HMIs, sensors, and other automation components.

Practical solution for retrofit projects
For facilities already using Allen Bradley automation equipment, maintaining a compatible PowerFlex drive can simplify replacement planning and reduce the engineering effort associated with introducing an entirely different drive platform.

Supports process-oriented motor control
Variable-frequency control allows motor speed to be adjusted according to production requirements, helping machinery operate more efficiently and consistently.

Designed for industrial serviceability
The PowerFlex 700 family was developed as an industrial drive platform, making it suitable for production environments where maintenance access, configuration, and long-term operational reliability are important considerations.

Technical FAQs: Allen Bradley 20BD077A0ANNANC0

1. What is the Allen Bradley 20BD077A0ANNANC0?
It is an Allen Bradley PowerFlex 700 AC Drive used for variable-speed control of industrial motors.

2. What is the main function of a PowerFlex 700 drive?
Its primary function is to control the operating characteristics of an AC motor, including speed and acceleration or deceleration, according to the requirements of the connected machine.

3. Can the 20BD077A0ANNANC0 be used with PLC-based automation systems?
Yes. PowerFlex 700 drives are intended for integration into industrial automation architectures. The exact communication and control method depends on the installed configuration and available interface options.

4. What should be checked before replacing an existing PowerFlex 700 drive?
The technician should verify the complete catalog number, input and output electrical requirements, motor rating, enclosure configuration, control hardware, communication options, and application-specific parameters.

5. Can drive parameters be transferred when replacing a PowerFlex 700?
Parameter transfer may be possible depending on the existing configuration and the tools or interface being used. The replacement drive should still be checked carefully before commissioning.

6. Why is correct drive sizing important?
The drive must be appropriately matched to the motor's voltage, current, power, overload requirements, and operating duty. Incorrect sizing can result in protection trips or inadequate motor performance.

7. What causes an AC drive to trip during acceleration?
Possible causes include excessive acceleration demand, high mechanical load, incorrect motor parameters, unsuitable acceleration settings, or electrical problems involving the motor or power supply.

8. What should be checked if the motor does not start?
Check the incoming power, drive status, enable and start commands, control wiring, fault history, motor connections, programmed parameters, and any active interlocks.

9. Is the PowerFlex 700 suitable for replacement applications?
It can be suitable for replacement or retrofit applications when the replacement drive's electrical and functional specifications match the original system requirements.

10. Does the drive require configuration after installation?
Yes. Motor and application parameters should be reviewed and configured before placing the drive into normal operation. Commissioning should also include appropriate testing of commands, direction, acceleration, deceleration, and protective functions.
