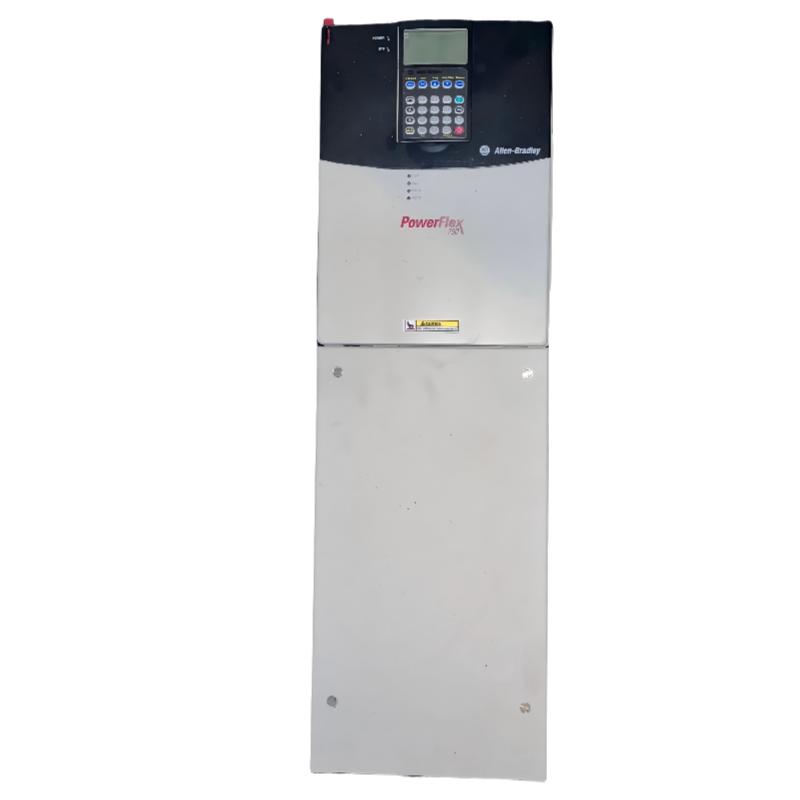

Allen Bradley 20BD077A0ANNAND0 PowerFlex 700 AC Drive
Allen Bradley 20BD077A0ANNAND0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BD077A0ANNAND0 Product Origin:USA Product Dimensions:758.8 x 201.7 x 220 mm Product Weight:24.49 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley PowerFlex 700 is an industrial AC drive platform developed for applications requiring controlled motor operation. Instead of connecting a motor directly to a fixed-frequency power source, the drive provides a controlled electrical output that allows motor operation to be adjusted to the needs of the machine.
The 20BD077A0ANNAND0 is therefore more than a simple motor starter. In an automated production system, the drive can serve as the interface between the control strategy and the motor. A PLC or other controller can issue operating commands while the PowerFlex drive manages the motor according to its configured parameters.
This approach is particularly valuable for equipment that experiences different production speeds or operating conditions. For example, a conveyor may require different speeds during loading and unloading, while a process pump may need speed adjustment according to changing production requirements.
Correct commissioning is essential. Before operation, technicians should verify the incoming power, motor wiring, grounding, control signals, and motor nameplate information. Parameters should then be configured to suit the connected motor and application. Direction of rotation and acceleration/deceleration behavior should also be tested under controlled conditions.
For replacement projects, technicians should pay close attention to the difference between similar PowerFlex catalog numbers. The final character configuration can be important when determining the correct replacement unit. Matching the complete 20BD077A0ANNAND0 catalog number helps reduce the risk of installing an incorrectly configured drive.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Manufacturer
Rockwell Automation
Model / Catalog Number
20BD077A0ANNAND0
Product Family
PowerFlex 700
Product Type
AC Drive
Drive Category
Variable Frequency AC Drive
Primary Function
AC Motor Speed Control
Application
Industrial Motor Control and Automation
System Integration
Industrial PLC and Automation Systems
Typical Installation
Industrial Control Cabinet / Equipment
Dimensions
758.8 × 201.7 × 220 mm
Weight
24.49 kg (54.00 lb)
Commissioning
Motor and application parameters must be configured
Maintenance
Electrical, cooling, wiring, parameter, and fault-condition inspection
Application Type
Variable-Speed Industrial Motor Control
Recommended Related Allen Bradley Models
Model
Product Type
Typical Application
20BD077A0ANNANC0
PowerFlex 700 AC Drive
Industrial variable-speed motor control
20AD5P0A0AYYNNG0
PowerFlex 70 AC Drive
General industrial AC motor control
20F1ANC205JA0NNNNN
PowerFlex 753 AC Drive
Advanced industrial motor applications
20P21AD207RA0NNN
PowerFlex DC Drive
Industrial DC motor control
150-F85NBD
SMC Flex Motor Controller
Intelligent motor starting and control
Popular Related Allen Bradley PowerFlex Models
Model
Product Family
Application
20BD077A0ANNAND0
PowerFlex 700
Industrial AC motor control
20BD077A0ANNANC0
PowerFlex 700
Variable-speed motor applications
20AD5P0A0AYYNNG0
PowerFlex 70
General-purpose industrial drives
20F1ANC205JA0NNNNN
PowerFlex 753
Advanced variable-frequency drive applications
20P21AD207RA0NNN
PowerFlex DC
Industrial DC drive applications
The Allen Bradley 20BD077A0ANNAND0 PowerFlex 700 AC Drive is a strong fit for industrial motor-control systems that require dependable variable-speed operation and integration with automated machinery. For replacement, retrofit, or new equipment applications, verifying the complete catalog number and matching the drive to the motor and control architecture are essential steps toward reliable commissioning and long-term operation.
Applications and Industrial Use
The Allen Bradley 20BD077A0ANNAND0 is a PowerFlex 700 AC Drive designed for industrial variable-speed motor control. It is intended for automation systems where an AC motor needs controlled starting, stopping, acceleration, deceleration, and operating speed rather than simple fixed-frequency operation.
The PowerFlex 700 platform is well suited to production equipment that requires dependable motor control and integration with a broader industrial automation architecture. The 20BD077A0ANNAND0 can be considered for machinery such as conveyors, pumps, fans, material-handling systems, process equipment, and automated production lines when its complete electrical configuration matches the application.
Typical applications include:
Industrial conveyor and material-handling systems
Automated production machinery
Pumps and process-flow equipment
Fans and air-handling systems
Packaging machinery
Process and manufacturing equipment
Machine-building applications
Replacement and retrofit projects
PLC-controlled motor systems
Industrial speed and torque regulation
For maintenance departments, the complete catalog number is particularly important. PowerFlex drives with similar product descriptions can have different electrical or hardware configurations, so the 20BD077A0ANNAND0 should be selected according to the original drive configuration and the requirements of the connected motor.
Key Advantages for Industrial Motor Control
Controlled motor operation
The PowerFlex 700 provides variable-speed AC motor control, allowing machine builders to adjust motor operation according to production requirements.
Smooth acceleration and deceleration
Controlled ramping can reduce mechanical shock during starting and stopping, helping machinery achieve more predictable operation.
Well suited to automation systems
The drive can form part of a larger control architecture involving PLCs, operator interfaces, sensors, contactors, and other industrial automation equipment.
Useful for retrofit and replacement work
For plants with existing Allen Bradley drive infrastructure, a correctly matched PowerFlex 700 can simplify maintenance and replacement planning.
Supports process control requirements
Adjustable motor speed can help production equipment maintain appropriate operating conditions instead of running continuously at a single fixed speed.
Industrial-duty construction
The PowerFlex 700 family is designed for industrial environments where reliable motor control, configuration flexibility, and serviceability are important.
Technical FAQs: Allen Bradley 20BD077A0ANNAND0
1. What is Allen Bradley 20BD077A0ANNAND0?
It is an Allen Bradley PowerFlex 700 AC Drive used for variable-speed control of industrial AC motors.
2. What is the primary purpose of the drive?
The drive regulates AC motor operation according to configured control commands, including starting, stopping, acceleration, deceleration, and speed control.
3. Can this drive be integrated with a PLC?
Yes. PowerFlex 700 drives are designed for use within industrial automation systems. The exact control and communication method depends on the installed drive configuration and interface hardware.
4. What should be checked before installing a replacement drive?
Verify the complete catalog number, motor voltage and current requirements, drive rating, control configuration, available options, wiring, and application parameters.
5. Why should the complete catalog number be checked?
The catalog number identifies the specific drive configuration. Two PowerFlex drives from the same family may differ in ratings, options, or hardware configuration.
6. What could cause an overcurrent fault during acceleration?
Potential causes include excessive mechanical load, aggressive acceleration settings, incorrect motor parameters, motor or cable problems, or an application requiring more torque than the drive can provide.
7. What should be checked if the motor does not respond to a start command?
Check the drive status, active faults, enable signal, start command, control wiring, programmed command source, motor connections, and any machine interlocks.
8. Is parameter configuration required after drive replacement?
Yes. Motor data and application-specific parameters should be reviewed and configured before normal operation. A replacement unit should not simply be energized and placed into production without commissioning checks.
9. Can the drive be used for retrofit applications?
It can be considered for retrofit applications when its electrical characteristics, motor-control requirements, enclosure arrangement, and control-system interfaces are compatible with the existing installation.
10. What maintenance checks are important for an installed PowerFlex 700?
Maintenance personnel should periodically inspect electrical connections, cooling paths, cabinet conditions, control wiring, fault history, and operating parameters according to the equipment maintenance program.
