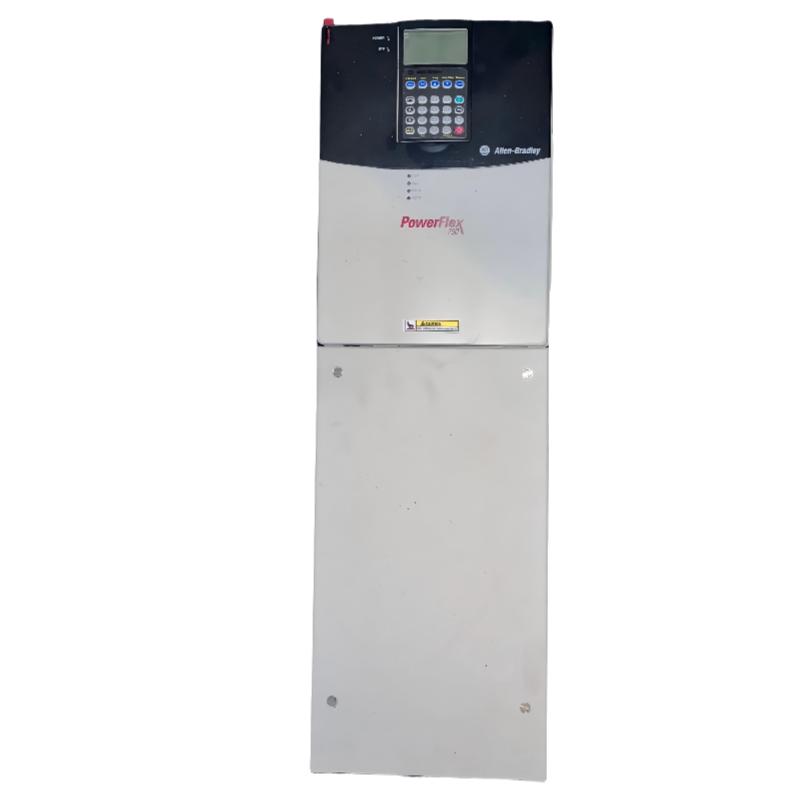

Allen Bradley 20BD077A3ANNACA0 PowerFlex 700 AC Drive
Allen Bradley 20BD077A3ANNACA0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BD077A3ANNACA0 Product Origin:USA Product Dimensions:758.8 x 201.7 x 220 mm Product Weight:24.49 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley PowerFlex 700 is an industrial AC drive platform developed for applications requiring controlled motor operation. Instead of allowing an AC motor to operate only at the characteristics of the incoming fixed-frequency supply, a variable-frequency drive provides controlled electrical output to regulate motor behavior.
The 20BD077A3ANNACA0 can therefore serve as an important component between an industrial control system and the motor-driven machine. In a typical automation architecture, a PLC or supervisory controller determines when and how the motor should operate, while the drive manages the motor according to its configured control parameters.
This type of arrangement is useful in production equipment where motor speed needs to change according to different operating stages. Conveyors, pumps, fans, and process machinery can all benefit from controlled motor operation when the drive is correctly sized and commissioned.
Replacement work requires particular attention to catalog-number identification. It is not sufficient to select another unit simply because it is labeled as a PowerFlex 700. The complete catalog number should be compared with the original equipment documentation to ensure that the replacement has the required electrical and functional configuration.
During commissioning, technicians should verify incoming power, grounding, motor connections, control signals, and motor nameplate information. Application parameters should then be configured before testing the motor. Direction of rotation, acceleration, deceleration, and operating behavior should be checked under controlled conditions before the machine is returned to full production.
For industrial facilities, this combination of proper catalog-number verification, correct configuration, and disciplined commissioning can significantly reduce avoidable startup problems during PowerFlex drive replacement.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Manufacturer
Rockwell Automation
Model / Catalog Number
20BD077A3ANNACA0
Product Family
PowerFlex 700
Product Type
AC Drive
Drive Category
Variable Frequency AC Drive
Primary Function
AC Motor Speed Control
Application
Industrial Motor Control and Automation
System Integration
PLC and Industrial Automation Systems
Typical Installation
Industrial Control Cabinet / Equipment
Dimensions
758.8 × 201.7 × 220 mm
Weight
24.49 kg (54.00 lb)
Commissioning
Motor and application parameters require configuration
Maintenance
Electrical, cooling, wiring, fault, and parameter inspection
Application Type
Variable-Speed Industrial Motor Control
Recommended Related Allen Bradley Models
Model
Product Type
Typical Application
20BD077A0ANNANC0
PowerFlex 700 AC Drive
Industrial variable-speed motor control
20BD077A0ANNAND0
PowerFlex 700 AC Drive
Industrial AC motor control
20AD5P0A0AYYNNG0
PowerFlex 70 AC Drive
General industrial motor-speed control
20F1ANC205JA0NNNNN
PowerFlex 753 AC Drive
Advanced industrial motor applications
20P21AD207RA0NNN
PowerFlex DC Drive
Industrial DC motor control
Popular Related Allen Bradley PowerFlex Models
Model
Product Family
Application
20BD077A3ANNACA0
PowerFlex 700
Industrial AC motor control
20BD077A0ANNANC0
PowerFlex 700
Variable-speed motor applications
20BD077A0ANNAND0
PowerFlex 700
Industrial drive replacement
20AD5P0A0AYYNNG0
PowerFlex 70
General-purpose variable-speed control
20F1ANC205JA0NNNNN
PowerFlex 753
Advanced industrial drive applications
The Allen Bradley 20BD077A3ANNACA0 PowerFlex 700 AC Drive provides a practical solution for industrial applications requiring controlled AC motor operation. With appropriate drive selection, parameter configuration, wiring, and commissioning, it can support reliable motor control across automated production machinery, material-handling equipment, process systems, and other industrial applications.
Applications and Industrial Use
The Allen Bradley 20BD077A3ANNACA0 is a PowerFlex 700 AC Drive designed for industrial variable-speed motor control. It is intended for automation systems where AC motors require controlled starting, stopping, acceleration, deceleration, and speed regulation.
The PowerFlex 700 family is commonly suited to machinery that requires more flexible motor control than a conventional starter can provide. The drive can be integrated into automated production equipment and larger plant-control architectures, making it useful for both OEM machinery and industrial retrofit projects.
Typical applications include:
Automated conveyor systems
Material-handling equipment
Pumps and process machinery
Fans and air-moving systems
Packaging and manufacturing equipment
Production-line machinery
Machine-building applications
Industrial process equipment
PLC-controlled motor systems
PowerFlex replacement and retrofit projects
For maintenance and replacement applications, the complete catalog number 20BD077A3ANNACA0 should be verified before purchasing. PowerFlex 700 drives with similar ratings can have different configurations, and the complete catalog number is important when matching a replacement unit to an existing installation.
Key Advantages for Industrial Motor Control
Flexible AC motor speed control
The PowerFlex 700 platform provides controlled motor operation, allowing equipment to operate at speeds appropriate to the production process instead of relying exclusively on fixed-frequency motor operation.
Controlled acceleration and deceleration
Adjustable ramping can provide smoother starting and stopping, which can help reduce mechanical shock in conveyors, rotating machinery, and other driven equipment.
Suitable for automated production systems
The drive can operate as part of a larger automation system containing PLCs, HMIs, sensors, motor controls, and other industrial components.
Useful for retrofit applications
For facilities already using Allen Bradley PowerFlex equipment, a correctly matched PowerFlex 700 can be a practical option for maintaining existing motor-control infrastructure.
Supports process optimization
Variable-speed operation allows motor speed to be adjusted according to machine requirements, which can improve process consistency and provide more flexible equipment operation.
Designed for industrial environments
The PowerFlex 700 platform is intended for industrial motor-control applications where dependable operation, configuration flexibility, and maintainability are important.
Technical FAQs: Allen Bradley 20BD077A3ANNACA0
1. What is Allen Bradley 20BD077A3ANNACA0?
It is an Allen Bradley PowerFlex 700 AC Drive designed for variable-speed control of industrial AC motors.
2. What does the drive control?
The drive controls the electrical operation of an AC motor according to configured commands and application parameters, including starting, stopping, acceleration, deceleration, and speed.
3. Can the 20BD077A3ANNACA0 be used with PLC systems?
Yes. PowerFlex 700 drives are designed for integration into industrial automation systems. The actual command and communication method depends on the installed configuration and system architecture.
4. Why is the complete catalog number important?
The PowerFlex 700 catalog number identifies the particular drive configuration. Similar-looking drives may have different electrical ratings, hardware options, or functional configurations.
5. What should be checked before replacing an existing drive?
Verify the complete catalog number, motor requirements, input power, drive rating, control configuration, installed options, wiring, and application parameters.
6. What could cause a drive to trip during acceleration?
Possible causes include excessive load, overly aggressive acceleration settings, incorrect motor data, motor or cable problems, or an application requiring more torque than the configured drive can deliver.
7. What should be checked if the motor does not start?
Check incoming power, drive status, active faults, enable signals, start commands, control wiring, command-source settings, motor connections, and machine interlocks.
8. Does a replacement PowerFlex 700 require commissioning?
Yes. Motor data and application parameters should be reviewed and configured before production operation. Functional testing should also be performed after installation.
9. Can the drive be used in an existing PowerFlex installation?
It may be suitable when the electrical, mechanical, control, and configuration requirements match the existing system. Compatibility should be verified before replacement.
10. What maintenance checks are recommended?
Maintenance personnel should inspect electrical connections, cooling paths, cabinet conditions, control wiring, drive status, fault history, and application parameters as part of the site's maintenance program.
