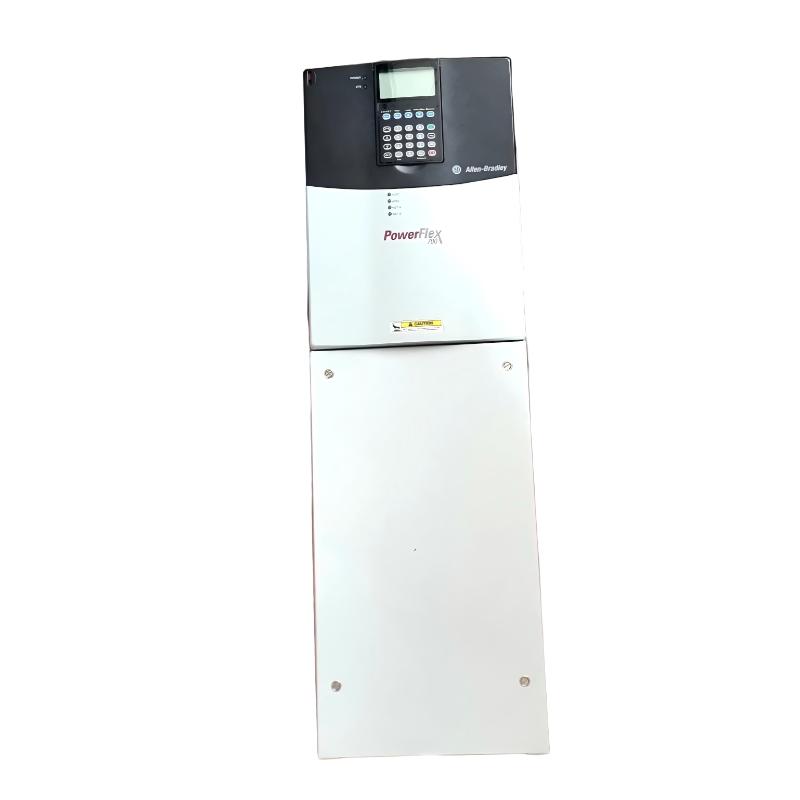

Allen Bradley 20BD077A3ANNADA0 PowerFlex 700 AC Drive
Allen Bradley 20BD077A3ANNADA0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BD077A3ANNADA0 Product Origin:USA Product Dimensions:758.8 x 201.7 x 220 mm Product Weight:24.49 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley PowerFlex 700 is an industrial AC drive platform designed for applications where motors require controlled operation. Rather than allowing a motor to operate only at the characteristics of a fixed-frequency supply, the drive provides controlled electrical output that enables variable-speed operation.
The 20BD077A3ANNADA0 can act as the motor-control component within a broader automated machine. A PLC or other controller can issue operating commands, while the PowerFlex drive manages motor behavior according to its programmed parameters.
This arrangement is useful in machinery where speed requirements change during production. A conveyor, for example, may need different operating speeds during loading and transfer. Pumps and fans can similarly require adjustable operation as process conditions change.
Correct drive identification is particularly important for maintenance teams. PowerFlex 700 catalog numbers can look very similar while representing different configurations. Therefore, a replacement should be selected by comparing the complete catalog number rather than relying on the product family name or general horsepower description.
During commissioning, technicians should verify incoming power, grounding, motor wiring, control signals, and motor nameplate information. Appropriate parameters should then be configured before testing. Motor direction, acceleration, deceleration, and operating response should be checked under controlled conditions before the machine is returned to full production.
For industrial facilities, maintaining accurate spare-part records for PowerFlex drives can also simplify emergency replacement work. Having the correct catalog number available helps maintenance teams identify the required unit more quickly and reduces the possibility of installing an incompatible configuration.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Manufacturer
Rockwell Automation
Model / Catalog Number
20BD077A3ANNADA0
Product Family
PowerFlex 700
Product Type
AC Drive
Drive Category
Variable Frequency AC Drive
Primary Function
AC Motor Speed Control
Application
Industrial Motor Control and Automation
System Integration
PLC and Industrial Automation Systems
Typical Installation
Industrial Control Cabinet / Equipment
Dimensions
758.8 × 201.7 × 220 mm
Weight
24.49 kg (54.00 lb)
Commissioning
Motor and application parameters require configuration
Maintenance
Electrical, cooling, wiring, fault, and parameter inspection
The Allen Bradley 20BD077A3ANNADA0 PowerFlex 700 AC Drive is a suitable industrial motor-control solution for applications requiring controlled AC motor speed and automated operation. Accurate catalog-number matching, correct motor configuration, careful wiring, and proper commissioning are essential for dependable performance in production and process-control environments.
Applications and Industrial Use
The Allen Bradley 20BD077A3ANNADA0 is a PowerFlex 700 AC Drive designed for industrial variable-speed motor control. It is intended for automation systems where AC motors need controlled starting, stopping, acceleration, deceleration, and speed regulation.
The PowerFlex 700 platform is well suited to production machinery that requires more precise motor management than conventional fixed-speed starters can provide. The 20BD077A3ANNADA0 can be considered for conveyors, material-handling systems, pumps, fans, process machinery, and automated manufacturing equipment when its complete electrical configuration matches the application.
Typical applications include:
Industrial conveyor systems
Material-handling equipment
Automated production machinery
Pumps and process equipment
Fans and air-handling systems
Packaging machinery
Manufacturing equipment
Process-control applications
PLC-based motor-control systems
PowerFlex retrofit and replacement projects
For replacement work, the complete catalog number 20BD077A3ANNADA0 should be verified rather than selecting a drive solely by its PowerFlex 700 family designation. Closely related catalog numbers can represent different configurations.
Key Advantages for Industrial Motor Control
Flexible variable-speed operation
The PowerFlex 700 platform allows AC motor speed to be controlled according to machine requirements, providing greater flexibility than fixed-speed motor operation.
Controlled acceleration and deceleration
Programmable ramping can provide smoother starting and stopping, helping reduce mechanical shock in suitable applications.
Integration with automation systems
The drive can form part of a larger industrial control architecture involving PLCs, HMIs, sensors, motor-control equipment, and supervisory systems.
Suitable for established Allen Bradley installations
Facilities already using Allen Bradley automation equipment can maintain a consistent drive-control platform when the selected PowerFlex configuration is compatible.
Useful for process applications
Adjustable motor speed can help machinery respond to changing production requirements and maintain more consistent operating conditions.
Practical replacement solution
The PowerFlex 700 family is useful for maintenance and retrofit projects where an existing drive needs to be replaced with a correctly matched unit.
Technical FAQs: Allen Bradley 20BD077A3ANNADA0
1. What is Allen Bradley 20BD077A3ANNADA0?
It is an Allen Bradley PowerFlex 700 AC Drive designed for variable-speed control of industrial AC motors.
2. What is the main purpose of this drive?
Its main purpose is to control AC motor operation, including starting, stopping, acceleration, deceleration, and operating speed.
3. Can the drive be integrated with a PLC?
Yes. PowerFlex 700 drives are designed for use in industrial automation systems. The actual control method depends on the drive configuration and overall system architecture.
4. Why is the complete catalog number important?
The catalog number identifies the specific configuration of the drive. Drives belonging to the same PowerFlex family may have different electrical, hardware, or functional characteristics.
5. What should be checked before replacing an existing PowerFlex drive?
Verify the complete catalog number, motor voltage and current requirements, drive rating, control configuration, installed options, wiring, and application parameters.
6. What can cause an overcurrent fault during acceleration?
Possible causes include excessive mechanical load, incorrect motor parameters, an overly aggressive acceleration profile, motor or cable problems, or insufficient drive capacity for the application.
7. What should be inspected if the motor does not start?
Check incoming power, drive status, fault indications, enable and start commands, command-source settings, control wiring, motor connections, and machine interlocks.
8. Does a replacement drive require parameter configuration?
Yes. Motor information and application-specific parameters should be reviewed and configured before the replacement drive is placed into normal production service.
9. Can this drive be used in a retrofit project?
It can be considered for retrofit applications when the drive's electrical and functional configuration is compatible with the existing motor and automation system.
10. What maintenance checks are recommended?
Maintenance personnel should inspect electrical connections, cooling paths, cabinet conditions, control wiring, drive status, fault history, and operating parameters according to the site's maintenance procedures.
