Product Introduction and Drive Control Role

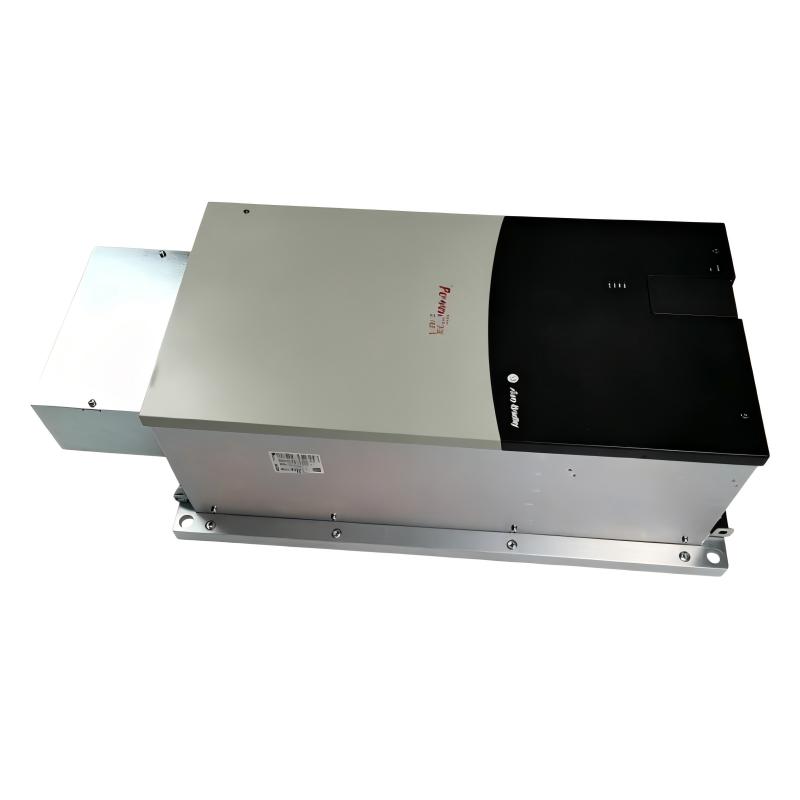

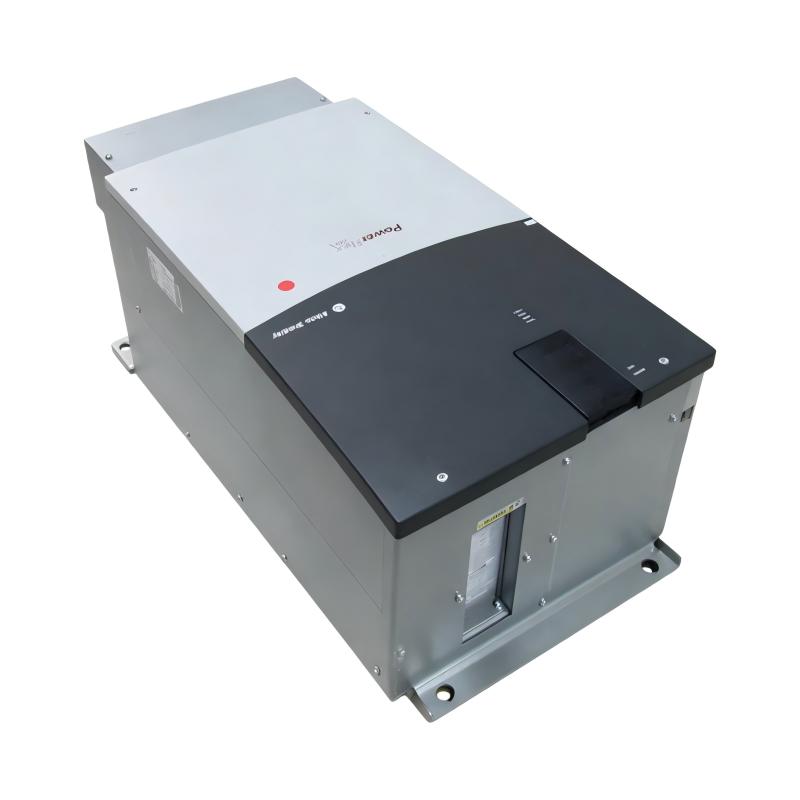

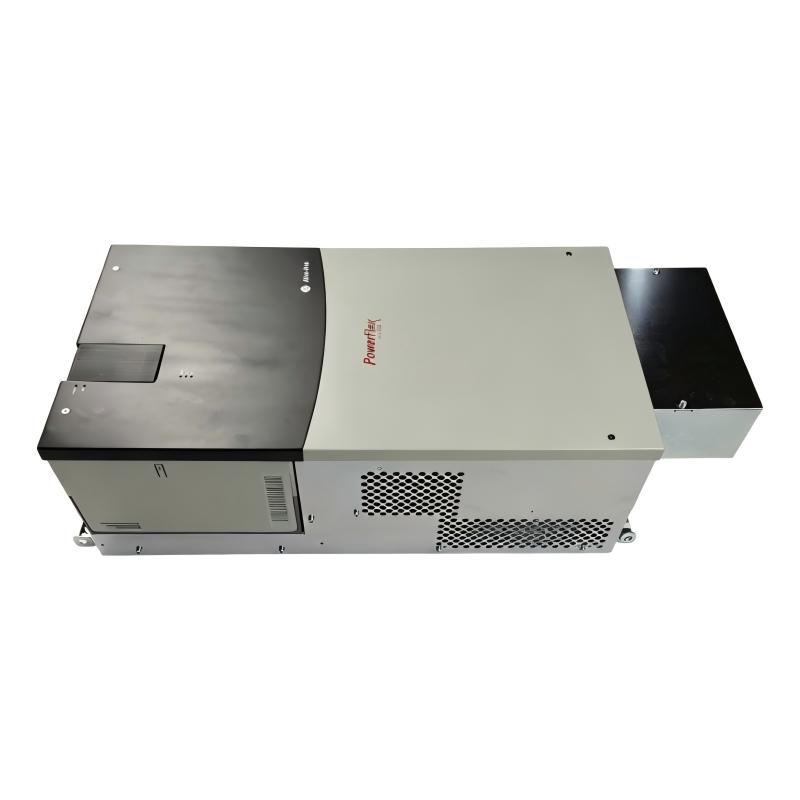

The Allen Bradley 20BD156A3ANNACA0 PowerFlex 700 AC Drive is part of the PowerFlex 700 family of industrial adjustable-frequency drives. In an automated machine, the drive occupies an important position between the electrical supply and the AC motor, translating control commands into controlled motor operation.

Unlike a basic motor starter that primarily provides on/off switching, a variable-frequency drive allows motor speed and operating behavior to be managed according to application requirements. This difference is particularly important in industrial processes where the motor does not always need to run at a single fixed speed.

For example, a conveyor system may require different speeds during loading, processing, and unloading. A pump may need to adjust its output as process demand changes. A fan may operate at reduced speed when full airflow is unnecessary. In these situations, variable-speed control can provide more precise machine operation and reduce unnecessary mechanical intervention.

The drive also forms part of the wider automation architecture. A PLC may determine the required operating condition, while the drive executes the motor-control function. Feedback devices, sensors, HMIs, and other control components can then work together to create a coordinated production system.

For replacement applications, technicians should pay close attention to the complete catalog number 20BD156A3ANNACA0 rather than identifying the unit simply as a “PowerFlex 700.” Different catalog-number configurations can represent different electrical or functional arrangements. Proper model verification helps prevent installation errors and unexpected compatibility problems.

The physical size of this particular drive should also be considered during engineering and maintenance planning. With dimensions of 976.3 × 403.9 × 275.5 mm and a listed weight of 71.44 kg, the installation requires suitable cabinet space and mechanical support. Handling procedures should be planned before removal or installation, particularly when replacing an existing drive in a confined control cabinet.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	PowerFlex 700
Model	20BD156A3ANNACA0
Product Type	AC Drive / Variable Frequency Drive
Application	Industrial AC motor speed control
Control System	Industrial automation and motor-control systems
Installation	Industrial control cabinet / equipment installation
Dimensions	976.3 × 403.9 × 275.5 mm
Weight	71.44 kg (157.50 lb)

The listed dimensions and weight should be incorporated into cabinet layout and service planning. Because the unit weighs 71.44 kg (157.50 lb), suitable lifting and mechanical handling procedures should be used during installation, removal, transportation, and maintenance.

Recommended Related Allen Bradley Models

Model	Product Type	Typical Application
20BD156A0ANNANC0	PowerFlex 700 AC Drive	Industrial motor speed control
20BD156A0ANNAND0	PowerFlex 700 AC Drive	Variable-speed motor applications
20BD077A0ANNANC0	PowerFlex 700 AC Drive	Industrial AC motor control
20BD077A0ANNAND0	PowerFlex 700 AC Drive	Automated machinery
20BD077A3ANNACA0	PowerFlex 700 AC Drive	Industrial drive applications
20BD077A3ANNACD0	PowerFlex 700 AC Drive	Motor-control systems

Popular Related Allen Bradley PowerFlex Models

Model	Product Family	Application
20AD5P0A0AYYNNG0	PowerFlex 70	Industrial AC motor control
20F1ANC205JA0NNNNN	PowerFlex 753	Industrial variable-speed applications
20P21AD207RA0NNN	PowerFlex DC	DC motor control
150-F85NBD	SMC Flex	Intelligent motor starting and control
20BD156A3ANNACA0	PowerFlex 700	Industrial AC drive applications

The Allen Bradley 20BD156A3ANNACA0 PowerFlex 700 AC Drive is a substantial industrial drive intended for controlled AC motor operation in automation and production environments. For reliable deployment, the exact catalog number should be matched with the application, motor, electrical system, control architecture, and installation conditions. Proper parameter management and preventive maintenance are equally important for maintaining stable motor performance and reducing unplanned downtime.

Applications and Industrial Use

The Allen Bradley 20BD156A3ANNACA0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for reliable control of AC motor-driven equipment. As part of the PowerFlex 700 family, it is suitable for automation systems where controlled motor speed, smooth acceleration and deceleration, and stable operation are important to overall machine performance.

This type of drive can be applied across manufacturing and process industries, particularly in equipment with continuously running motors or variable production requirements. Common applications include conveyors, pumps, fans, mixers, material-handling systems, processing machinery, and automated production equipment.

Typical application areas include:

Conveyor and material-handling systems
Industrial pumping equipment
Fans and ventilation machinery
Mixers and rotating process equipment
Packaging and production machines
Machine-building systems
Automated manufacturing lines
General industrial motor control
Motor-driven auxiliary equipment

The 20BD156A3ANNACA0 can also be considered for PowerFlex 700 replacement and retrofit projects when its complete electrical and control configuration matches the existing installation. Before replacement, engineers should verify motor information, incoming power, drive configuration, control requirements, braking arrangements, cabinet conditions, and connected automation equipment.

Key Advantages for Industrial Motor Control

Flexible variable-speed operation
The PowerFlex 700 platform provides adjustable-speed control for industrial AC motors, allowing machinery to operate at speeds appropriate for different production conditions.

Smooth motor starting and stopping
Controlled acceleration and deceleration can help reduce mechanical shock compared with direct motor starting. This is especially useful for conveyors, rotating machinery, and equipment with significant mechanical inertia.

Better process adaptability
Variable-speed control allows the motor to respond more closely to process requirements. Production equipment can therefore be operated at different speeds without relying entirely on mechanical adjustments.

Integration with industrial automation
The PowerFlex 700 family is designed for use within broader industrial control systems containing PLCs, HMIs, sensors, contactors, safety devices, and other automation hardware.

Suitable for demanding industrial environments
The substantial physical construction of this drive makes it appropriate for properly engineered industrial control cabinets and motor-control installations.

Useful for maintenance and retrofit work
Facilities using multiple PowerFlex drives can simplify spare-parts identification and maintenance procedures by organizing replacement units according to their exact catalog numbers and installed configurations.

Stable motor-control architecture
When correctly sized and configured, the drive provides a controlled interface between the industrial power system and the motor, supporting consistent operation of automated equipment.

Technical FAQs: Allen Bradley 20BD156A3ANNACA0

1. What is the Allen Bradley 20BD156A3ANNACA0?
The 20BD156A3ANNACA0 is an Allen Bradley PowerFlex 700 AC drive intended for variable-speed control of industrial AC motors.

2. What is the primary function of this drive?
Its primary function is to regulate AC motor operation, allowing industrial machinery to achieve controlled speed, acceleration, and deceleration.

3. What types of equipment can use this PowerFlex 700 drive?
Typical applications include conveyors, pumps, fans, mixers, material-handling equipment, production machinery, and other motor-driven industrial systems.

4. Can the 20BD156A3ANNACA0 be integrated with a PLC?
Yes. PowerFlex 700 drives are commonly used as part of PLC-based automation systems. The exact interface and control method depend on the complete system configuration.

5. What information should be checked before installing this drive?
Technicians should check the motor nameplate, incoming electrical supply, motor wiring, load characteristics, existing drive parameters, control architecture, braking requirements, cabinet environment, and protection equipment.

6. Why is correct motor data important during commissioning?
Drive parameters need to correspond correctly with the connected motor. Incorrect motor information can contribute to excessive current, poor speed regulation, unstable operation, or repeated drive faults.

7. Can acceleration and deceleration parameters affect mechanical equipment?
Yes. Aggressive acceleration or deceleration can increase mechanical stress and electrical demand. Settings should be selected according to the motor, driven load, inertia, and machine requirements.

8. What preventive maintenance should be performed?
Maintenance teams should periodically inspect cooling airflow, cabinet cleanliness, electrical connections, wiring, operating temperature, fault history, and visible signs of overheating or component deterioration.

9. What should be checked when the drive trips unexpectedly?
The first step is to record the exact fault indication and operating conditions. Technicians should then investigate the motor, wiring, incoming power, load, cooling system, parameters, and external control signals.

10. Can this model be used as a replacement for another PowerFlex 700 drive?
A replacement should never be selected only because both units belong to the PowerFlex 700 family. The complete catalog number, electrical ratings, options, control requirements, firmware considerations, and application must be compared before installation.
