Product Introduction and Drive Control Role

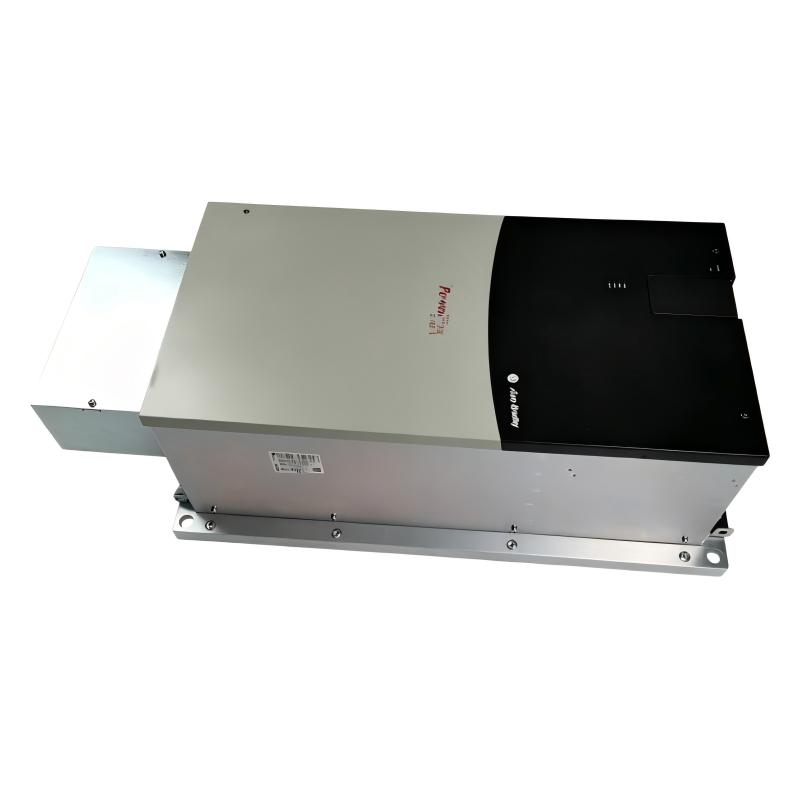

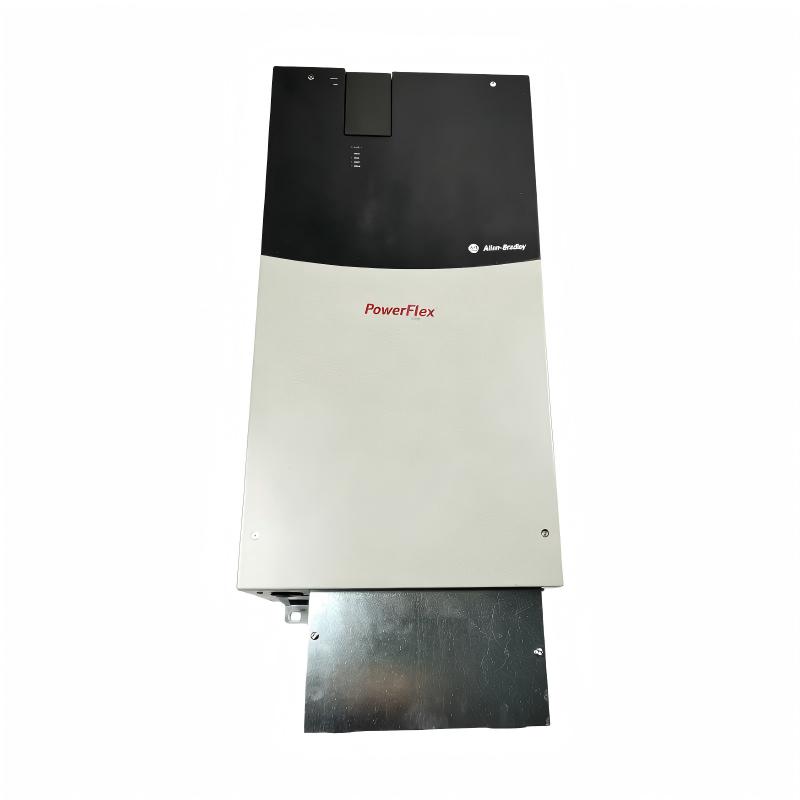

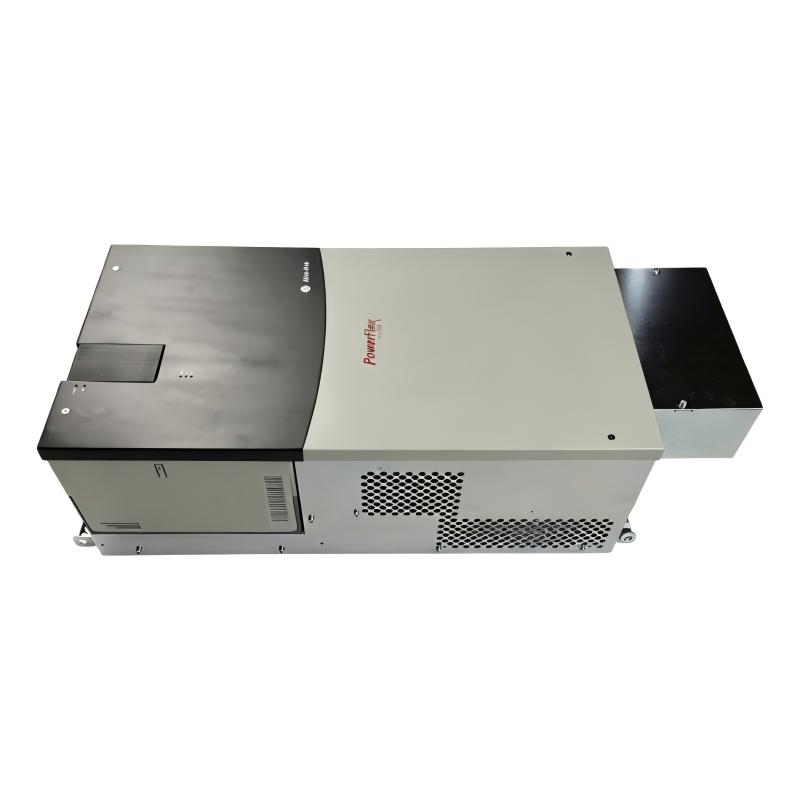

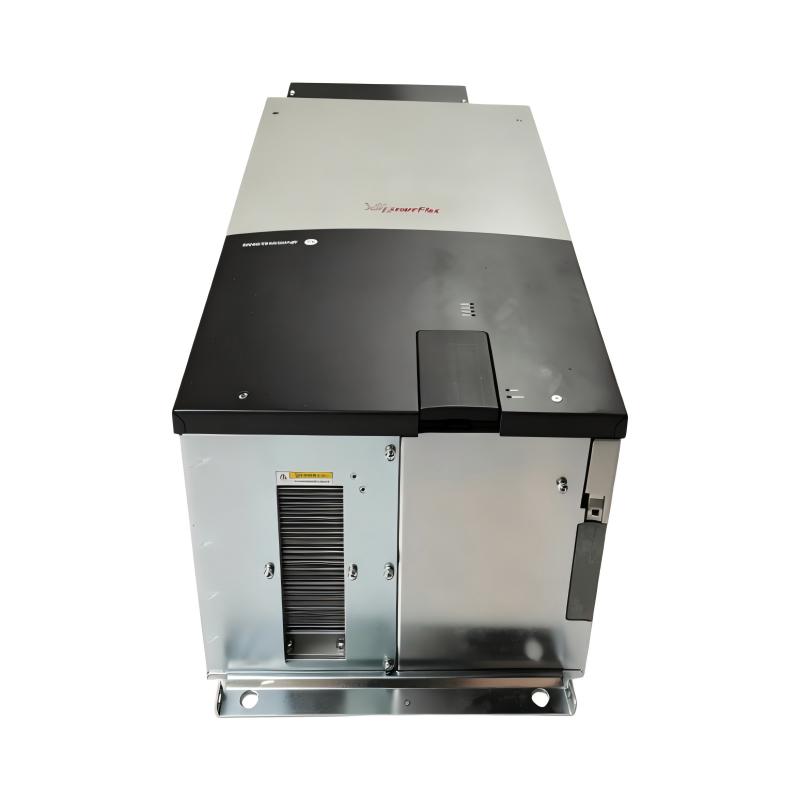

The Allen Bradley 20BD156A3ANNANA0 PowerFlex 700 AC Drive is designed to perform the motor-control function within an industrial automation system. Instead of simply switching an AC motor on or off, the drive provides a controlled method of operating the motor according to the requirements of the machine.

In a typical automation installation, the drive is installed inside an electrical control cabinet and works alongside a PLC, operator interface, circuit protection, contactors, sensors, terminal assemblies, and other control equipment. The automation controller determines the required operating condition, while the drive manages the corresponding motor-control process.

Variable-speed control is particularly useful when a machine needs different operating speeds during different stages of production. For example, a conveyor may need a lower speed during loading and a higher speed during transportation. A pump may require its operating speed to change as process demand changes. A fan may also need to operate below maximum speed under reduced-load conditions.

Controlled acceleration and deceleration are another important part of drive-based motor control. Starting a large motor directly can create significant electrical and mechanical stress. A properly configured drive can provide a more controlled transition between stopped and operating conditions, helping the machine achieve smoother operation.

The 20BD156A3ANNANA0 should be identified by its complete catalog number when purchasing, maintaining, or replacing equipment. This is especially important in facilities containing multiple PowerFlex 700 drives because visually similar units may have different configurations.

The physical installation also requires careful planning. With dimensions of 976.3 × 403.9 × 275.5 mm and a listed weight of 71.44 kg, the unit requires sufficient mounting space and structural support. Cabinet designers should consider cable routing, service access, ventilation, heat dissipation, and safe handling during installation.

For maintenance teams, accurate documentation is equally important. Recording drive parameters, motor information, wiring arrangements, fault history, and replacement-part details can make future troubleshooting and drive replacement considerably more efficient.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	PowerFlex 700
Model	20BD156A3ANNANA0
Product Type	AC Drive / Variable Frequency Drive
Application	Industrial AC motor speed control
System Role	Variable-speed motor control
Installation	Industrial control cabinet / automation equipment
Dimensions	976.3 × 403.9 × 275.5 mm
Weight	71.44 kg (157.50 lb)

The substantial physical dimensions should be considered when designing or modifying a control cabinet. The 71.44 kg (157.50 lb) unit also requires appropriate mechanical support and safe lifting procedures during installation and maintenance.

Recommended Related Allen Bradley Models

Model	Product Type	Typical Application
20BD156A0ANNANC0	PowerFlex 700 AC Drive	Industrial motor speed control
20BD156A0ANNAND0	PowerFlex 700 AC Drive	Variable-speed motor applications
20BD156A3ANNACA0	PowerFlex 700 AC Drive	Industrial AC motor control
20BD077A0ANNANC0	PowerFlex 700 AC Drive	Automated machinery
20BD077A0ANNAND0	PowerFlex 700 AC Drive	Industrial motor applications
20BD077A3ANNACA0	PowerFlex 700 AC Drive	Variable-speed industrial equipment

Popular Related Allen Bradley PowerFlex Models

Model	Product Family	Application
20AD5P0A0AYYNNG0	PowerFlex 70	Industrial AC motor control
20F1ANC205JA0NNNNN	PowerFlex 753	Advanced industrial drive applications
20P21AD207RA0NNN	PowerFlex DC	DC motor-control applications
150-F85NBD	SMC Flex	Intelligent motor starting and control
20BD156A3ANNACA0	PowerFlex 700	Industrial AC drive applications

The Allen Bradley 20BD156A3ANNANA0 PowerFlex 700 AC Drive provides a robust platform for variable-speed AC motor control in industrial automation systems. For replacement, retrofit, or new equipment projects, the complete model number should be matched against the electrical system, motor, load characteristics, control architecture, and installation requirements. Proper commissioning, parameter management, cooling, and preventive maintenance are essential for dependable long-term operation.

Applications and Industrial Use

The Allen Bradley 20BD156A3ANNANA0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for controlling AC motors in demanding automation and manufacturing environments. As a member of the PowerFlex 700 family, it is intended for applications where controlled motor speed, smooth acceleration, reliable stopping, and coordinated machine operation are important.

The drive can be used in a broad range of industrial equipment, including material-handling systems, conveyors, pumps, fans, mixers, processing machinery, and automated production lines. Its role is to provide controlled motor operation while working as part of a larger electrical and automation system.

Typical applications include:

Industrial conveyor systems
Material-handling machinery
Pumps and process circulation equipment
Industrial fans and ventilation systems
Mixers and rotating machinery
Packaging and production equipment
Automated manufacturing lines
Machine-building applications
General-purpose AC motor control
Industrial equipment modernization and retrofit projects

When used for replacement or retrofit work, the complete catalog number should be checked carefully. A PowerFlex 700 drive should not be selected solely by its family name because different catalog-number configurations can have different electrical, control, and option characteristics.

Key Advantages for Industrial Motor Control

Controlled variable-speed operation
The PowerFlex 700 platform provides adjustable motor-speed control, allowing machinery to operate according to actual process requirements instead of relying exclusively on fixed-speed motor operation.

Smooth acceleration and deceleration
Controlled ramping can help reduce mechanical shock during motor starting and stopping. This is particularly beneficial for conveyors, rotating equipment, and loads with significant inertia.

Flexible industrial applications
The drive family can be applied to many types of motor-driven equipment, making it suitable for manufacturing facilities with diverse automation requirements.

Integration with automation architectures
A PowerFlex 700 drive can operate within a larger control architecture involving PLCs, HMIs, sensors, motor protection devices, and industrial communication equipment.

Improved machine control
Variable-speed motor control allows machine designers to coordinate motor operation more closely with production requirements, helping maintain consistent process behavior.

Maintenance and retrofit value
For facilities already using Allen Bradley drive equipment, maintaining accurately identified PowerFlex replacement units can simplify service planning and reduce troubleshooting time during equipment replacement.

Industrial-duty construction
The listed 71.44 kg weight indicates a substantial drive assembly that requires appropriate cabinet support and handling procedures. Mechanical installation should therefore be considered together with electrical and control-system requirements.

Technical FAQs: Allen Bradley 20BD156A3ANNANA0

1. What is the Allen Bradley 20BD156A3ANNANA0?
The 20BD156A3ANNANA0 is an Allen Bradley PowerFlex 700 AC drive used for variable-speed control of industrial AC motors.

2. What is the main function of this PowerFlex 700 drive?
Its main function is to control AC motor operation by regulating motor speed and providing controlled acceleration and deceleration.

3. Where can the 20BD156A3ANNANA0 be used?
It can be applied to industrial equipment such as conveyors, pumps, fans, mixers, processing machinery, material-handling systems, and automated production equipment.

4. Can this drive operate as part of a PLC-controlled machine?
Yes. PowerFlex drives are commonly incorporated into PLC-based automation systems. The specific control and communication method depends on the system architecture and installed configuration.

5. What should be verified before replacing another PowerFlex drive?
The technician should compare the complete catalog number, motor requirements, incoming power, control method, options, braking configuration, wiring, parameters, and automation-system interfaces.

6. Why should the exact catalog number be recorded during maintenance?
PowerFlex products can have different configurations within the same product family. Recording the complete catalog number helps maintenance personnel select a replacement that matches the original application.

7. Can incorrect drive parameters cause motor problems?
Yes. Incorrect motor and operating parameters can contribute to excessive current, poor speed regulation, unstable operation, nuisance trips, or inefficient machine performance.

8. What maintenance should be performed on an installed drive?
Routine maintenance should include inspection of cabinet ventilation, cooling airflow, electrical connections, wiring, operating environment, contamination, fault history, and visible signs of overheating.

9. What is a good first step when the drive develops a fault?
Record the exact fault indication and the operating conditions when it occurred. Then investigate the motor, power supply, wiring, load, cooling conditions, parameters, and external control signals.

10. Is the 20BD156A3ANNANA0 appropriate for every PowerFlex 700 replacement?
No. Even when two units belong to the same PowerFlex 700 family, their configurations may differ. Electrical ratings, options, control requirements, and application conditions should be verified before replacement.
