Product Introduction and Drive Control Role

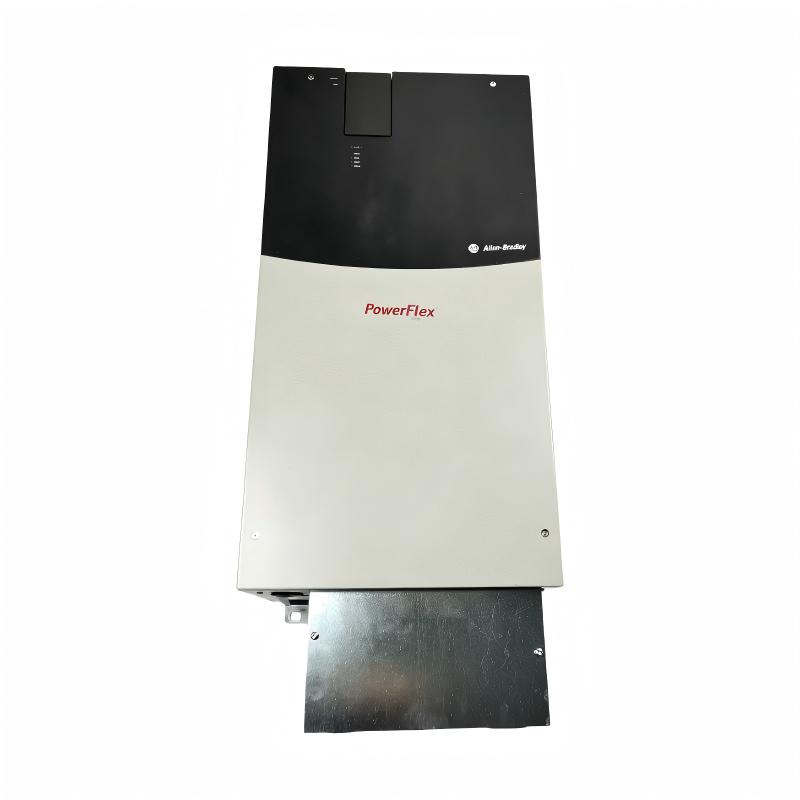

The Allen Bradley 20BD156A3ANNANC1 PowerFlex 700 AC Drive performs the motor-control function within an industrial automation system. Its role is to provide controlled AC motor operation rather than simply switching the motor between an on and off state.

In a typical installation, the drive is mounted inside an industrial control cabinet together with PLC hardware, circuit protection, terminal assemblies, communication equipment, and other automation components. The control system determines the required operating conditions, while the drive manages the corresponding motor-control function.

Variable-speed operation is particularly useful when machinery needs to operate at different production rates. A conveyor, for example, may require different speeds during loading, processing, and unloading. A pump may need to change speed as process demand changes, while a fan may operate at a reduced speed when full airflow is not required.

Controlled acceleration and deceleration are also valuable in industrial applications. Rather than subjecting the motor and mechanical system to an abrupt transition, a properly configured drive can provide a more controlled change in operating speed. This is important for equipment with high inertia or mechanically sensitive components.

The complete 20BD156A3ANNANC1 catalog number should be recorded during equipment inspection and maintenance. This is especially important in facilities that contain several PowerFlex 700 drives with similar physical appearances but different configurations.

The mechanical installation requirements are also significant. The listed dimensions are 976.3 × 403.9 × 275.5 mm, and the listed weight is 71.44 kg. The cabinet or mounting structure therefore needs adequate support and sufficient access for electrical connections, ventilation, inspection, and future servicing.

During commissioning, technicians should verify the motor information and relevant operating parameters before placing the machine into normal production. Maintaining accurate parameter records can also simplify future troubleshooting and replacement activities.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	PowerFlex 700
Model	20BD156A3ANNANC1
Product Type	AC Drive / Variable Frequency Drive
Application	Industrial AC motor speed control
System Role	Variable-speed motor control
Installation	Industrial control cabinet / automation equipment
Dimensions	976.3 × 403.9 × 275.5 mm
Weight	71.44 kg (157.50 lb)

The physical size of the unit should be incorporated into cabinet layout planning. At 71.44 kg (157.50 lb), appropriate mechanical support and safe lifting procedures are necessary during transportation, installation, removal, and maintenance.

Recommended Related Allen Bradley Models

Model	Product Type	Typical Application
20BD156A0ANNANC0	PowerFlex 700 AC Drive	Industrial motor speed control
20BD156A0ANNAND0	PowerFlex 700 AC Drive	Variable-speed motor applications
20BD156A3ANNACA0	PowerFlex 700 AC Drive	Industrial AC motor control
20BD156A3ANNANC0	PowerFlex 700 AC Drive	Industrial drive applications
20BD156A3ANNANA0	PowerFlex 700 AC Drive	Variable-speed industrial equipment
20BD077A3ANNACA0	PowerFlex 700 AC Drive	Automated motor-control systems

Popular Related Allen Bradley PowerFlex Models

Model	Product Family	Application
20AD5P0A0AYYNNG0	PowerFlex 70	Industrial AC motor control
20F1ANC205JA0NNNNN	PowerFlex 753	Industrial variable-speed applications
20P21AD207RA0NNN	PowerFlex DC	DC motor-control applications
150-F85NBD	SMC Flex	Intelligent motor starting and control
20BD077A0ANNANC0	PowerFlex 700	Industrial AC drive applications

The Allen Bradley 20BD156A3ANNANC1 PowerFlex 700 AC Drive is a substantial industrial motor-control component designed for applications requiring controlled AC motor operation. Its large physical dimensions and 71.44 kg (157.50 lb) weight make mechanical installation an important part of system planning. For replacement or retrofit projects, engineers should verify the complete catalog number and ensure that the drive configuration, motor, electrical system, control architecture, and application requirements are properly matched before commissioning.

Applications and Industrial Use

The Allen Bradley 20BD156A3ANNANC1 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for controlled operation of AC motors in manufacturing, processing, and automated equipment. As part of the PowerFlex 700 family, it is intended for systems where reliable motor-speed control, controlled acceleration and deceleration, and consistent machine operation are important.

This drive can be used in a variety of motor-driven industrial applications, including conveyors, pumps, fans, mixers, material-handling equipment, production machinery, and automated process systems. Its adjustable-speed function allows motor operation to be coordinated more closely with the requirements of the machine rather than relying only on fixed-speed operation.

Typical applications include:

Conveyor and material-handling systems
Industrial pumping equipment
Fans and ventilation machinery
Mixers and rotating process equipment
Packaging and manufacturing machinery
Automated production lines
Processing equipment
Machine-building applications
General industrial AC motor control
PowerFlex 700 replacement and retrofit projects

For replacement work, the complete catalog number 20BD156A3ANNANC1 should be verified before installation. Models within the same PowerFlex 700 family may have different configurations, so the exact model should be matched against the existing electrical and control system.

Key Advantages for Industrial Motor Control

Flexible variable-speed operation
The PowerFlex 700 platform provides adjustable-speed motor control, allowing industrial machinery to operate at different speeds according to production requirements.

Controlled acceleration and deceleration
Using a drive allows the motor to transition between operating conditions in a controlled manner. This can help reduce mechanical shock on connected machinery.

Broad application flexibility
The PowerFlex 700 family can be applied to numerous motor-driven systems, making it suitable for manufacturing, material handling, process equipment, and other industrial applications.

Automation system integration
The drive can operate as part of an industrial automation architecture that includes PLC controllers, HMIs, sensors, motor protection devices, and control equipment.

Improved process coordination
Adjustable motor speed can help machines respond to changing process requirements, production rates, and operating conditions.

Useful for industrial maintenance
Accurate catalog-number identification makes it easier for maintenance teams to manage spare drives and perform replacement work without confusing similar PowerFlex configurations.

Substantial industrial construction
With listed dimensions of 976.3 × 403.9 × 275.5 mm and a weight of 71.44 kg, this is a large drive assembly requiring appropriate cabinet support, installation space, and safe handling procedures.

Technical FAQs: Allen Bradley 20BD156A3ANNANC1

1. What is the Allen Bradley 20BD156A3ANNANC1?
The 20BD156A3ANNANC1 is an Allen Bradley PowerFlex 700 AC drive used for variable-speed control of industrial AC motors.

2. What is the main function of this PowerFlex 700 drive?
Its primary function is to regulate AC motor operation, including controlled speed, acceleration, and deceleration.

3. What types of machines can use this drive?
Typical applications include conveyors, pumps, fans, mixers, material-handling equipment, production machinery, and automated industrial systems.

4. Can the 20BD156A3ANNANC1 be used with PLC automation?
Yes. PowerFlex 700 drives are commonly incorporated into PLC-based automation systems. The exact control and communication arrangement depends on the installed system configuration.

5. What should be checked before installing a replacement drive?
Check the complete catalog number, motor data, electrical supply, control architecture, installed options, braking requirements, wiring, parameters, and mechanical installation conditions.

6. Why is the complete catalog number important?
PowerFlex 700 drives are available in multiple configurations. The complete catalog number provides a more precise identification of the unit than the PowerFlex 700 family name alone.

7. Can incorrect motor parameters cause drive faults?
Yes. Incorrect motor data or operating parameters can result in excessive current, unstable operation, poor speed regulation, or nuisance trips.

8. What preventive maintenance should be performed?
Inspect cooling airflow, cabinet ventilation, electrical connections, wiring, environmental conditions, contamination, fault history, and signs of overheating or component deterioration.

9. What should be checked when the drive repeatedly trips?
Record the exact fault indication and operating conditions first. Then investigate the motor, incoming power, wiring, mechanical load, cooling system, parameter settings, and external control signals.

10. Is the 20BD156A3ANNANC1 directly interchangeable with every PowerFlex 700 drive?
No. The exact electrical and functional configuration must be compared with the existing unit. Catalog number, ratings, options, control requirements, and application conditions should all be verified before replacement.
