Brand:Allen Bradley PLC Item No.:MPL-A320P-MK74AA Product Origin:USA Product Dimensions:Frame Size: 100 mm Product Weight:3.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

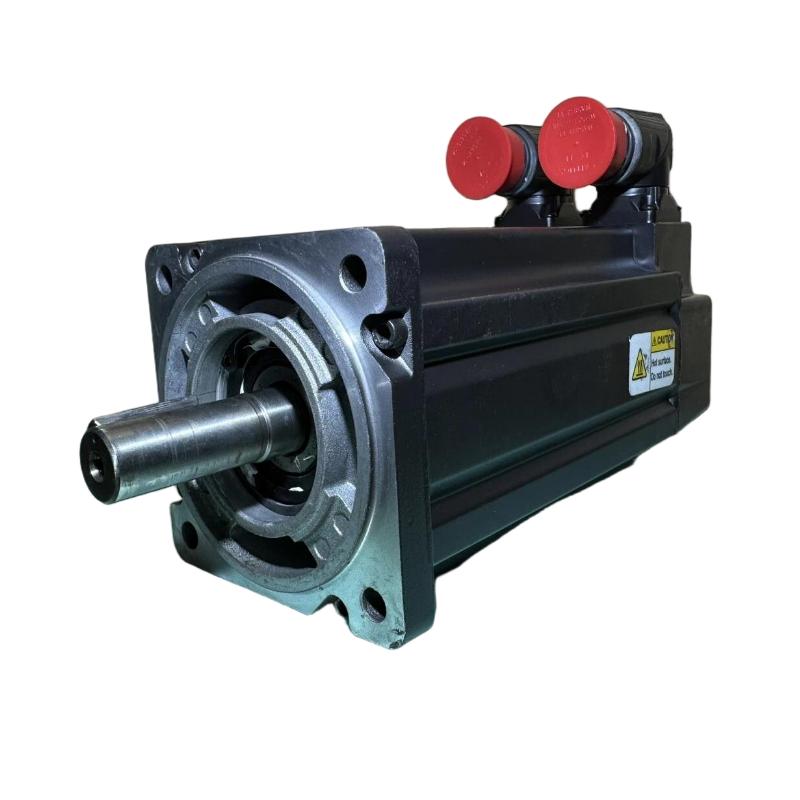

The Allen Bradley MPL-A320P-MK74AA Servo Motor is intended for machine applications in which accurate and repeatable movement is required. A servo motor operates as one part of a complete motion-control system rather than as an isolated motor.
A typical servo axis includes a controller, servo drive, motor, feedback system, mechanical transmission, and driven load. The controller establishes the desired motion profile, while the servo drive regulates the motor based on command and feedback information.
This arrangement is valuable in applications where a machine must repeatedly move to specific positions. In a packaging machine, for example, the servo axis may control the position of material or packaging components. In automated assembly equipment, it may move a workpiece or tooling to a defined location. In indexing machinery, precise and repeatable movement is often essential to maintain production quality.
The MPL-A320P-MK74AA has a listed 100 mm frame size, so mechanical compatibility should be checked carefully before installation. The motor mounting pattern, shaft connection, coupling, available machine space, and cable routing all need to correspond with the existing equipment.
Servo troubleshooting should also consider the entire motion system rather than focusing only on the motor. If an axis vibrates, overshoots, or fails to reach its commanded position, the cause may involve tuning, feedback, mechanical alignment, load inertia, backlash, or the servo drive.
For replacement projects, technicians should record the complete catalog number. Similar MP-Series motors can have different configurations, and using a motor based only on physical appearance or family designation may result in an unsuitable replacement.
The listed motor weight is 3.70 kg, making it relatively manageable for machine installation compared with larger industrial motor assemblies. Nevertheless, proper mounting and shaft alignment remain essential for reliable operation and long service life.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Product Family
MP-Series
Model
MPL-A320P-MK74AA
Product Type
Servo Motor
Application
Industrial precision motion control
Frame Size
100 mm
Motor Design
Industrial servo motor
Weight
3.70 kg (8.16 lb)
The supplied mechanical specification identifies the motor as a 100 mm frame unit with a weight of 3.70 kg (8.16 lb). For an actual replacement, the complete mechanical and electrical configuration should be checked against the existing servo system.
Recommended Related Allen Bradley Models
Model
Product Type
Typical Application
MPL-A320P-MK72AA
MP-Series Servo Motor
Precision machine motion
MPL-A420P-HK72AA
MP-Series Servo Motor
Industrial servo applications
MPL-Series Servo Motors
Servo Motor Family
Automated positioning
MP-Series Servo Motors
Servo Motor Family
Machine-axis motion control
MPL-A320P-MK74AA
MP-Series Servo Motor
Compact precision motion
Popular Related Allen Bradley Motion Products
Model / Family
Product Type
Application
MPL-A320P-MK72AA
MP-Series Servo Motor
Precision machine axes
MPL-A420P-HK72AA
MP-Series Servo Motor
Industrial motion control
MP-Series
Servo Motor Family
Automated positioning
PowerFlex 753
AC Drive
Industrial variable-speed applications
Kinetix Motion Systems
Servo Motion Platform
Integrated machine motion control
The Allen Bradley MPL-A320P-MK74AA Servo Motor is a compact industrial motion component for machines requiring controlled, repeatable, and responsive movement. Its 100 mm frame size and 3.70 kg (8.16 lb) weight make mechanical integration an important consideration, while correct servo-drive matching, feedback configuration, shaft alignment, and motion tuning are essential for achieving dependable positioning performance.
Applications and Industrial Use
The Allen Bradley MPL-A320P-MK74AA Servo Motor is an industrial servo motor designed for precision motion-control applications where accurate positioning, controlled speed, and repeatable machine movement are required. As part of the Allen Bradley MP-Series servo motor family, it is suitable for automated machinery that depends on coordinated motion rather than simple fixed-speed motor operation.
With a 100 mm frame size and a listed weight of 3.70 kg, the MPL-A320P-MK74AA provides a compact motor solution for machine axes where installation space and dynamic response are both important considerations.
Typical applications include:
Automated assembly equipment
Packaging and filling machinery
Pick-and-place systems
Indexing and positioning machines
Material-handling equipment
Printing and converting machinery
Machine tools
Automated production lines
Electronic manufacturing equipment
Multi-axis motion-control systems
The motor is intended to operate as part of a complete servo system. Correct selection requires consideration of the compatible servo drive, feedback arrangement, mechanical load, coupling, required speed, acceleration, and positioning performance.
Key Advantages for Precision Motion Control
Precise machine-axis control
The MPL-A320P-MK74AA is designed for applications where controlled motor movement and repeatable positioning are more important than simple continuous rotation.
Compact 100 mm frame
The 100 mm frame size makes the motor practical for machinery where available installation space must be managed carefully.
Responsive motion performance
Servo motors are well suited to applications involving frequent starts, stops, acceleration, deceleration, and changes in commanded position.
Suitable for automated production equipment
The motor can be incorporated into machines requiring coordinated movement between multiple axes, such as packaging, assembly, indexing, and material-handling equipment.
Closed-loop motion capability
When correctly paired with a compatible servo drive and feedback system, the motor can participate in closed-loop positioning and speed control.
Industrial machine integration
The MP-Series platform is designed for integration into industrial automation systems, allowing the servo axis to work together with controllers, drives, HMIs, sensors, and other machine components.
Convenient replacement identification
Using the complete MPL-A320P-MK74AA catalog number during maintenance helps technicians distinguish this motor from other similar MP-Series configurations.
Technical FAQs: Allen Bradley MPL-A320P-MK74AA
1. What is the Allen Bradley MPL-A320P-MK74AA?
The MPL-A320P-MK74AA is an Allen Bradley MP-Series servo motor designed for industrial precision motion-control applications.
2. What is the frame size of this servo motor?
The supplied specification lists a 100 mm frame size.
3. What applications are suitable for the MPL-A320P-MK74AA?
Typical applications include automated assembly, packaging, positioning, indexing, material handling, machine tools, and other precision motion systems.
4. Does the motor require a compatible servo drive?
Yes. A servo motor should be paired with a compatible servo drive capable of supporting the motor's electrical and feedback characteristics.
5. Why is feedback important in a servo system?
Feedback provides information about motor position and speed so the control system can regulate the axis accurately.
6. What should be checked before replacing an existing servo motor?
Technicians should verify the complete model number, mounting arrangement, shaft configuration, feedback system, motor characteristics, connector arrangement, and compatible servo drive.
7. Can mechanical alignment affect servo performance?
Yes. Coupling misalignment, shaft loading, backlash, or mechanical resonance can produce vibration, positioning errors, and abnormal motor behavior.
8. What can cause inaccurate positioning?
Possible causes include incorrect tuning, excessive mechanical backlash, coupling problems, unsuitable motion parameters, feedback issues, excessive load, or mechanical resonance.
9. What maintenance should be performed on this servo motor?
Inspect the motor mounting, shaft and coupling, connectors, cables, mechanical load, operating temperature, vibration, and abnormal noise during scheduled maintenance.
10. What should be verified during commissioning?
Verify mechanical installation, motor-drive compatibility, feedback wiring, axis configuration, motor identification, tuning parameters, travel limits, and machine safety functions before production operation.
