Brand:Allen Bradley PLC Item No.:MPL-A320P-SJ74AA Product Origin:USA Product Dimensions:Frame Size: 100 mm Product Weight:3.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Motion-Control Integration

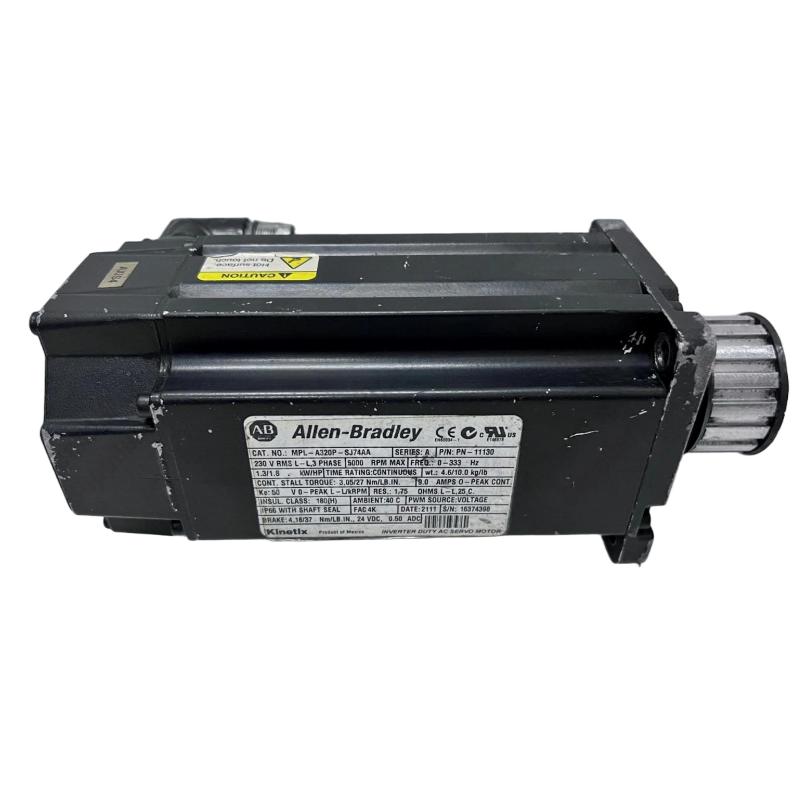

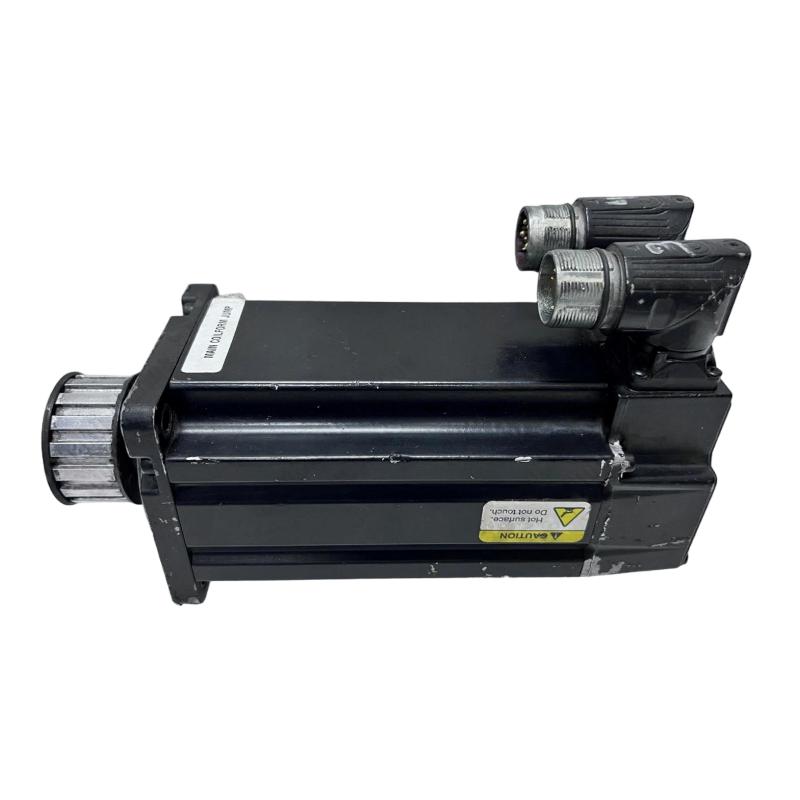

The Allen Bradley MPL-A320P-SJ74AA Servo Motor is designed for industrial automation systems in which conventional induction motors cannot provide the positioning accuracy or dynamic control required by the application. Servo technology allows the controller and drive to regulate motor movement according to the machine's programmed motion profile.
The MPL-A320P-SJ74AA belongs to the MP-Series servo motor family and features a 100 mm frame size, making it a useful option for machine builders working with established Allen Bradley motion architectures. Its relatively compact form factor can help integrate servo motion into machinery where installation space is limited.
In a typical automation system, the servo motor does not operate as an independent component. The motor works together with a compatible servo drive, feedback system, motion controller, cables, mechanical transmission, and machine load. For this reason, selecting a replacement motor requires more than comparing physical appearance.
During installation, mechanical alignment is particularly important. Couplings, belts, gearboxes, and driven mechanisms should be correctly aligned to prevent unnecessary radial or axial loading. Incorrect alignment can increase vibration and temperature and may shorten the service life of both the motor and connected mechanical components.
Electrical commissioning should also be performed systematically. The motor's identification, feedback configuration, cabling, grounding, and drive parameters should be checked before enabling motion. After initial power-up, technicians should observe acceleration, deceleration, positioning behavior, vibration, and abnormal noise.
For maintenance departments, retaining the complete MPL-A320P-SJ74AA model number is important when purchasing a spare. A motor from the same general MP-Series family should not automatically be treated as a direct substitute. The replacement should be evaluated against the original machine design and servo-drive configuration.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Product Family
MP-Series
Model
MPL-A320P-SJ74AA
Product Type
Servo Motor
Frame Size
100 mm
Application
Industrial motion control and automated machinery
Motor Technology
Servo motor
Weight
3.70 kg (8.16 lb)
Recommended Related Allen Bradley Models
Model
Product Type
Typical Application
MPL-A320P-MK72AA
MP-Series Servo Motor
Industrial machine motion control
MPL-A320P-MK74AA
MP-Series Servo Motor
Servo positioning and automation
MPL-A420P-HK72AA
MP-Series Servo Motor
Higher-frame-size motion applications
These models are related Allen Bradley servo products, but their specifications and mechanical/electrical configurations should be checked individually before considering substitution.
Popular Related Allen Bradley Servo Motor Models
Model / Family
Product Type
Application
MPL-A320P-MK72AA
MP-Series Servo Motor
Machine automation and positioning
MPL-A320P-MK74AA
MP-Series Servo Motor
Industrial servo motion
MPL-A320P-SJ72AA
MP-Series Servo Motor
Automated motion systems
MPL-A320P-SJ74AA
MP-Series Servo Motor
Servo positioning and machine control
MPL-A420P-HK72AA
MP-Series Servo Motor
Industrial motion applications
The Allen Bradley MPL-A320P-SJ74AA is a practical choice for automation systems built around Allen Bradley motion technology. For replacement or retrofit work, verifying the complete catalog number and the existing drive configuration is essential to ensure proper mechanical fit, electrical compatibility, and reliable machine performance.
Applications and Industrial Use
The Allen Bradley MPL-A320P-SJ74AA Servo Motor is part of the Allen Bradley MP-Series low-inertia servo motor family, designed for motion-control applications that require accurate positioning, controlled acceleration, and repeatable machine movement. With a 100 mm frame size, this motor is well suited to compact and medium-duty automation systems where installation space and dynamic response are important considerations.
The motor can be used in machine architectures built around Allen Bradley motion controllers and compatible servo drives. Typical applications include automated assembly equipment, packaging machinery, material handling systems, indexing machines, converting equipment, and other production systems where coordinated motor movement is required.
For replacement projects, the full catalog number should always be checked against the existing motor, drive configuration, mechanical interface, feedback arrangement, and machine requirements before installation.
Key Advantages for Industrial Motion Control
100 mm frame size provides a practical mechanical format for industrial machine integration.
MP-Series servo design supports applications requiring controlled and repeatable motion.
Low-inertia construction is suitable for applications where responsive acceleration and deceleration are important.
Compact machine integration helps engineers manage available cabinet and mechanical space.
Allen Bradley platform compatibility makes the motor suitable for motion systems designed around the corresponding Rockwell Automation architecture.
Precise motion capability supports positioning, indexing, synchronization, and velocity-control applications.
Industrial construction makes it appropriate for continuous-duty automated machinery when correctly selected and commissioned.
Replacement-friendly identification through the complete MPL-A320P-SJ74AA catalog number helps reduce errors when sourcing a matching spare.
Suitable for OEM and retrofit applications where an existing MP-Series motor needs to be replaced.
Established servo motor family provides a practical solution for industrial machine builders and maintenance teams.
Technical FAQs: Allen Bradley MPL-A320P-SJ74AA
1. What is the Allen Bradley MPL-A320P-SJ74AA?
The MPL-A320P-SJ74AA is an Allen Bradley MP-Series servo motor intended for industrial motion-control applications requiring controlled and repeatable motor movement.
2. What frame size does the MPL-A320P-SJ74AA use?
The supplied specification identifies the motor as having a 100 mm frame size.
3. What is the weight of this servo motor?
The supplied product specification lists the weight as 3.70 kg (8.16 lb).
4. What types of machines can use this servo motor?
It can be considered for automated machinery such as packaging equipment, assembly machines, indexing systems, material-handling equipment, and other servo-driven production machinery, provided the complete motion system is correctly matched.
5. Is the MPL-A320P-SJ74AA suitable for replacement applications?
Yes. It can be considered as a replacement when the existing motor's complete catalog number and mechanical, electrical, and feedback requirements match the replacement configuration.
6. Does the motor need a compatible servo drive?
Yes. A servo motor must be operated with a compatible servo drive and motion-control system. Drive selection should be based on the complete motor and machine configuration rather than the motor model alone.
7. Why is the complete catalog number important when ordering this motor?
The catalog number identifies the specific motor configuration. Similar-looking MP-Series motors can have different mechanical or electrical characteristics, so the complete model number should be verified before purchasing.
8. Can this motor be used in a high-speed positioning application?
It may be suitable for dynamic positioning applications, but actual suitability depends on the required speed, torque, acceleration, load inertia, duty cycle, and the corresponding drive configuration.
9. What should be checked before commissioning the motor?
Engineers should verify motor-drive compatibility, mechanical mounting, shaft and coupling alignment, feedback connections, grounding, cabling, load characteristics, and controller configuration before commissioning.
10. What are common causes of servo motor performance problems?
Incorrect drive configuration, mechanical misalignment, excessive load, damaged cabling, feedback problems, unsuitable tuning, and incorrect motion parameters can all contribute to poor servo performance. Troubleshooting should begin with system-level checks rather than replacing the motor immediately.
