Product Introduction and Motion-Control Integration

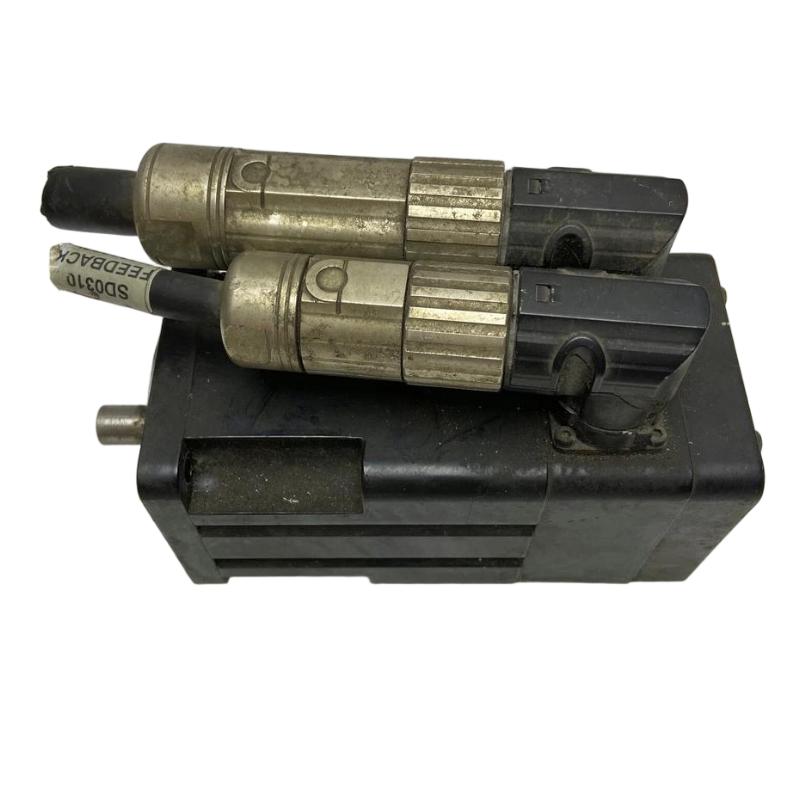

The Allen Bradley MPL-B220T-VJ42AA Servo Motor is intended for machine applications where precise and controlled movement is required. Servo motors are commonly used when a machine needs more sophisticated motion control than a conventional fixed-speed motor can provide.

With a 75 mm frame size, the MPL-B220T-VJ42AA is positioned for applications where compact mechanical dimensions are valuable. This makes it suitable for equipment designers who need to integrate servo motion into relatively confined machine assemblies without unnecessarily increasing the overall motor footprint.

A servo motor should always be considered as part of a complete motion-control system. The motor works together with a compatible servo drive, motion controller, feedback system, cables, mechanical transmission, and machine load. Correct coordination between these components is essential for stable and predictable operation.

Mechanical installation deserves particular attention. The motor mounting surface should be secure, and the coupling or transmission system should be properly aligned. Excessive mechanical loading or misalignment can introduce vibration and may adversely affect motor and machine performance.

Electrical commissioning should be performed methodically. Before enabling the motor, technicians should confirm the motor identification, drive setup, feedback connections, wiring, grounding, and relevant motion parameters. Initial operation should be monitored for unexpected vibration, noise, temperature rise, or irregular movement.

For industrial maintenance teams, the full MPL-B220T-VJ42AA catalog number should be retained in equipment records. When sourcing a replacement, selecting a motor simply because it belongs to the same general MP-Series family is not sufficient. The replacement should be checked against the original system configuration and machine requirements.

The combination of compact frame dimensions, servo-based motion control, and Allen Bradley system integration makes the MPL-B220T-VJ42AA a useful component for automated machinery where controlled movement and repeatability are important.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	MP-Series
Model	MPL-B220T-VJ42AA
Product Type	Servo Motor
Frame Size	75 mm
Application	Industrial motion control and automated machinery
Motor Technology	Servo motor
Weight	2.00 kg (4.41 lb)

Recommended Related Allen Bradley Models

Model	Product Type	Typical Application
MPL-A320P-MK72AA	MP-Series Servo Motor	Industrial machine motion control
MPL-A320P-MK74AA	MP-Series Servo Motor	Servo positioning applications
MPL-A320P-SJ72AA	MP-Series Servo Motor	Automated machine motion
MPL-A320P-SJ74AA	MP-Series Servo Motor	Servo positioning and motion control
MPL-A420P-HK72AA	MP-Series Servo Motor	Industrial motion applications

These are related Allen Bradley servo motor models. Their individual mechanical and electrical characteristics should be verified before selecting any model as a replacement.

Popular Related Allen Bradley Servo Motor Models

Model / Family	Product Type	Application
MPL-B220T-VJ42AA	MP-Series Servo Motor	Compact industrial motion systems
MPL-A320P-MK72AA	MP-Series Servo Motor	Machine automation
MPL-A320P-MK74AA	MP-Series Servo Motor	Positioning and coordinated motion
MPL-A320P-SJ72AA	MP-Series Servo Motor	Automated motion applications
MPL-A320P-SJ74AA	MP-Series Servo Motor	Industrial servo control
MPL-A420P-HK72AA	MP-Series Servo Motor	Larger machine motion applications

The Allen Bradley MPL-B220T-VJ42AA Servo Motor is a compact MP-Series solution for industrial automation systems requiring controlled and repeatable motion. For purchasing, retrofit, or maintenance purposes, confirming the complete catalog number and matching it with the existing servo drive and machine configuration is the best way to ensure a reliable replacement.

Applications and Industrial Use

The Allen Bradley MPL-B220T-VJ42AA Servo Motor is an Allen Bradley MP-Series servo motor designed for industrial motion-control applications that require controlled speed, repeatable positioning, and coordinated machine movement. With a 75 mm frame size, it is suited to compact automation equipment where installation space, dynamic response, and accurate motion are important design considerations.

Typical applications include packaging machinery, automated assembly systems, material handling equipment, indexing machines, conveyor systems, printing and converting equipment, and other production machinery using servo-based motion control.

For replacement applications, the complete MPL-B220T-VJ42AA catalog number should be verified against the existing motor and drive configuration. Mechanical mounting, feedback requirements, cabling, load characteristics, and motion-controller parameters should all be considered before installation.

Key Advantages for Industrial Motion Control

75 mm frame size supports compact machine designs and space-conscious installations.
MP-Series servo technology provides controlled motor movement for demanding automation tasks.
Compact construction makes the motor practical for machinery with limited installation space.
Responsive motion control is suitable for positioning, indexing, acceleration, and deceleration operations.
Allen Bradley integration makes it appropriate for motion systems designed around compatible Allen Bradley automation equipment.
Repeatable positioning supports automated processes where consistent machine movement is required.
Suitable for OEM equipment and industrial machinery incorporating servo-based motion.
Useful for maintenance and replacement when the original motor requires service or replacement.
Industrial-duty design is intended for use as part of a properly engineered automation system.
Clear catalog identification helps maintenance teams distinguish the required motor from similar MP-Series configurations.

Technical FAQs: Allen Bradley MPL-B220T-VJ42AA

1. What is the Allen Bradley MPL-B220T-VJ42AA?
The MPL-B220T-VJ42AA is an Allen Bradley MP-Series servo motor designed for industrial motion-control and automated machinery applications.

2. What is the frame size of the MPL-B220T-VJ42AA?
The supplied specification identifies the motor with a 75 mm frame size.

3. How much does the MPL-B220T-VJ42AA weigh?
The supplied product specification lists its weight as 2.00 kg (4.41 lb).

4. What applications are suitable for this servo motor?
Typical applications can include packaging, assembly, indexing, material handling, conveyor systems, and other automated machinery requiring controlled servo motion.

5. Does the MPL-B220T-VJ42AA require a servo drive?
Yes. A servo motor must be operated with an appropriate compatible servo drive and motion-control system.

6. Can this motor be used as a replacement part?
It can be used for replacement when the motor's complete catalog number and the machine's mechanical, electrical, feedback, and drive requirements have been verified.

7. Why should the complete model number be checked before ordering?
MP-Series motors can have different configurations despite having similar physical appearances. The complete catalog number helps identify the required configuration accurately.

8. Is the MPL-B220T-VJ42AA suitable for positioning applications?
Yes, servo motors of this type are intended for applications involving controlled and repeatable motion, including positioning and indexing.

9. What should be checked during installation?
Technicians should verify mounting, coupling alignment, cabling, grounding, feedback connections, drive compatibility, load conditions, and controller parameters before commissioning.

10. What can cause abnormal servo motor operation?
Potential causes include incorrect drive parameters, excessive mechanical load, poor alignment, damaged cables, feedback problems, unsuitable tuning, or mechanical issues in the driven machine.
