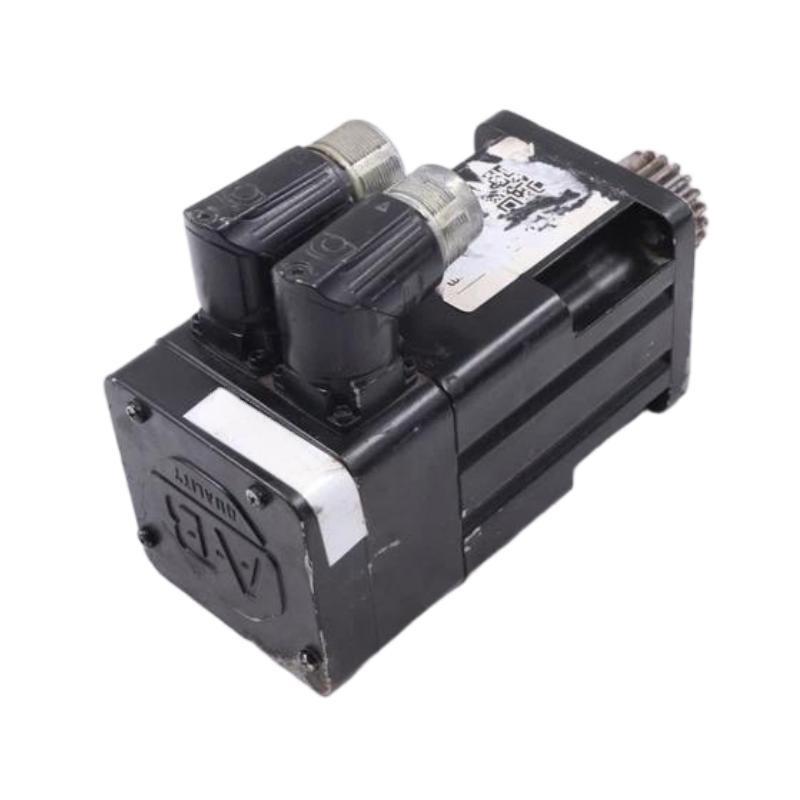

Allen Bradley MPL-B220T-VJ72AA Servo Motor_Allen Bradley PLC

Product Introduction and Motion-Control Integration

The Allen Bradley MPL-B220T-VJ72AA Servo Motor is designed for automated machinery where controlled motor movement is an important part of the production process. Unlike a basic fixed-speed motor, a servo motor operates as part of a closed-loop motion system, allowing the machine controller and drive to manage movement according to the programmed application requirements.

The 75 mm frame size gives the MPL-B220T-VJ72AA a compact mechanical format. This can be particularly useful in machinery where motors must be installed close to other mechanical components or where the available mounting area is restricted.

A reliable servo installation depends on more than the motor itself. The motor, servo drive, motion controller, feedback system, cables, coupling, and driven mechanism must work together correctly. When replacing an existing motor, engineers should therefore verify the entire motion chain rather than selecting a replacement based only on frame size or physical appearance.

Mechanical alignment is one of the most important installation considerations. The motor should be securely mounted and correctly aligned with the driven mechanism. Couplings, belts, gearboxes, or other transmission components should be checked for excessive loading or misalignment. Mechanical problems can appear as vibration, noise, positioning errors, or abnormal temperature rise.

Electrical commissioning should also be performed in a controlled sequence. Before the motor is enabled, technicians should inspect the motor and drive wiring, feedback connections, grounding, and configured motor data. Initial movement should be performed at appropriate operating conditions while observing the motor and machine for unexpected behavior.

For maintenance teams, keeping the complete MPL-B220T-VJ72AA catalog number in spare-parts records is recommended. The model designation should be compared with the original equipment documentation before ordering, especially when several MP-Series servo motors are used within the same production line.

The MPL-B220T-VJ72AA is therefore a practical choice for compact industrial motion systems where servo control, repeatable movement, and reliable machine integration are important.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	MP-Series
Model	MPL-B220T-VJ72AA
Product Type	Servo Motor
Frame Size	75 mm
Application	Industrial motion control and automated machinery
Motor Technology	Servo motor
Weight	2.00 kg (4.41 lb)

Recommended Related Allen Bradley Models

Model	Product Type	Typical Application
MPL-B220T-VJ42AA	MP-Series Servo Motor	Compact industrial motion control
MPL-A320P-MK72AA	MP-Series Servo Motor	Machine automation and positioning
MPL-A320P-MK74AA	MP-Series Servo Motor	Industrial servo motion
MPL-A320P-SJ72AA	MP-Series Servo Motor	Automated motion systems
MPL-A320P-SJ74AA	MP-Series Servo Motor	Servo positioning applications

These are related Allen Bradley servo motor models. Their individual specifications and system compatibility should be verified before using any model as a direct replacement.

Popular Related Allen Bradley Servo Motor Models

Model / Family	Product Type	Application
MPL-B220T-VJ42AA	MP-Series Servo Motor	Compact automated machinery
MPL-B220T-VJ72AA	MP-Series Servo Motor	Industrial motion control
MPL-A320P-MK72AA	MP-Series Servo Motor	Machine positioning
MPL-A320P-MK74AA	MP-Series Servo Motor	Automated servo motion
MPL-A320P-SJ72AA	MP-Series Servo Motor	Industrial machine control
MPL-A320P-SJ74AA	MP-Series Servo Motor	Precision motion applications
MPL-A420P-HK72AA	MP-Series Servo Motor	Industrial motion systems

The Allen Bradley MPL-B220T-VJ72AA Servo Motor offers a compact 75 mm frame format for industrial automation systems requiring controlled and repeatable motion. When used for replacement or retrofit purposes, verifying the complete model number and matching the motor with the existing motion-control architecture is essential for dependable machine operation.

Applications and Industrial Use

The Allen Bradley MPL-B220T-VJ72AA Servo Motor is an Allen Bradley MP-Series servo motor designed for industrial motion-control systems that require accurate, repeatable, and dynamically controlled movement. With a 75 mm frame size, it is well suited to compact automated machinery where available installation space is limited while reliable servo performance remains essential.

Typical applications include automated assembly equipment, packaging machines, indexing systems, material handling equipment, machine tools, converting machinery, and other production systems that use coordinated servo motion. The motor can be integrated into motion architectures using compatible Allen Bradley servo drives and controllers.

For replacement applications, the complete MPL-B220T-VJ72AA catalog number should be checked carefully against the installed motor. Similar MP-Series motors may differ in their mechanical or electrical configuration, so direct substitution should always be confirmed before installation.

Key Advantages for Industrial Motion Control

75 mm frame size provides a compact format for machine integration.
MP-Series servo architecture is suitable for applications requiring controlled and repeatable motion.
Compact motor design helps equipment builders manage restricted installation areas.
Dynamic motion capability supports acceleration, deceleration, positioning, and indexing operations.
Allen Bradley system integration makes the motor appropriate for compatible industrial motion-control platforms.
Precise movement control can improve consistency in automated production processes.
Suitable for OEM machinery incorporating servo-based automation.
Useful for maintenance replacement when an existing motor requires replacement.
Industrial automation orientation makes it suitable for a wide range of machine-control applications.
Complete catalog identification simplifies spare-parts selection and equipment maintenance.

Technical FAQs: Allen Bradley MPL-B220T-VJ72AA

1. What is the Allen Bradley MPL-B220T-VJ72AA?
The MPL-B220T-VJ72AA is an Allen Bradley MP-Series servo motor intended for industrial automation and motion-control applications.

2. What is the frame size of this servo motor?
The supplied specification lists the MPL-B220T-VJ72AA with a 75 mm frame size.

3. What is the weight of the MPL-B220T-VJ72AA?
The supplied product specification gives a weight of 2.00 kg (4.41 lb).

4. What machines can use the MPL-B220T-VJ72AA?
It can be considered for packaging, assembly, indexing, material handling, machine-tool, and other automated machinery requiring controlled servo movement.

5. Does this motor operate independently?
No. The motor forms part of a complete motion-control system and requires a compatible servo drive, controller, feedback system, and appropriate machine wiring.

6. Is the MPL-B220T-VJ72AA suitable for retrofit projects?
It may be suitable for retrofit work when its complete configuration matches the existing motor, drive system, mechanical interface, feedback arrangement, and machine requirements.

7. Why is the complete catalog number important when purchasing a replacement?
The full catalog number identifies the specific motor configuration. Models that appear similar can have different characteristics and may not be direct substitutes.

8. What should be considered when matching this motor with a servo drive?
The motor and drive should be evaluated as a complete system, including electrical characteristics, feedback requirements, load conditions, motion profile, and controller configuration.

9. What should technicians check before commissioning the motor?
They should verify mechanical mounting, alignment, wiring, grounding, feedback connections, drive configuration, controller parameters, and machine-load conditions before enabling motion.

10. What can cause unstable servo operation?
Possible causes include incorrect drive parameters, mechanical misalignment, excessive load, damaged wiring, feedback problems, inappropriate tuning, or mechanical problems within the machine.
