Product Introduction and Motion-Control Integration

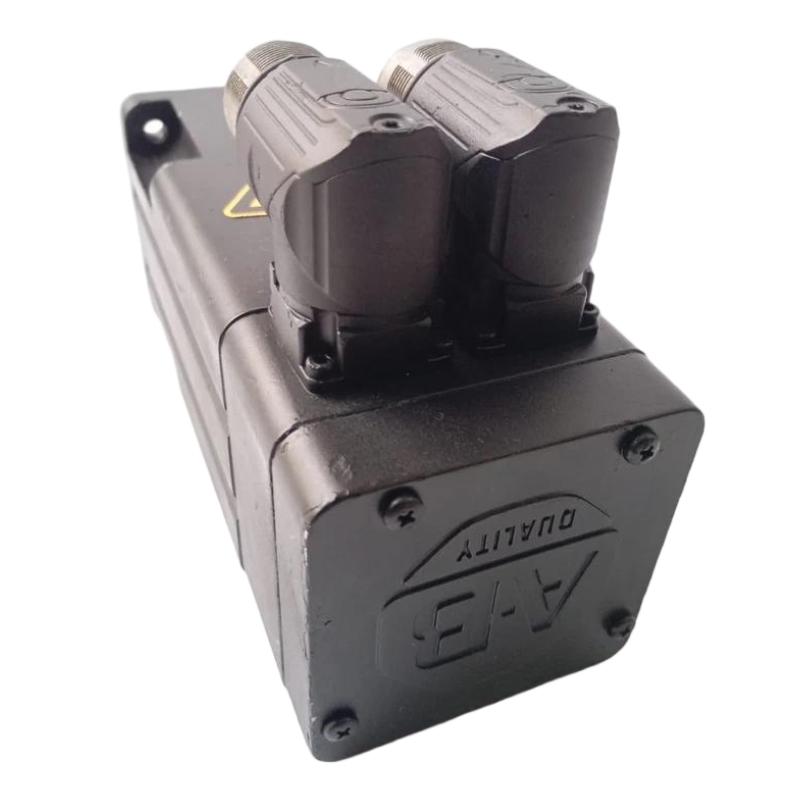

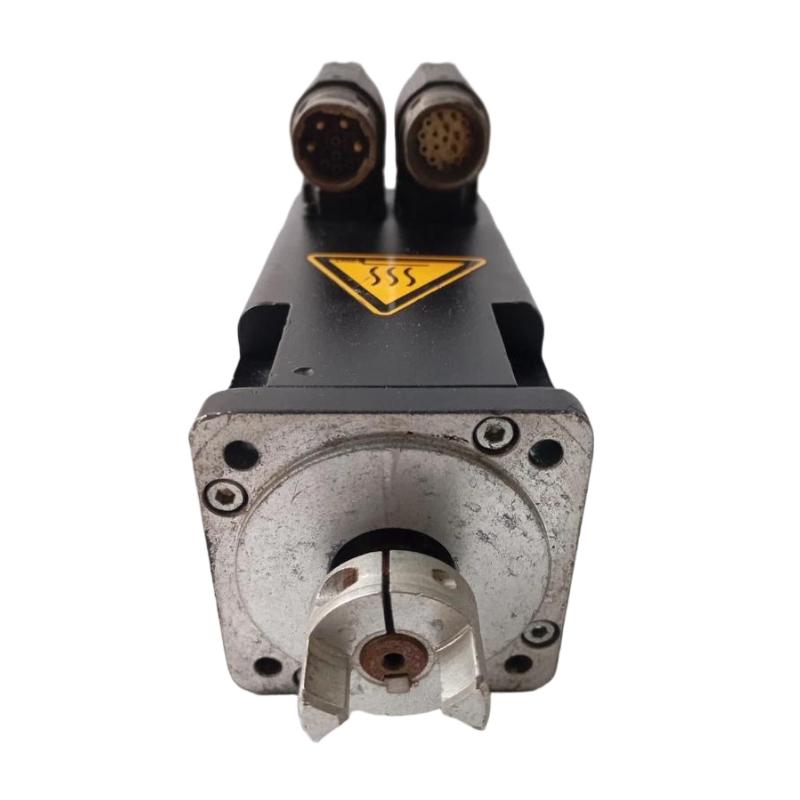

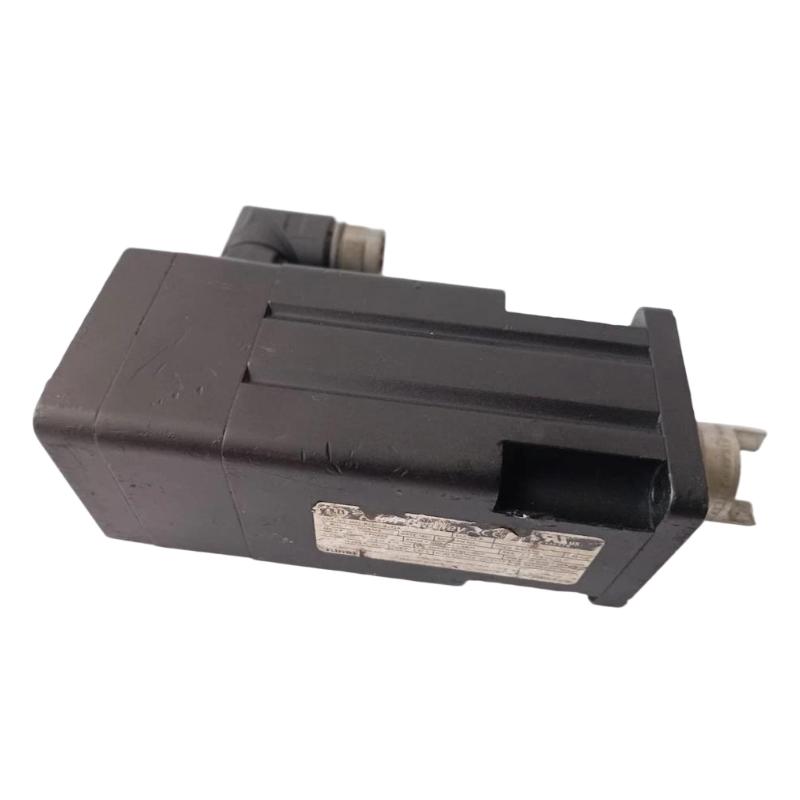

The Allen Bradley MPL-B230P-EJ72AA Servo Motor is designed for automated equipment that requires more controlled motor movement than a conventional fixed-speed motor can provide. In a servo application, the motor operates together with a compatible drive and controller to provide regulated motion according to the machine's programmed requirements.

Its 75 mm frame size makes the motor suitable for machine designs where available installation space needs to be managed carefully. Compact servo motors are often useful in equipment with multiple motion axes, closely positioned mechanical assemblies, or limited mounting areas.

The motor should be treated as one part of the overall motion-control architecture. Proper performance depends on the relationship between the servo motor, drive, controller, feedback system, cables, mechanical transmission, and machine load. Selecting a replacement based only on physical appearance can therefore lead to compatibility problems.

Mechanical installation should begin with a secure mounting arrangement and appropriate alignment with the driven mechanism. Couplings, belts, gearboxes, and other transmission components should be checked for excessive loading or misalignment. Mechanical problems can affect motion accuracy and may produce vibration, noise, or abnormal operating conditions.

Electrical commissioning should be carried out in a controlled sequence. Before the motor is enabled, technicians should verify the motor identification, drive configuration, feedback wiring, grounding, and applicable controller parameters. Initial operation should be monitored carefully so that unexpected movement or other abnormal conditions can be identified before the machine returns to normal production.

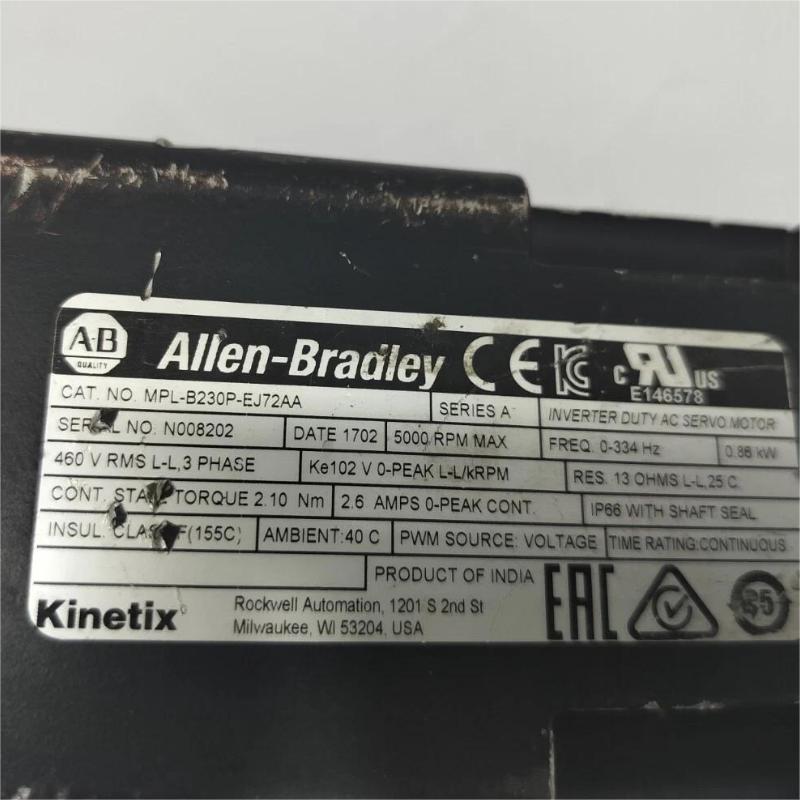

For maintenance departments, recording the complete MPL-B230P-EJ72AA catalog number is useful when managing spare parts. The motor should be matched against the original equipment documentation and existing servo system rather than selected solely because another model has the same frame size.

For OEMs, system integrators, and industrial maintenance teams, the MPL-B230P-EJ72AA provides a compact MP-Series servo motor option for applications requiring controlled and repeatable machine movement.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	MP-Series
Model	MPL-B230P-EJ72AA
Product Type	Servo Motor
Frame Size	75 mm
Application	Industrial motion control and automated machinery
Motor Technology	Servo motor
Weight	2.60 kg (5.73 lb)

Recommended Related Allen Bradley Models

Model	Product Type	Typical Application
MPL-B220T-VJ42AA	MP-Series Servo Motor	Compact industrial motion control
MPL-B220T-VJ72AA	MP-Series Servo Motor	Automated motion systems
MPL-B220T-VJ74AA	MP-Series Servo Motor	Compact servo applications
MPL-A320P-MK72AA	MP-Series Servo Motor	Machine automation and positioning
MPL-A320P-MK74AA	MP-Series Servo Motor	Industrial servo motion

These are related Allen Bradley servo motor models. Their individual electrical, mechanical, and feedback configurations should be verified before considering any model as a direct replacement.

Popular Related Allen Bradley Servo Motor Models

Model / Family	Product Type	Application
MPL-B220T-VJ42AA	MP-Series Servo Motor	Compact automated machinery
MPL-B220T-VJ72AA	MP-Series Servo Motor	Industrial motion control
MPL-B220T-VJ74AA	MP-Series Servo Motor	Compact servo applications
MPL-B230P-EJ72AA	MP-Series Servo Motor	Industrial machine motion
MPL-A320P-MK72AA	MP-Series Servo Motor	Machine positioning
MPL-A320P-MK74AA	MP-Series Servo Motor	Automated servo motion
MPL-A320P-SJ72AA	MP-Series Servo Motor	Industrial machine control
MPL-A320P-SJ74AA	MP-Series Servo Motor	Precision motion applications

The Allen Bradley MPL-B230P-EJ72AA Servo Motor provides a compact 75 mm frame solution for industrial motion-control applications. With a listed weight of 2.60 kg (5.73 lb), it is suitable for automation equipment where compact servo integration and controlled machine movement are important. For replacement or retrofit work, always verify the complete catalog number and match the motor to the existing drive, feedback system, mechanical arrangement, and application requirements.

Applications and Industrial Use

The Allen Bradley MPL-B230P-EJ72AA Servo Motor is an Allen Bradley MP-Series servo motor designed for industrial motion-control applications requiring controlled, repeatable, and responsive machine movement. With a 75 mm frame size, it offers a compact mechanical format for automation equipment where installation space is an important consideration.

This servo motor can be considered for automated assembly machines, packaging equipment, indexing systems, material-handling machinery, machine tools, converting equipment, and other applications where controlled motor movement is required. Its use should always be evaluated as part of a complete servo system, including the compatible drive, controller, feedback arrangement, cabling, and mechanical load.

For replacement projects, technicians should verify the complete MPL-B230P-EJ72AA catalog number rather than relying only on the frame size or general MP-Series designation.

Key Advantages for Industrial Motion Control

75 mm frame size provides a compact solution for machine integration.
MP-Series servo architecture is suitable for controlled industrial motion applications.
Compact mechanical format helps simplify integration into space-conscious machine designs.
Servo-based motion control supports applications involving positioning, indexing, acceleration, and deceleration.
Allen Bradley platform integration makes it appropriate for compatible industrial automation architectures.
Repeatable machine movement can support consistent automated production cycles.
Suitable for OEM equipment incorporating servo-driven axes.
Useful for retrofit and maintenance projects when the original motor configuration is correctly matched.
Industrial automation design makes it applicable to a wide range of automated machinery.
Complete model identification helps maintenance teams select the appropriate spare motor.

Technical FAQs: Allen Bradley MPL-B230P-EJ72AA

1. What is the Allen Bradley MPL-B230P-EJ72AA?
The MPL-B230P-EJ72AA is an Allen Bradley MP-Series servo motor intended for industrial automation and motion-control applications.

2. What is the frame size of the MPL-B230P-EJ72AA?
The supplied specification identifies the motor as having a 75 mm frame size.

3. What is the weight of the MPL-B230P-EJ72AA?
The supplied specification lists the motor weight as 2.60 kg (5.73 lb).

4. What types of machinery can use this servo motor?
Potential applications include packaging machines, assembly equipment, indexing machinery, material handling systems, machine tools, and other automated equipment requiring controlled motion.

5. Does the MPL-B230P-EJ72AA operate without a servo drive?
No. The motor is part of a complete servo system and requires a compatible servo drive and appropriate motion-control architecture.

6. Can this motor be used as a replacement unit?
It can be considered for replacement when the complete catalog number and the existing system's mechanical, electrical, feedback, and drive requirements have been verified.

7. Why is the complete catalog number important when sourcing this motor?
The full catalog number identifies the specific motor configuration. Similar MP-Series motors should not automatically be assumed to be interchangeable.

8. Is this servo motor suitable for positioning applications?
Servo motors are commonly used for controlled positioning and indexing. Actual suitability depends on the machine load, motion profile, drive configuration, and other system requirements.

9. What should be inspected before commissioning?
Technicians should verify mechanical mounting, alignment, motor and drive wiring, grounding, feedback connections, drive configuration, controller settings, and machine-load conditions.

10. What can cause abnormal servo motor operation?
Possible causes include incorrect drive parameters, mechanical misalignment, excessive load, damaged cables, feedback problems, unsuitable tuning, or faults within the driven mechanism.
