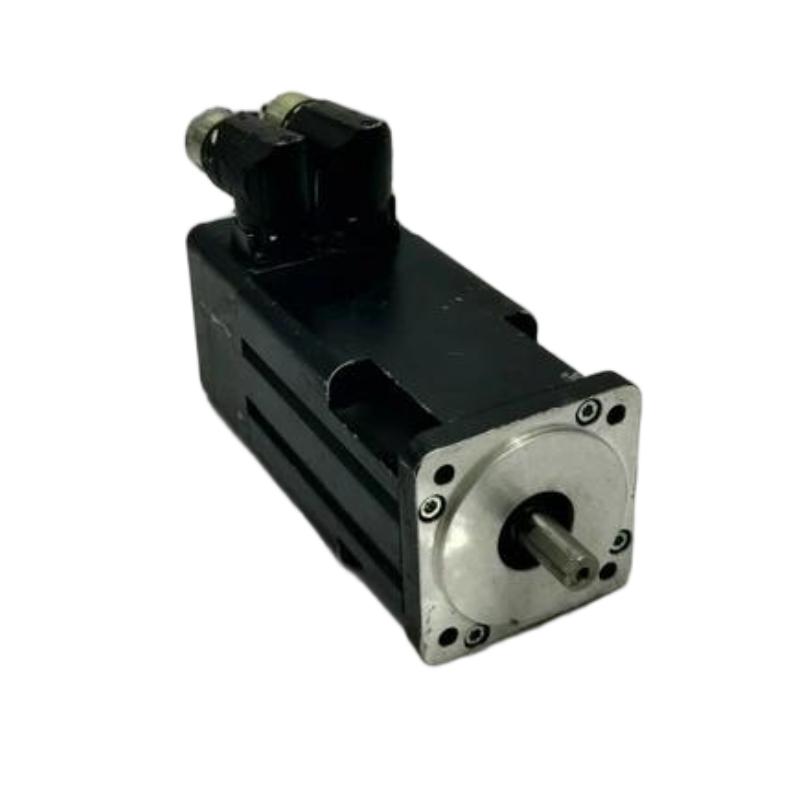

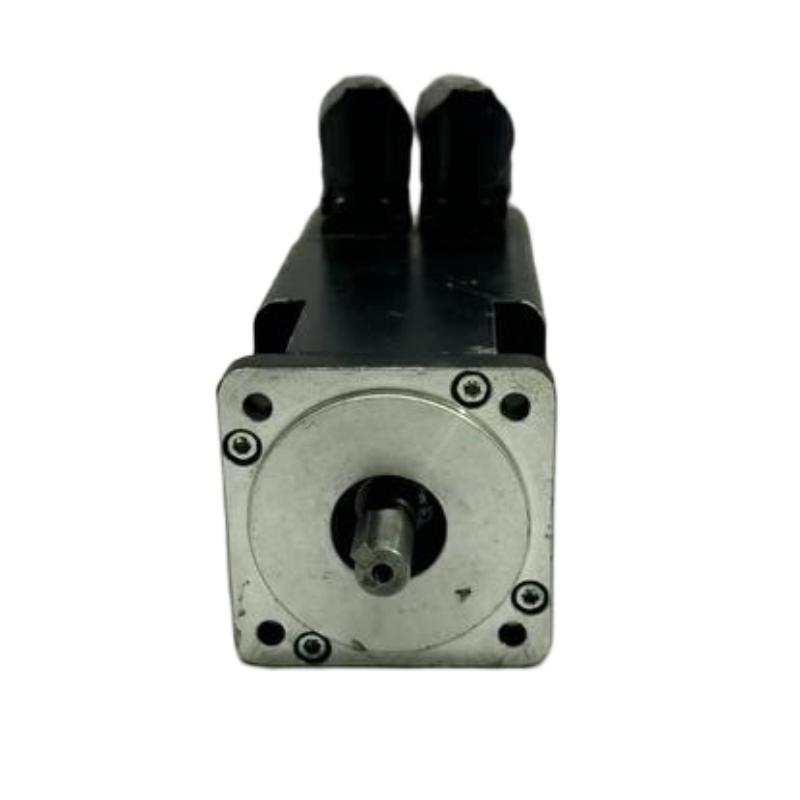

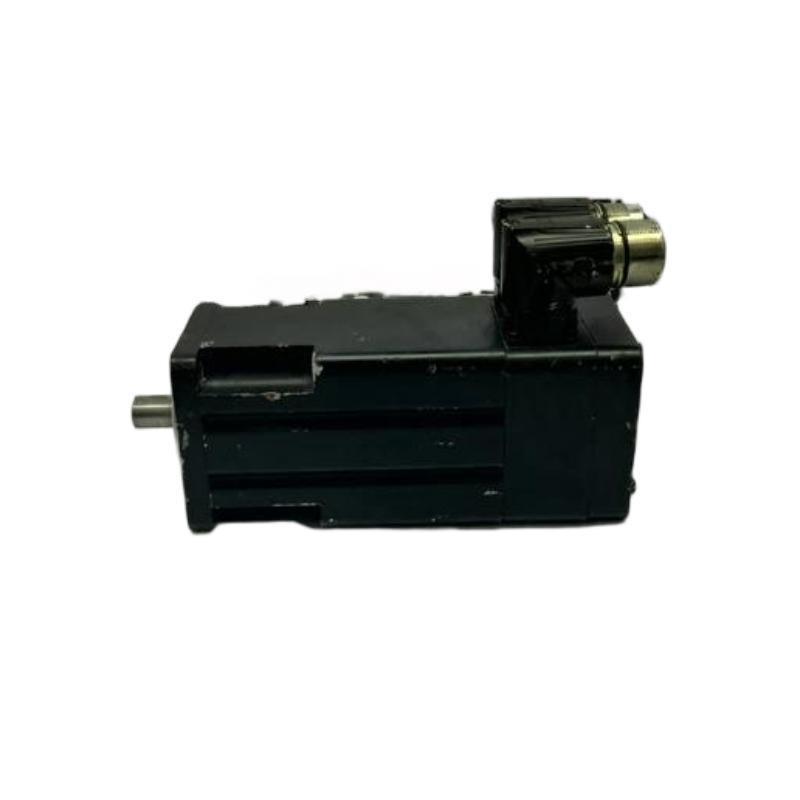

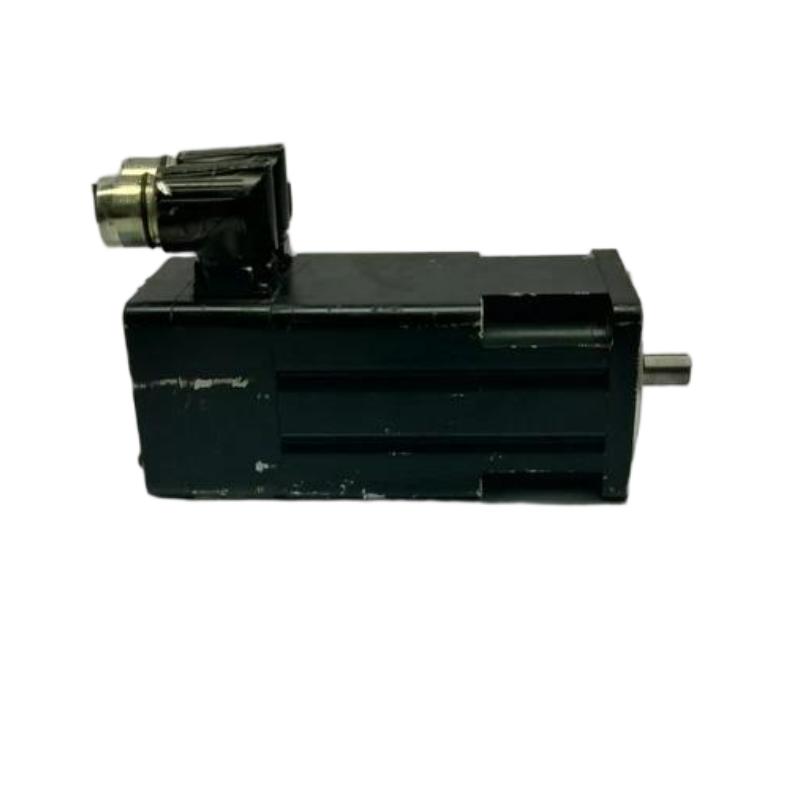

Allen Bradley MPL-B230P-HJ72AA Servo Motor_Allen Bradley PLC

Product Introduction and Motion-Control Integration

The Allen Bradley MPL-B230P-HJ72AA Servo Motor is designed for automated equipment where precise control of motor movement is an important part of the production process. Servo technology is particularly useful when machinery needs repeatable positioning, controlled acceleration and deceleration, indexing, or coordinated movement between multiple machine axes.

With its 75 mm frame size, the MPL-B230P-HJ72AA provides a compact format for machine builders and maintenance teams working with limited installation space. This can be advantageous in equipment containing multiple servo axes or closely positioned mechanical assemblies.

The motor should always be considered as one component of a complete motion-control system. The servo drive, motion controller, feedback system, cables, mechanical transmission, and driven load all influence the final performance of the axis. Consequently, a replacement motor should not be selected simply because another model has the same frame dimensions.

Mechanical installation is an important part of reliable operation. The motor should be securely mounted and correctly aligned with the driven mechanism. Couplings, belts, gearboxes, and other transmission components should be inspected for excessive loading or alignment problems. Mechanical issues can result in vibration, noise, inconsistent movement, or accelerated component wear.

Electrical commissioning should be performed methodically. Before enabling the motor, technicians should verify motor identification, drive configuration, feedback connections, wiring, grounding, and applicable controller parameters. Initial operation should be monitored carefully to identify unexpected movement or other abnormal operating conditions.

For maintenance departments, recording the complete MPL-B230P-HJ72AA catalog number is useful when managing spare motors. This is particularly important when several MP-Series servo motors are installed on the same machine or production line.

The MPL-B230P-HJ72AA is therefore a practical compact servo motor option for industrial machinery requiring controlled and repeatable motion. Correct motor-drive matching, mechanical installation, and commissioning remain essential for dependable long-term performance.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Product Family	MP-Series
Model	MPL-B230P-HJ72AA
Product Type	Servo Motor
Frame Size	75 mm
Application	Industrial motion control and automated machinery
Motor Technology	Servo motor
Weight	2.60 kg (5.73 lb)

Recommended Related Allen Bradley Models

Model	Product Type	Typical Application
MPL-B230P-EJ72AA	MP-Series Servo Motor	Industrial machine motion
MPL-B230P-EJ74AA	MP-Series Servo Motor	Industrial servo motion
MPL-B220T-VJ72AA	MP-Series Servo Motor	Automated motion systems
MPL-B220T-VJ74AA	MP-Series Servo Motor	Compact servo applications
MPL-A320P-SJ72AA	MP-Series Servo Motor	Industrial machine control

These are related Allen Bradley servo motor models. Their individual mechanical, electrical, and feedback configurations should be verified before selecting any model as a direct replacement.

Popular Related Allen Bradley Servo Motor Models

Model / Family	Product Type	Application
MPL-B220T-VJ42AA	MP-Series Servo Motor	Compact automated machinery
MPL-B220T-VJ72AA	MP-Series Servo Motor	Industrial motion control
MPL-B220T-VJ74AA	MP-Series Servo Motor	Compact servo applications
MPL-B230P-EJ72AA	MP-Series Servo Motor	Industrial machine motion
MPL-B230P-EJ74AA	MP-Series Servo Motor	Industrial servo motion
MPL-B230P-HJ72AA	MP-Series Servo Motor	Automated machine motion
MPL-A320P-SJ72AA	MP-Series Servo Motor	Industrial machine control
MPL-A320P-SJ74AA	MP-Series Servo Motor	Precision motion applications

The Allen Bradley MPL-B230P-HJ72AA Servo Motor provides a compact 75 mm frame-size solution for industrial automation systems requiring controlled and repeatable motion. With a listed weight of 2.60 kg (5.73 lb), it is well suited for space-conscious machine designs where servo-based movement is required. For replacement and retrofit applications, always verify the complete catalog number and match the motor with the existing drive, feedback arrangement, mechanical interface, and machine requirements.

Applications and Industrial Use

The Allen Bradley MPL-B230P-HJ72AA Servo Motor is an Allen Bradley MP-Series servo motor designed for industrial automation and motion-control applications where controlled, repeatable, and responsive movement is required. With a 75 mm frame size, it provides a compact motor format for machinery where installation space and reliable servo performance are both important.

This servo motor can be considered for automated assembly equipment, packaging machinery, indexing systems, material-handling equipment, converting machines, machine tools, and other production systems requiring coordinated motor movement. Its actual application should be evaluated together with the compatible servo drive, controller, feedback system, cabling, mechanical transmission, and machine load.

For replacement or retrofit work, the complete MPL-B230P-HJ72AA catalog number should be verified against the existing motor and equipment documentation. A similar frame size does not by itself establish interchangeability.

Key Advantages for Industrial Motion Control

75 mm frame size offers a compact format for automated machine integration.
MP-Series servo design is suitable for applications requiring controlled industrial motion.
Compact mechanical footprint helps accommodate servo axes in space-constrained machinery.
Responsive motion control supports positioning, indexing, acceleration, and deceleration tasks.
Allen Bradley automation integration makes it suitable for appropriately configured motion-control systems.
Repeatable movement helps maintain consistent automated machine cycles.
Suitable for OEM equipment incorporating servo-driven motion axes.
Useful for maintenance and retrofit projects when the complete motor configuration is correctly matched.
Industrial motion-control application makes it suitable for a broad range of automated production equipment.
Full catalog number identification simplifies spare-parts management and replacement selection.

Technical FAQs: Allen Bradley MPL-B230P-HJ72AA

1. What is the Allen Bradley MPL-B230P-HJ72AA?
The MPL-B230P-HJ72AA is an Allen Bradley MP-Series servo motor intended for industrial automation and motion-control applications.

2. What is the frame size of the MPL-B230P-HJ72AA?
The supplied specification lists a 75 mm frame size.

3. What is the weight of this servo motor?
The supplied specification lists the motor weight as 2.60 kg (5.73 lb).

4. What types of machinery can use this servo motor?
Potential applications include packaging equipment, automated assembly machines, indexing systems, material handling equipment, and other machinery requiring controlled servo movement.

5. Does the MPL-B230P-HJ72AA require a compatible servo drive?
Yes. The motor operates as part of a complete servo system and requires an appropriately matched servo drive and motion-control architecture.

6. Can the MPL-B230P-HJ72AA be used as a replacement motor?
It can be considered for replacement when the complete catalog number and the existing system's mechanical, electrical, feedback, and drive requirements have been verified.

7. Why is the complete catalog number important when sourcing this motor?
The complete catalog number identifies the specific motor configuration. Similar MP-Series motors should not automatically be considered interchangeable.

8. Is the MPL-B230P-HJ72AA suitable for positioning applications?
Servo motors are commonly used for controlled positioning and indexing. Actual suitability depends on the machine load, required motion profile, drive configuration, and overall system design.

9. What should be checked before commissioning?
Technicians should verify mechanical mounting, shaft and coupling alignment, wiring, grounding, feedback connections, drive configuration, controller parameters, and machine-load conditions.

10. What can cause abnormal servo motor performance?
Incorrect drive settings, mechanical misalignment, excessive loading, damaged cabling, feedback problems, inappropriate tuning, and mechanical issues within the machine can all contribute to abnormal operation.
