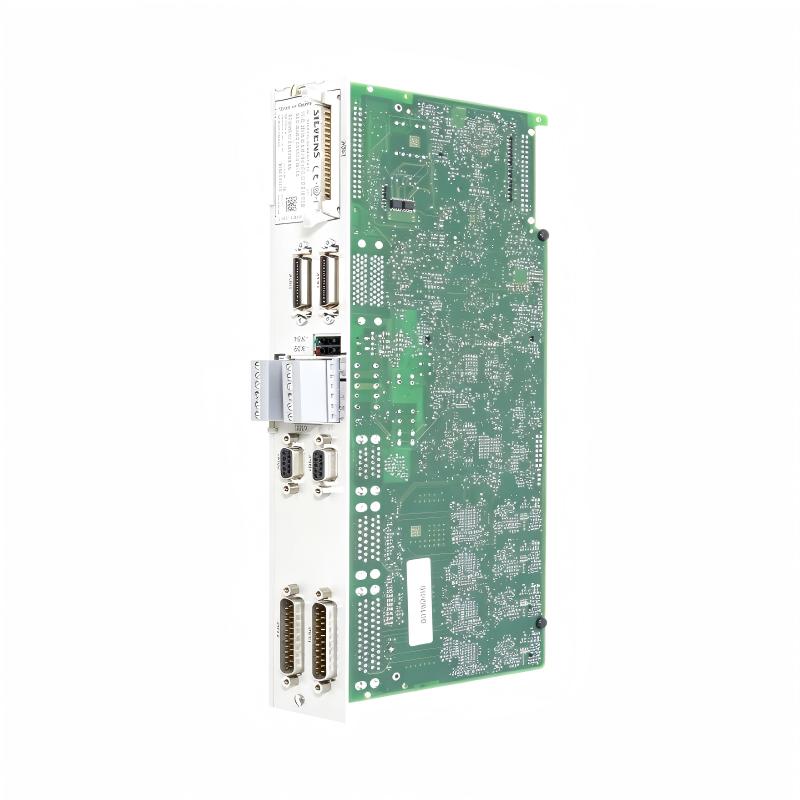

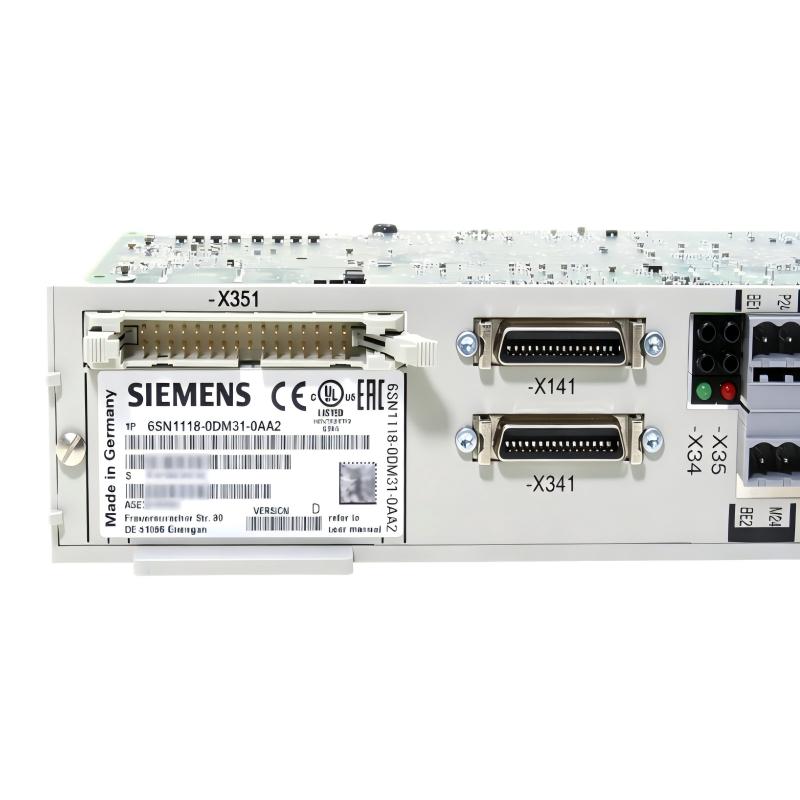

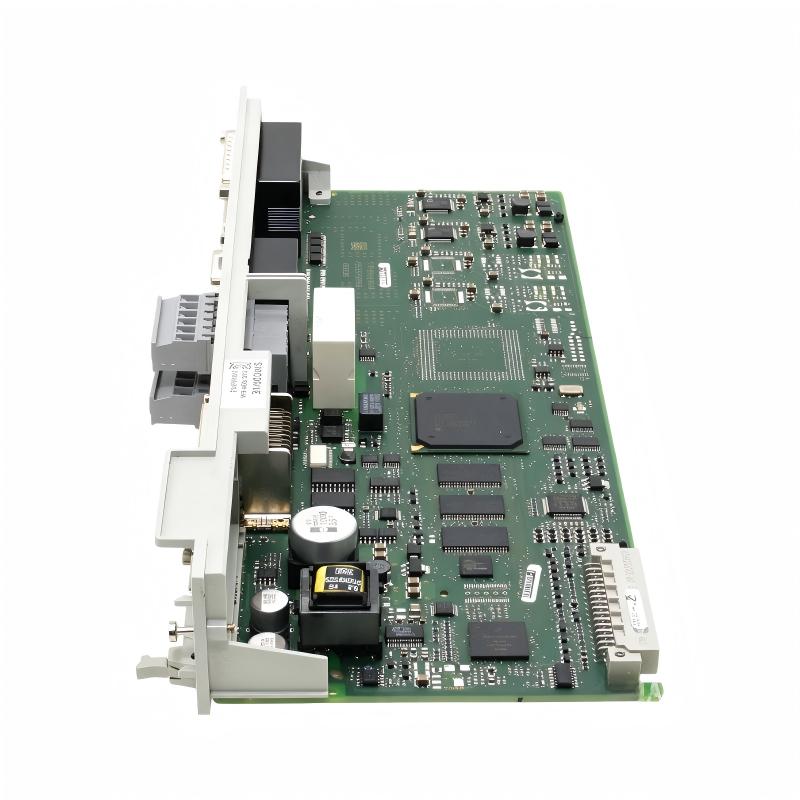

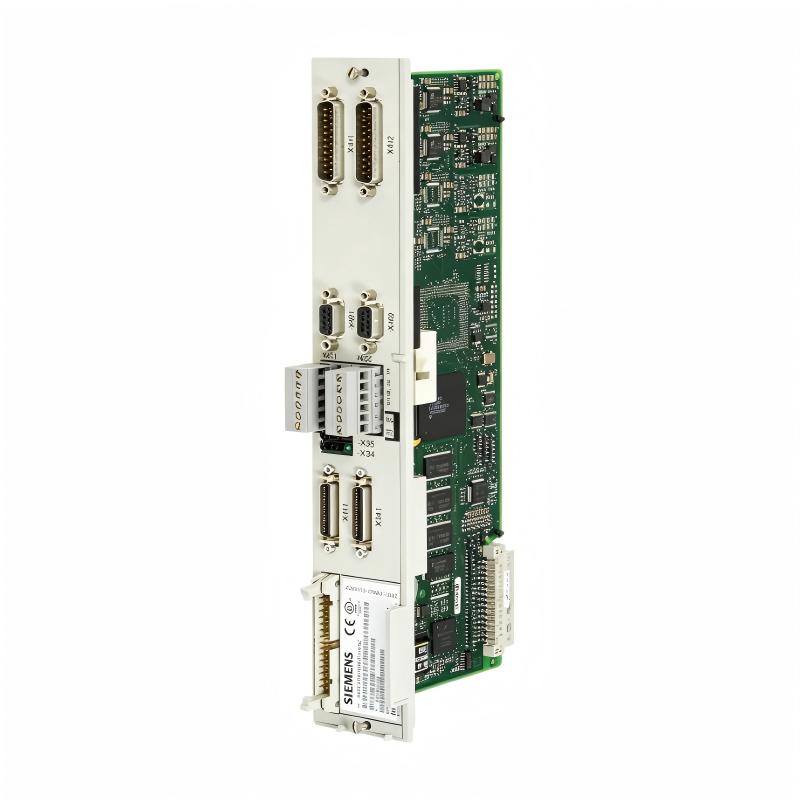

Siemens 6SN1118-0DM31-0AA2 Dual-Axis High-Standard Digital Control Loop Module
Siemens 6SN1118-0DM31-0AA2 Dual-Axis High-Standard Digital Control Loop Module
0.0
Points
Brand:Siemens Item No.:6SN1118-0DM31-0AA2 Product Origin:Germany Product Dimensions:318 x 44 x 127 mm Product Weight:0.51 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Digital Control Architecture
The Siemens 6SN1118-0DM31-0AA2 is a high-standard digital control-loop module from the SIMODRIVE 611 Digital family. Its configuration is designed for two-axis positioning without a direct measuring system, with SIN/COS 1 Vpp encoder feedback.
Unlike a standalone frequency converter, the 6SN1118-0DM31-0AA2 forms part of a modular CNC drive architecture. The control-loop electronics process the motion-control requirements and feedback information, while separate SIMODRIVE components provide the required power conversion and motor control functions.
This architecture is particularly valuable in CNC equipment because different parts of the drive system can be configured according to the machine's requirements. A control module such as the 6SN1118-0DM31-0AA2 can therefore play a specific role in managing two machine axes without requiring the entire drive system to be integrated into a single enclosure.
The module is also useful in CNC maintenance and retrofit applications. Many industrial machines remain in service for years or even decades, and the availability of the correct control-loop replacement can help reduce machine downtime. When sourcing this type of legacy component, the complete Siemens order number is especially important because several visually similar SIMODRIVE control modules have different axis configurations or feedback capabilities.
The 6SN1118-0DM31-0AA2 should not be confused with the 6SN1118-0DM33-0AA2. Both are high-standard two-axis control configurations, but the DM33 version is associated with direct measuring-system applications, while the DM31 version is the standard configuration without a direct measuring system.
For maintenance engineers, system integrators and spare-parts suppliers, identifying these differences is essential when selecting a replacement. Installing a similar-looking but differently configured control unit can result in compatibility problems during machine commissioning.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6SN1118-0DM31-0AA2
Product Family
SIMODRIVE 611 Digital
Product Type
Dual-Axis High-Standard Digital Control Loop Module
Control Type
High-Standard Digital Control
Axis Configuration
2-Axis
Positioning Function
Two-Axis Positioning
Feedback Interface
SIN/COS 1 Vpp
Direct Measuring System
Without Direct Measuring System
Application
CNC / Machine Tool Motion Control
NC Software Requirement
From applicable 06.04.09 generation
Dimensions
Approx. 315 × 130 × 47 mm
Weight
0.51 kg (1.12 lb)
Mounting Concept
SIMODRIVE 611 Plug-In Module
Product Status
Legacy / Discontinued
Recommended Related Siemens Models
The following Siemens models are relevant when working with SIMODRIVE 611 Digital control systems and replacement projects:
Siemens 6SN1118-0DM31-0AA1 — related high-standard two-axis control module
Siemens 6SN1118-0DM33-0AA2 — high-standard two-axis control module for direct measuring-system applications
Siemens 6SN1118-0DM21-0AA0 — related two-axis closed-loop control unit
Siemens 6SN1118-0DM23-0AA0 — related two-axis closed-loop control unit
Siemens 6SN1118-0DM13-0AA0 — related dual-axis digital closed-loop control unit
Siemens 6SN1118-0DM13-0AA1 — related dual-axis digital closed-loop control unit
When selecting a replacement, these models should be compared according to axis configuration, performance level, feedback arrangement and the requirements of the existing CNC system rather than by physical appearance alone.
Popular Related Siemens SIMODRIVE Models
Siemens 6SN1118-0DK21-0AA2 — SIMODRIVE 611 Digital high-performance two-axis control module
Siemens 6SN1118-0DK23-0AA2 — high-performance two-axis control module with direct measuring-system capability
Siemens 6SN1118-0DJ21-0AA2 — high-performance single-axis control module
Siemens 6SN1118-0DJ23-0AA2 — single-axis control module for direct measuring-system applications
Siemens 6SN1114-0NB01-0AA1 — SIMODRIVE Motion Control with PROFIBUS DP option module
Applications and Industrial Use
The Siemens 6SN1118-0DM31-0AA2 is a SIMODRIVE 611 Digital high-standard control loop module designed for two-axis positioning and closed-loop motion control. It is intended for Siemens CNC and machine-tool drive systems where precise control of feed drives or main spindle-related motion is required.
The module is designed for applications using SIN/COS 1 Vpp encoder feedback and operates as part of the SIMODRIVE 611 Digital modular drive architecture. Its two-axis configuration makes it suitable for machine tools where multiple motion axes must be controlled within a compact drive system.
Typical applications include:
CNC machine tools
Milling and machining centers
CNC turning and grinding machines
Automated production machinery
Precision positioning equipment
Feed-axis control systems
SIMODRIVE 611 Digital installations
CNC machine retrofit projects
Industrial equipment maintenance
Replacement of defective SIMODRIVE control modules
For older CNC equipment, the 6SN1118-0DM31-0AA2 can be an important spare part when maintaining the existing Siemens control architecture and avoiding a complete drive-system replacement.
Key Advantages for CNC Motion Control
Two-axis control in one module
The 6SN1118-0DM31-0AA2 provides control functionality for two positioning axes, making it practical for multi-axis CNC drive configurations.
High-standard digital control
This module belongs to the high-standard control category of the SIMODRIVE 611 Digital family and is designed for demanding industrial motion-control applications.
SIN/COS 1 Vpp feedback support
The module is intended for encoder systems using SIN/COS 1 Vpp signals, providing the feedback interface required for closed-loop positioning applications.
Designed for SIMODRIVE 611 Digital systems
Its plug-in construction allows it to operate as part of the modular SIMODRIVE 611 drive system.
Suitable for legacy CNC equipment
The module remains relevant for maintenance and replacement applications involving older Siemens CNC machines and SIMODRIVE installations.
Compact two-axis architecture
By combining two control axes within one control-loop module, the design helps maintain an organized and modular drive configuration.
Useful for machine retrofit and repair
When an existing CNC machine is still mechanically and electrically suitable for continued operation, replacing an individual control module can be a practical alternative to replacing the complete drive system.
Technical FAQs: Siemens 6SN1118-0DM31-0AA2
1. What is the Siemens 6SN1118-0DM31-0AA2?
The 6SN1118-0DM31-0AA2 is a SIMODRIVE 611 Digital high-standard two-axis control loop module used for CNC positioning and closed-loop motion control.
2. How many axes can the 6SN1118-0DM31-0AA2 control?
It is designed as a two-axis control module, making it suitable for applications requiring two controlled positioning axes.
3. What type of encoder feedback does the module use?
The module is designed for SIN/COS 1 Vpp encoder feedback.
4. Is the 6SN1118-0DM31-0AA2 a complete drive?
No. It is a control-loop module within the SIMODRIVE 611 Digital system. The associated power components, motors and other system modules are separate components.
5. What type of machines can use this control module?
It is primarily associated with CNC machine tools, machining centers and other industrial motion systems based on the SIMODRIVE 611 Digital platform.
6. Does the module require specific NC software?
Yes. The 6SN1118-0DM31-0AA2 is associated with an NC software requirement beginning with the applicable 06.04.09 software generation. System compatibility should be checked before installation.
7. Does the module include a direct measuring system?
The 6SN1118-0DM31-0AA2 is the two-axis standard-performance positioning version without a direct measuring system. Applications requiring a direct measuring system should use an appropriately configured control module.
8. What should be checked before replacing this module?
Verify the complete MLFB/order number, machine configuration, axis requirements, encoder type, NC software compatibility and the surrounding SIMODRIVE hardware before replacement.
9. What symptoms can indicate a control-loop module problem?
Possible symptoms include axis-control faults, initialization problems, feedback-related errors, failure to enable an axis, positioning abnormalities or drive-control faults. The control module should be diagnosed together with the power module, motor, encoder and CNC control.
10. Is the Siemens 6SN1118-0DM31-0AA2 still useful as a replacement part?
Yes. Although it is a legacy SIMODRIVE component, it remains relevant for maintaining existing CNC machines that use the same drive architecture. Exact part-number and system compatibility should always be verified before replacement.
