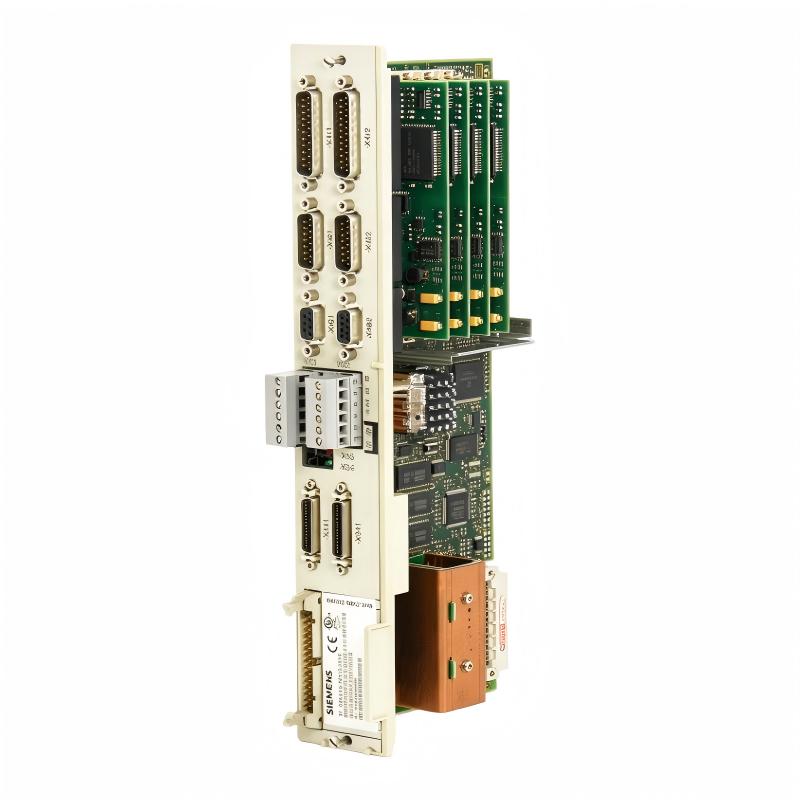

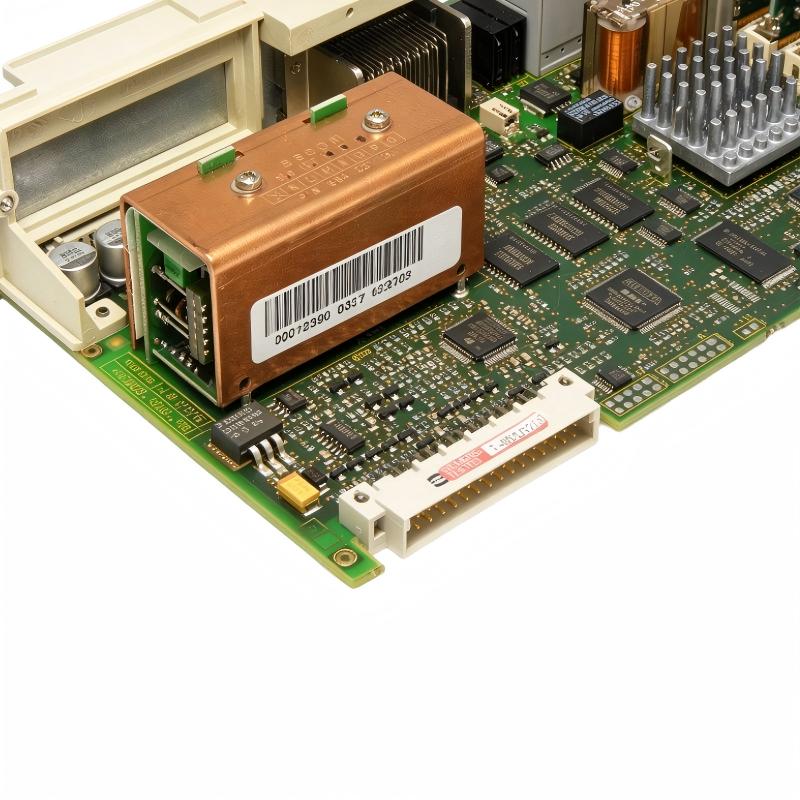

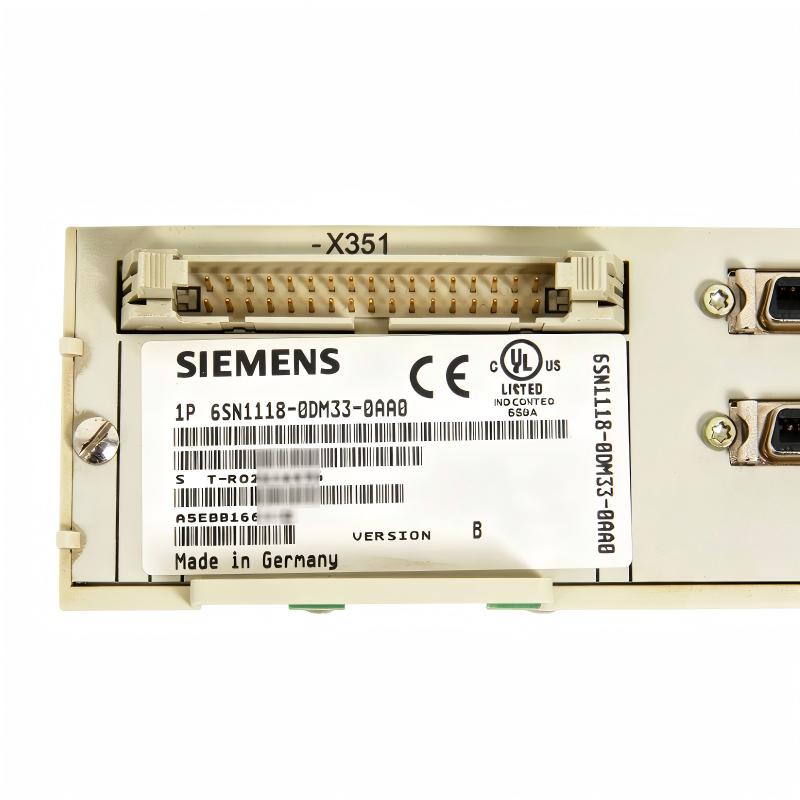

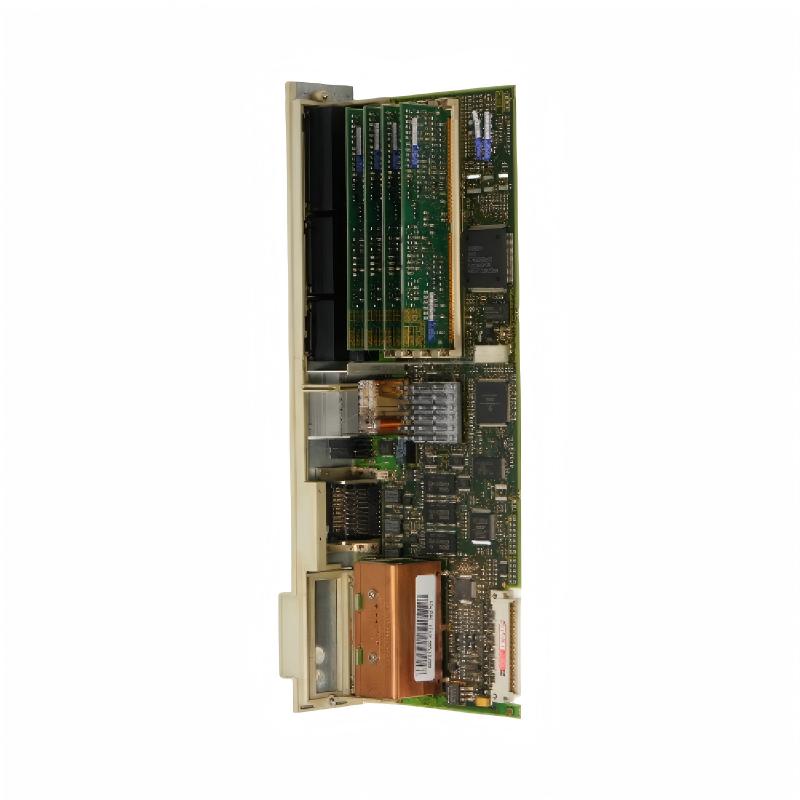

Siemens 6SN1118-0DM33-0AA0 Dual-Axis Digital High-Standard Control Unit
Siemens 6SN1118-0DM33-0AA0 Dual-Axis Digital High-Standard Control Unit
0.0
Points
Brand:Siemens Item No.:6SN1118-0DM33-0AA0 Product Origin:Germany Product Dimensions:330 x 51 x 152 mm Product Weight:0.66 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Direct Measuring System Architecture
The Siemens 6SN1118-0DM33-0AA0 belongs to the SIMODRIVE 611 Digital family and is identified as a High-Standard control unit for two axes with a direct measuring system.
Its main role is to provide the electronic control functions required by two CNC axes. Within the larger SIMODRIVE architecture, the control-loop module works alongside power modules, motors and feedback components. This modular approach allows machine builders to configure the drive system according to the number of axes and the required control performance.
A particularly important characteristic of the DM33 version is its association with a direct measuring system. In a conventional feedback arrangement, the encoder may measure motor or motor-shaft movement. A direct measuring system instead provides position information from the machine's mechanical axis. This can be advantageous on precision equipment where factors such as ballscrew pitch error, mechanical transmission effects or thermal expansion can influence the actual position at the working point.
For CNC machine tools, accurate feedback is essential. The control system continuously compares the commanded position with the measured position and adjusts the drive accordingly. The 6SN1118-0DM33-0AA0 forms part of this closed-loop control chain.
The module also belongs to a product generation that is now considered legacy/phase-out equipment. This does not eliminate its value in industrial maintenance. Many CNC machines remain productive for years after the original automation platform has become obsolete, creating continuing demand for replacement control modules, repaired units and tested spare parts.
When purchasing a replacement, the complete 6SN1118-0DM33-0AA0 order number should be checked carefully. Similar SIMODRIVE modules may have different control performance levels, axis configurations or measuring-system functions, even when their physical appearance is similar.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6SN1118-0DM33-0AA0
Product Family
SIMODRIVE 611 Digital
Product Type
Dual-Axis High-Standard Digital Control Loop Module
Control Type
High-Standard Digital Control
Axis Configuration
2-Axis
Control Function
Closed-Loop Motion Control
Measuring System
Direct Measuring System
Feedback
Applicable SIN/COS / incremental feedback systems
Application
CNC / Machine Tool Motion Control
Installation Type
Plug-In Control Module
Dimensions
330 × 51 × 152 mm
Weight
0.66 kg (1.46 lb)
Product Status
Legacy / Discontinued
Recommended Related Siemens Models
For SIMODRIVE 611 Digital maintenance and replacement projects, the following models are useful related references:
Siemens 6SN1118-0DM33-0AA1 — related High-Standard two-axis control module
Siemens 6SN1118-0DM33-0AA2 — related High-Standard two-axis control module
Siemens 6SN1118-0DM31-0AA0 — related High-Standard two-axis digital control module
Siemens 6SN1118-0DM31-0AA1 — related two-axis High-Standard control unit
Siemens 6SN1118-0DM21-0AA0 — related two-axis closed-loop control unit
Siemens 6SN1118-0DM23-0AA0 — related two-axis closed-loop control unit
The 6SN1118-0DM33 versions are particularly important when the machine configuration requires a direct measuring system. They should not automatically be treated as interchangeable with other DM-series modules without checking the complete CNC configuration.
Popular Related Siemens SIMODRIVE Models
Siemens 6SN1118-0DK23-0AA0 — High-Performance two-axis control module
Siemens 6SN1118-0DK23-0AA1 — related High-Performance two-axis control version
Siemens 6SN1118-0DK23-0AA2 — related High-Performance two-axis control version
Siemens 6SN1118-0DJ23-0AA0 — High-Performance single-axis control module
Siemens 6SN1118-0DJ23-0AA1 — related single-axis High-Performance control version
Siemens 6SN1114-0NB00-0AA2 — SIMODRIVE option module for PROFIBUS DP applications
Siemens 6SN1114-0NB01-0AA1 — related SIMODRIVE PROFIBUS DP option module
Applications and Industrial Use
The Siemens 6SN1118-0DM33-0AA0 is a SIMODRIVE 611 Digital High-Standard two-axis closed-loop control module designed for demanding CNC and industrial motion-control applications. It provides control functions for two axes and is specifically associated with systems using a direct measuring system, making it suitable for applications where precise position feedback is important.
The module is installed as part of the modular SIMODRIVE 611 Digital drive architecture. Rather than functioning as a standalone drive, it works together with the corresponding power modules, motors, feedback devices and CNC control system.
Typical applications include:
CNC machining centers
CNC milling and turning machines
Precision grinding equipment
Multi-axis machine tools
Automated positioning systems
High-accuracy feed-axis applications
SIMODRIVE 611 Digital drive systems
SINUMERIK CNC installations
CNC machine maintenance and repair
Legacy Siemens drive-system replacement projects
The 6SN1118-0DM33-0AA0 is especially relevant when maintaining established CNC equipment where replacing an individual control module is more practical than redesigning the entire drive system.
Key Advantages for Precision Motion Control
Two-axis control architecture
The module provides high-standard digital control for two axes within a single SIMODRIVE 611 Digital configuration.
Direct measuring system capability
The DM33 configuration is designed for applications involving a direct measuring system, making it suitable for machine-tool applications where the actual mechanical position must be monitored with high accuracy.
Closed-loop motion control
Feedback from the machine's measuring system can be incorporated into the control architecture to support accurate positioning and dynamic axis control.
High-standard control performance
The module is part of Siemens' high-standard control range for SIMODRIVE 611 Digital systems and is intended for demanding CNC applications.
Plug-in modular design
The control unit integrates into the SIMODRIVE 611 modular drive system, allowing the control and power sections to be organized as separate functional components.
Suitable for CNC retrofit projects
For older machine tools equipped with SIMODRIVE technology, retaining the existing architecture can reduce the engineering work associated with a complete modernization.
Useful as a maintenance spare
The 6SN1118-0DM33-0AA0 can be valuable for service teams maintaining legacy Siemens CNC equipment and looking for an exact replacement control module.
Technical FAQs: Siemens 6SN1118-0DM33-0AA0
1. What is the Siemens 6SN1118-0DM33-0AA0?
It is a SIMODRIVE 611 Digital High-Standard two-axis closed-loop control module designed for CNC and precision motion-control applications.
2. How many axes does the 6SN1118-0DM33-0AA0 control?
The module is configured for two axes.
3. What is the main difference between the DM33 and standard two-axis control configurations?
The DM33 configuration supports applications using a direct measuring system, allowing the control architecture to work with direct machine-position feedback.
4. Is the 6SN1118-0DM33-0AA0 a power module?
No. It is a control-loop module. The associated SIMODRIVE power components provide the power-stage functions required to operate the connected motors.
5. What type of applications use a direct measuring system?
Direct measuring systems are commonly used on precision machine tools where measuring the actual mechanical axis position can provide better control of positioning accuracy and compensate for mechanical transmission effects.
6. What type of feedback can be used with this module?
The 6SN1118-0DM33-0AA0 is associated with motor and direct measuring feedback arrangements used in SIMODRIVE CNC systems, including applicable incremental SIN/COS encoder technologies.
7. Does the module work with SINUMERIK CNC systems?
Yes. The 6SN1118-0DM33-0AA0 is designed for integration into Siemens CNC drive architectures used with SIMODRIVE and SINUMERIK systems.
8. What should be checked before installing a replacement module?
The complete order number, CNC configuration, axis assignment, feedback system, NC software version and associated SIMODRIVE hardware should be checked before commissioning.
9. What problems can occur when the control module is defective?
Possible symptoms include axis initialization failures, drive-control alarms, feedback errors, inability to enable an axis, incorrect positioning behavior and abnormal machine-axis response.
10. Can the 6SN1118-0DM33-0AA0 be used for legacy machine maintenance?
Yes. It is a legacy SIMODRIVE component and remains relevant for servicing existing CNC machines that were designed around this drive architecture. Exact part-number matching is recommended when sourcing a replacement.
