Brand:Siemens Item No.:6SN1118-0NH01-0AA0 Product Origin:Germany Product Dimensions:330 x 51 x 152 mm Product Weight:0.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Dual-Axis Control Architecture

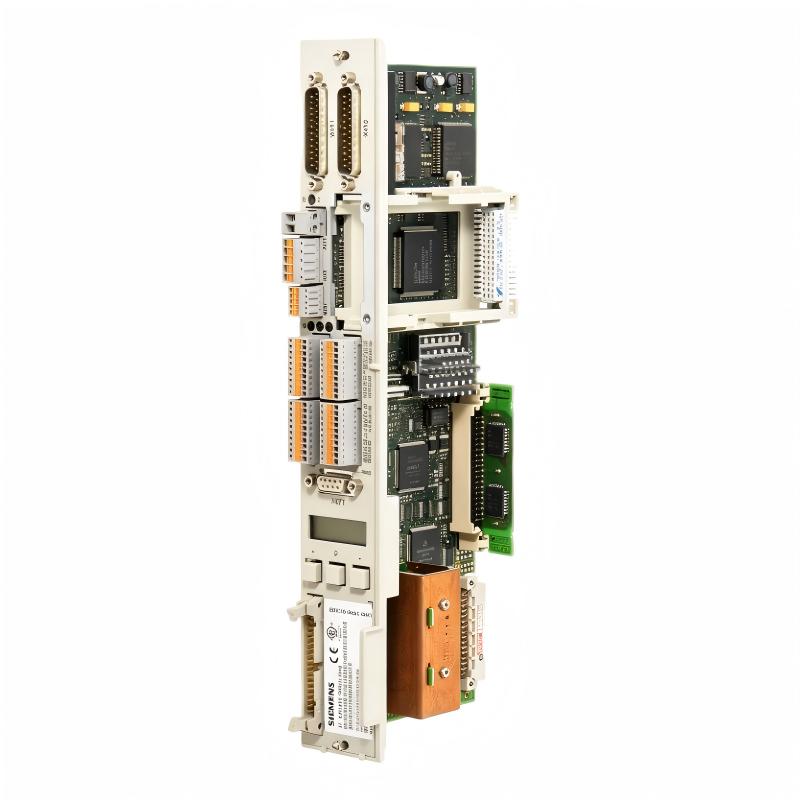

The Siemens 6SN1118-0NH01-0AA0 is a specialized dual-axis control unit intended for Siemens industrial motion-control applications. It provides a dedicated control interface for two drive axes and forms part of a modular control and drive architecture.
In a typical industrial motion-control system, the control unit does not operate in isolation. The CNC or machine controller generates the required motion commands, while the control electronics process these commands and coordinate the corresponding drive functions. Power modules then provide the electrical power needed by the motors, while feedback devices provide information about actual machine movement.
This separation of functions offers several practical advantages. Machine builders can configure the drive system according to the required number of axes, motor characteristics, feedback arrangement, and application requirements. For maintenance engineers, the modular approach also means that a fault can potentially be isolated to an individual component instead of requiring replacement of the entire drive system.
The two-axis configuration of the 6SN1118-0NH01-0AA0 is useful for equipment where two controlled axes need to operate together. Depending on the machine configuration, these axes may be used for positioning, feed motion, machining operations, or coordinated movement.
When replacing a legacy Siemens control unit, physical dimensions alone should never be used as the primary identification method. Several Siemens modules can have similar housings while providing different control functions. The complete MLFB/order number, system architecture, feedback configuration, and CNC requirements should all be checked before commissioning.
For industrial spare-parts sourcing, the 6SN1118-0NH01-0AA0 is therefore best treated as a specific system component, rather than a generic two-axis controller.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6SN1118-0NH01-0AA0
Product Type
Dual-Axis Control Unit
Control Configuration
2-Axis
Application
Industrial Motion Control / CNC
Drive System
Siemens Modular Drive Architecture
Control Function
Multi-Axis Motion Control
Installation Type
Modular Control Unit
Dimensions
330 × 51 × 152 mm
Weight
0.90 kg (1.98 lb)
Product Status
Legacy Industrial Control Component
Recommended Related Siemens Models
The following models are relevant when working with Siemens dual-axis and SIMODRIVE control systems:
Siemens 6SN1118-0DM13-0AA0 — Dual-Axis Digital Closed-Loop Plug-In Control Unit
Siemens 6SN1118-0DM13-0AA1 — related Dual-Axis Digital Closed-Loop Control Unit
Siemens 6SN1118-0DM21-0AA0 — Dual-Axis Closed-Loop Control Unit
Siemens 6SN1118-0DM23-0AA0 — Dual-Axis Closed-Loop Control Unit
Siemens 6SN1118-0DM31-0AA0 — Dual-Axis Digital High-Standard Control Unit
Siemens 6SN1118-0DM31-0AA2 — Dual-Axis High-Standard Digital Control Loop Module
Siemens 6SN1118-0DM33-0AA2 — Dual-Axis High-Standard Digital Control Loop Module
These models belong to related Siemens motion-control product families, but their functions and system requirements can differ. Exact compatibility should be confirmed against the original machine configuration.
Popular Related Siemens Motion-Control Models
Siemens 6SN1118-0DM33-0AA0 — Dual-Axis High-Standard Digital Control Unit
Siemens 6SN1118-0DM33-0AA1 — related Dual-Axis High-Standard Control Unit
Siemens 6SN1118-0DK21-0AA2 — related high-performance two-axis control module
Siemens 6SN1118-0DK23-0AA2 — related high-performance two-axis control configuration
Siemens 6SN1118-0DJ21-0AA2 — related high-performance single-axis control module
Siemens 6SN1118-0DJ23-0AA2 — related single-axis control configuration
Siemens 6SN1114-0NB00-0AA2 — SIMODRIVE option module for PROFIBUS DP applications
Applications and Industrial Use
The Siemens 6SN1118-0NH01-0AA0 is a dual-axis control unit designed for integration into Siemens industrial motion-control and CNC drive systems. As part of the SIMODRIVE control architecture, it provides the electronic control functions required for coordinated operation of two drive axes.
This type of control unit is particularly suited to machine tools and automation equipment where reliable closed-loop axis control, accurate positioning, and coordinated motion are essential. Its modular construction allows it to work together with separate power modules, motors, feedback devices, and higher-level CNC control equipment.
Typical applications include:
CNC machine tools
Machining centers
Automated milling and turning equipment
Precision positioning systems
Multi-axis machine automation
Feed-axis control
Industrial motion-control systems
Siemens CNC drive installations
Machine retrofit projects
Replacement and maintenance of legacy control equipment
For service and maintenance applications, the 6SN1118-0NH01-0AA0 can be used when an existing Siemens drive system requires replacement of its dual-axis control component while retaining the established machine architecture.
Key Advantages for Industrial Motion Control
Dual-axis control capability
The 6SN1118-0NH01-0AA0 is configured to control two axes, providing a compact solution for machines that require coordinated motion across multiple drive channels.
Modular drive-system integration
The unit is designed to operate within a modular Siemens drive architecture, allowing control, power conversion, feedback, and motor functions to be handled by their respective system components.
Suitable for CNC applications
Its application in Siemens motion-control environments makes it relevant to CNC machines and automated equipment requiring precise axis management.
Compact control architecture
Combining two control functions within one module can simplify cabinet organization and reduce the number of individual control components required.
Reliable closed-loop control environment
When integrated with the appropriate feedback and drive components, the control unit contributes to accurate axis positioning and coordinated machine movement.
Useful for retrofit projects
Maintaining the original drive architecture can be an efficient approach when modernizing or repairing older industrial machinery.
Practical replacement component
The exact Siemens order number is important when sourcing replacement equipment, especially for legacy systems containing several visually similar control modules.
Technical FAQs: Siemens 6SN1118-0NH01-0AA0
1. What is the Siemens 6SN1118-0NH01-0AA0?
The 6SN1118-0NH01-0AA0 is a dual-axis control unit designed for Siemens industrial motion-control and CNC drive-system applications.
2. How many axes does the 6SN1118-0NH01-0AA0 support?
The unit is designed for two-axis control.
3. Is the 6SN1118-0NH01-0AA0 a power module?
No. It is a control unit. Power conversion and motor power functions are handled by the appropriate drive power components within the overall system.
4. What applications are suitable for this control unit?
Typical applications include CNC machine tools, machining equipment, automated positioning systems, and other compatible Siemens motion-control installations.
5. Can the control unit be used in a multi-axis machine?
Yes. Its two-axis configuration can form part of a larger multi-axis system when combined with other appropriate control and drive modules.
6. What components work together with this control unit?
Depending on the machine architecture, the control unit can operate as part of a system containing CNC controls, power modules, servo motors, feedback devices, and associated interface components.
7. What should be checked before installing a replacement?
Verify the complete 6SN1118-0NH01-0AA0 order number, installed drive architecture, axis configuration, feedback arrangement, CNC controller, software requirements, and associated hardware.
8. What can cause axis faults in a system using this module?
Axis problems can originate from the control unit, power electronics, motor, encoder, cabling, CNC controller, or configuration. A complete system diagnosis should therefore be performed before replacing the module.
9. Is this module suitable for CNC machine maintenance?
Yes. Its dual-axis configuration makes it relevant to maintenance and repair of compatible Siemens CNC and motion-control systems.
10. Why is exact model matching important for replacement?
Siemens produced numerous control units with similar physical designs but different functions and configurations. Matching the complete order number helps avoid incompatibility with the existing machine and drive system.
