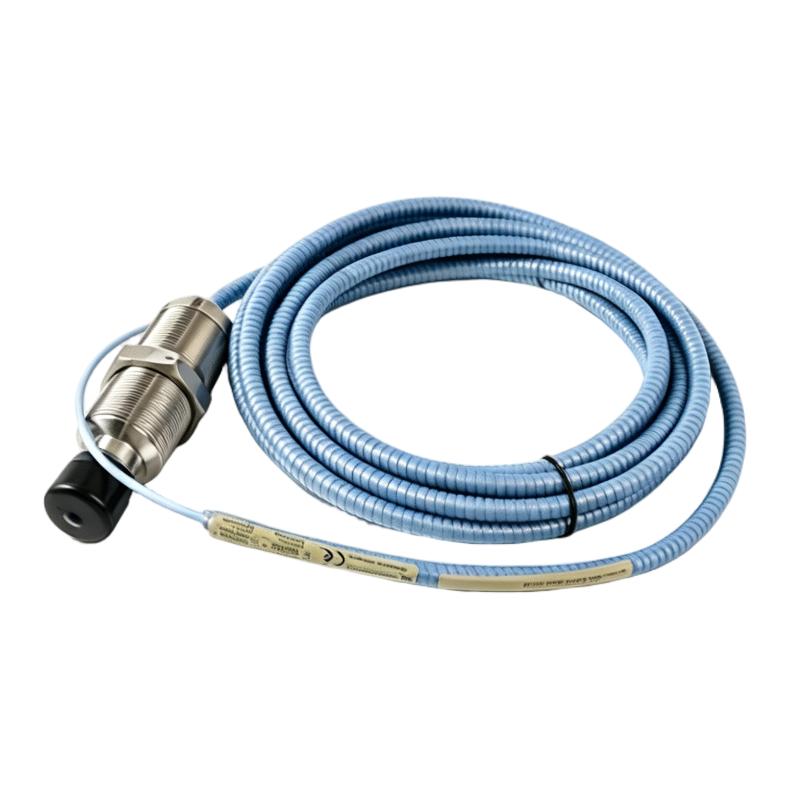

Bently Nevada 330851-02-000-040-50-00-05 3300 XL 25 mm Proximity Probe_Bently Nevada PLC

Introduction

The Bently Nevada 330851-02-000-040-50-00-05 is a 3300 XL 25 mm Proximity Probe designed for high-performance shaft displacement and vibration measurement on industrial rotating machinery.

Unlike conventional contact sensors, the 3300 XL proximity probe uses non-contact eddy-current technology. The probe detects changes in the distance between its sensing tip and the conductive shaft surface, allowing machine operators to monitor rotor movement while avoiding mechanical contact with the rotating component.

The 25 mm probe configuration is intended for applications where the larger probe format is appropriate for the machine's mechanical arrangement. Its 5-meter total system length also gives engineers useful flexibility when positioning the sensor relative to the associated Proximitor Sensor and machinery-monitoring equipment.

In a typical installation, the probe is mounted close to the shaft while maintaining a carefully controlled measurement gap. The probe works together with the appropriate extension cable and Proximitor Sensor to form a complete measurement channel. The resulting signal can then be processed by a machinery protection or condition-monitoring system.

This type of measurement is particularly important on turbines, compressors, generators, pumps, gearboxes, and other rotating assets where shaft vibration or axial movement can provide an early indication of developing mechanical problems.

For industrial maintenance teams and system integrators, the 330851-02-000-040-50-00-05 is a valuable component for maintaining dependable shaft-relative measurement performance and supporting long-term machinery monitoring strategies.

Technical Specifications

Specification	Details
Brand	Bently Nevada
Model	330851-02-000-040-50-00-05
Product Type	3300 XL 25 mm Proximity Probe
Series	3300 XL
Probe Diameter	25 mm
Total System Length	5 meters
Measurement Principle	Eddy Current
Measurement Type	Non-Contact Shaft Displacement
Typical Measurement	Radial Vibration / Shaft Position
Typical Target	Conductive Rotating Shaft
Application	Machinery Protection and Condition Monitoring
Installation	Non-Contact Shaft Measurement
System Components	Probe + Extension Cable + Proximitor Sensor
Typical Equipment	Turbines, Compressors, Generators, Pumps, Gearboxes
Total Length	5 m
Weight	0.41 kg (0.90 lb)

The 5-meter total system length provides useful flexibility for machinery installations where the sensing point and monitoring electronics are separated. The 25 mm probe format is intended for applications requiring the corresponding probe geometry and installation arrangement.

Recommended Related Models

Model	Product Type	Application
330180-50-00	3300 XL Extension Cable	Extension for 3300 XL proximity systems
330180-90-00	3300 XL Extension Cable	Alternative cable configuration
330780-90-00	3300 XL Proximitor Sensor	Compatible proximity signal conditioning
330850-50-00	3300 XL 8 mm Proximity Probe	Smaller probe configuration
330851-02-000-040-50-00-00	3300 XL 25 mm Proximity Probe	Related 25 mm probe configuration
330852-50-00	3300 XL 25 mm Proximity Probe	Related 25 mm configuration
330854-040-50-00	3300 XL 25 mm Proximity Probe	Extended installation configuration

Popular Related Models

Model	Product Type	Typical Use
330851-02-000-040-50-00-05	3300 XL 25 mm Proximity Probe	5 m shaft vibration and position measurement
330851-02-000-040-50-00-00	3300 XL 25 mm Proximity Probe	Related 25 mm proximity measurement
330850-50-00	3300 XL 8 mm Proximity Probe	General shaft vibration measurement
330850-90-00	3300 XL 8 mm Proximity Probe	Alternative 8 mm configuration
330780-90-00	3300 XL Proximitor Sensor	Proximity probe signal conditioning
330180-50-00	3300 XL Extension Cable	Proximity system extension
330180-90-00	3300 XL Extension Cable	Alternative extension configuration

Applications

The Bently Nevada 330851-02-000-040-50-00-05 3300 XL 25 mm Proximity Probe is designed for non-contact measurement of shaft position and vibration on critical rotating machinery. As part of the 3300 XL proximity measurement family, it is intended for applications where accurate shaft-relative displacement information is required for machinery protection, condition monitoring, and predictive maintenance.

The 25 mm probe size makes this configuration particularly suitable for larger machines where a larger sensing surface and appropriate installation clearance are required. The 5-meter total system length provides practical installation flexibility between the sensing location and the associated Proximitor Sensor.

Typical applications include:

Steam turbine shaft vibration monitoring
Gas turbine machinery monitoring
Centrifugal compressor protection
Large pump monitoring
Generator vibration measurement
Gearbox shaft displacement monitoring
Journal bearing vibration monitoring
Axial position measurement
Rotor eccentricity monitoring
Machinery protection systems

The probe is especially useful on machines where shaft-relative vibration information is more meaningful than casing vibration. When correctly installed with a compatible Proximitor Sensor and extension cable, it becomes part of a complete eddy-current proximity measurement system.

For maintenance teams and OEM machinery builders, the 330851-02-000-040-50-00-05 offers a proven approach to obtaining continuous shaft displacement measurements on demanding rotating equipment.

Advantages

The Bently Nevada 330851-02-000-040-50-00-05 combines the established 3300 XL probe design with a 25 mm probe diameter and 5-meter total length. Its non-contact operating principle allows the system to measure shaft movement without physically contacting the rotating surface.

This is particularly valuable on high-speed machinery because there is no mechanical contact between the probe tip and the shaft during normal operation. The resulting measurement can be used for vibration monitoring, rotor position measurement, and machinery protection.

The 3300 XL platform is also well suited to installations where long-term measurement stability is important. Proper probe installation, target preparation, cable routing, and system calibration are essential to achieving the expected measurement performance.

Key advantages include:

Non-contact eddy-current measurement
25 mm probe diameter
5-meter total system length
Suitable for shaft-relative vibration measurement
Suitable for radial shaft displacement monitoring
Applicable to axial position measurement
Designed for rotating machinery protection
Compatible with the 3300 XL proximity system
Suitable for critical machinery applications
Proven solution for OEM and retrofit projects

For customers sourcing replacement proximity probes, expanding an existing monitoring system, or building a new machinery protection package, the 330851-02-000-040-50-00-05 provides a practical combination of measurement capability, installation flexibility, and industrial reliability.

Technical FAQs

1. What does the 330851-02-000-040-50-00-05 measure?

The probe measures the distance between the probe tip and a conductive rotating target, normally a machine shaft. Changes in this gap are converted by the associated Proximitor Sensor into an electrical signal representing shaft displacement.

2. Is the 3300 XL proximity probe a contact-type sensor?

No. It uses an eddy-current principle and operates without physical contact between the probe tip and the rotating shaft.

3. What type of target material is normally required?

The proximity system is designed for use with electrically conductive targets. The target material and surface condition should be considered during installation because they influence the measurement characteristics of the eddy-current system.

4. Can this probe be used for shaft vibration monitoring?

Yes. When installed radially relative to the shaft and paired with the appropriate Proximitor Sensor and monitoring electronics, it can provide shaft-relative vibration information.

5. Can a 3300 XL proximity probe measure axial position?

Yes. Proximity probes can be arranged for axial-position measurement when the mechanical installation provides a suitable axial target surface and the monitoring system is configured appropriately.

6. Why is the probe gap important?

The probe gap determines the operating point of the proximity measurement system. An incorrect gap can reduce measurement accuracy, limit available signal range, or cause improper operation of the monitoring channel.

7. What components are normally required for a complete proximity measurement channel?

A typical channel consists of the proximity probe, the appropriate extension cable, and a compatible Proximitor Sensor or monitoring interface. The components should be selected as a compatible system.

8. What should be checked when commissioning the probe?

Technicians should verify probe installation, mechanical mounting, target condition, cable connections, probe gap, system polarity, and the electrical output from the associated Proximitor Sensor. Calibration should be checked against the monitoring system requirements.

9. What can cause an unstable proximity-probe signal?

Potential causes include an incorrectly adjusted probe gap, damaged or poorly connected cables, shaft surface problems, mechanical looseness, electrical interference, improper grounding, or an incompatible transducer configuration.

10. Can the probe be used as a direct replacement for another proximity probe?

A replacement should not be selected based only on physical appearance or probe diameter. The complete model configuration, electrical characteristics, cable length, connector arrangement, thread configuration, target requirements, and associated Proximitor Sensor must all be compatible with the existing system.
