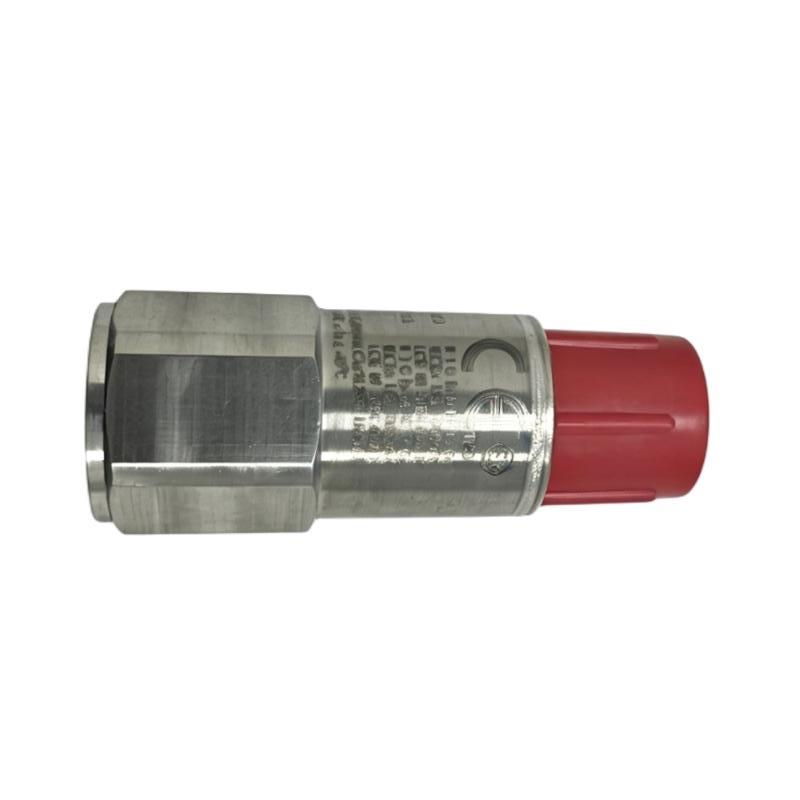

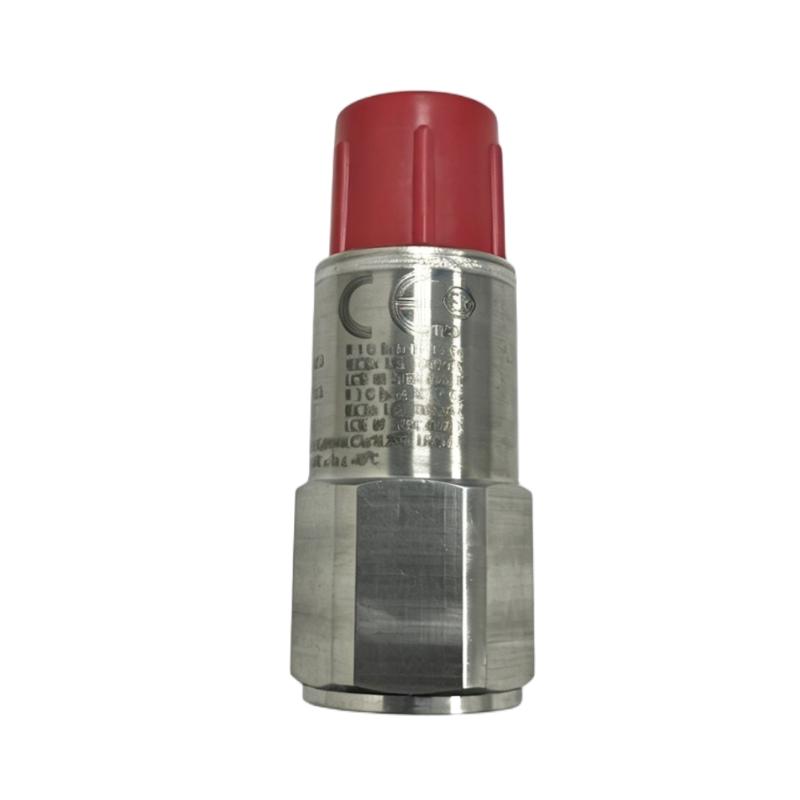

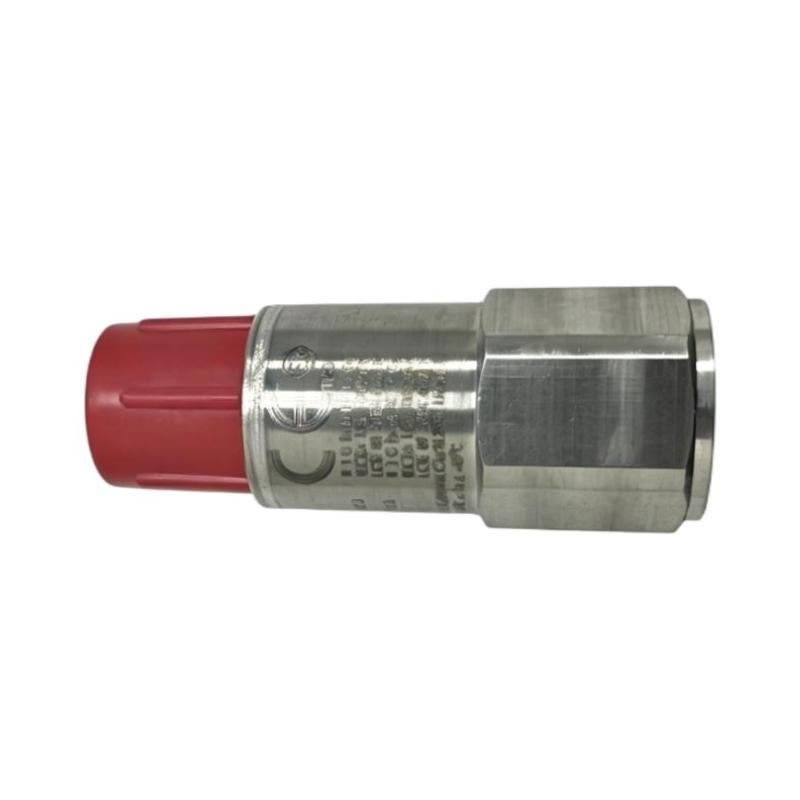

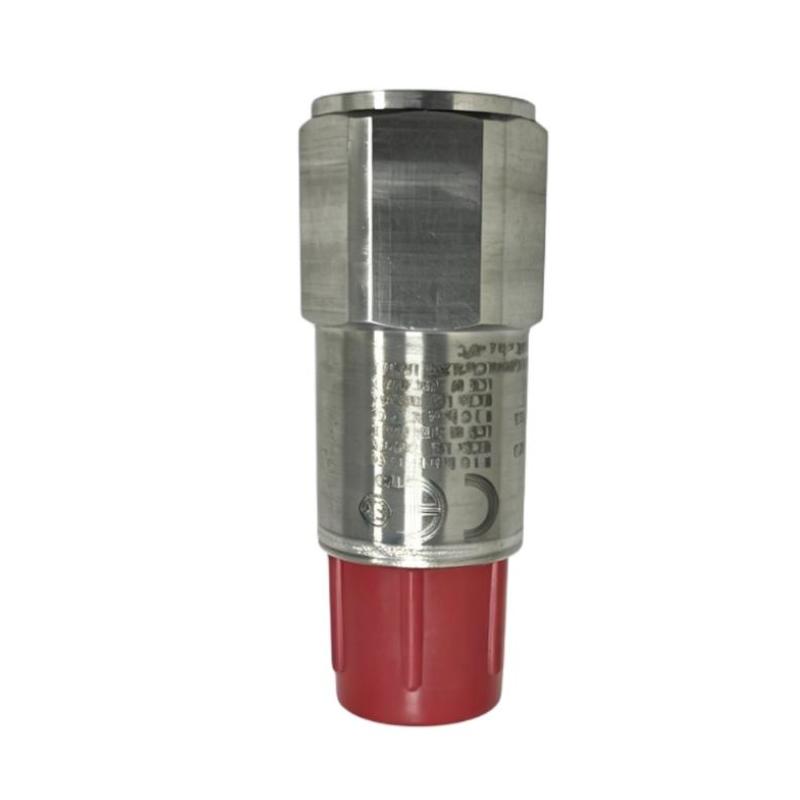

Bently Nevada 200157-22-CN Surround-type Trendmaster Pro Accelerometer

Applications

The Bently Nevada 200157-22-CN Surround-type Trendmaster Pro Accelerometer is designed for vibration monitoring on industrial rotating equipment where compact sensing and dependable condition-monitoring data are important. As part of the Trendmaster Pro family, it is intended to capture machine vibration and support ongoing machinery health assessment.

The surround-type configuration is particularly useful where the sensor needs to be installed around or closely integrated with the monitored machinery structure. Its compact form factor makes it suitable for installations where conventional vibration sensors may be difficult to position.

Typical applications include:

• Motor vibration monitoring
• Pump condition monitoring
• Fan and blower monitoring
• Compressor vibration monitoring
• Gearbox condition monitoring
• Bearing housing monitoring
• Rotating machinery diagnostics
• Predictive maintenance programs
• Machinery condition trending
• OEM equipment monitoring

The accelerometer can be used as part of a broader Trendmaster Pro monitoring arrangement, helping maintenance personnel establish vibration trends and identify changes in machine behavior over time.

For industrial users, the 200157-22-CN is especially useful when vibration monitoring needs to be added to equipment without creating a large sensor footprint. Its small dimensions and lightweight construction make it a practical choice for compact machinery monitoring installations.

Advantages

The Bently Nevada 200157-22-CN combines a compact sensor design with the monitoring capabilities of the Trendmaster Pro platform. It is intended for applications where continuous or periodic vibration information can help maintenance teams evaluate machine condition and recognize developing mechanical issues.

One of its most useful characteristics is its small physical profile. Measuring approximately 45.7 × 17.5 mm, the sensor can be considered for installations with limited space around the monitored equipment.

The accelerometer is also lightweight, with a supplied weight of only 0.058 kg (0.13 lb). This makes it convenient for machinery OEMs and retrofit projects where sensor mass and installation space need to be kept under control.

Key advantages include:

• Trendmaster Pro system compatibility
• Compact surround-type construction
• Suitable for machinery vibration monitoring
• Lightweight sensor design
• Useful for condition-based maintenance
• Suitable for rotating equipment
• Practical for retrofit applications
• Supports vibration trending
• Suitable for OEM machinery packages
• Space-efficient installation

For maintenance engineers and system integrators, the 200157-22-CN offers a practical sensing option when the goal is to improve machinery visibility while keeping the physical installation compact.

Technical FAQs

1. What is the primary function of the 200157-22-CN?

The 200157-22-CN is an accelerometer intended to detect vibration from industrial machinery. Its measurement data can be used within an appropriate Trendmaster Pro monitoring architecture for machinery condition assessment.

2. What type of machinery can be monitored with this accelerometer?

Typical applications include motors, pumps, fans, blowers, compressors, gearboxes, and other rotating equipment where changes in vibration can provide useful information about mechanical condition.

3. What does an accelerometer measure?

An accelerometer measures vibration in terms of acceleration. The resulting measurement can be processed by compatible monitoring equipment to evaluate machine vibration and changes in operating condition.

4. Why use an accelerometer instead of a proximity probe?

An accelerometer measures vibration associated with the machine structure, while a proximity probe measures relative movement between a rotating shaft and the probe. Accelerometers are therefore particularly useful for casing and bearing-housing vibration monitoring.

5. Can this sensor be used for predictive maintenance?

Yes. Vibration measurements can be collected and trended over time as part of a predictive or condition-based maintenance program. Changes from an established machine baseline can provide an indication that further inspection may be appropriate.

6. Where should an accelerometer normally be installed?

The sensor should generally be installed at a mechanically representative location, such as a bearing housing or machine casing. The selected point should provide good mechanical coupling and correspond to the desired vibration measurement direction.

7. Does sensor orientation affect the measurement?

Yes. Accelerometers measure vibration along their sensing axis or axes. The installation orientation should therefore be selected according to the machine's vibration characteristics and the monitoring requirements.

8. Can the accelerometer be connected directly to a PLC analog input?

The accelerometer should not be assumed to be a direct PLC analog-input device. Its electrical interface and signal requirements must be matched with the appropriate Trendmaster Pro monitoring hardware or compatible signal-conditioning equipment.

9. What can cause an abnormal accelerometer reading?

Possible causes include poor mechanical mounting, loose hardware, damaged wiring, electrical interference, incorrect system configuration, or an actual increase in machine vibration. Troubleshooting should distinguish between sensor-related problems and genuine machinery changes.

10. Can this accelerometer be used together with other vibration sensors?

Yes. Different vibration sensors can provide complementary information. Accelerometers can be combined with shaft-relative proximity measurements, velocity sensors, or other machinery-monitoring channels when the application requires a broader view of machine condition.
