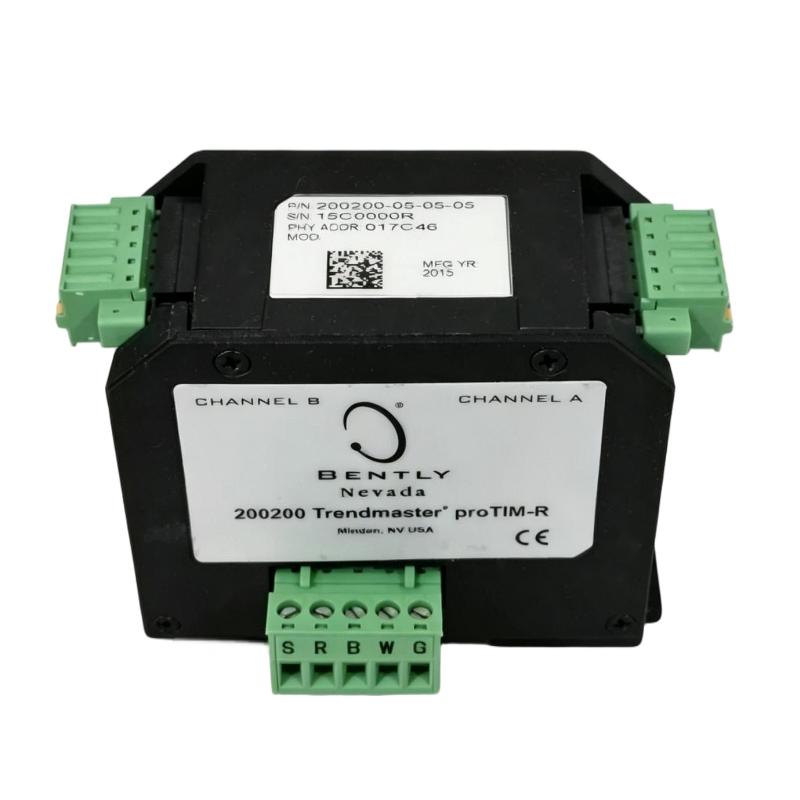

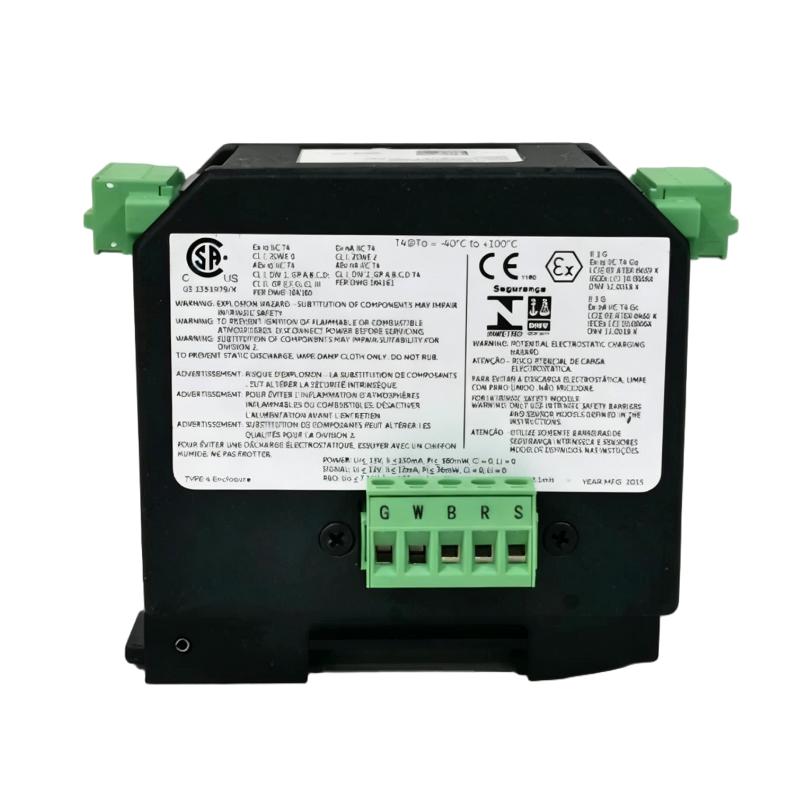

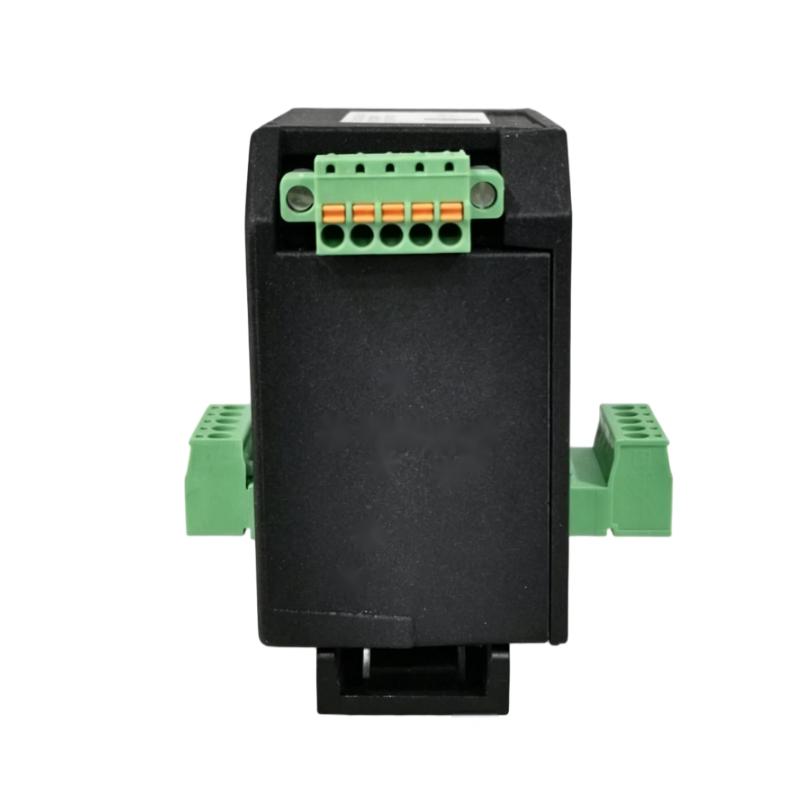

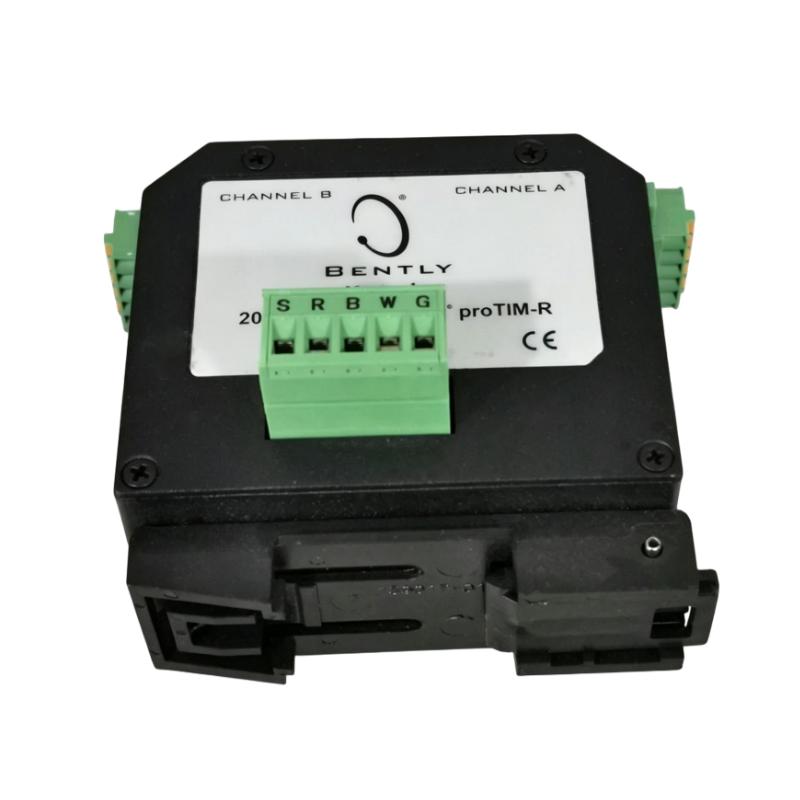

Bently Nevada 200200-05-05-CN Trendmaster proTim-R Dual Input Module

Applications

The Bently Nevada 200200-05-05-CN Trendmaster proTim-R Dual Input Module is designed for machinery condition monitoring applications where multiple vibration-related inputs need to be collected and integrated into a Trendmaster Pro monitoring architecture. As part of the Bently Nevada Trendmaster Pro platform, the module is suited to industrial plants that require centralized monitoring of rotating equipment without installing a separate monitoring cabinet for every machine.

The dual-input design makes the module particularly useful for monitoring applications involving motors, pumps, fans, compressors, gearboxes, and other rotating machinery. It can be incorporated into condition monitoring systems where vibration information from field-mounted sensors needs to be transferred into a higher-level machinery monitoring or maintenance system.

Typical applications include:

• Industrial motor and pump condition monitoring
• Fan and blower vibration monitoring
• Compressor and gearbox monitoring
• Rotating equipment predictive maintenance
• Continuous machinery condition assessment
• Trendmaster Pro monitoring networks
• Multi-point vibration data acquisition
• Plant-wide machinery monitoring systems
• Maintenance programs based on vibration trends

For facilities managing a large number of machines, the Trendmaster Pro architecture provides a practical way to organize vibration measurements and identify changes in machine condition before they develop into more serious mechanical problems.

Advantages

Dual-input monitoring capability
The 200200-05-05-CN provides two input channels in a compact module, making it suitable for applications where more than one measurement point must be incorporated into the monitoring system.

Compact industrial design
With dimensions of 100.9 x 52.9 x 86.2 mm, the module can be integrated into industrial control and monitoring installations where panel space is limited.

Designed for Trendmaster Pro systems
As a Trendmaster Pro component, the module is intended to work within a distributed machinery monitoring architecture, helping users build scalable condition monitoring solutions.

Suitable for predictive maintenance
Vibration data is an important indicator of mechanical problems such as bearing deterioration, imbalance, misalignment, looseness, and other developing machinery conditions. Integrating field measurements into a monitoring system allows maintenance personnel to evaluate equipment trends more effectively.

Efficient system integration
The module provides a structured interface between field measurement points and the wider monitoring network, reducing the need for individual standalone monitoring arrangements.

Industrial automation compatibility
The Trendmaster Pro platform can complement existing plant automation and machinery protection systems, making the 200200-05-05-CN relevant to industrial facilities that already use Bently Nevada monitoring equipment.

Practical replacement option
For maintenance departments supporting existing Trendmaster Pro installations, a genuine 200200-05-05-CN can be an important replacement component when maintaining the original system architecture is preferred over a complete monitoring-system redesign.

Technical FAQs

1. What is the Bently Nevada 200200-05-05-CN used for?
It is a Trendmaster Pro dual-input module used to interface two measurement inputs within a machinery condition monitoring system.

2. What type of machinery can be monitored with this module?
It can be used as part of monitoring systems for rotating equipment such as motors, pumps, fans, compressors, gearboxes, and similar industrial machinery.

3. How many inputs does the 200200-05-05-CN provide?
The model is a Dual Input Module, providing two measurement input channels within one module.

4. Is the 200200-05-05-CN part of the Trendmaster Pro platform?
Yes. The module belongs to the Bently Nevada Trendmaster Pro product family and is intended for use within Trendmaster Pro machinery monitoring architectures.

5. Can this module be used for predictive maintenance?
Yes. When integrated with appropriate field sensors and the Trendmaster Pro monitoring system, measurement data can be used to establish machinery trends and support predictive maintenance decisions.

6. Does the module provide machinery protection by itself?
It should not be considered a standalone emergency machinery protection system. Its primary role is associated with machinery condition monitoring and data acquisition within the Trendmaster Pro architecture.

7. What should be checked before replacing a 200200-05-05-CN?
The complete part number, system architecture, wiring, connected sensors, communication configuration, and existing Trendmaster Pro hardware should be checked before replacement.

8. What are common reasons for replacing this module?
Typical reasons include electronic failure, damaged connections, abnormal input readings, communication problems, or maintenance requirements within an existing Trendmaster Pro installation.

9. Is correct sensor compatibility important when using this module?
Yes. The connected sensor and measurement chain must be compatible with the Trendmaster Pro system. Incorrect sensor selection or wiring can result in unreliable measurement data.

10. What is the physical size and weight of the 200200-05-05-CN?
The module measures 100.9 x 52.9 x 86.2 mm and weighs 0.545 kg (1.20 lb).
