Introduction

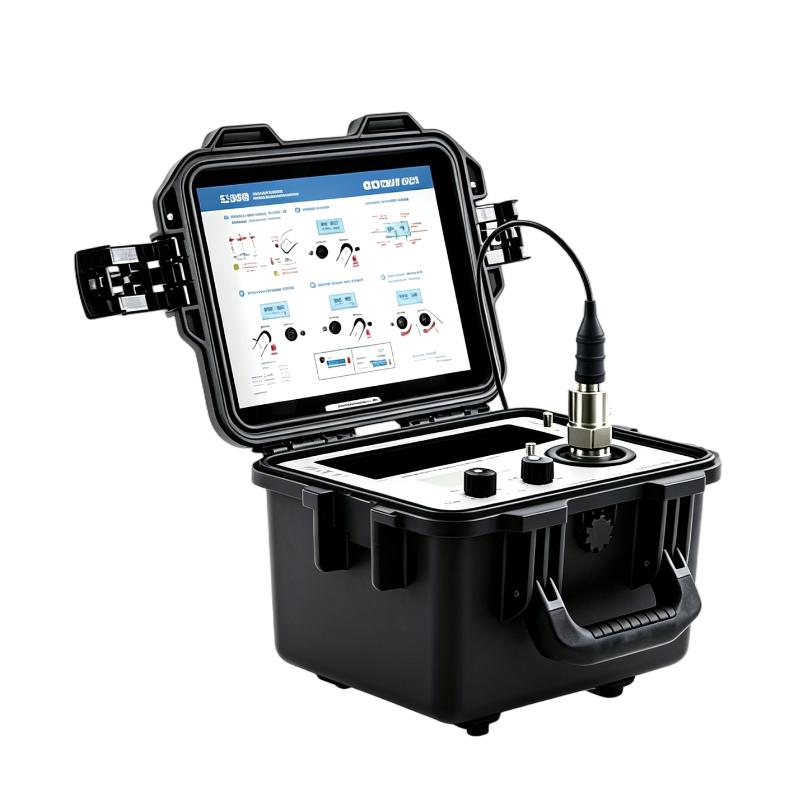

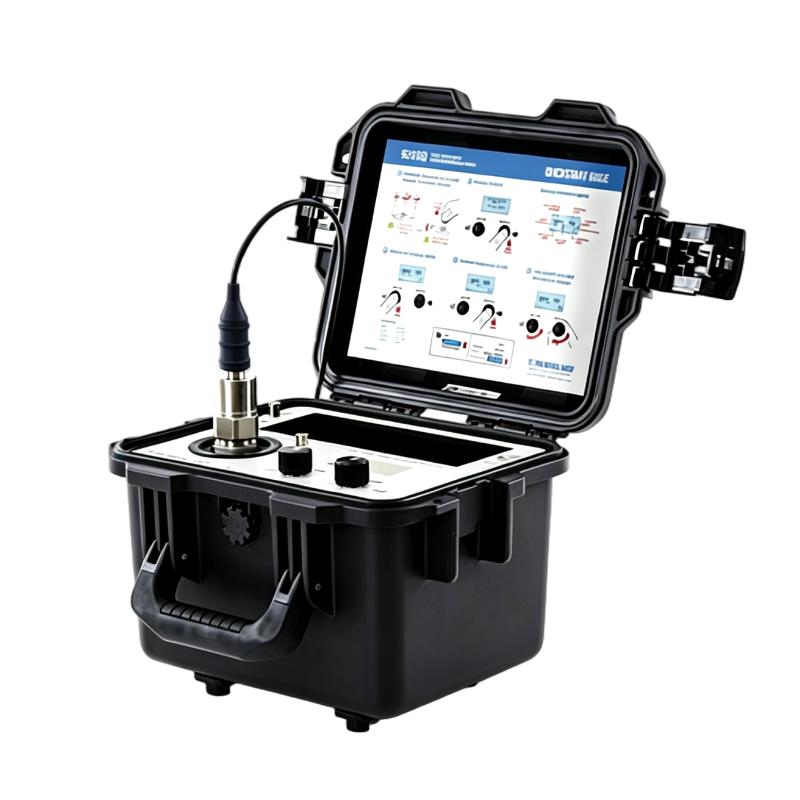

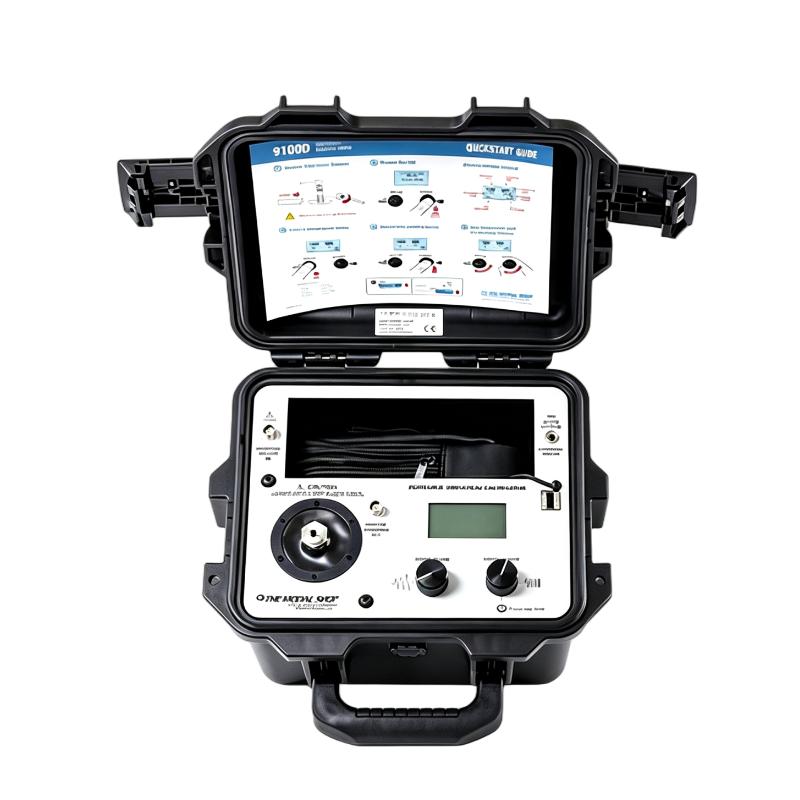

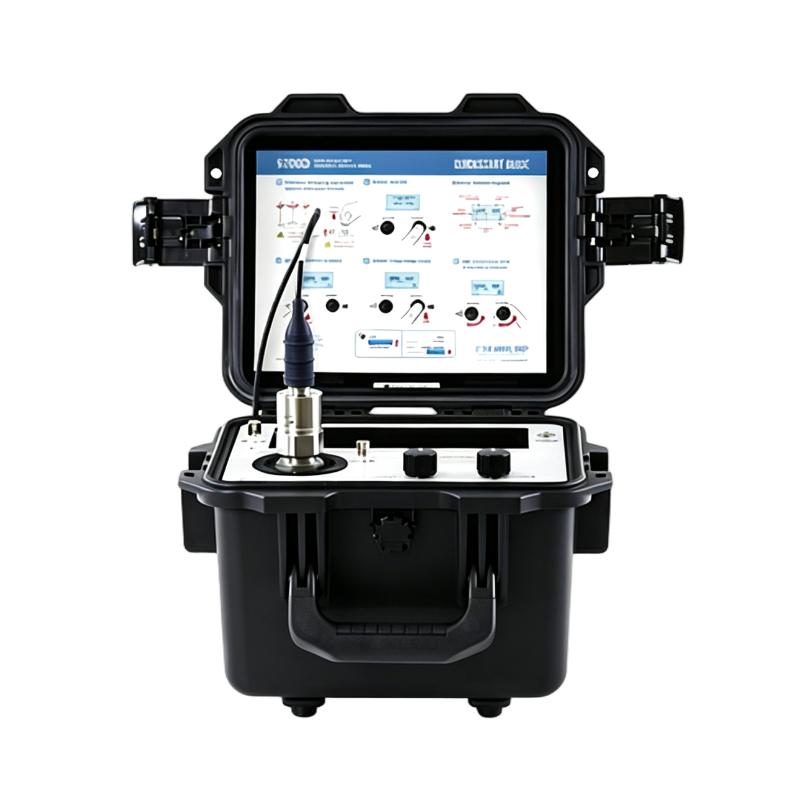

The Bently Nevada 9100D Portable Vibration Table is a specialized piece of test equipment intended for vibration instrumentation verification. Unlike a conventional machinery monitoring module that remains installed in a plant, a portable vibration table is used during inspection, maintenance, commissioning, troubleshooting, and calibration-related activities.

Vibration sensors play an important role in rotating machinery monitoring. Accelerometers, velocity sensors, proximity measurement systems, and other vibration transducers can provide information about the operating condition of motors, pumps, compressors, turbines, fans, gearboxes, and other mechanical equipment. However, the reliability of a condition monitoring system depends heavily on the accuracy and health of the sensors installed in the measurement chain.

When a sensor produces an unexpected reading, technicians need to determine whether the machine has actually changed or whether the measurement system is responsible. A controlled vibration source can provide an effective way to investigate this question. By exposing the sensor to a known mechanical excitation and observing its response, technicians can perform a structured evaluation of the measurement channel.

This is where the 9100D Portable Vibration Table becomes valuable. Its portable configuration allows testing to be incorporated into field maintenance workflows. Instead of automatically sending every suspect vibration sensor to a remote laboratory, a service engineer can perform an initial verification closer to the equipment location.

The unit can also be useful during commissioning. Newly installed vibration instrumentation can be checked before being placed into routine operation, helping technicians identify potential wiring, mounting, sensor, or measurement-channel problems at an early stage.

For plants with extensive vibration monitoring systems, portable test equipment can contribute to a more efficient maintenance strategy. Sensors removed during scheduled maintenance can be evaluated before being returned to inventory, while questionable devices can be tested to determine whether replacement is actually necessary.

The 9100D is therefore best viewed as a service and verification tool within a broader vibration instrumentation program. It does not replace a complete machinery protection system or a certified laboratory calibration facility where formal traceable calibration is required. Instead, it provides a practical means of generating controlled vibration for appropriate testing procedures.

Before using the table, technicians should always follow the applicable equipment documentation and establish suitable test conditions for the particular sensor being evaluated. Correct mounting, vibration level, frequency, electrical connection, and reference measurement are all important when performing meaningful vibration tests.

Technical Specifications

Specification	Details
Manufacturer	Bently Nevada
Model	9100D
Product Type	Portable Vibration Table
Application	Vibration sensor testing and verification
Equipment Category	Portable vibration test equipment
Typical Use	Field service, maintenance, instrumentation testing
Dimensions	305 x 220 x 280 mm
Weight	8.2 kg (18.08 lb)

Testing note: The appropriate vibration level, frequency, mounting arrangement, and reference instrumentation should be established according to the sensor manufacturer's specifications and the applicable test procedure.

Recommended Related Models

For customers maintaining Bently Nevada vibration instrumentation and testing equipment, the following products may also be relevant:

Bently Nevada 9100D — Portable Vibration Table
Bently Nevada 9100 — Vibration calibration and test equipment
Bently Nevada 330500-00-20 — Velomitor Piezo-velocity Sensor
Bently Nevada 200150-18-CN — Trendmaster Pro Accelerometer
Bently Nevada 200157-22-CN — Trendmaster Pro Accelerometer
Bently Nevada 177230-01-01-BR — Seismic Sensor
Bently Nevada 330850 Series — 3300 XL Proximity Probe
Bently Nevada 3300 XL Proximitor Sensor — Proximity measurement signal conditioner

These products cover different stages of vibration measurement, from sensing and signal conditioning to field testing and verification.

Popular Related Models

For vibration monitoring, sensor testing, and machinery condition monitoring applications, customers frequently consider the following Bently Nevada models and product families:

9100D — Portable Vibration Table
330500-00-20 — Velomitor Piezo-velocity Sensor
200150-18-CN — Trendmaster Pro Accelerometer
200157-22-CN — Trendmaster Pro Accelerometer
177230-01-01-BR — Seismic Sensor
330851 Series — 3300 XL 25 mm Proximity Probe
330850 Series — 3300 XL Proximity Probe
3300 XL Proximitor Sensor — Eddy-current proximity signal conditioning

Applications

The Bently Nevada 9100D Portable Vibration Table is a portable vibration calibration and verification tool designed for applications where vibration sensors and monitoring instruments need to be checked outside a permanent laboratory setup.

A portable vibration table is particularly useful for maintenance teams, field service engineers, instrumentation technicians, and calibration personnel working with vibration measurement equipment. It provides a controlled mechanical vibration source that can be used to verify whether an accelerometer, vibration pickup, or related measurement channel responds correctly.

Typical applications include:

Field verification of vibration sensors
Accelerometer testing and calibration checks
Portable machinery instrumentation verification
Maintenance and troubleshooting of vibration monitoring systems
Instrumentation commissioning
Condition monitoring equipment checks
Workshop testing of vibration measurement devices
Preventive maintenance programs
On-site vibration instrumentation service

The portable format is especially valuable when removing a sensor from service and transporting it to a dedicated calibration laboratory would be inconvenient or would create unnecessary equipment downtime.

Advantages

Portable vibration verification
The 9100D is designed around portability, allowing vibration measurement equipment to be checked at a service location rather than requiring every test to take place in a permanent calibration facility.

Useful for field service work
Maintenance technicians can use a portable vibration table as part of an on-site instrumentation verification process, making it practical for industrial plants with large numbers of vibration sensors.

Supports sensor performance checks
Applying a controlled vibration input provides a practical way to evaluate whether a vibration sensor and its associated measurement channel are responding as expected.

Compact mechanical footprint
The specified dimensions of 305 x 220 x 280 mm make the unit considerably easier to transport than a large stationary vibration test system.

Suitable for maintenance departments
The equipment can support routine maintenance activities by providing an additional tool for checking vibration instrumentation before returning it to service.

Reduces dependence on laboratory testing
For suitable verification tasks, a portable vibration table can help maintenance personnel perform preliminary checks directly in the field.

Bently Nevada instrumentation ecosystem
The 9100D is associated with Bently Nevada's vibration measurement and machinery monitoring equipment, making it particularly relevant to service teams working with Bently Nevada vibration instrumentation.

Technical FAQs

1. What is the Bently Nevada 9100D used for?
The 9100D is a portable vibration table used for vibration testing and verification of compatible vibration measurement devices.

2. What types of devices can be checked using a vibration table?
Depending on the specific test configuration, vibration sensors such as accelerometers and other compatible vibration transducers can be evaluated using a controlled mechanical vibration input.

3. Is the 9100D designed for field service?
Its portable design makes it suitable for field-service and maintenance environments where vibration instrumentation needs to be checked away from a permanent calibration laboratory.

4. Can it be used to troubleshoot vibration sensors?
Yes. A controlled vibration source can help technicians determine whether an abnormal sensor output originates from the sensor itself or from another part of the measurement chain.

5. Is the 9100D a machinery protection monitor?
No. It is a test and vibration-generation device rather than a standalone machinery protection monitor.

6. Why is a controlled vibration source useful when testing a sensor?
A known mechanical excitation gives technicians a repeatable reference condition for evaluating sensor response and the associated instrumentation channel.

7. Can the 9100D replace a laboratory calibration system?
Not necessarily. Its intended application is portable vibration testing and verification. Formal calibration requirements should be handled according to the applicable instrumentation specifications and calibration procedures.

8. What should be checked before using the vibration table?
The sensor's mechanical mounting requirements, measurement range, test frequency, expected vibration level, electrical connections, and applicable calibration procedure should be verified before testing.

9. What equipment is typically used together with a vibration table?
Depending on the test procedure, technicians may use the vibration sensor under test, a suitable measurement or monitoring instrument, signal cables, and an independent reference measurement device.

10. What are the dimensions and weight of the 9100D?
The Bently Nevada 9100D measures 305 x 220 x 280 mm and weighs 8.2 kg (18.08 lb).
