Introduction

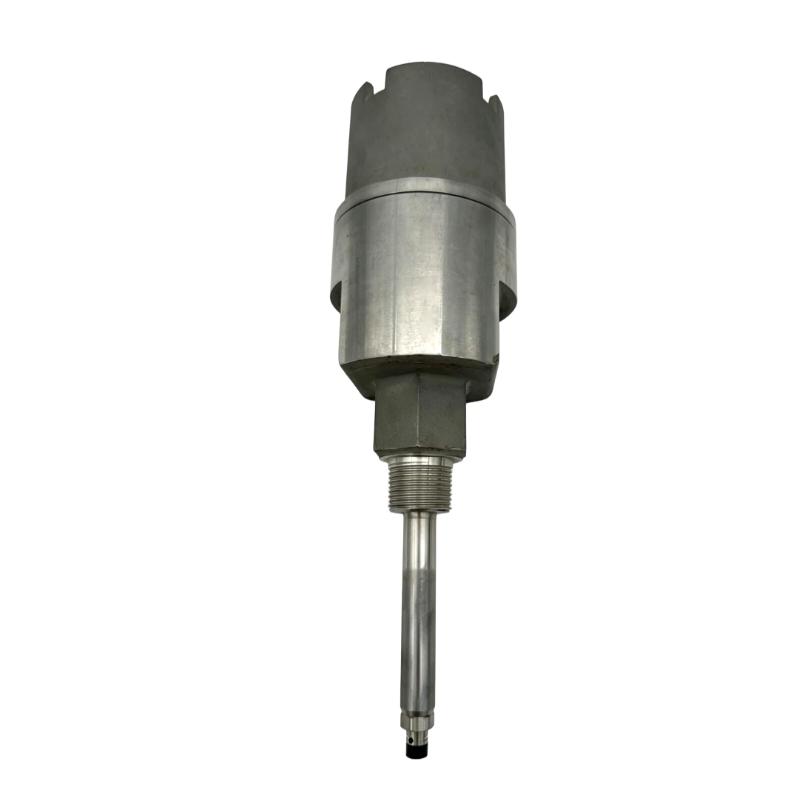

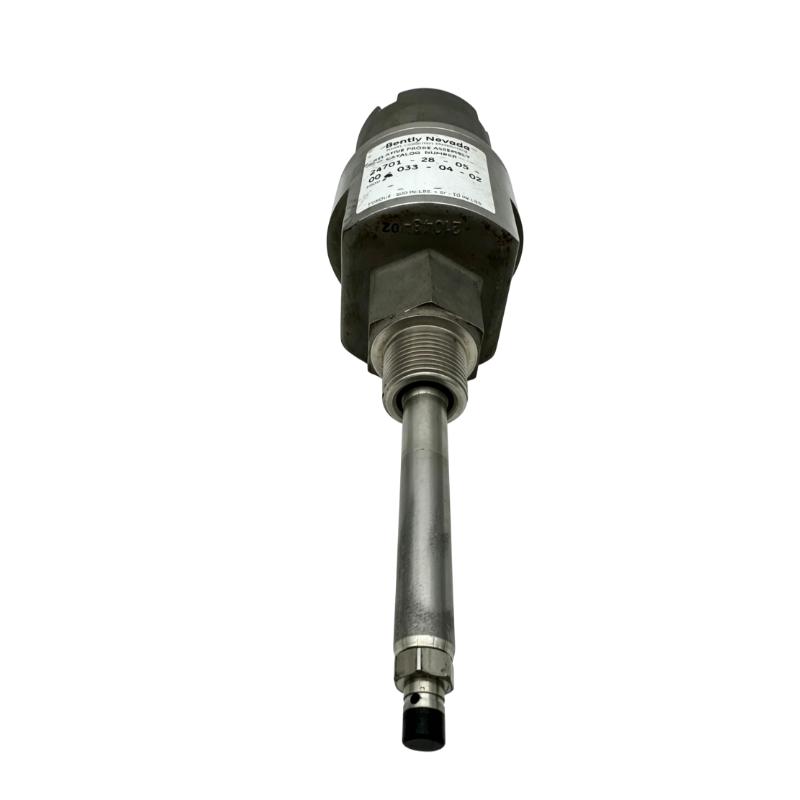

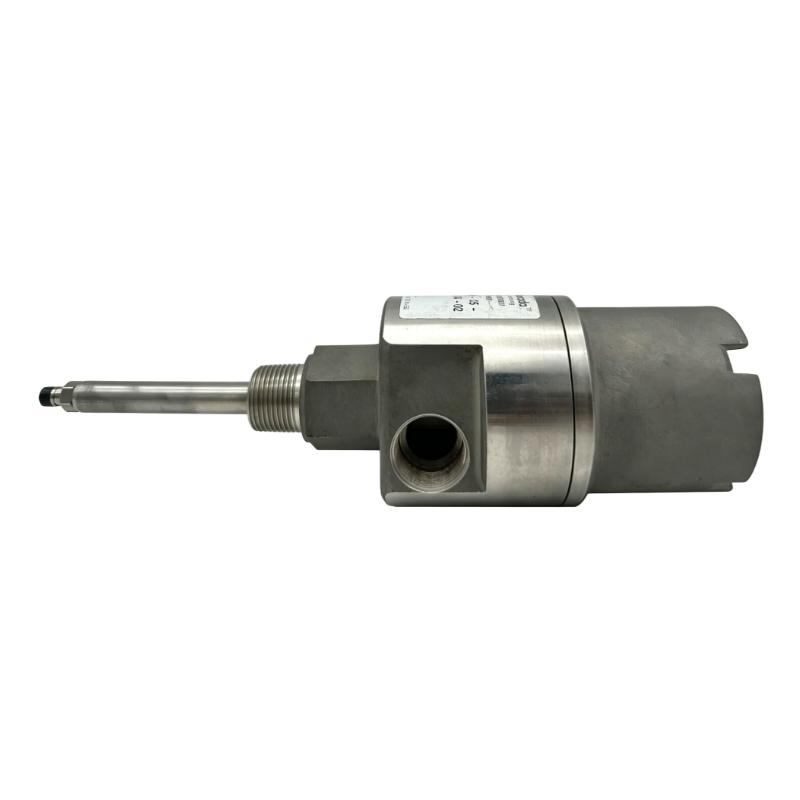

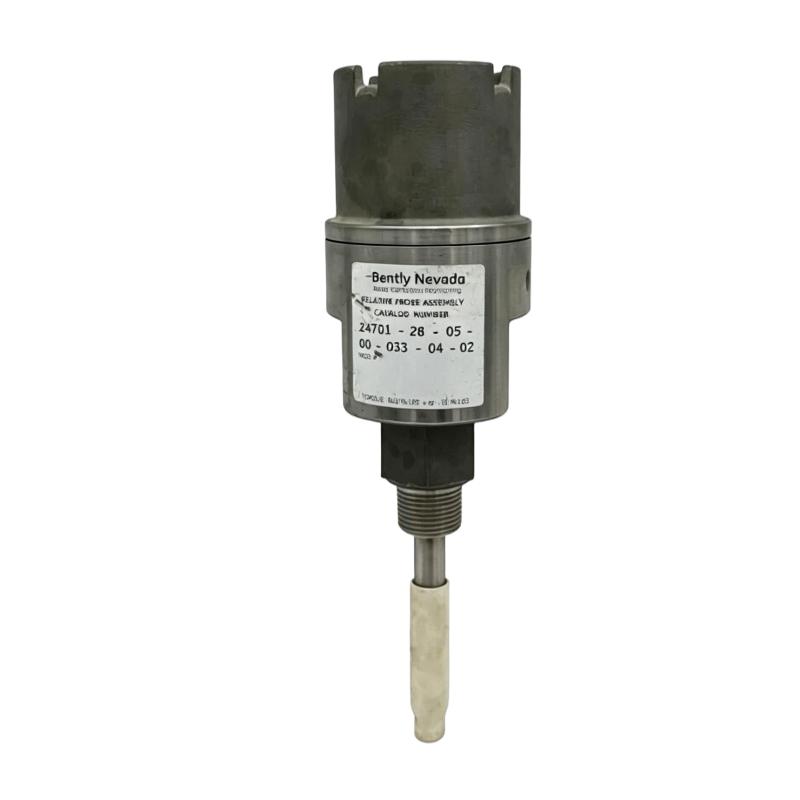

The Bently Nevada 24701-28-05-00-065-04-02 Proximity Probe Housing Assembly is a mechanical component used in conjunction with 3300 XL proximity measurement installations. Although the housing does not generate the electrical measurement itself, its role is important because the physical positioning of an eddy-current proximity probe directly influences the quality and stability of the resulting measurement.
Bently Nevada 3300 XL proximity probe systems are commonly used to monitor rotating machinery by measuring the distance between a probe tip and a conductive machine target, typically a rotating shaft. Depending on the application, these measurements can be used to evaluate radial vibration, shaft displacement, axial position, or other dynamic mechanical conditions.
For this type of instrumentation, the probe must be installed at a carefully controlled position. If the probe moves because of mechanical looseness, vibration, an unsuitable mounting arrangement, or damage to the housing, the measurement can become unreliable. A dedicated housing assembly therefore provides an important mechanical interface between the probe and the machine installation.
The 24701-28-05-00-065-04-02 can be particularly relevant when maintaining existing machinery monitoring installations. Industrial plants often operate rotating equipment continuously for long periods, and the associated monitoring hardware must remain mechanically secure despite vibration, temperature changes, maintenance activity, and other environmental influences.
During a maintenance inspection, engineers should examine the housing as well as the probe itself. Signs of mechanical damage, looseness, corrosion, incorrect positioning, or physical interference should be investigated before the monitoring system is returned to service.
The housing is also relevant to retrofit projects involving existing 3300 XL monitoring systems. Rather than replacing the entire monitoring chain, maintenance teams may be able to restore the original installation by replacing the appropriate mechanical component and verifying the probe setup.
When installing or replacing this assembly, the complete part number should be checked carefully. The long Bently Nevada part number identifies a specific configuration, and visually similar proximity probe accessories may not provide identical mechanical characteristics.
A correctly installed housing, together with the appropriate 3300 XL proximity probe, extension cable, and Proximitor Sensor, forms part of a measurement chain capable of providing valuable information about the operating condition of critical rotating machinery.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 24701-28-05-00-065-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Product Family | 3300 XL |
| Application | Proximity probe mechanical installation |
| Housing Body Diameter | 78.2 mm |
| Weight | 1.8 kg (3.97 lb) |
| Typical Equipment | Turbines, compressors, generators, motors, pumps and rotating machinery |
Installation note: Confirm the complete housing configuration, compatible proximity probe, mounting dimensions, and required probe clearance before installation.
