Brand:Woodward Item No.:8237-1246 Product Origin:USA Product Dimensions:482.6 x 66.8 x 330.2 mm Product Weight:12 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

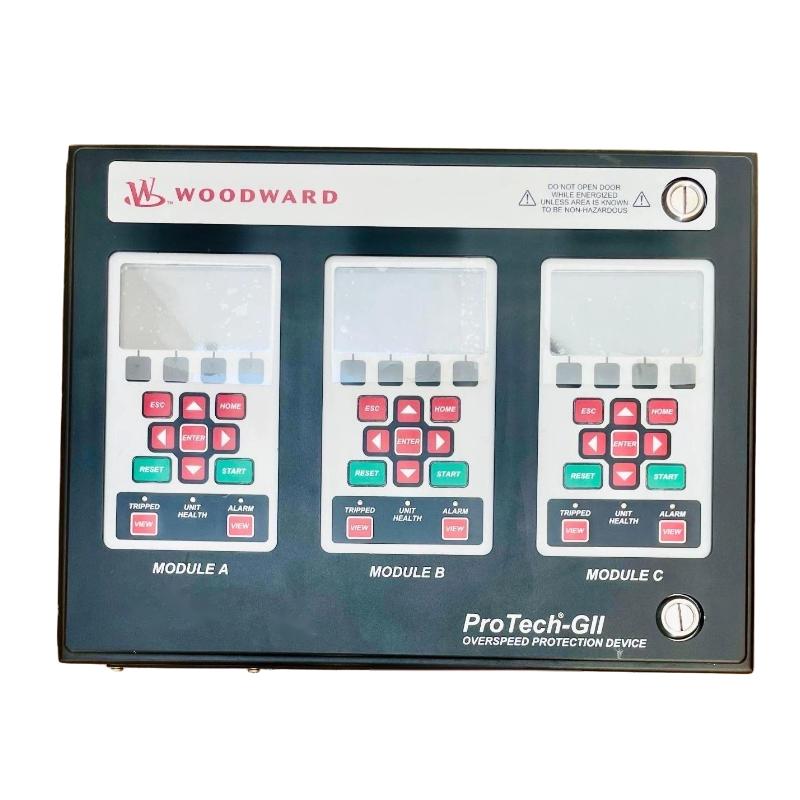

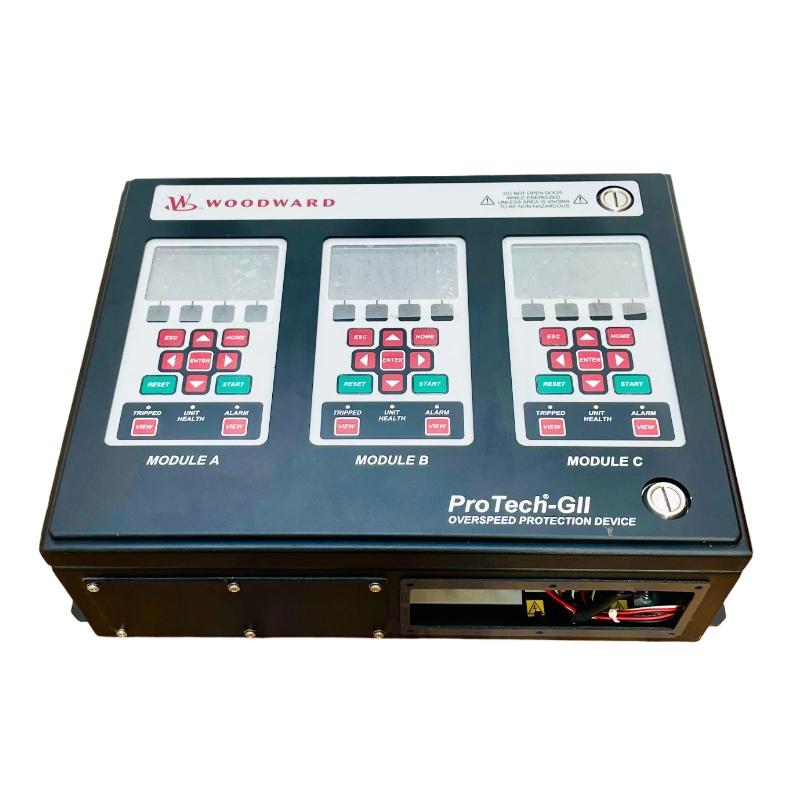

The Woodward 8237-1246 Overspeed Protection Device is a specialized component intended for the protection of high-speed rotating machinery. In turbine applications, controlling normal operating speed is only one part of the overall control strategy. A separate protective function is often required to respond when shaft speed rises beyond the safe operating range.
Turbines store substantial amounts of rotational energy, and an uncontrolled increase in speed can produce rapidly increasing mechanical stress. For this reason, overspeed protection has historically been one of the most important protective functions in turbine control systems.
The role of an overspeed protection device is fundamentally different from that of ordinary process monitoring equipment. A standard monitoring system may provide operators with information about speed, vibration, temperature, or other operating parameters. An overspeed protection system, by contrast, is associated with the protective response required when an excessive-speed condition occurs.
The 8237-1246 is therefore relevant to turbine control and protection installations where a dedicated overspeed function is required. Depending on the specific system architecture, the device can work alongside turbine governors, speed sensors, emergency shutdown equipment, and other protective components.
For maintenance engineers, correct system identification is particularly important. Woodward equipment has been used across many generations of turbine control systems, and older installations can contain several interconnected control and protection devices. A replacement should not be selected solely by physical appearance. The complete part number, speed sensing method, electrical interfaces, trip configuration, and turbine-specific requirements should all be checked.
The unit can also be relevant when maintaining legacy turbine installations. Industrial turbines frequently remain operational for many years, and maintaining the original protection architecture can be preferable when the surrounding control system is still serviceable. An appropriate replacement can help reduce unnecessary modifications to existing wiring and control logic.
Periodic inspection of overspeed protection equipment is equally important. Because the device participates in a critical protective function, maintenance procedures should verify not only the device itself but also the complete signal and shutdown path. Speed sensing, electrical connections, trip outputs, and the final shutdown mechanism should be evaluated according to the applicable turbine maintenance procedure.
The 8237-1246 should therefore be regarded as part of a complete turbine protection strategy rather than as an isolated component. Proper engineering, installation, commissioning, and testing are essential when working with equipment responsible for protecting high-energy rotating machinery.
Technical Specifications
Specification
Details
Manufacturer
Woodward
Model
8237-1246
Product Type
Overspeed Protection Device
Primary Application
Turbine overspeed protection
Equipment Type
Rotating machinery protection
Typical Applications
Steam turbines, gas turbines, turbine-driven equipment
Dimensions
482.6 x 66.8 x 330.2 mm
Weight
12 kg (26.46 lb)
Important: Overspeed protection is a safety-critical function. Before installation or replacement, verify the exact device configuration, turbine control architecture, speed-sensing arrangement, and shutdown requirements.
Recommended Related Models
For customers maintaining Woodward turbine control and protection systems, the following products and product families may also be relevant:
Woodward 8237-1246 — Overspeed Protection Device
Woodward 505 — Digital Governor and Turbine Control
Woodward 505XT — Digital Turbine Control
Woodward 2301A — Speed Control
Woodward 2301E — Electronic Speed Control
Woodward 9905 Series — Turbine Control Equipment
Woodward ProTech 203 — Overspeed Protection System
Woodward ProTech-GII — Overspeed Protection System
The appropriate product depends on the turbine type, speed-sensing arrangement, control architecture, and required protection level.
Popular Related Models
For turbine control, speed control, and overspeed protection applications, customers may also consider:
8237-1246 — Overspeed Protection Device
ProTech 203 — Overspeed Protection System
ProTech-GII — Overspeed Protection System
505 — Digital Governor and Turbine Control
505XT — Digital Turbine Control
2301A — Electronic Speed Control
2301E — Electronic Speed Control
9905 Series — Turbine Control System
Applications
The Woodward 8237-1246 Overspeed Protection Device is designed for turbine and other high-speed rotating equipment applications where independent overspeed detection and protection are essential to safe machine operation.
Overspeed is a critical abnormal condition in rotating machinery. If shaft speed rises beyond the permitted operating range, the mechanical and thermal stresses on the turbine can increase rapidly. An appropriately configured overspeed protection device provides a dedicated means of detecting excessive rotational speed and initiating the required shutdown or protective action.
The 8237-1246 is suitable for applications such as:
Steam turbine overspeed protection
Gas turbine control and protection systems
Industrial turbine safety systems
Generator drive turbine protection
Compressor drive protection
Mechanical drive turbine applications
Turbine retrofit and modernization projects
Emergency shutdown systems
Critical rotating equipment protection
Replacement of existing Woodward overspeed equipment
In a properly engineered turbine protection architecture, overspeed protection is normally treated as a dedicated safety function rather than relying exclusively on the normal speed-control loop.
Advantages
Dedicated overspeed protection function
The 8237-1246 is intended specifically for overspeed protection applications, providing a dedicated layer of protection against excessive turbine speed.
Suitable for critical rotating equipment
Overspeed protection is particularly important on turbines driving generators, compressors, pumps, and other high-energy rotating machinery.
Supports independent protection architecture
A dedicated overspeed protection device can complement the normal turbine control system and provide an additional protective layer when abnormal speed conditions occur.
Designed for industrial environments
The substantial enclosure dimensions and 12 kg (26.46 lb) weight are consistent with an industrial protection device intended for installation as part of a larger turbine control or protection system.
Useful for legacy system maintenance
For plants operating older Woodward turbine control systems, the 8237-1246 can be an important replacement component when maintaining the established protection architecture.
Suitable for retrofit projects
The device can be considered for turbine modernization and replacement projects where existing overspeed protection equipment requires service or replacement.
Safety-focused application
Unlike general-purpose monitoring equipment, an overspeed protection device serves a critical protective role, helping ensure that abnormal shaft-speed conditions are detected and handled according to the turbine protection design.
Technical FAQs
1. What is the Woodward 8237-1246 used for?
The 8237-1246 is an Overspeed Protection Device intended for turbine and high-speed rotating machinery protection applications.
2. Why is overspeed protection important on a turbine?
Excessive rotational speed can create severe mechanical stresses and potentially dangerous operating conditions. Overspeed protection provides a dedicated means of detecting and responding to an excessive-speed condition.
3. Is the 8237-1246 a normal turbine speed controller?
No. It is identified as an overspeed protection device. Overspeed protection and normal speed control are separate functions and should be evaluated according to the complete turbine control architecture.
4. What types of equipment can require overspeed protection?
Steam turbines, gas turbines, turbine-driven generators, compressors, pumps, and other high-speed rotating equipment may require dedicated overspeed protection.
5. Can an overspeed protection device be used together with a turbine governor?
Yes. In a properly engineered system, an overspeed protection function can complement the normal governor or electronic turbine control system by providing an additional protective layer.
6. What should be checked before replacing a Woodward 8237-1246?
Verify the complete model number, turbine application, speed-sensing arrangement, electrical interfaces, trip logic, associated control equipment, and existing system documentation before replacement.
7. Can the 8237-1246 be used in a turbine retrofit?
It may be considered for compatible retrofit applications, but the complete protection architecture must be reviewed to ensure that the replacement device meets the turbine's required protection and interface requirements.
8. Does the device itself measure vibration?
No. Its primary function is associated with overspeed protection, not direct vibration measurement. Vibration monitoring is normally handled by separate sensors and monitoring equipment.
9. Why should overspeed protection be tested periodically?
Because it is a critical protective function, periodic inspection and testing can help verify that the speed-sensing, trip logic, output circuitry, and associated shutdown chain remain functional.
10. What are the dimensions and weight of the 8237-1246?
The device measures 482.6 x 66.8 x 330.2 mm and weighs 12 kg (26.46 lb).
