Introduction

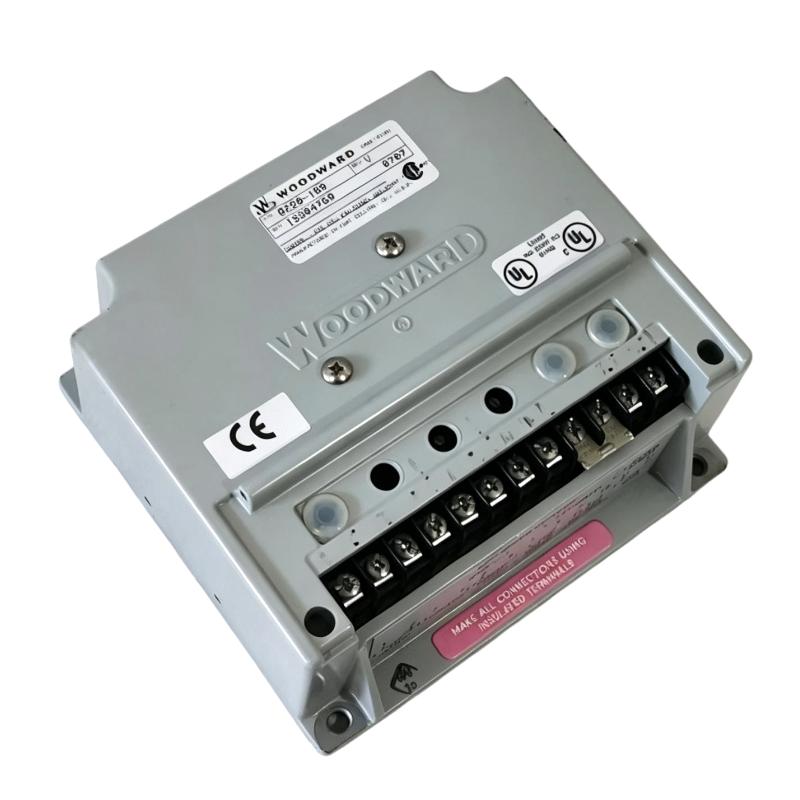

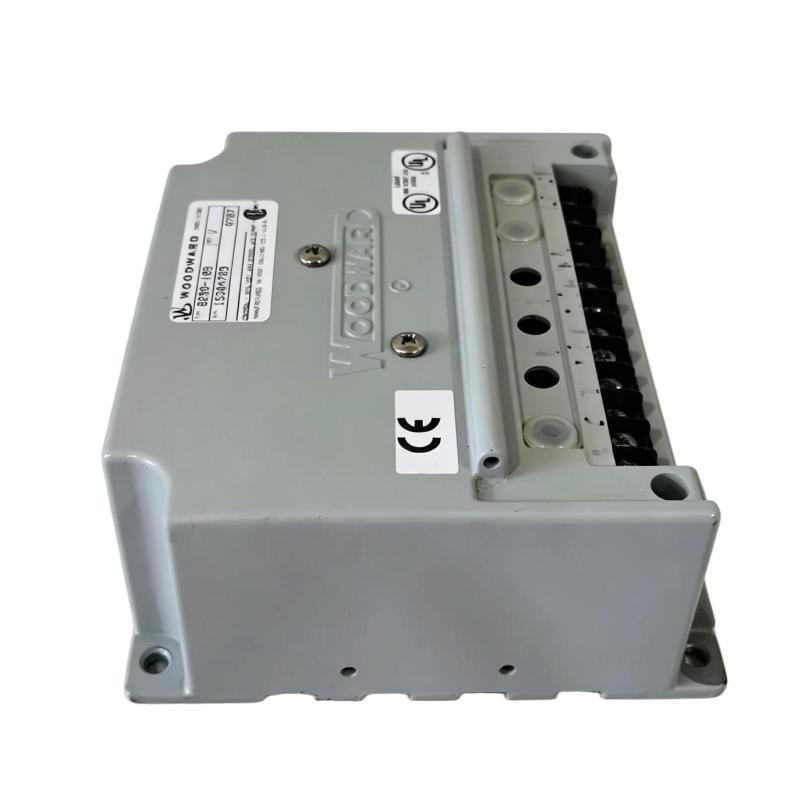

The Woodward 8290-189 Speed Controller is a specialized control component for prime-mover speed regulation. In industrial power and mechanical-drive applications, maintaining a stable rotational speed is fundamental to the performance of the equipment connected to the prime mover.
An engine or turbine does not operate under a constant load in every application. Generator loads can change as electrical demand changes, while pumps and compressors can experience variations in process requirements. When the load changes, the prime mover naturally tends to accelerate or decelerate. The purpose of a speed-control system is to detect these changes and adjust the prime mover so that the desired operating speed can be maintained.
A typical speed-control loop includes a speed-sensing element, controller, actuator, and fuel or steam control mechanism. The controller evaluates the speed signal and determines the appropriate control action. The actuator then changes the energy input to the prime mover, allowing the machine to respond to the changing operating condition.
The 8290-189 is therefore an important component to consider in applications where reliable speed regulation is required. It can be relevant to industrial engines, turbine-driven equipment, generator sets, and mechanical-drive systems.
For generator applications, speed regulation has particular importance. A generator's electrical operating characteristics depend on the speed of its prime mover, so an appropriately designed control system helps maintain the operating conditions required by the overall generating system.
The controller can also be important during load transitions. A well-configured speed-control system should respond to changes in load without allowing excessive speed fluctuations. The actual performance, however, depends on the complete control-loop configuration, including the speed sensor, actuator, fuel system, machine characteristics, and controller settings.
For maintenance engineers working with older Woodward equipment, the 8290-189 can also be relevant as a replacement component. Industrial prime movers often remain in service for many years, and replacing a failed controller with a compatible unit can be preferable to redesigning an otherwise functional control system.
Before replacement, the complete part number and existing system configuration should be checked carefully. Speed controllers that appear similar externally may have different electrical interfaces, control characteristics, or application requirements. The associated actuator and speed-sensing equipment should also be considered when determining compatibility.
It is important to distinguish speed regulation from overspeed protection. A speed controller manages normal operating speed, while a dedicated overspeed protection system provides a separate safety function for abnormal excessive-speed conditions. Critical turbine and engine installations should therefore be evaluated as complete control and protection systems.
With the correct system configuration and commissioning procedure, the Woodward 8290-189 Speed Controller can serve as a practical component in industrial prime-mover speed regulation and long-term equipment maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Woodward |
| Model | 8290-189 |
| Product Type | Speed Controller |
| Primary Function | Prime-mover speed regulation |
| Typical Applications | Engines, turbines, generator sets and mechanical drives |
| Control Application | Industrial speed control |
| Dimensions | 145 × 55 × 120 mm |
| Weight | 0.86 kg (1.90 lb) |
Installation note: Confirm the controller's exact electrical interfaces, speed-sensing arrangement, actuator compatibility, and application requirements before commissioning.
Recommended Related Models
For customers maintaining Woodward engine and turbine control systems, the following products may also be relevant:
- Woodward 8290-189 — Speed Controller
- Woodward 2301A — Electronic Speed Control
- Woodward 2301E — Electronic Speed Control
- Woodward 505 — Digital Governor and Turbine Control
- Woodward 505XT — Digital Turbine Control
- Woodward 723PLUS — Digital Control System
- Woodward ProTech 203 — Overspeed Protection System
- Woodward ProTech-GII — Overspeed Protection System
These products cover different control and protection functions and should be selected according to the specific prime mover and control architecture.
