Brand:Woodward Item No.:8440-2189 Product Origin:USA Product Dimensions:155 × 55 × 130 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

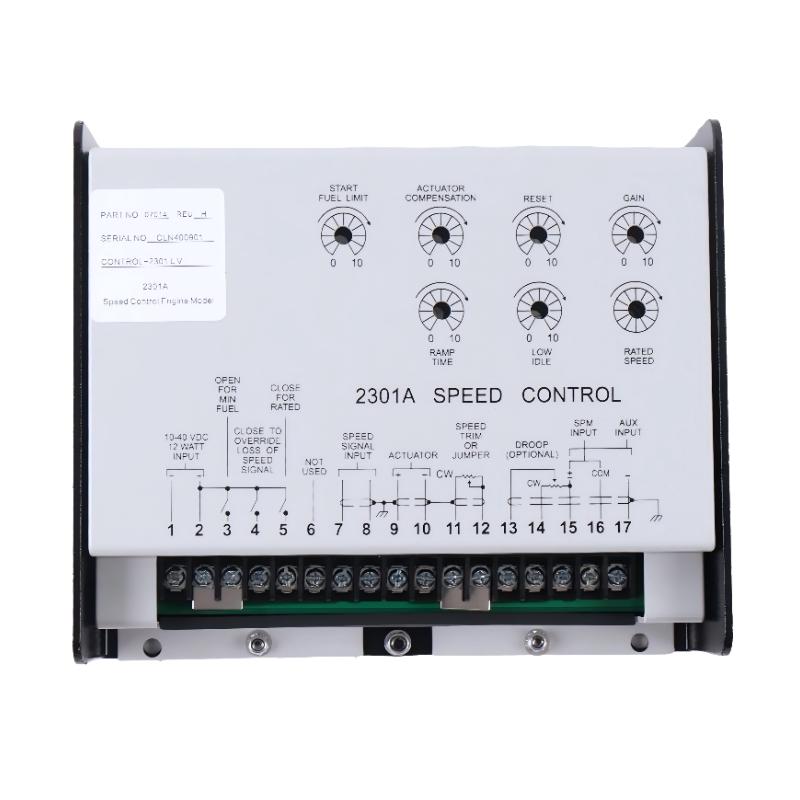

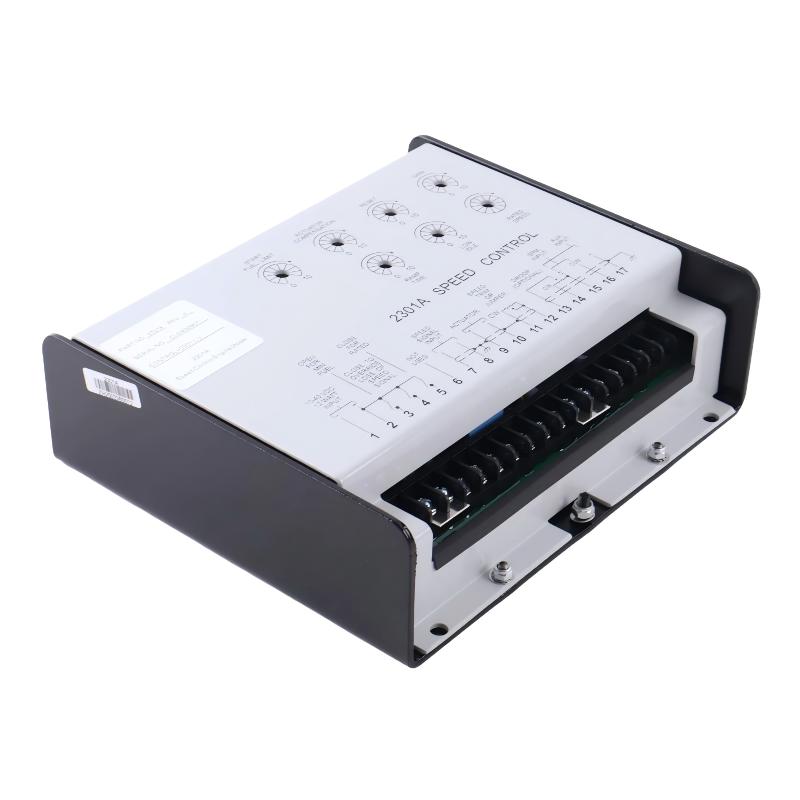

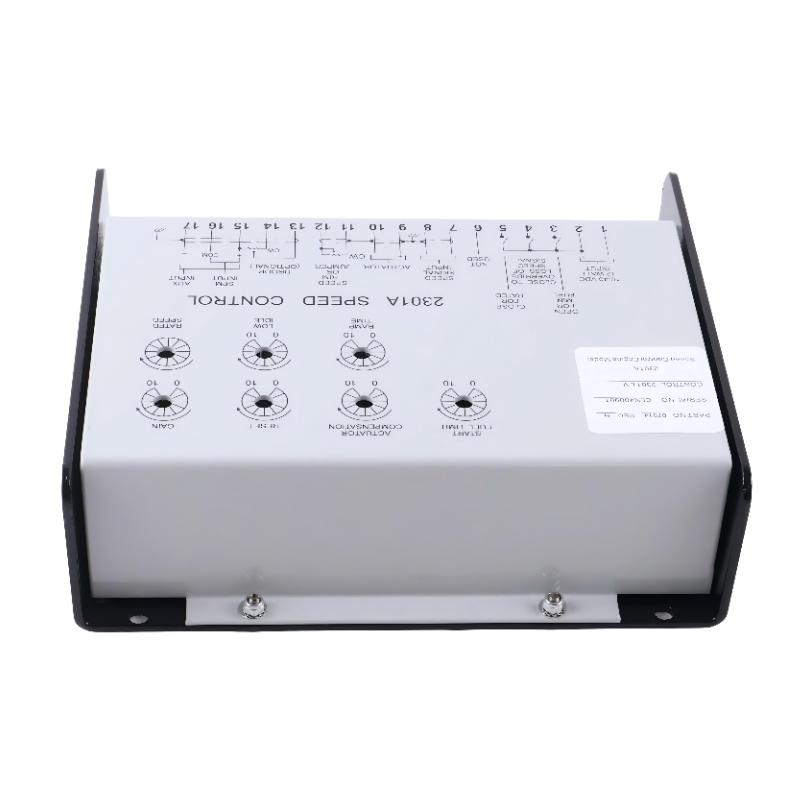

The Woodward 8440-2189 DC Speed Controller is a specialized component for prime-mover speed regulation. Stable rotational speed is essential in many industrial applications because changes in machine speed can directly affect the performance of generators, pumps, compressors, and other driven equipment.
An engine or other prime mover naturally responds to changes in load. When additional load is applied, the machine tends to slow down; when load is removed, it tends to accelerate. A speed-control system continuously monitors this behavior and adjusts the energy supplied to the prime mover to bring the operating speed back toward the desired value.
The speed controller is an important part of this closed-loop process. It receives information from the speed-sensing system and determines the control action required by the actuator. The actuator then changes the fuel, throttle, or other energy-control mechanism, allowing the prime mover to respond to the changing operating condition.
The 8440-2189 is therefore relevant to industrial applications where dependable speed control is required. Generator sets are one important example. A generator's operating performance depends heavily on the rotational behavior of its prime mover, making effective speed regulation an essential part of the overall control system.
The controller can also be relevant to mechanical-drive equipment. Pumps, compressors, fans, and other machinery may require a stable operating speed to maintain the desired process conditions. In such applications, the speed controller becomes part of the interface between the process requirement and the mechanical output of the prime mover.
For maintenance teams, the 8440-2189 can be especially useful when servicing an established Woodward control system. Many industrial engines and generator sets remain in operation for extended periods, and replacing a failed control component with a compatible unit can be more practical than replacing the entire control architecture.
However, correct identification is important. A speed controller should not be selected solely by physical dimensions or general function. The complete model number, DC supply requirements, speed-input arrangement, actuator characteristics, wiring, and controller settings should be compared with the existing installation.
Troubleshooting should likewise be approached at the system level. If an engine exhibits hunting, unstable speed, slow response, or failure to reach the commanded speed, the controller is only one possible cause. The speed pickup, actuator, fuel system, mechanical load, electrical connections, and configuration should also be inspected.
It is also important to distinguish speed control from overspeed protection. A speed controller manages the machine during normal operation, whereas an independent overspeed protection system is intended to respond to dangerous excessive-speed conditions. Critical prime movers should therefore use the appropriate control and protection functions as defined by the system design.
With correct application and commissioning, the Woodward 8440-2189 DC Speed Controller can provide a practical control component for industrial prime-mover speed regulation and long-term maintenance of compatible Woodward systems.
Technical Specifications
Specification
Details
Manufacturer
Woodward
Model
8440-2189
Product Type
DC Speed Controller
Primary Function
Prime-mover speed regulation
Control Type
DC speed control
Typical Applications
Engines, generator sets and mechanical drives
Dimensions
155 × 55 × 130 mm
Weight
0.8 kg (1.76 lb)
Installation note: Verify the complete electrical and mechanical control-loop configuration before replacing or commissioning the controller.
Recommended Related Models
For customers maintaining Woodward engine, generator, and speed-control systems, the following models may also be relevant:
Woodward 8440-2189 — DC Speed Controller
Woodward 8440-1925 — Generator Set Controller
Woodward 8290-189 — Speed Controller
Woodward 2301A — Electronic Speed Control
Woodward 2301E — Electronic Speed Control
Woodward 723PLUS — Digital Control System
Woodward 505 — Digital Governor and Turbine Control
Woodward 505XT — Digital Turbine Control
Popular Related Models
For industrial engine control, generator-set applications, and prime-mover speed regulation, customers may also consider:
8440-2189 — DC Speed Controller
8440-1925 — Generator Set Controller
8290-189 — Speed Controller
2301A — Electronic Speed Control
2301E — Electronic Speed Control
723PLUS — Digital Control System
505 — Digital Governor and Turbine Control
505XT — Digital Turbine Control
Applications
The Woodward 8440-2189 DC Speed Controller is designed for industrial speed-control applications where accurate and stable regulation of a prime mover is required. A DC speed controller forms part of the control loop between the machine's speed-sensing system and its actuator, helping maintain the desired operating speed as load conditions change.
The 8440-2189 can be considered for engine-driven and other rotating-equipment applications where dependable speed regulation is important. It is particularly relevant to industrial plants maintaining Woodward control systems and to retrofit projects where an existing DC speed-control component needs replacement.
Typical applications include:
Industrial engine speed control
Generator-set prime-mover control
Diesel engine applications
Mechanical drive systems
Pump and compressor drives
Engine-generator installations
Industrial power-generation equipment
Prime-mover retrofit projects
Woodward control-system maintenance
Replacement of legacy DC speed-control equipment
In a properly engineered control system, the speed controller works together with a speed pickup, actuator, fuel or throttle mechanism, and associated control and protection equipment.
Advantages
Dedicated DC speed regulation
The 8440-2189 is designed around speed-control applications where the prime mover must respond to changing load conditions while maintaining the required rotational speed.
Suitable for industrial prime movers
The controller can be incorporated into systems driving generators, pumps, compressors, and other mechanical loads.
Supports stable operation
Reliable speed regulation helps reduce unwanted speed variation and provides a more consistent operating condition for connected equipment.
Compact industrial design
The specified dimensions of 155 × 55 × 130 mm make the controller suitable for appropriate control-panel and equipment installations where available space is limited.
Useful for replacement projects
For plants maintaining existing Woodward equipment, the 8440-2189 can provide a practical replacement option when the original control architecture needs to be preserved.
Suitable for retrofit applications
Replacing a compatible controller rather than redesigning the complete speed-control system can simplify maintenance work and reduce unnecessary modifications to existing equipment.
Part of a complete control loop
The controller can operate as one element of a broader speed-regulation system, working with sensing and actuator equipment to control prime-mover speed.
Technical FAQs
1. What is the Woodward 8440-2189 used for?
The 8440-2189 is identified as a DC Speed Controller for industrial prime-mover speed-regulation applications.
2. What does a DC speed controller do?
A speed controller processes the machine-speed information and generates the appropriate control action to help maintain the desired operating speed.
3. What equipment can use a DC speed controller?
Typical applications include engines, generator sets, mechanical drives, pumps, compressors, and other rotating prime movers requiring controlled speed.
4. Is the 8440-2189 an overspeed protection device?
No. It is a speed controller. Normal speed regulation and independent overspeed protection are separate functions and should not be treated as interchangeable.
5. Can the controller be used with a generator set?
It may be used as part of a compatible generator-set control architecture where prime-mover speed must be regulated. The complete engine, actuator, sensing, and generator-control configuration should be verified.
6. What components normally work with a speed controller?
A complete speed-control loop may include a speed pickup, controller, actuator, fuel or throttle mechanism, prime mover, and associated control or protection devices.
7. What should be checked before replacing an 8440-2189?
Check the complete part number, existing control system, speed-sensing method, actuator interface, wiring, supply requirements, operating range, and application-specific configuration.
8. Can an unstable engine speed always be attributed to the controller?
No. Speed instability can also result from the speed pickup, actuator, fuel system, mechanical load, wiring, or controller settings. Troubleshooting should evaluate the entire control loop.
9. Can the 8440-2189 be used in a retrofit project?
It may be appropriate for a compatible retrofit or replacement application. The existing control architecture should be reviewed before installation to ensure that all interfaces and operating requirements match.
10. What are the dimensions and weight of the 8440-2189?
The controller measures 155 × 55 × 130 mm and weighs 0.8 kg (1.76 lb).
