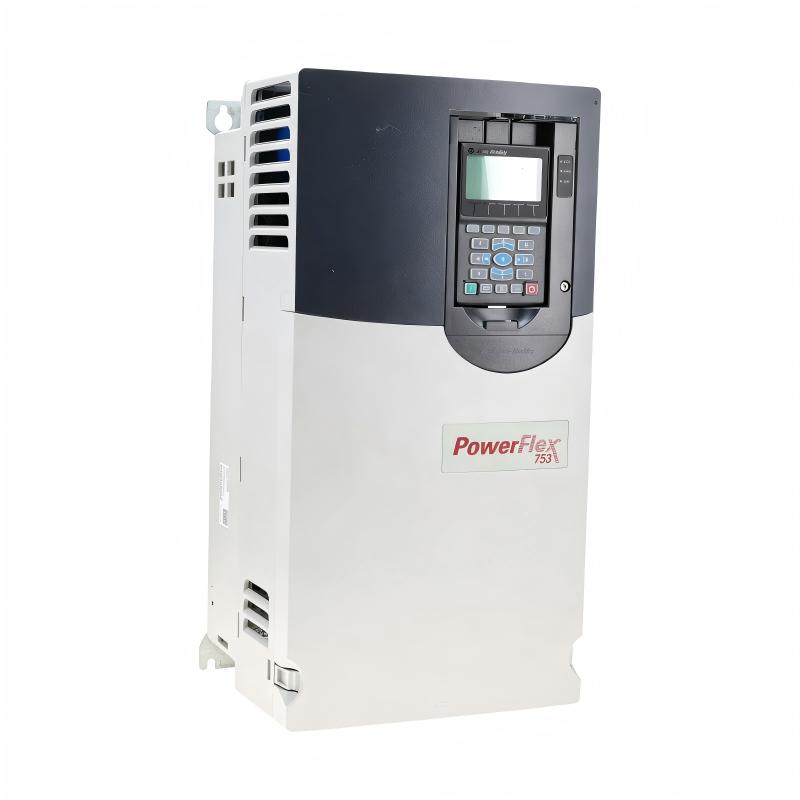

Allen Bradley 20F11GD077JA0NNNNN PowerFlex 753 AC Drive

Applications

The Allen Bradley 20F11GD077JA0NNNNN PowerFlex 753 AC Drive is designed for adjustable-speed motor control in industrial automation systems where reliable speed regulation, flexible configuration, and integration with plant control networks are important. As part of the PowerFlex 750-Series platform, it is suitable for both new machine designs and modernization projects.

Typical applications include:

• Industrial conveyor and material-handling systems
• Pumps and water-treatment equipment
• Fans and air-handling systems
• Compressors and process machinery
• Packaging and production machinery
• Extrusion and converting equipment
• Machine-tool applications
• General-purpose industrial motor control
• Process lines requiring variable-speed operation
• Replacement and retrofit of legacy Allen Bradley drives

The drive can be integrated into automation architectures using Allen Bradley controllers and compatible communication and I/O options, making it appropriate for applications where drive status, speed references, diagnostics, and operating parameters need to be managed from a centralized control system.

Advantages

• PowerFlex 753 platform: Provides a flexible AC drive solution for industrial motor-control applications.
• Industrial-duty construction: Designed for demanding automation and manufacturing environments.
• Flexible control architecture: Supports configuration for different motor-control and machine requirements.
• Automation integration: Well suited to Allen Bradley control architectures and PowerFlex 750-Series installations.
• Configurable I/O and communications: Optional hardware can be selected according to application requirements.
• Drive diagnostics: Operating and fault information can assist maintenance personnel with troubleshooting.
• Suitable for retrofit projects: The PowerFlex 753 family is commonly used when upgrading older adjustable-frequency drive installations.
• Scalable machine design: Can be incorporated into standalone machines as well as larger coordinated automation systems.
• Maintenance-friendly platform: Parameter-based configuration and diagnostic functions simplify commissioning and servicing.
• Space-efficient industrial design: The specified 647 × 220.1 × 348 mm enclosure dimensions provide a substantial drive package while maintaining a practical cabinet-mounted form.

Technical FAQs

1. What is the Allen Bradley 20F11GD077JA0NNNNN?
The Allen Bradley 20F11GD077JA0NNNNN is a PowerFlex 753 AC Drive intended for adjustable-speed control of industrial motors. It can be used in machinery and process applications where controlled motor speed, acceleration, deceleration, and operating feedback are required.

2. What type of motor-control application is the PowerFlex 753 suitable for?
It is suitable for a broad range of industrial variable-speed applications, including conveyors, pumps, fans, compressors, material-handling equipment, and production machinery. The appropriate control mode and configuration depend on the motor and machine requirements.

3. Can the 20F11GD077JA0NNNNN be integrated with Allen Bradley PLC systems?
Yes. The PowerFlex 753 family is designed for integration into Allen Bradley automation architectures. Depending on the installed communication options, the drive can exchange commands, references, status information, and diagnostic data with a plant control system.

4. What should be checked before installing this PowerFlex 753 drive?
Verify the drive catalog number, incoming power requirements, motor nameplate data, cabinet space, grounding arrangement, environmental conditions, required I/O, and communication architecture. Correct drive sizing is also important because motor current and application duty must match the selected drive.

5. How is the drive commissioned?
Commissioning normally involves installing and wiring the drive, checking incoming and motor connections, entering the motor nameplate information, configuring the required control method, setting acceleration and deceleration parameters, and performing controlled motor testing. Application-specific parameters should be reviewed before putting the machine into normal production.

6. What are common causes of PowerFlex 753 drive faults?
Typical causes include motor overload, excessive current, DC-bus abnormalities, input-power problems, motor or cable faults, incorrect parameter settings, overheating, and communication issues. The actual fault code should be checked before replacing hardware.

7. Can the PowerFlex 753 be used for retrofit applications?
Yes. The PowerFlex 753 platform can be considered for modernization projects where an older variable-frequency drive is being replaced. Retrofit planning should include electrical compatibility, cabinet dimensions, control-system integration, motor characteristics, braking requirements, and communication requirements.

8. Why is proper motor data important during configuration?
Accurate motor nameplate information allows the drive's control algorithms and protection functions to operate correctly. Incorrect motor data can contribute to poor speed regulation, excessive current, nuisance trips, or inadequate motor protection.

9. What maintenance should be performed on a PowerFlex 753 AC drive?
Maintenance should include inspection of cooling airflow, cabinet cleanliness, electrical connections, signs of overheating, fan condition, and fault history. Preventive maintenance intervals should be established according to the operating environment and manufacturer's applicable maintenance recommendations.

10. What are the dimensions and weight of the Allen Bradley 20F11GD077JA0NNNNN?
The specified dimensions are 647 × 220.1 × 348 mm, and the unit weighs 20 kg (44.09 lb). These dimensions should be considered when checking cabinet clearance, mounting arrangements, cable routing, and service access.
