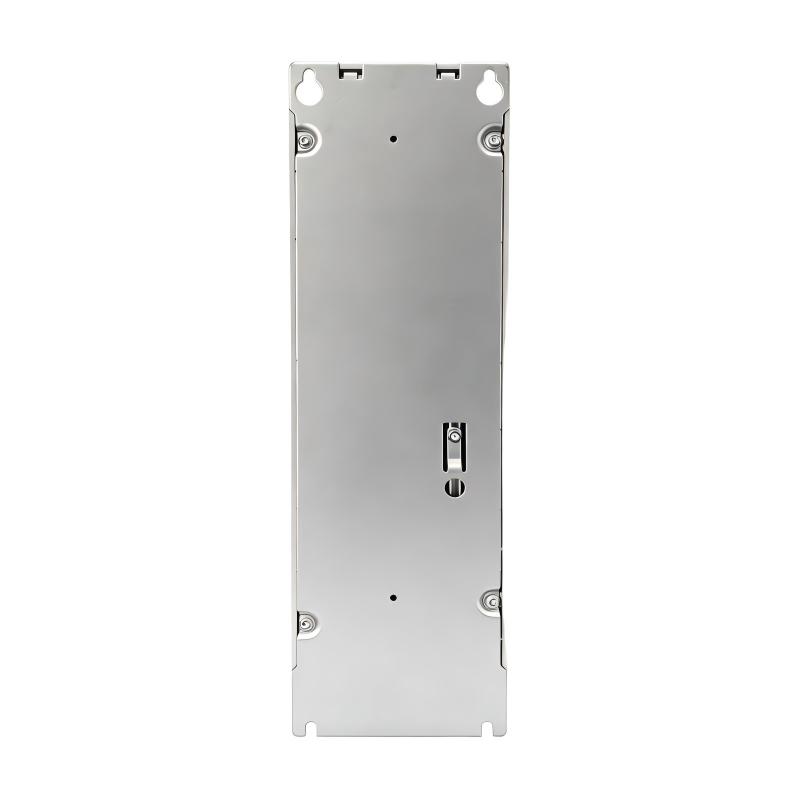

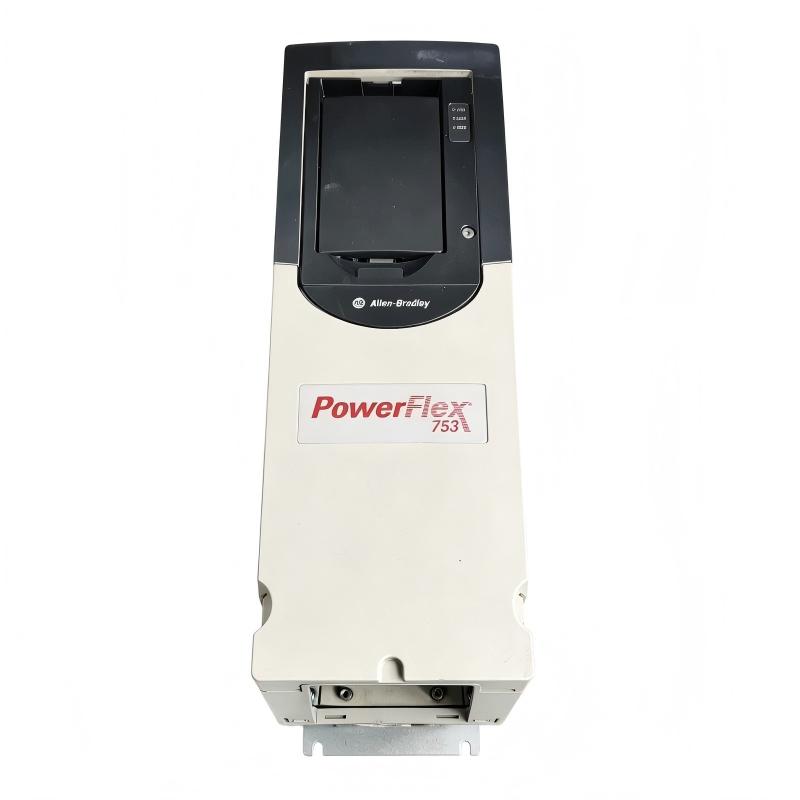

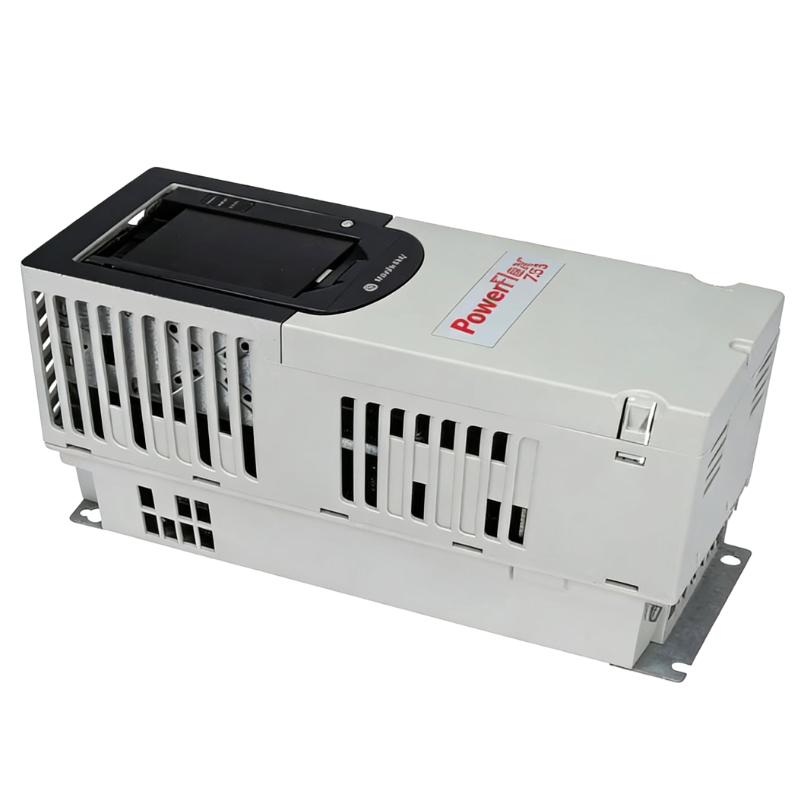

Allen Bradley 20F11GE011AA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F11GE011AA0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F11GE011AA0NNNNN Product Origin:USA Product Dimensions:551 x 220.1 x 268 mm Product Weight:12 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20F11GE011AA0NNNNN PowerFlex 753 AC Drive is an industrial variable-frequency drive designed to provide adjustable-speed control for three-phase AC motors. It belongs to the PowerFlex 753 family and is configured as an air-cooled, Type 12 / IP54 packaged drive for industrial applications.
With an 11 A output rating and 600 VAC three-phase voltage class, the drive is suitable for appropriately sized motors used in industrial machinery and process equipment. Depending on the application, variable-frequency control can provide more precise control of motor speed than fixed-speed operation while also allowing controlled acceleration and deceleration.
The PowerFlex 753 platform is commonly associated with applications such as conveyors, pumps, fans, compressors, material-handling equipment, and production machinery. These applications can benefit from adjustable motor speed because the required operating point may change according to production conditions, material flow, process demand, or machine sequencing.
The 20F11GE011AA0NNNNN configuration includes embedded I/O, EMC filtering, and a dynamic braking transistor, providing useful functions for industrial machine integration. The Type 12 / IP54 packaged construction is also appropriate for installations where the drive needs greater enclosure protection than an open-frame configuration.
For maintenance and replacement projects, engineers should identify the complete catalog number rather than selecting a drive based only on the PowerFlex 753 series. Different PowerFlex 753 configurations can have different voltage classes, current ratings, frame sizes, enclosure arrangements, I/O configurations, and options.
It is also important to distinguish between the original 20F11GE011AA0NNNNN configuration and later replacement versions. When replacing an installed drive, the electrical characteristics, application duty, cabinet arrangement, control system, communication requirements, and optional hardware should all be checked before commissioning.
The following Allen Bradley PowerFlex models may be considered for related applications, replacement planning, or system expansion:
20F11GE1P7AA0NNNNN – PowerFlex 753 AC Drive
20F11GE2P7AA0NNNNN – PowerFlex 753 AC Drive
20F11GE3P9AA0NNNNN – PowerFlex 753 AC Drive
20F11GE6P1AA0NNNNN – PowerFlex 753 AC Drive
20F11GE9P0AA0NNNNN – PowerFlex 753 AC Drive
20F11GE017AA0NNNNN – PowerFlex 753 AC Drive
20F11GE022AA0NNNNN – PowerFlex 753 AC Drive
20F11GE027AA0NNNNN – PowerFlex 753 AC Drive
20F11GE032AA0NNNNN – PowerFlex 753 AC Drive
20F11GE041AA0NNNNN – PowerFlex 753 AC Drive
When selecting a related or replacement drive, always compare voltage, output current, motor horsepower, duty rating, frame size, enclosure, braking configuration, and installed options.
Popular Related Models
Allen Bradley 20F11GE011AA0NNNNN – PowerFlex 753 AC Packaged Drive
Allen Bradley 20F11GE1P7AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE2P7AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE3P9AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE6P1AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE9P0AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE017AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE022AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE027AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE032AA0NNNNN – PowerFlex 753 AC Drive
Applications
The Allen Bradley 20F11GE011AA0NNNNN PowerFlex 753 AC Drive is an industrial AC drive designed for variable-speed control of three-phase motors in demanding automation and manufacturing environments. As a PowerFlex 753 AC Packaged Drive, it provides a practical solution for applications where controlled motor speed, acceleration, deceleration, and reliable integration with an industrial control system are required.
With an 11 A output rating and 600 VAC three-phase voltage class, this drive is well suited to appropriately sized industrial motor applications. Its Frame 3 construction and Type 12 / IP54 enclosure configuration make it suitable for equipment installations where additional protection from industrial dust and contaminants is required.
Typical applications include:
Industrial conveyor systems
Material-handling equipment
Pumps and pumping systems
Industrial fans and blowers
Compressors
Production and processing machinery
Packaging equipment
Machine tools
Process-control equipment
Industrial ventilation systems
Motor-driven mechanical equipment
Legacy PowerFlex drive replacement projects
The drive can also be used in automation systems where motor operating parameters, drive status, faults, and control commands need to be coordinated with a PLC or other industrial controller.
Advantages
PowerFlex 753 platform: Provides a flexible AC drive solution for industrial motor-control applications.
600 VAC three-phase rating: Designed for higher-voltage industrial motor systems.
11 A output capability: Suitable for motors within the corresponding drive rating.
Air-cooled construction: Provides practical thermal management for industrial installations.
Type 12 / IP54 enclosure: Helps protect the drive against dust and other environmental contaminants.
Embedded I/O: Supports integration with machine-control architectures without requiring every control function to be implemented externally.
EMC filtering: Helps address electromagnetic compatibility requirements when the drive is correctly installed and grounded.
Dynamic braking transistor: Provides a braking interface for applications requiring controlled motor deceleration when an appropriate braking resistor system is used.
PowerFlex 750-Series compatibility: Makes the drive suitable for industrial installations based on the PowerFlex 750-Series architecture.
Convenient for retrofit applications: The drive can be considered for maintenance and replacement projects involving existing PowerFlex installations.
Industrial application flexibility: Can be applied to pumps, fans, conveyors, compressors, and various machine-building applications.
Technical FAQs
1. What is the Allen Bradley 20F11GE011AA0NNNNN?
The Allen Bradley 20F11GE011AA0NNNNN is a PowerFlex 753 AC Packaged Drive designed for variable-speed control of three-phase industrial AC motors. It features an air-cooled design, 600 VAC three-phase voltage class, 11 A output rating, Frame 3 construction, EMC filtering, and a dynamic braking transistor.
2. What is the voltage rating of the 20F11GE011AA0NNNNN?
The 20F11GE011AA0NNNNN is a 600 VAC, three-phase PowerFlex 753 drive. The actual incoming power configuration must be verified against the equipment nameplate and electrical system before installation.
3. What is the output current rating?
The drive has an 11 A output current rating. Its published motor-duty ratings correspond to approximately 10 HP for normal-duty applications and 7.5 HP for heavy-duty applications at the applicable voltage.
4. What type of enclosure does this PowerFlex 753 use?
The 20F11GE011AA0NNNNN uses a Type 12 / IP54 enclosure configuration. This provides additional protection for industrial installations, although the complete installation still needs appropriate environmental protection, ventilation, grounding, and cabinet design.
5. Does the 20F11GE011AA0NNNNN support dynamic braking?
Yes. This configuration includes a dynamic braking transistor. When dynamic braking is required, the braking resistor and associated wiring must be correctly selected and installed according to the application's regenerative energy requirements.
6. Does this drive have an EMC filter?
Yes. The specified 20F11GE011AA0NNNNN configuration includes an EMC filter. Proper grounding, cable routing, motor-cable selection, and installation practices remain important for achieving the desired electromagnetic compatibility performance.
7. What should be checked before installing this PowerFlex 753 drive?
Before installation, verify the incoming voltage, motor rated current, motor power, duty cycle, enclosure requirements, grounding arrangement, braking requirements, control architecture, I/O requirements, cabinet dimensions, and cooling conditions. The complete catalog number should be checked against the original drive configuration.
8. Is the 20F11GE011AA0NNNNN suitable for replacement applications?
Yes. It can be useful for maintenance, spare-parts, and legacy-system applications. However, replacement should not be based solely on horsepower. Electrical ratings, drive options, enclosure type, control requirements, braking configuration, and physical installation requirements should all be compared.
9. What maintenance does the PowerFlex 753 require?
Recommended maintenance includes checking cooling airflow, inspecting the enclosure and ventilation paths, cleaning accumulated dust, checking electrical connections, inspecting fans and other cooling components, reviewing drive fault history, and checking motor and power cables. Always follow appropriate electrical isolation and safety procedures before servicing the drive.
10. What are the dimensions and weight of the Allen Bradley 20F11GE011AA0NNNNN?
The specified dimensions are 551 × 220.1 × 268 mm, and the supplied weight is 12 kg (26.46 lb). These measurements should be considered when planning cabinet installation, mounting clearance, cable routing, ventilation, and maintenance access.
