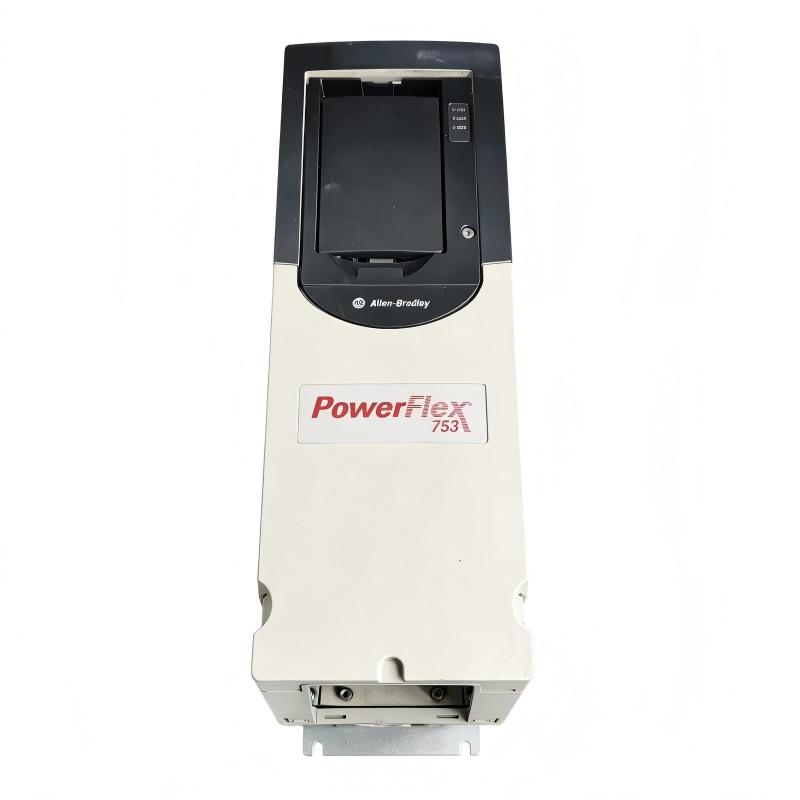

Allen Bradley 20F11GE022AA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F11GE022AA0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F11GE022AA0NNNNN Product Origin:USA Product Dimensions:551 x 220.1 x 268 mm Product Weight:12 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20F11GE022AA0NNNNN PowerFlex 753 AC Drive is an industrial AC drive developed for variable-speed control of three-phase motors. It is part of the PowerFlex 753 family and uses a 600 VAC three-phase power configuration with a 22 A continuous output rating.
The model provides different application ratings depending on the required duty level. It is rated at 20 HP for normal-duty applications and 15 HP for heavy-duty applications. This distinction is important when selecting a drive because the actual motor load profile can have a significant effect on the required drive rating.
Variable-speed drives are commonly used when a machine needs more than simple start/stop motor operation. A conveyor may need controlled acceleration to reduce mechanical shock, while a pump may need to adjust its speed according to process demand. Fans, compressors, and production machinery can similarly benefit from controlled motor operation.
The 20F11GE022AA0NNNNN combines the PowerFlex 753 control platform with an air-cooled design, Type 12 / IP54 enclosure, EMC filtering, and dynamic braking capability. These features make it suitable for a variety of industrial motor-control applications.
The drive's Frame 3 construction provides a standardized physical configuration for industrial equipment and cabinet installations. However, physical compatibility should always be evaluated together with electrical and functional requirements. A drive with similar dimensions is not necessarily a suitable replacement if its voltage, current, duty rating, braking configuration, or control options differ.
For existing PowerFlex 753 installations, the 20F11GE022AA0NNNNN may be particularly relevant to maintenance and spare-parts requirements. When replacing the drive, users should verify the complete catalog number and confirm compatibility with the motor, power system, PLC architecture, cabinet, and application.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Manufacturer
Rockwell Automation
Model
20F11GE022AA0NNNNN
Product Family
PowerFlex 753
Product Type
AC Drive / AC Packaged Drive
Drive Type
Variable Frequency AC Drive
Voltage Class
600 VAC
Input
Three-Phase AC
Continuous Output Current
22 A
1-Minute Current
24 A
3-Second Current
33 A
Normal-Duty Rating
20 HP
Heavy-Duty Rating
15 HP
Cooling
Air Cooled
Frame Size
Frame 3
Enclosure
Type 12 / IP54
EMC Filter
Included
Dynamic Braking
DB Transistor
Typical Applications
Conveyors, pumps, fans, compressors, process machinery
Dimensions
551 × 220.1 × 268 mm
Weight
12 kg (26.46 lb)
Lifecycle
Discontinued
Direct Replacement
20F11GE022JA0NNNNN
Recommended Related Models
The following PowerFlex 753 models are closely related to the 20F11GE022AA0NNNNN and may be useful for different motor ratings, replacement projects, or system expansion:
20F11GE011AA0NNNNN – PowerFlex 753 AC Drive
20F11GE017AA0NNNNN – PowerFlex 753 AC Drive
20F11GE027AA0NNNNN – PowerFlex 753 AC Drive
20F11GE032AA0NNNNN – PowerFlex 753 AC Drive
20F11GE041AA0NNNNN – PowerFlex 753 AC Drive
20F11GE052AA0NNNNN – PowerFlex 753 AC Drive
20F11GE9P0AA0NNNNN – PowerFlex 753 AC Drive
20F11GE6P1AA0NNNNN – PowerFlex 753 AC Drive
20F11GE3P9AA0NNNNN – PowerFlex 753 AC Drive
20F11GE2P7AA0NNNNN – PowerFlex 753 AC Drive
When choosing a related drive, compare the actual motor current and application duty with the drive rating rather than selecting solely according to horsepower.
Popular Related Models
Allen Bradley 20F11GE022AA0NNNNN – PowerFlex 753 AC Packaged Drive
Allen Bradley 20F11GE011AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE017AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE027AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE032AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE041AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE052AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE9P0AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE6P1AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20F11GE022JA0NNNNN – PowerFlex 753 AC Drive Replacement
Applications
The Allen Bradley 20F11GE022AA0NNNNN PowerFlex 753 AC Drive is an industrial variable-frequency drive designed for adjustable-speed control of three-phase AC motors. This model belongs to the 600 VAC three-phase PowerFlex 753 range and provides a 22 A continuous output rating, with 20 HP normal-duty and 15 HP heavy-duty ratings.
The drive is well suited to industrial equipment where reliable motor speed control, controlled acceleration and deceleration, and integration with an automation system are required.
Typical applications include:
Industrial conveyor systems
Pumps and water-processing equipment
Fans and blowers
Compressors
Material-handling machinery
Packaging equipment
Production and assembly lines
Process-control machinery
Machine tools
Industrial ventilation systems
Rotating mechanical equipment
PowerFlex 753 retrofit and maintenance projects
The Type 12 / IP54 packaged configuration also makes this drive suitable for industrial installations where additional protection against dust and other environmental contaminants is required.
Advantages
PowerFlex 753 architecture: Provides a flexible platform for industrial AC motor control.
600 VAC three-phase operation: Designed for higher-voltage industrial motor systems.
22 A continuous output: Suitable for motors within the corresponding application ratings.
20 HP normal-duty rating: Supports appropriate continuous-duty applications.
15 HP heavy-duty rating: Provides a lower horsepower rating for applications with greater overload requirements.
Air-cooled design: Provides practical thermal management for industrial installations.
Type 12 / IP54 enclosure: Offers additional protection for suitable industrial environments.
EMC filter: Helps address electromagnetic compatibility requirements when installed correctly.
Dynamic braking transistor: Supports controlled deceleration applications when used with an appropriate braking resistor.
Frame 3 construction: Provides a practical form factor for cabinet and equipment installations.
Industrial automation compatibility: Suitable for Allen Bradley control architectures and PowerFlex 750-Series systems.
Useful for legacy applications: Can be maintained as a replacement or spare for existing PowerFlex 753 installations.
Technical FAQs
1. What is the Allen Bradley 20F11GE022AA0NNNNN?
The Allen Bradley 20F11GE022AA0NNNNN is a PowerFlex 753 AC Packaged Drive designed for three-phase industrial motor speed control. It is a 600 VAC model with a 22 A continuous output rating and Frame 3 construction.
2. What is the output current rating of the 20F11GE022AA0NNNNN?
The continuous output current rating is 22 A. The drive is rated for approximately 20 HP under normal-duty conditions and 15 HP under heavy-duty conditions.
3. What voltage does this PowerFlex 753 drive use?
The 20F11GE022AA0NNNNN is a 600 VAC three-phase AC drive. The incoming power should always be verified against the drive nameplate and the electrical characteristics of the installation before commissioning.
4. What enclosure does the 20F11GE022AA0NNNNN use?
This model uses a Type 12 / IP54 packaged enclosure configuration. This provides additional protection against dust and other environmental contaminants compared with an open-frame installation.
5. Does the drive include dynamic braking?
Yes. The 20F11GE022AA0NNNNN is configured with a dynamic braking transistor. When dynamic braking is required, an appropriately sized braking resistor and correctly configured braking circuit must be used.
6. Does the 20F11GE022AA0NNNNN include an EMC filter?
Yes. The specified configuration includes an EMC filter. Correct grounding, cable routing, motor-cable installation, and other EMC practices remain important for the complete drive system.
7. What applications are suitable for the 22 A PowerFlex 753 drive?
The drive can be used for conveyors, pumps, fans, compressors, material-handling systems, packaging equipment, process machinery, and other industrial applications requiring adjustable-speed control of appropriately sized three-phase motors.
8. What should be checked before replacing an existing drive with this model?
Engineers should verify the input voltage, motor current, motor horsepower, normal-duty or heavy-duty requirements, enclosure type, frame size, braking requirements, control architecture, I/O configuration, communications, cabinet space, and cooling conditions. The complete catalog number should be matched before replacement.
9. Is the 20F11GE022AA0NNNNN suitable for legacy PowerFlex 753 systems?
Yes. The model can be relevant for existing-system maintenance, spare-parts procurement, and replacement projects. Because this specific AA-version has reached discontinued status, the complete replacement configuration should be checked when planning a modernization project.
10. What are the dimensions and weight of the Allen Bradley 20F11GE022AA0NNNNN?
The specified dimensions are 551 × 220.1 × 268 mm, and the weight is 12 kg (26.46 lb). These dimensions should be considered when planning cabinet installation, ventilation, cable clearance, and service access.
