Introduction

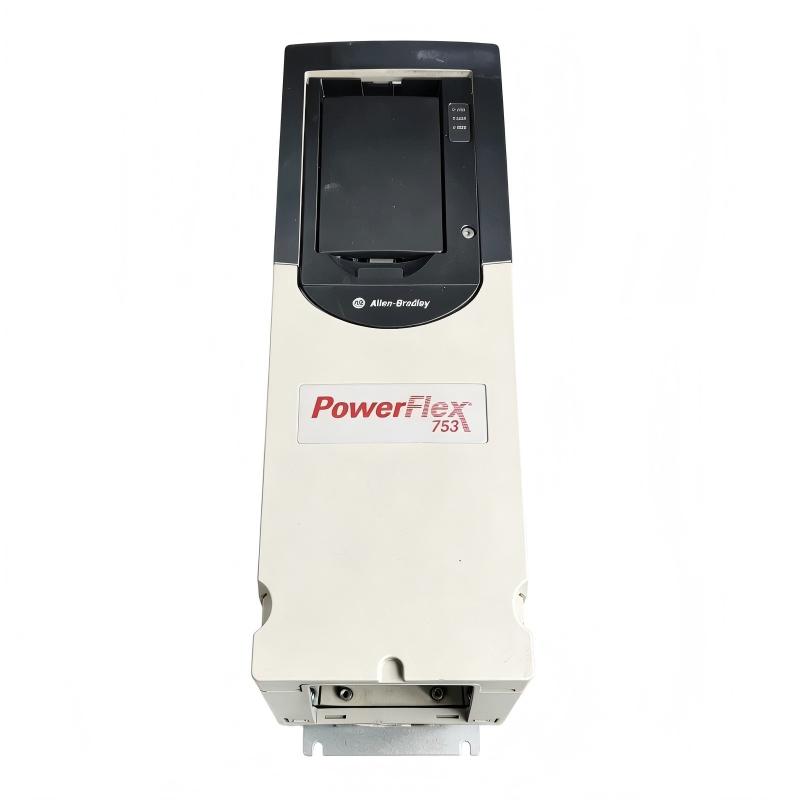

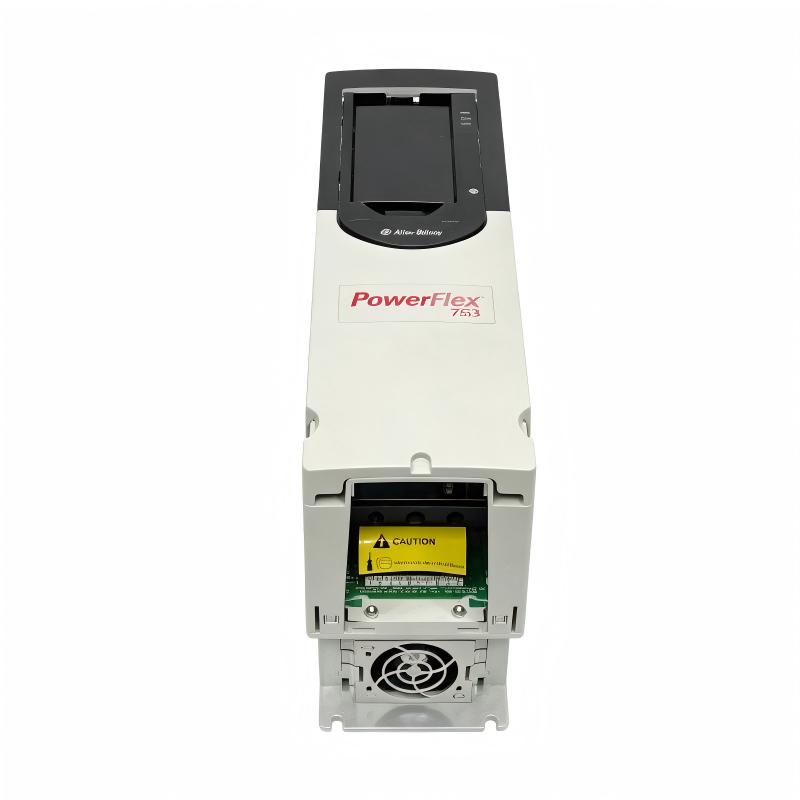

The Allen Bradley 20F11GE6P1AA0NNNNN PowerFlex 753 AC Drive is a 600 VAC, three-phase variable-frequency drive intended for industrial motor control. It combines adjustable-frequency operation with the PowerFlex 753 platform's integration capabilities, making it suitable for applications where motor speed, acceleration, deceleration, and operating parameters need to be coordinated with an industrial automation system.

The 6.1 A output rating places this model toward the lower-power end of the 600 VAC PowerFlex 753 range. Its 5 HP normal-duty rating makes it suitable for appropriately sized motors in applications with standard load requirements, while the 3 HP heavy-duty rating provides a different operating point for applications with more demanding overload characteristics.

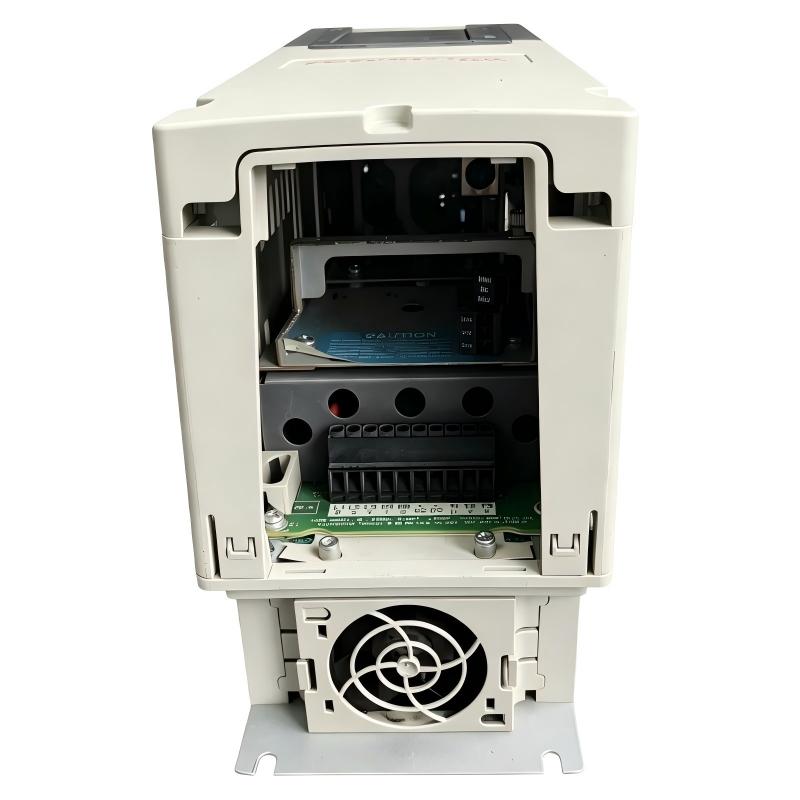

The drive features embedded I/O, an EMC filter, AC input with DC terminals, and an internal dynamic braking transistor. These characteristics make the 20F11GE6P1AA0NNNNN useful in machinery and process-control applications where a drive needs to perform more than basic frequency conversion.

For system replacement projects, attention should be paid to the difference between the original AA configuration and newer JA configurations. When replacing an existing drive, engineers should verify voltage class, motor current, enclosure requirements, control configuration, I/O requirements, braking requirements, and cabinet dimensions before installation.

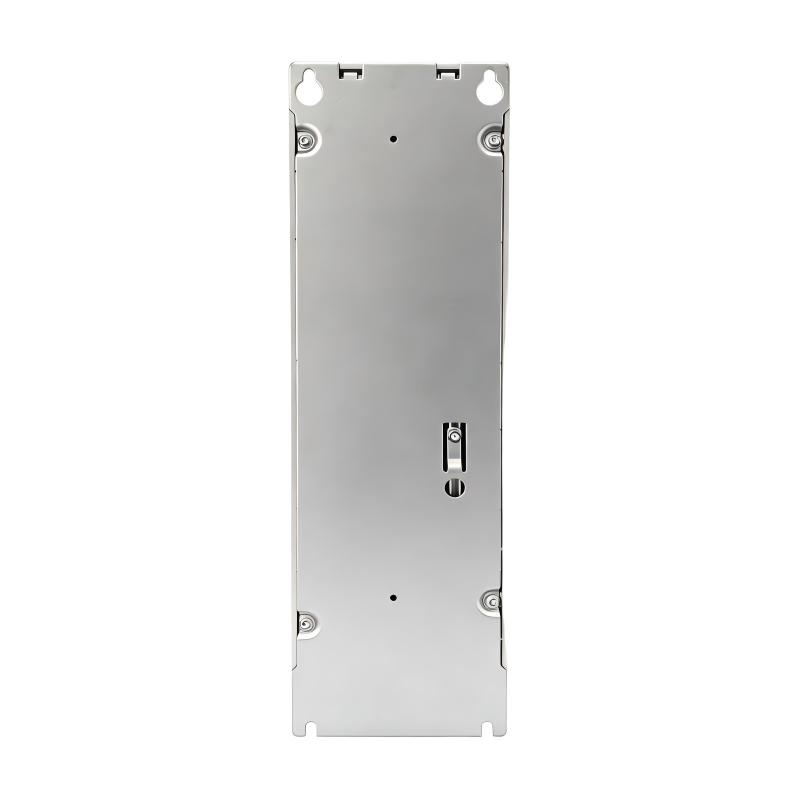

Technical Specifications

Specification	Details
Manufacturer	Allen Bradley
Product Family	PowerFlex 753
Catalog Number	20F11GE6P1AA0NNNNN
Product Type	AC Drive / Variable Frequency Drive
Voltage Class	600 VAC
Input Phase	Three Phase
Continuous Output Current	6.1 A
Normal-Duty Power	5 HP
Heavy-Duty Power	3 HP
Frame Size	Frame 3
Cooling	Air Cooled
Enclosure	Type 12 / IP54
Input Type	AC Input with DC Terminals
I/O	Embedded I/O
EMC Filtering	EMC Filter
CM Jumper	Removed
Dynamic Braking	Internal DB Transistor
HIM	Blank / No HIM
Dimensions	551 × 220.1 × 268 mm
Weight	12 kg / 26.46 lb
Lifecycle	Discontinued
Direct Replacement	20F11GE6P1JA0NNNNN

The supplied dimensions are 551 mm high × 220.1 mm wide/deep specification as provided × 268 mm, with a total weight of 12 kg (26.46 lb). Installation should always allow sufficient clearance for ventilation, wiring, maintenance access, and the manufacturer's specified thermal requirements.

Recommended Related Models

For projects using the 600 VAC PowerFlex 753 platform, the following models are useful alternatives or nearby ratings:

Allen Bradley 20F11GE1P7AA0NNNNN – 1.7 A, 1 HP normal duty, 0.5 HP heavy duty, Frame 3
Allen Bradley 20F11GE2P7AA0NNNNN – 2.7 A, 2 HP normal duty, 1 HP heavy duty, Frame 3
Allen Bradley 20F11GE3P9AA0NNNNN – 3.9 A, 3 HP normal duty, 2 HP heavy duty, Frame 3
Allen Bradley 20F11GE9P0AA0NNNNN – 9 A, 7.5 HP normal duty, 5 HP heavy duty, Frame 3
Allen Bradley 20F11GE011AA0NNNNN – 11 A, 10 HP normal duty, 7.5 HP heavy duty, Frame 3
Allen Bradley 20F11GE017AA0NNNNN – 17 A, 15 HP normal duty, 10 HP heavy duty, Frame 3
Allen Bradley 20F11GE022AA0NNNNN – 22 A, 20 HP normal duty, 15 HP heavy duty, Frame 3
Allen Bradley 20F11GE027AA0NNNNN – 27 A, 25 HP normal duty, 20 HP heavy duty, Frame 4

These models provide different current and horsepower ratings within the same 600 VAC PowerFlex 753 family.

Popular Related Models

20F11GE1P7AA0NNNNN – PowerFlex 753, 1.7 A, 600 VAC
20F11GE2P7AA0NNNNN – PowerFlex 753, 2.7 A, 600 VAC
20F11GE3P9AA0NNNNN – PowerFlex 753, 3.9 A, 600 VAC
20F11GE6P1AA0NNNNN – PowerFlex 753, 6.1 A, 600 VAC
20F11GE9P0AA0NNNNN – PowerFlex 753, 9 A, 600 VAC
20F11GE011AA0NNNNN – PowerFlex 753, 11 A, 600 VAC
20F11GE017AA0NNNNN – PowerFlex 753, 17 A, 600 VAC
20F11GE022AA0NNNNN – PowerFlex 753, 22 A, 600 VAC
20F11GE027AA0NNNNN – PowerFlex 753, 27 A, 600 VAC
20F11GE032AA0NNNNN – PowerFlex 753, 32 A, 600 VAC

The 20F11GE6P1AA0NNNNN remains a useful reference model for replacement, refurbishment, and legacy PowerFlex 753 applications where the original 600 VAC configuration needs to be identified accurately.

Applications

The Allen Bradley 20F11GE6P1AA0NNNNN can be used in a wide range of industrial motor-control systems, especially applications requiring a compact 600 VAC drive with flexible control functionality.

Conveyor Systems – Provides adjustable motor speed for material handling and production conveyors.
Pumps and Fans – Suitable for variable-speed pump and fan applications where controlled acceleration and operating speed are important.
Packaging Machinery – Supports controlled motor operation in packaging, filling, and material-feeding equipment.
Industrial Machinery – Can be integrated into machinery requiring variable-frequency motor control.
Process Equipment – Useful for controlling motors involved in continuous industrial processes.
Material Handling Equipment – Provides controlled starting, stopping, and speed adjustment for motors.
OEM Machine Systems – The embedded I/O and PowerFlex architecture make the drive suitable for integration into machine control panels.
Production Lines – Can help coordinate motor speed with PLC-based automation and other control equipment.

For applications with frequent deceleration or higher stopping-energy requirements, the integrated dynamic braking transistor can be used with an appropriately selected external braking resistor.

Advantages

600 VAC Three-Phase Operation
The 20F11GE6P1AA0NNNNN belongs to the 600 VAC three-phase PowerFlex 753 family, making it appropriate for industrial power systems requiring this voltage class.

6.1 A Continuous Output Current
The drive provides a continuous output rating of 6.1 A and is rated for 5 HP normal-duty operation and 3 HP heavy-duty operation.

Embedded I/O
Embedded I/O simplifies integration into industrial control systems and can reduce the need for additional interface hardware in suitable applications.

EMC Filtering
The drive incorporates EMC filtering, helping manage electromagnetic interference within properly designed industrial installations.

Internal Dynamic Braking Transistor
The built-in DB transistor allows the drive to work with a suitable braking resistor when faster controlled deceleration is required.

Air-Cooled Design
Air cooling provides a practical thermal-management method for industrial control cabinets and equipment installations.

Type 12 / IP54 Enclosure
The enclosure configuration provides protection appropriate for many industrial environments when the installation conditions and cabinet design are properly considered.

PowerFlex 753 Platform
The drive belongs to the PowerFlex 753 family, allowing it to fit into broader Allen Bradley drive architectures and automation systems.

Technical FAQs

1. What is the input voltage of the Allen Bradley 20F11GE6P1AA0NNNNN?
The 20F11GE6P1AA0NNNNN is designed for a 600 VAC, three-phase input power system.

2. What is the continuous output current of the 20F11GE6P1AA0NNNNN?
Its continuous output current rating is 6.1 A. The catalog family also provides higher short-duration current ratings for appropriate operating conditions.

3. What motor horsepower is supported by this PowerFlex 753 drive?
The drive is rated for 5 HP under normal-duty operation and 3 HP under heavy-duty operation.

4. What frame size does the 20F11GE6P1AA0NNNNN use?
This model uses Frame 3 within the 600 VAC PowerFlex 753 product family.

5. Does the 20F11GE6P1AA0NNNNN have a built-in braking transistor?
Yes. The drive includes an internal dynamic braking transistor, allowing an appropriately sized external braking resistor to be connected when the application requires additional braking capability.

6. Does this model include EMC filtering?
Yes. The 20F11GE6P1AA0NNNNN configuration includes an EMC filter. Its original configuration has the CM jumper removed.

7. Does the 20F11GE6P1AA0NNNNN include a HIM keypad?
No. This catalog configuration is supplied with Blank (No HIM), so a separate human interface module can be selected when local operator control is required.

8. What type of cooling does this PowerFlex 753 drive use?
The 20F11GE6P1AA0NNNNN uses air cooling for thermal management.

9. Is the 20F11GE6P1AA0NNNNN still available as a current Allen Bradley model?
The original 20F11GE6P1AA0NNNNN has been discontinued. Its identified direct replacement is 20F11GE6P1JA0NNNNN, which retains the 600 VAC, 6.1 A, 5 HP normal-duty and 3 HP heavy-duty configuration while using the newer product configuration.

10. What are the dimensions and weight of the 20F11GE6P1AA0NNNNN?
The dimensions are 551 × 220.1 × 268 mm, and the weight is 12 kg (26.46 lb).
