Introduction

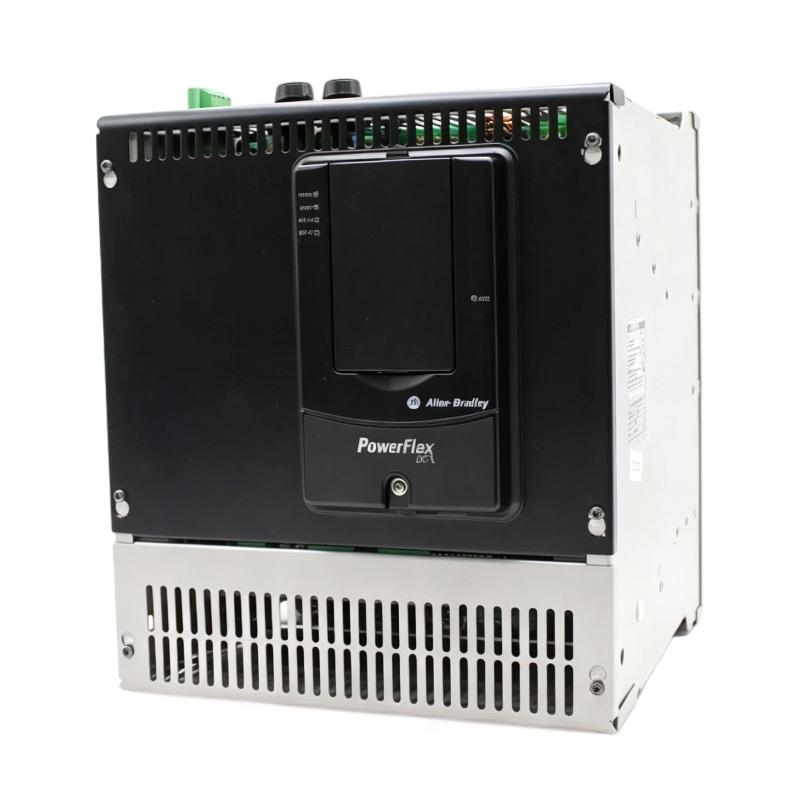

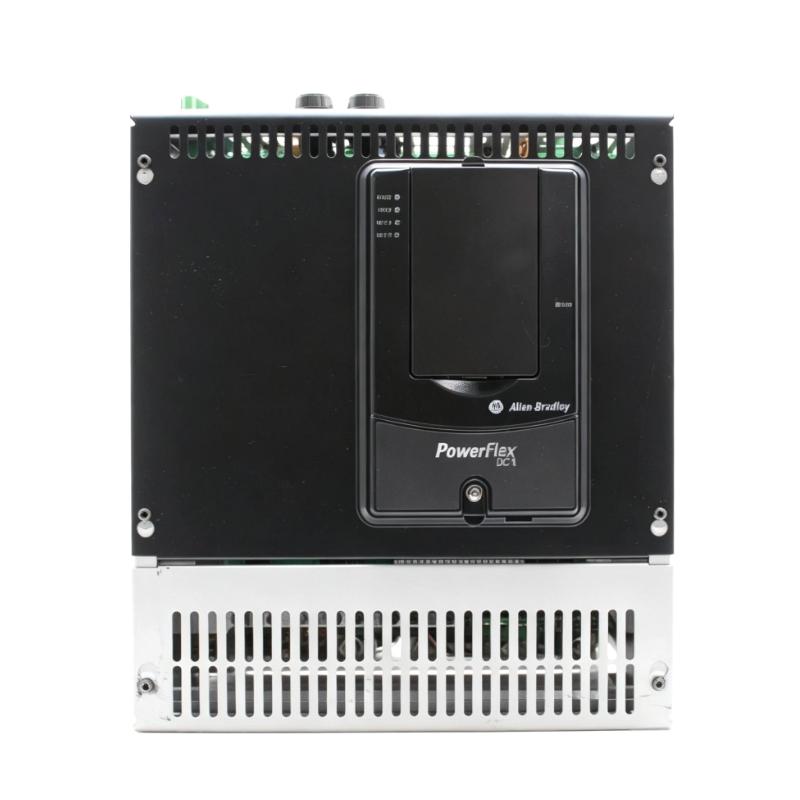

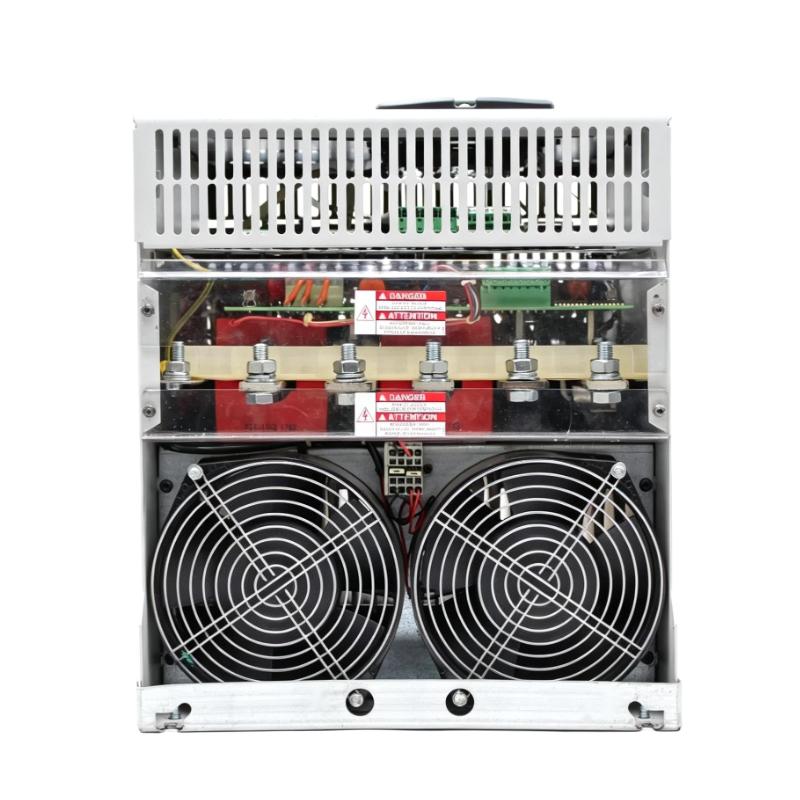

The Allen Bradley 20P41AD330RA0NNN PowerFlex DC Drive is a high-capacity digital DC drive intended for industrial applications requiring substantial motor current and regenerative control. With a 330 A output rating and 200 HP normal-duty capacity, it is designed for significantly larger DC motor systems than low-power PowerFlex DC configurations.
One of the defining characteristics of this model is its four-quadrant regenerative architecture. Unlike a basic non-regenerative DC drive, a four-quadrant drive can manage motoring and regenerative conditions in both directions. This is particularly valuable in applications where the motor must repeatedly accelerate, decelerate, reverse, or control an overhauling load.
The drive uses a 480 VAC three-phase, six-pulse input and incorporates a regulated field supply. Its control architecture supports feedback options such as DC tachometer and encoder feedback, enabling closed-loop speed control when required by the application.
The IP20/NEMA/UL Type Open enclosure means that the drive is not intended to be treated as a standalone environmentally protected device. Proper cabinet installation, ventilation, electrical protection, grounding, and access control are important for reliable operation.
The conformal-coated configuration can provide additional protection to the electronic circuitry in suitable industrial environments. However, conformal coating does not eliminate the need for appropriate enclosure design and environmental control.
For retrofit applications, the complete catalog number should always be checked against the original drive. Voltage class, current rating, regenerative operation, field supply, feedback, I/O, communications, enclosure requirements, and physical dimensions can all affect compatibility.
Technical Specifications

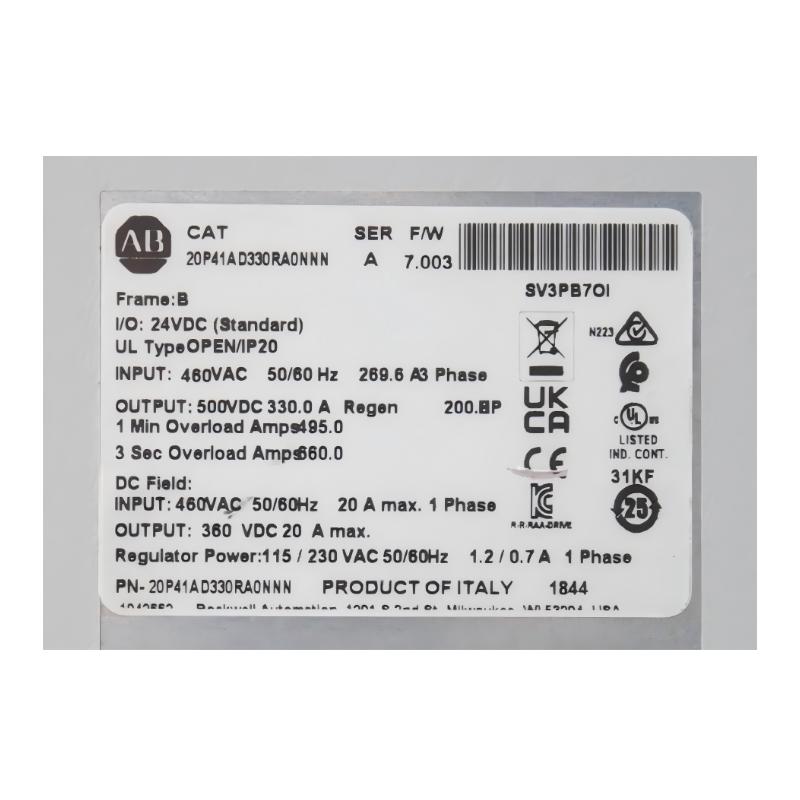

| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Product Family | PowerFlex DC |
| Catalog Number | 20P41AD330RA0NNN |
| Product Type | Regenerative DC Drive |
| Input Voltage | 480 VAC |
| Input Voltage Range | 380–480 VAC |
| Input Phase | Three Phase |
| Input Type | 6 Pulse |
| Output Current | 330 A |
| Normal-Duty Motor Rating | 200 HP |
| Power Rating | 149 kW |
| Motor Operation | Four-Quadrant Regenerative |
| Frame Size | Frame B |
| Field Supply | Single-Phase Regulated |
| Enclosure | IP20 / NEMA/UL Type Open |
| Conformal Coating | Yes |
| HIM | No HIM / Blank Plate |
| Communication Module | None |
| Feedback Support | DC Tachometer / Encoder |
| Dimensions | 311 × 388 × 350 mm |
| Weight | 32 kg / 70.55 lb |
For installation, the physical dimensions should be considered together with the required clearance for power connections, control wiring, ventilation, maintenance, and heat dissipation. Because this is a 330 A high-power drive, cabinet thermal design and conductor sizing are especially important.
Recommended Related Models
The following PowerFlex DC models can be considered when comparing current ratings, motor capacity, and operating configurations:
- Allen Bradley 20P21AD207RA0NNN – PowerFlex DC Drive, 207 A class, two-quadrant configuration
- Allen Bradley 20P41AD330RA0NNN – PowerFlex DC Drive, 330 A, four-quadrant regenerative
- Allen Bradley 20P41AD420RA0NNN – PowerFlex DC Drive, higher-current regenerative configuration
- Allen Bradley 20P41AD460RA0NNN – PowerFlex DC Drive, higher-current regenerative configuration
- Allen Bradley 20P41AD500RA0NNN – PowerFlex DC Drive, higher-current regenerative configuration
When selecting a replacement or alternative, the complete catalog number should be compared rather than relying only on the current rating. Regenerative capability, field supply, feedback, enclosure, communications, and input configuration can all affect system compatibility.
Popular Related Models
- 20P41AD330RA0NNN – PowerFlex DC Drive, 330 A, 200 HP
- 20P21AD207RA0NNN – PowerFlex DC Drive, 207 A class
- 20P41AD420RA0NNN – PowerFlex DC regenerative drive
- 20P41AD460RA0NNN – PowerFlex DC regenerative drive
- 20P41AD500RA0NNN – PowerFlex DC regenerative drive
- 20P41AD540RA0NNN – PowerFlex DC regenerative drive
- 20P41AD650RA0NNN – PowerFlex DC high-current regenerative drive
- 20P41AD750RA0NNN – PowerFlex DC high-current regenerative drive
The Allen Bradley 20P41AD330RA0NNN PowerFlex DC Drive is a high-current, four-quadrant regenerative drive intended for large industrial DC motor systems. Its 330 A capacity, 200 HP rating, regulated field supply, and regenerative architecture make it particularly suitable for demanding applications such as heavy material handling, metal processing, winding systems, and DC motor retrofit projects.
