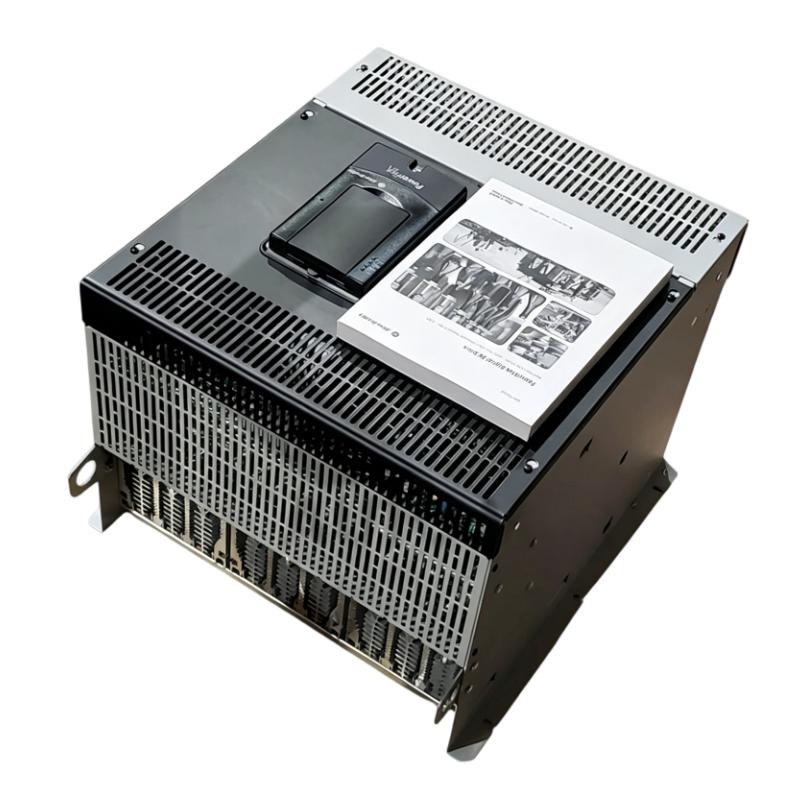

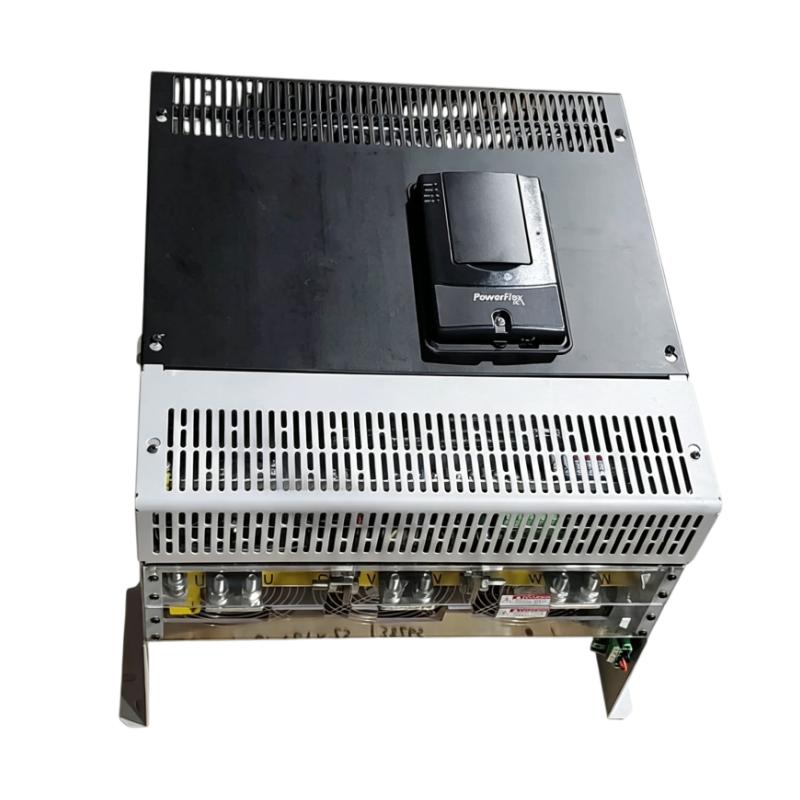

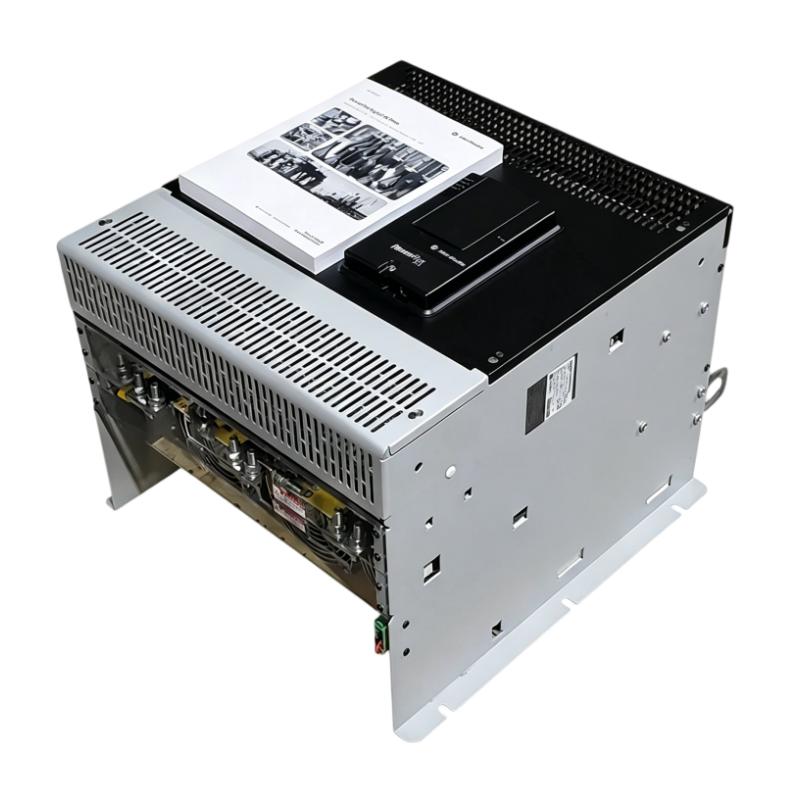

Allen Bradley 20P41AD495RA0NNN PowerFlex DC Driver
Allen Bradley 20P41AD495RA0NNN PowerFlex DC Driver
0.0
Points
Brand:Allen Bradley PLC Item No.:20P41AD495RA0NNN Product Origin:USA Product Dimensions:521 x 416 x 511 mm Product Weight:61 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20P41AD495RA0NNN PowerFlex DC Drive is an industrial DC motor control solution designed for machinery where controlled speed and torque are essential to production performance.
DC motors continue to operate in numerous industrial installations, particularly in established production equipment where the motor, gearbox, mechanical transmission, and machine structure remain serviceable. In these situations, upgrading or replacing the drive can be a cost-effective way to restore dependable control without undertaking a complete machine redesign.
The PowerFlex DC family provides a dedicated platform for these applications. The 20P41AD495RA0NNN can be incorporated into systems requiring controlled acceleration, deceleration, speed regulation, and torque management. Correct configuration is especially important for applications where motor response has a direct impact on product quality or machine productivity.
This model is also worth considering for industrial replacement projects in which maintaining the existing control philosophy is desirable. Keeping a familiar Allen Bradley drive platform can reduce the learning curve for maintenance personnel and simplify integration with established automation equipment.
The 20P41AD495RA0NNN has a listed overall size of 521 × 416 × 511 mm and a weight of 61 kg, making it a substantial industrial drive that requires appropriate cabinet space, mechanical support, and safe handling during installation.
For plant engineers, system integrators, and industrial equipment buyers, the complete catalog number should always be verified before procurement. Matching the drive to the motor, power system, feedback arrangement, and machine duty is fundamental to achieving reliable operation.
Technical Specifications
Parameter
Specification
Brand
Allen Bradley
Model
20P41AD495RA0NNN
Product Family
PowerFlex DC
Product Type
DC Drive
Application
Industrial DC Motor Control
Drive Function
Adjustable DC Motor Speed and Torque Control
Installation
Industrial Control System
Dimensions
521 × 416 × 511 mm
Weight
61.00 kg (134.48 lb)
The 20P41AD495RA0NNN measures 521 × 416 × 511 mm and has a listed weight of 61.00 kg (134.48 lb).
Because of its considerable physical size and weight, installation planning should include suitable cabinet support, lifting equipment, ventilation, electrical clearances, and service access.
The precise electrical characteristics of a PowerFlex DC drive configuration should be verified against the complete catalog number and the intended motor nameplate data before installation. This is particularly important when replacing an existing drive in an operating production system.
Recommended Related Models
When evaluating Allen Bradley PowerFlex DC equipment for replacement, expansion, or modernization projects, the following models may be considered as related configurations:
Model
Product Type
20P21AD207RA0NNN
PowerFlex DC Drive
20P41AD412RA0NNN
PowerFlex DC Drive
20P41AD495RA0NNN
PowerFlex DC Drive
20P41AD207RA0NNN
PowerFlex DC Drive
These models can be useful references when comparing PowerFlex DC configurations for different industrial motor-control requirements. The appropriate model should be selected according to the actual motor ratings and complete system requirements.
Popular Related Models
Model
Product Family
Product Type
20P21AD207RA0NNN
PowerFlex DC
DC Drive
20P41AD207RA0NNN
PowerFlex DC
DC Drive
20P41AD412RA0NNN
PowerFlex DC
DC Drive
20P41AD495RA0NNN
PowerFlex DC
DC Drive
20P41AD0P5RA0NNN
PowerFlex DC
DC Drive
When purchasing a replacement, the complete catalog number should be confirmed before placing an order. PowerFlex DC drives with similar physical designs can have substantially different electrical configurations and motor-control capabilities. Careful model matching helps reduce installation delays and supports a smoother commissioning process.
Applications
The Allen Bradley 20P41AD495RA0NNN PowerFlex DC Drive is an industrial DC motor controller designed for applications that require dependable speed, torque, acceleration, and deceleration management. It is suited to production machinery where an existing DC motor remains an important part of the mechanical system and precise electrical control is required for stable operation.
Typical applications include conveyors, winding and unwinding machines, material-handling systems, printing and converting equipment, process machinery, extruders, rolling equipment, and other industrial installations using DC motors. These applications can benefit from controlled starting and stopping as well as stable motor operation under changing mechanical loads.
The 20P41AD495RA0NNN is also relevant to modernization and replacement projects. Industrial plants frequently retain mechanically sound DC motors for many years, making drive replacement an attractive alternative to replacing the complete motor and machine assembly.
For maintenance departments and automation integrators, using the correct PowerFlex DC catalog number is essential. The 20P41AD495RA0NNN should be selected according to the motor's electrical requirements, field configuration, feedback arrangement, control architecture, and application duty rather than physical appearance alone.
Advantages
The 20P41AD495RA0NNN benefits from the dedicated control architecture of the PowerFlex DC family, making it appropriate for industrial equipment that still relies on DC motor technology. It provides a practical means of controlling motor speed and torque while allowing the existing mechanical equipment to remain in service.
A major advantage is its suitability for retrofit applications. Replacing an aging drive while retaining a functional DC motor can reduce the scope of a modernization project and minimize mechanical redesign. This approach can be particularly valuable for established production lines where downtime and engineering changes need to be carefully controlled.
Controlled acceleration and deceleration can also reduce sudden mechanical loading. For equipment involving heavy inertia, tension control, or repeated starting and stopping, properly configured drive parameters can contribute to smoother machine operation and improved process consistency.
The PowerFlex platform further offers a familiar solution for facilities maintaining Allen Bradley automation equipment. Using a consistent drive family can simplify maintenance procedures, troubleshooting, spare-parts planning, and technician training.
With its larger physical configuration and 61 kg weight, the 20P41AD495RA0NNN is intended for substantial industrial installations rather than compact machine applications. When correctly matched to the motor and system, it can provide a dependable control solution for demanding DC drive applications.
Technical FAQs
1. What type of motor is the 20P41AD495RA0NNN designed to control?
It is intended for industrial DC motor applications. The motor's armature and field ratings must be compatible with the drive configuration before commissioning.
2. What motor information should be collected before configuring the drive?
The motor nameplate should be reviewed for rated armature voltage, armature current, field voltage and current, rated speed, and other applicable operating information. Accurate data is important for correct drive setup.
3. What should be checked if the motor fails to start?
Check for active drive faults, control-source settings, enable signals, start commands, speed references, motor connections, and field conditions. If a PLC is controlling the drive, the PLC output and communication status should also be checked.
4. Why can a DC motor experience unstable speed?
Unstable speed may result from incorrect feedback configuration, unsuitable control parameters, changing mechanical load, motor problems, or an inconsistent reference signal. The drive's diagnostic information should be reviewed before adjusting control parameters.
5. What can cause excessive armature current?
Possible causes include excessive mechanical load, incorrect motor data, unsuitable acceleration settings, motor faults, armature wiring problems, or mechanical binding in the driven equipment.
6. Why must the motor field circuit be configured correctly?
The field circuit is an important part of DC motor operation. Incorrect field voltage or current settings can affect motor performance and may create unsafe operating conditions. The field requirements should always be matched to the motor specifications.
7. Can the drive be connected to a PLC-based automation system?
Yes. A PowerFlex DC drive can be incorporated into an industrial control system using its available control and communication interfaces. The specific integration method depends on the installed drive configuration and communication options.
8. What should be investigated when a fault occurs during acceleration?
Review the specific fault code first. Then check motor load, acceleration parameters, armature current, motor wiring, feedback, field operation, and the mechanical condition of the machine.
9. Why should existing drive parameters be recorded before replacement?
Recording or backing up the existing configuration can significantly simplify commissioning. Application-specific settings provide a useful starting point for configuring the replacement drive and can also assist troubleshooting.
10. What must be verified before replacing an existing DC drive with the 20P41AD495RA0NNN?
Verify the complete drive catalog number, incoming power requirements, motor armature ratings, field characteristics, feedback system, control wiring, communication options, and application duty. A physically similar drive may not be electrically interchangeable.
