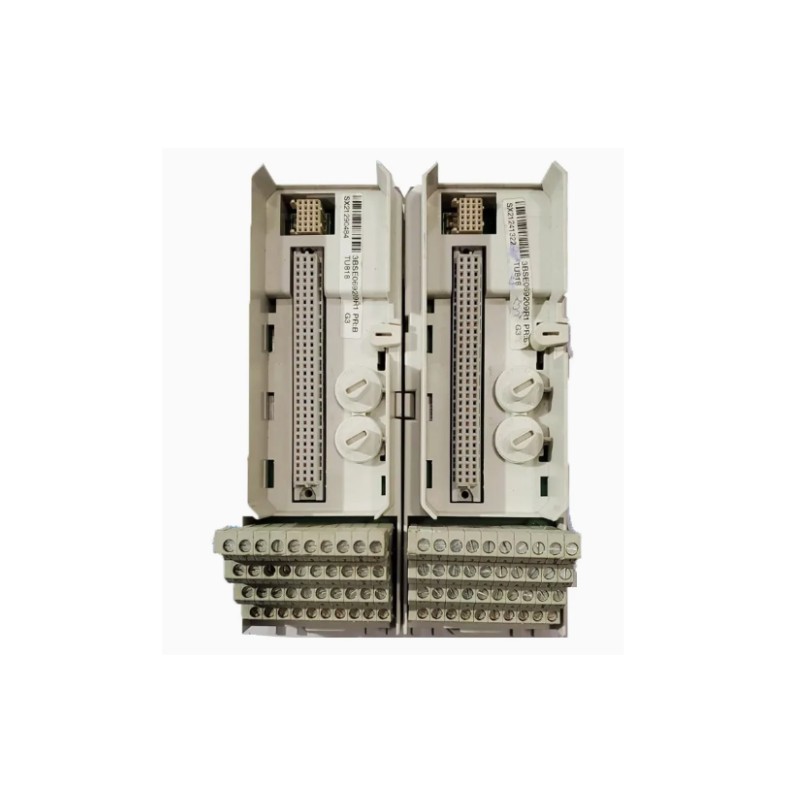

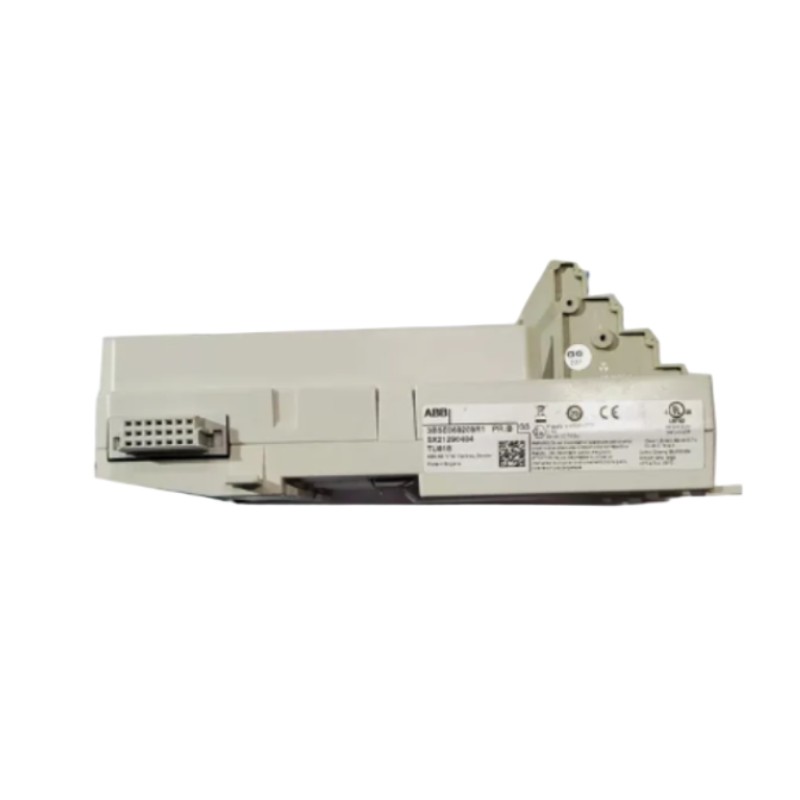

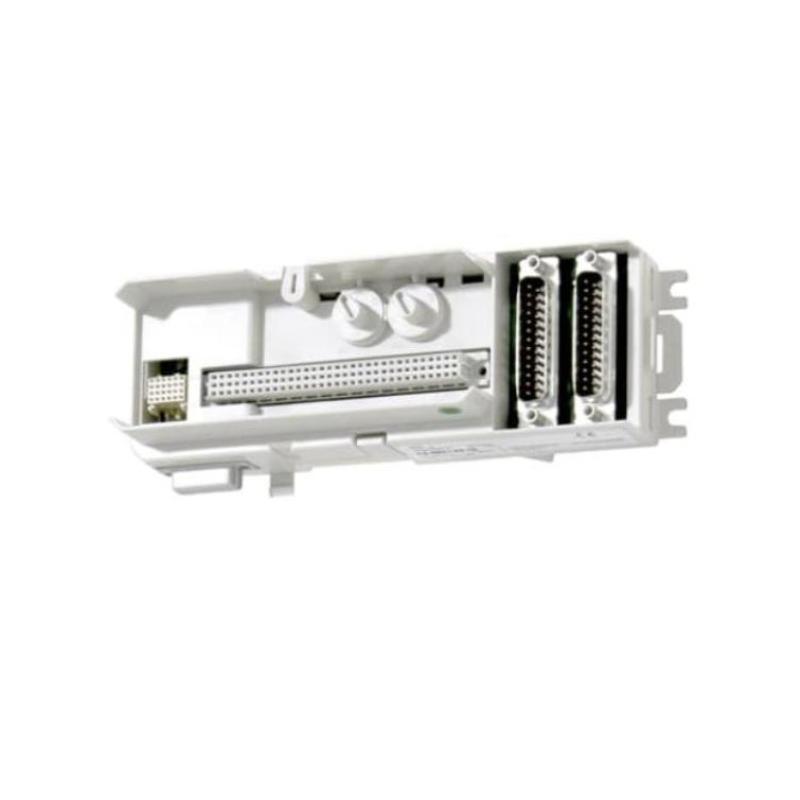

TU819 3BSE068891R1 (2) TU819 3BSE068891R1 (4) TU819 3BSE068891R1 (3) TU819 3BSE068891R1 (1)

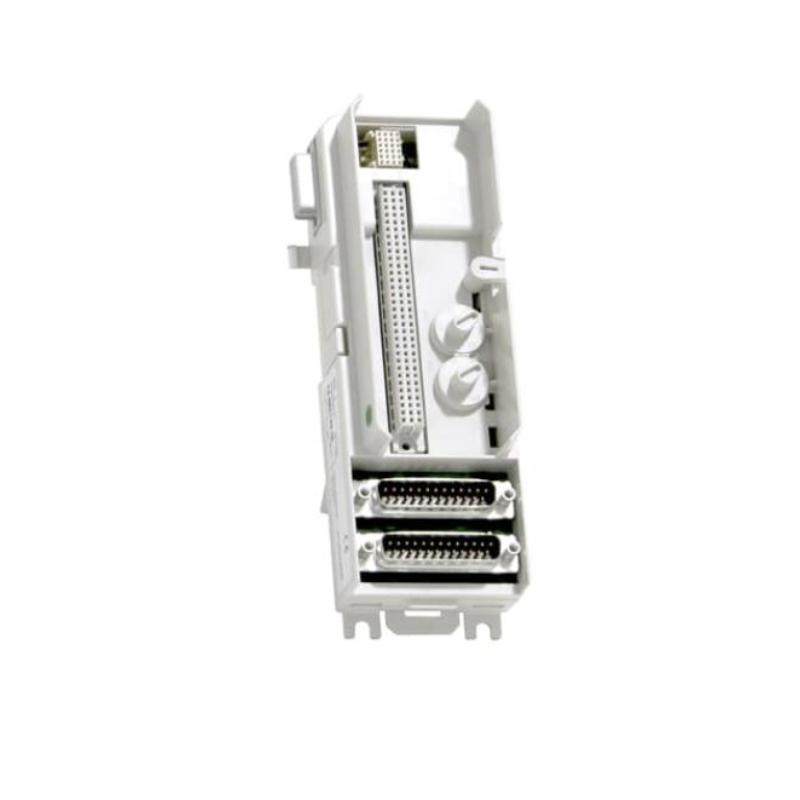

The ABB TU819 Power Supply Module is a highly reliable and efficient 24V DC power supply designed to meet the power demands of medium to large-scale industrial automation systems. With a 19A output capacity, the TU819 provides stable and consistent power to PLCs, sensors, actuators, and other critical industrial control components, ensuring smooth and uninterrupted operation across a wide range of applications.

Engineered for up to 94% efficiency, the ABB TU819 helps reduce energy consumption, lower operational costs, and minimize heat generation, making it an environmentally friendly choice for modern industrial systems. Additionally, its advanced protection features and durable design ensure long-term reliability in demanding industrial environments, minimizing downtime and maximizing system uptime.

Technical Specifications

Specification	Details
Model	TU819 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	19A
Efficiency	94% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	4.8 kg (10.58 lbs)
Dimensions (W x H x D)	250 x 200 x 150 mm (9.84 x 7.87 x 5.91 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

ABB offers a variety of power supply modules that complement the TU819 and may be suitable for applications requiring different capacities or additional features:

ABB TU530: A 25A power supply ideal for systems requiring a higher output capacity for larger industrial applications.
ABB TU510: A 40A power supply for high-demand systems needing higher power output and continuous reliability.
ABB TU515: A 15A power supply for smaller systems that still require high efficiency and reliable performance.
ABB TP820: A 100A power supply module suitable for large-scale industrial applications requiring constant, high-current power.
ABB DCS 800 Series: A modular power supply solution that provides flexibility and scalability for large automation systems.

Popular ABB Models

ABB’s extensive range of industrial automation products integrates seamlessly with the TU819 power supply module. Some of the most popular models that complement the TU819 include:

ABB ACS580: A variable frequency drive (VFD) designed to optimize motor control and enhance energy efficiency in industrial processes.
ABB IRB 6700: A high-precision industrial robot designed for applications like material handling, assembly, and welding, offering exceptional flexibility.
ABB SD880: A 24V DC power supply module ideal for industrial applications requiring consistent power and protection.
ABB PPM500: A power protection module designed to prevent damage from electrical faults and enhance the safety of sensitive equipment.
ABB MNS 3.0: A modular power distribution system ideal for large facilities, providing flexibility in managing power needs across different zones.

Applications

The ABB TU819 Power Supply Module is designed for a wide range of industrial applications that require continuous and stable 24V DC power. Key applications include:

Industrial Automation: Powers PLCs, sensors, actuators, and controllers in medium to large-scale industrial automation systems, ensuring consistent performance in complex processes.
Manufacturing: Provides power for CNC machines, robotic arms, automated assembly lines, and other manufacturing equipment, helping to improve production efficiency.
Material Handling: Supplies power to material handling systems such as conveyors, sorters, and Automated Storage and Retrieval Systems (ASRS) in large warehouses, distribution centers, and logistics facilities.
HVAC Systems: Powers HVAC systems for temperature and air quality control in industrial, commercial, and residential buildings, ensuring optimal climate regulation.
Energy Management: Suitable for energy management systems, including renewable energy solutions, smart grids, and power distribution networks, ensuring efficient power distribution and monitoring.

Advantages

High Output Capacity: The 19A output of the TU819 ensures that medium to large industrial systems receive the required power for efficient operation, even under heavy loads.
Energy Efficiency: With 94% efficiency, the TU819 reduces energy consumption, helping to cut operational costs and reduce the system's environmental footprint.
Comprehensive Protection: The TU819 is equipped with overvoltage, overcurrent, thermal overload, short-circuit, and surge protection, ensuring the safety of both the power supply and connected equipment.
Long-Term Reliability: Built to withstand the tough conditions of industrial environments, the TU819 offers long-lasting performance with minimal downtime and low maintenance costs.
Wide Temperature Range: The TU819 operates effectively within a temperature range of -10°C to 70°C (14°F to 158°F), making it suitable for use in various industrial settings.
Global Compatibility: The TU819 supports an 85-265 VAC input voltage, making it compatible with electrical systems worldwide, providing flexibility in international installations.
Easy Installation: The DIN rail mounting design simplifies installation, making the TU819 easy to integrate into existing control panels and electrical enclosures, saving time and reducing installation costs.

Technical FAQs

What input voltage range does the ABB TU819 support?
- The TU819 supports an input voltage range of 85-265 VAC, making it compatible with global electrical standards.
What is the efficiency of the ABB TU819?
- The TU819 operates with 94% efficiency, ensuring minimal energy loss and optimal power usage.
What protection features are included in the TU819?
- The TU819 includes comprehensive protection features such as overvoltage, overcurrent, short-circuit, thermal overload, and surge protection.
How much current can the TU819 supply?
- The TU819 provides 19A of continuous 24V DC power, ideal for medium to large industrial systems and automation setups.
Can the TU819 be used outdoors?
- The TU819 is designed for indoor use, but it can be used outdoors if housed in an appropriate protective enclosure.
What is the operating temperature range for the TU819?
- The TU819 operates in a temperature range of -10°C to 70°C (14°F to 158°F), making it suitable for a wide variety of industrial environments.
How is the ABB TU819 mounted?
- The TU819 is designed for DIN rail mounting, which allows for easy and secure installation in industrial control panels and enclosures.
What are the dimensions and weight of the ABB TU819?
- The TU819 has dimensions of 250 x 200 x 150 mm (9.84 x 7.87 x 5.91 inches) and weighs 4.8 kg (10.58 lbs).
Is the TU819 suitable for larger systems?
- The TU819 is suitable for medium to large systems. For larger power needs, ABB offers models like the TU530 (25A) or TP820 (100A).
Can the TU819 be integrated with other ABB products?
- Yes, the TU819 is fully compatible with other ABB automation products, making it easy to integrate into your existing or new industrial automation systems.
