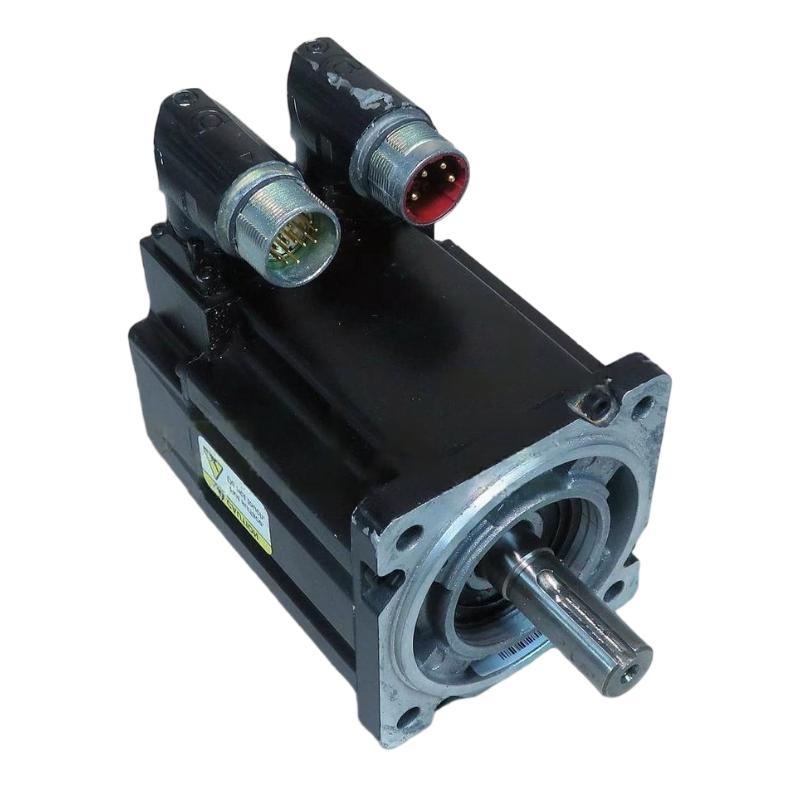

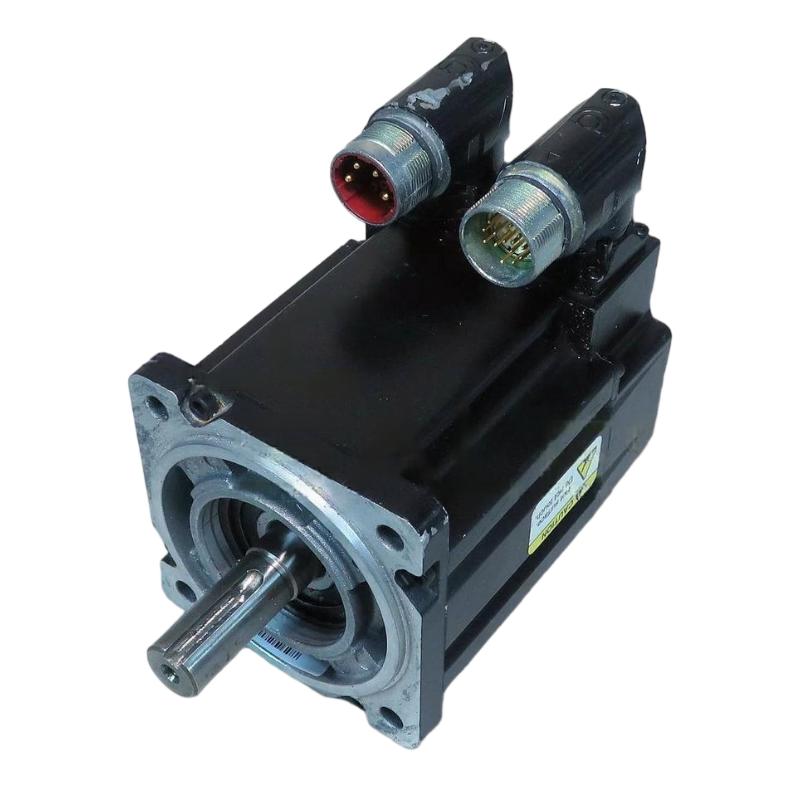

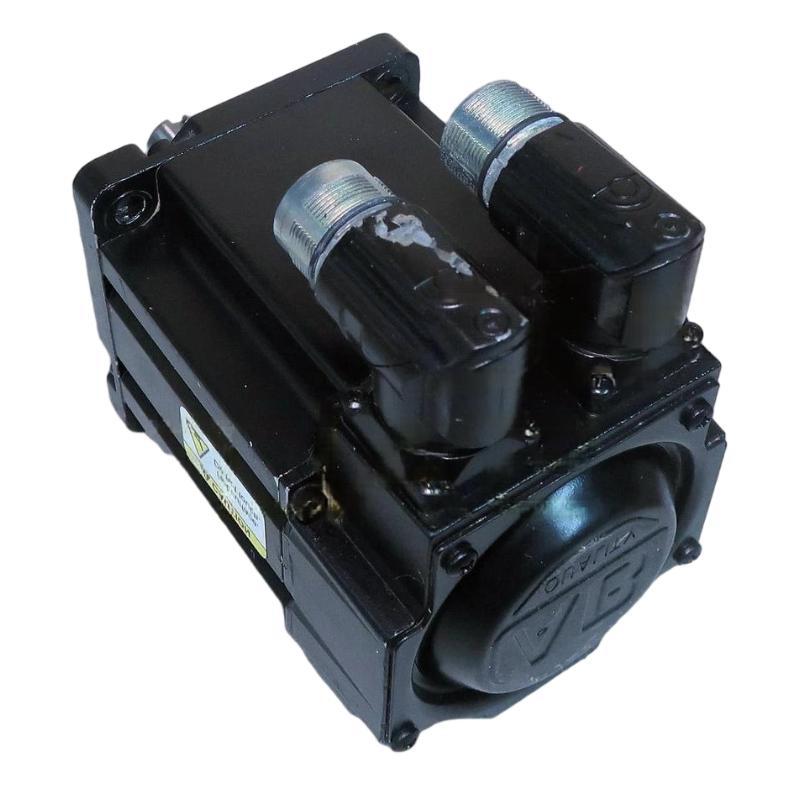

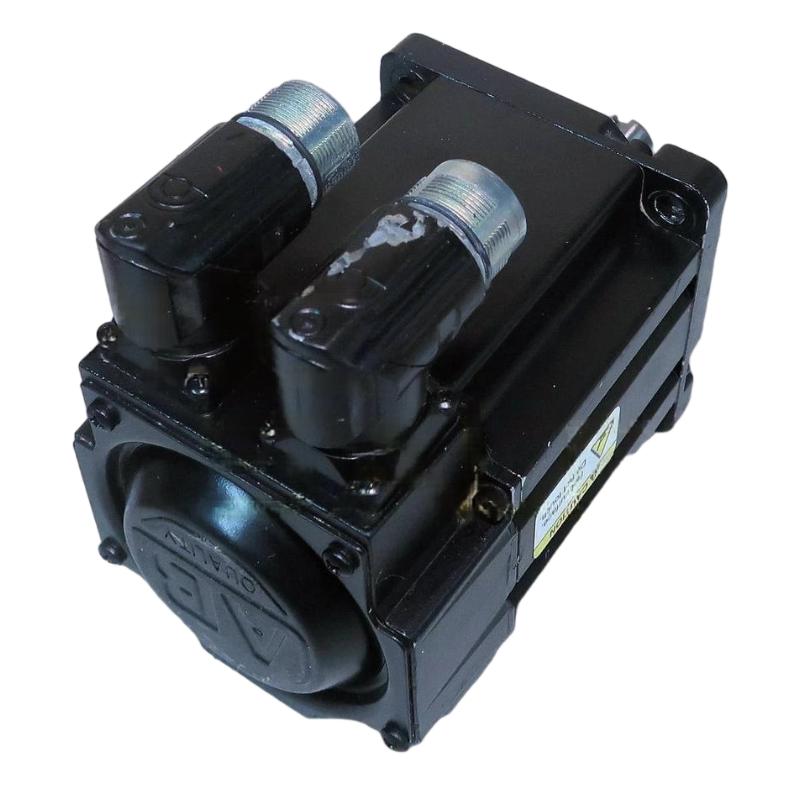

Allen Bradley MPL-B310P-HJ74AA Servo Motor

Applications

The Allen Bradley MPL-B310P-HJ74AA Servo Motor is a compact industrial motion motor designed for automated machinery requiring accurate positioning, repeatable movement, controlled acceleration, and responsive speed regulation. As part of the Allen Bradley MP-Series servo motor family, it is intended for closed-loop motion applications where coordinated motor performance is more important than simple continuous-speed operation.

Typical applications include automated assembly equipment, packaging machinery, indexing systems, material handling, pick-and-place machines, converting equipment, machine tools, and other production systems requiring precise rotary motion.

The 100 mm frame size makes the MPL-B310P-HJ74AA a practical choice for machine builders working with limited mechanical space. Its compact format can be integrated into machinery where motor footprint, mounting arrangement, and dynamic response all need to be considered together.

For maintenance and replacement applications, the complete MPL-B310P-HJ74AA catalog number should be matched carefully. Servo motor selection involves more than frame size alone; feedback, winding characteristics, shaft configuration, drive compatibility, and application requirements all need to be considered.

Advantages

The MPL-B310P-HJ74AA combines a compact industrial design with the closed-loop control characteristics required for precision automation. When matched with a compatible Allen Bradley servo drive and motion controller, it can support accurate speed and position control across a wide variety of machine movements.

One important advantage is its suitability for applications with frequent changes in speed and direction. Unlike a conventional motor intended primarily for steady-state operation, a servo motor is designed to work as part of a coordinated motion system where acceleration, deceleration, positioning, and repeatability directly influence machine performance.

Its 100 mm frame size also provides machine designers with a relatively compact installation option. This can be particularly useful when upgrading existing equipment or designing automation systems where available mechanical space is restricted.

The MP-Series platform can additionally simplify maintenance for facilities already operating Allen Bradley motion-control equipment. Familiar drive and motor technologies can help maintenance personnel streamline troubleshooting, spare-parts management, and replacement procedures.

For industrial users seeking a dependable servo motor for precision machinery, the MPL-B310P-HJ74AA offers a practical combination of compact construction, motion-control capability, and Allen Bradley system compatibility.

Technical FAQs

1. What type of application is the MPL-B310P-HJ74AA intended for?

The motor is intended for industrial servo applications requiring controlled speed, position, acceleration, and deceleration. It is suitable for machinery where repeatable motion is an important part of the production process.

2. What should be verified when selecting a servo drive for this motor?

The drive should be compatible with the motor's electrical characteristics, feedback system, rated operating requirements, and intended motion application. The complete motor catalog number should be verified before selecting the drive.

3. Why is feedback important in a servo system?

Feedback allows the control system to determine the motor's actual operating condition, including position and speed. The drive can then compare actual motion with the commanded motion and make continuous corrections.

4. What can cause servo positioning errors?

Potential causes include incorrect tuning, mechanical backlash, coupling problems, incorrect scaling, feedback issues, excessive load, or incorrect motion parameters. Both the electrical control system and mechanical transmission should be investigated.

5. Why can the motor vibrate during operation?

Servo vibration may be related to inappropriate tuning, excessive control gain, mechanical resonance, load inertia, coupling problems, or mechanical looseness. Adjusting parameters without first checking the mechanical system can make the problem worse.

6. What should be checked if the motor produces an overcurrent fault?

Check the mechanical load, acceleration profile, motor configuration, wiring, drive parameters, and machine movement. A mechanical obstruction or excessive load can cause the servo system to draw current above the expected level.

7. Can the MPL-B310P-HJ74AA be used for repeated indexing?

Yes. Servo motors are well suited to indexing applications where the machine repeatedly moves between defined positions. Actual performance depends on the controller, servo drive, mechanical transmission, load, and motion profile.

8. How can feedback-related faults be diagnosed?

Inspect the feedback connection, connectors, cable condition, drive configuration, and diagnostic information. The feedback device must communicate correctly with the servo drive for reliable closed-loop operation.

9. What is important when replacing an existing MP-Series servo motor?

The replacement motor should be checked against the original catalog number, mounting arrangement, shaft configuration, feedback characteristics, electrical requirements, and compatible servo drive. A motor with the same frame size is not necessarily a direct replacement.

10. Why is servo tuning important after installation?

Tuning determines how the control system responds to changes in position, speed, and load. Proper tuning can improve positioning accuracy, response time, stability, and overall machine performance.
