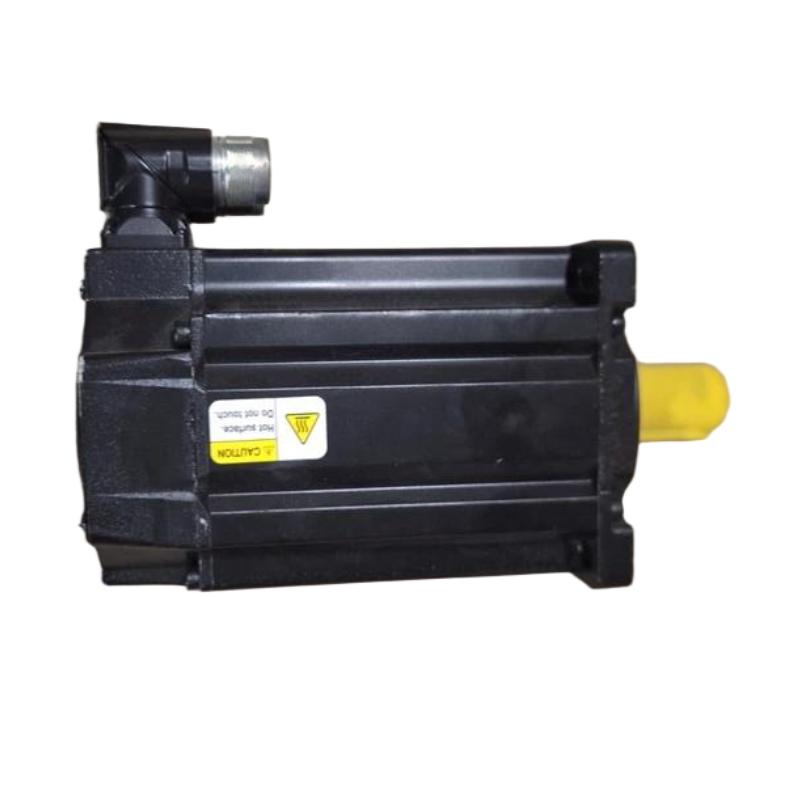

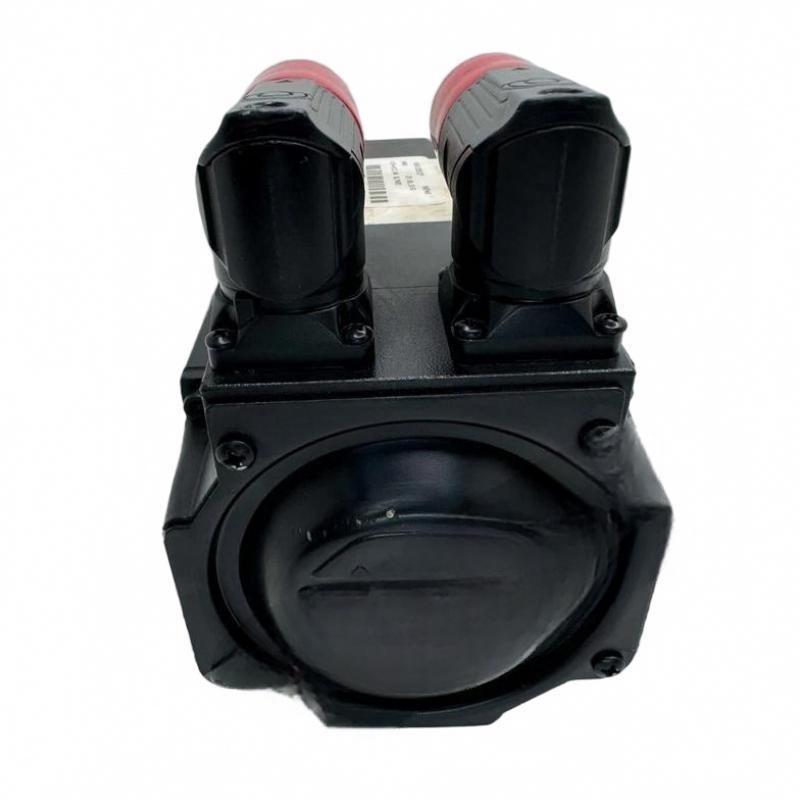

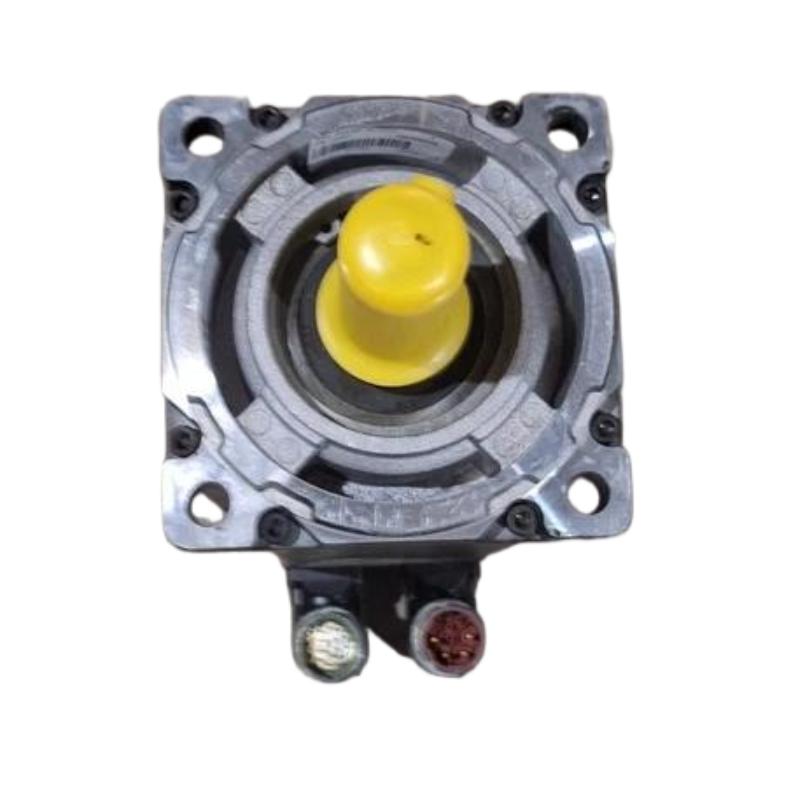

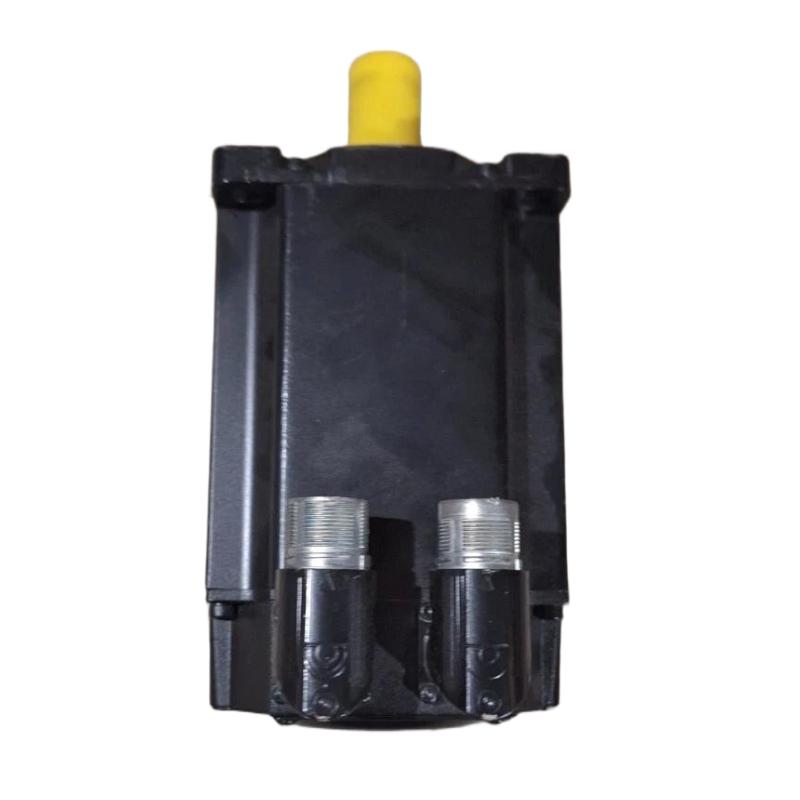

Allen Bradley MPL-B310P-HK72AA Servo Motor

Applications

The Allen Bradley MPL-B310P-HK72AA Servo Motor is a low-inertia brushless AC servo motor designed for industrial motion-control applications where accurate positioning, responsive acceleration, and repeatable rotational movement are essential.

With its 100 mm frame size and compact construction, the MPL-B310P-HK72AA is well suited to automated machinery where installation space and dynamic response are both important considerations. Typical applications include packaging machinery, automated assembly systems, indexing equipment, material handling machines, printing and converting equipment, machine tools, and other precision automation systems.

The motor is designed for closed-loop motion control, allowing the servo drive and controller to continuously manage motor operation based on feedback. This makes it suitable for applications requiring repeated positioning, rapid speed changes, controlled acceleration, and coordinated machine movement.

The MPL-B310P-HK72AA can also be considered for maintenance and replacement applications involving existing Allen Bradley MP-Series motion systems. When replacing an installed servo motor, however, the complete catalog number should be verified carefully because similar MP-Series motors can differ in feedback, shaft, connector, voltage, and mounting configurations.

For industrial automation users looking for a compact servo solution with responsive motion characteristics, the MPL-B310P-HK72AA provides a practical option for precision machinery and established Allen Bradley motion-control installations.

Advantages

The MPL-B310P-HK72AA is built around a low-inertia brushless servo motor design, making it particularly suitable for machinery that frequently changes speed or direction. Lower rotor inertia allows the motion system to respond quickly to commanded changes, which can be valuable in high-cycle production equipment.

Another important advantage is its 5000 RPM maximum speed. This gives machine designers additional flexibility when developing applications that require fast rotary movement or short positioning cycles.

The motor uses a 2000-line incremental encoder for feedback. In a properly configured closed-loop system, encoder feedback allows the servo drive to monitor motor movement and continuously regulate the commanded motion.

Its keyless shaft extension provides a specific mechanical configuration that can simplify compatibility with appropriately designed couplings. The right-angle SpeedTEC DIN connector can also be rotated, offering greater flexibility when routing motor and feedback cables inside compact machinery.

The 100 mm frame size provides a useful balance between mechanical strength and installation footprint. This makes the MPL-B310P-HK72AA attractive for equipment manufacturers and maintenance teams working with space-constrained automation systems.

For users maintaining Allen Bradley motion-control equipment, the MP-Series platform also provides familiarity across the machine's electrical and motion architecture. Properly matched with a compatible servo drive, this motor can deliver the responsive performance expected from industrial servo technology.

Technical FAQs

1. What type of motor is the MPL-B310P-HK72AA?

The MPL-B310P-HK72AA is a low-inertia brushless AC rotary servo motor designed for closed-loop industrial motion-control applications.

2. What feedback system does the motor use?

The MPL-B310P-HK72AA uses a 2000-line incremental encoder. The encoder provides motion feedback to the servo control system for position and speed regulation.

3. What is the maximum operating speed of the motor?

The specified maximum speed is 5000 RPM. The actual operating speed should be determined according to the application, servo-drive configuration, load characteristics, and system operating limits.

4. Does the MPL-B310P-HK72AA include a mechanical brake?

No. This particular configuration is supplied without a brake. Applications requiring mechanical holding after power removal should be evaluated separately to determine the appropriate braking solution.

5. What can cause positioning errors in an MPL-B310P-HK72AA system?

Positioning errors can result from incorrect servo tuning, mechanical backlash, coupling problems, incorrect scaling, excessive load inertia, feedback problems, or unsuitable motion parameters.

6. Why is servo tuning important for this motor?

Servo tuning determines how the drive responds to changes in commanded position and speed. Proper tuning can improve positioning accuracy, response time, stability, and overall machine performance.

7. What should be checked if the motor produces an encoder fault?

Inspect the encoder cable, connectors, feedback wiring, grounding, drive configuration, and diagnostic information. A damaged or improperly connected feedback circuit can prevent reliable closed-loop operation.

8. Can the motor be used for high-frequency start and stop applications?

Yes. Its low-inertia servo design is suitable for motion applications involving repeated acceleration, deceleration, positioning, and speed changes. The actual duty cycle must remain within the motor and drive system's operating requirements.

9. What should be checked before replacing an existing MPL-B310P-HK72AA?

Verify the complete catalog number, motor voltage, feedback type, shaft configuration, connector arrangement, mounting dimensions, drive compatibility, and application requirements. Frame size alone is not sufficient for selecting a replacement.
