Allen Bradley MPL-B310P-HK74AA Servo Motor

Applications

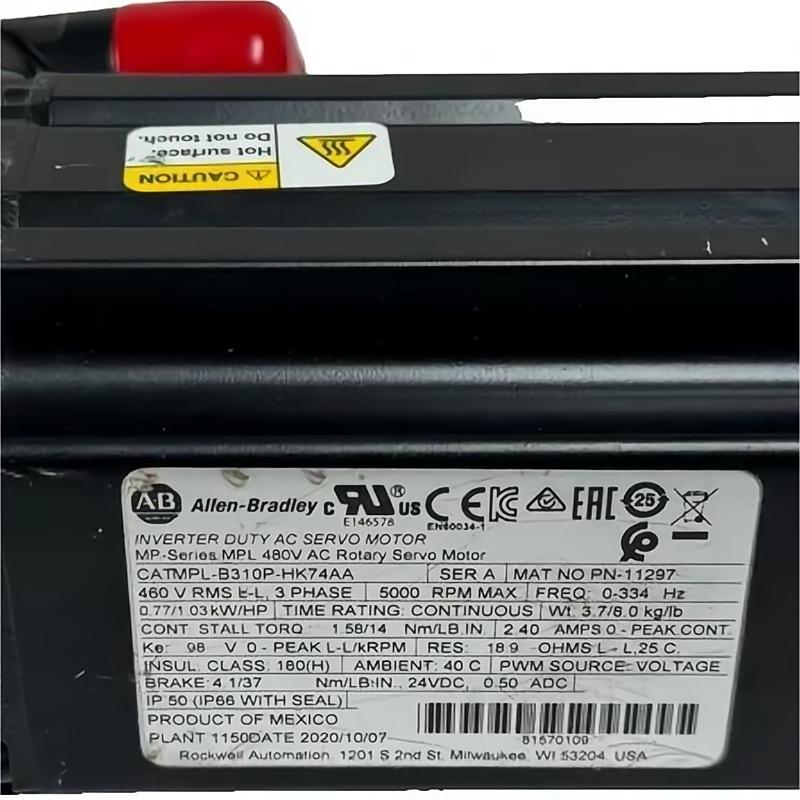

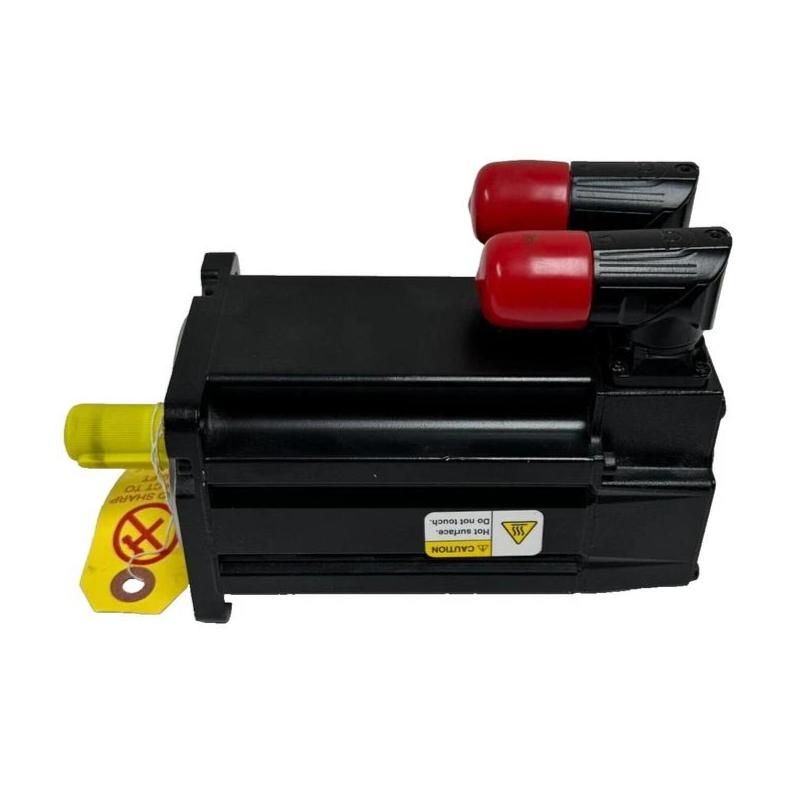

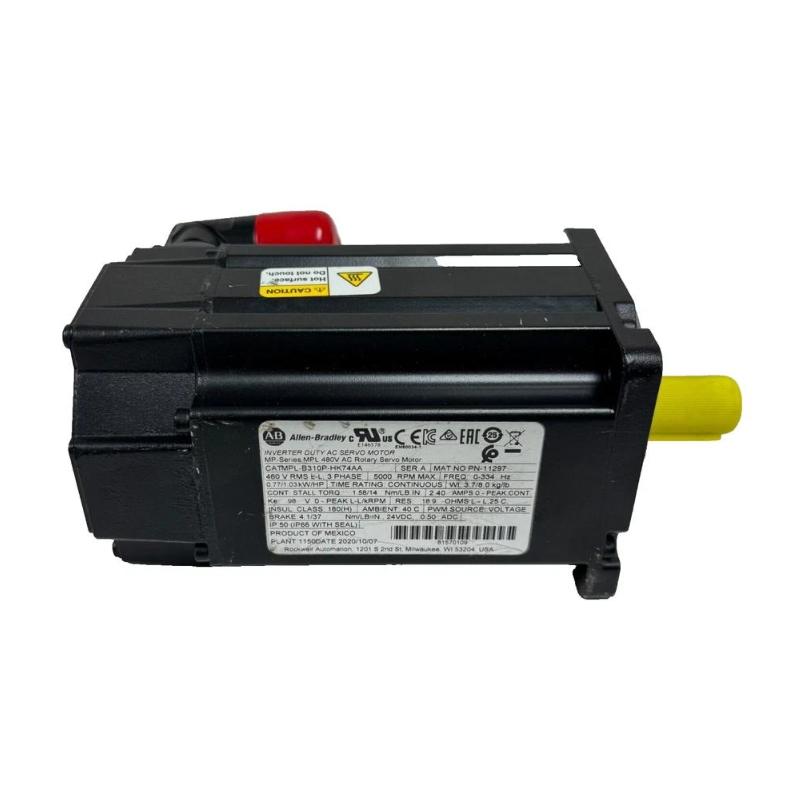

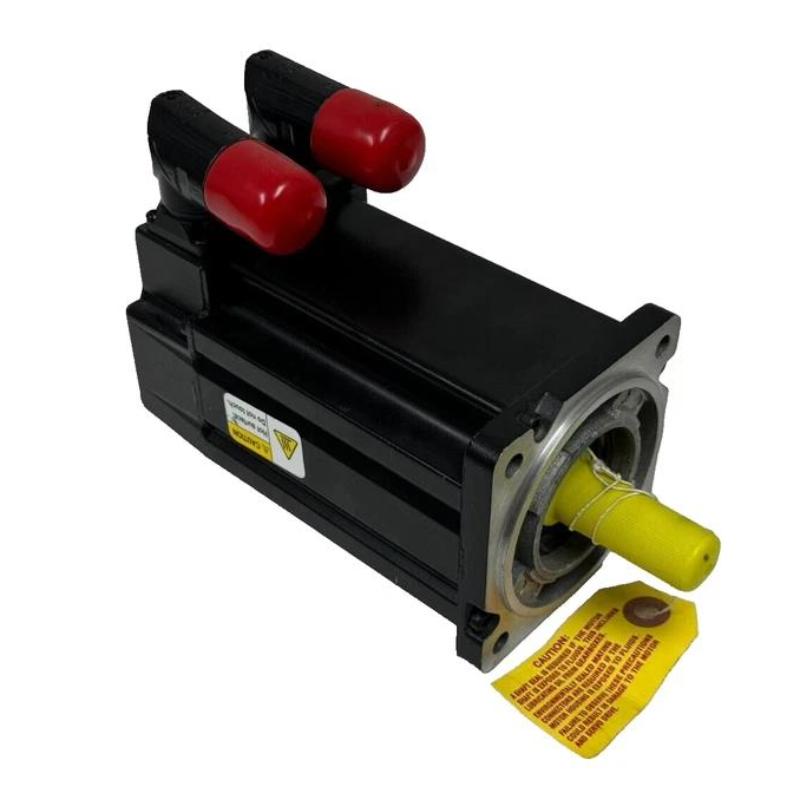

The Allen Bradley MPL-B310P-HK74AA Servo Motor is a low-inertia brushless AC servo motor designed for industrial motion-control applications requiring accurate positioning, rapid acceleration, and repeatable rotary movement. With a 100 mm frame size, 5000 RPM maximum speed, incremental encoder feedback, and a 24V DC holding brake, this servo motor is suitable for a wide range of automated machinery.

The MPL-B310P-HK74AA can be applied in packaging machines, automated assembly equipment, material handling systems, printing and converting machinery, machine tools, indexing equipment, and other production systems where precise motion control is essential.

In packaging applications, the motor can support repeated start-stop cycles and synchronized rotary movement. Its low-inertia construction is useful for machines that need to change speed quickly while maintaining controlled positioning.

For automated assembly equipment, the servo motor can be integrated into positioning axes where accurate movement and repeatability are important. When combined with a compatible Allen Bradley servo drive and motion controller, it can operate as part of a complete closed-loop motion system.

The 24V DC brake makes this configuration particularly useful for applications where the motor shaft needs to remain stationary after motor power is removed. This can be important for vertical or mechanically loaded axes.

For maintenance departments and machine builders, the MPL-B310P-HK74AA is also a practical option when working with existing Allen Bradley MP-Series motion-control systems. Before replacement, the complete catalog number and system configuration should always be checked to ensure electrical and mechanical compatibility.

Advantages

One of the main advantages of the MPL-B310P-HK74AA is its low-inertia brushless servo design. Low motor inertia can help improve dynamic response when a machine frequently accelerates, decelerates, or changes direction.

The motor provides a 5000 RPM maximum speed, making it suitable for machinery that requires relatively fast rotary movement. This can be particularly useful for high-cycle automation equipment where short positioning times are important.

The MPL-B310P-HK74AA uses a 2000-line incremental encoder for closed-loop feedback. Encoder feedback allows the motion system to monitor motor movement and regulate speed and position according to the programmed motion profile.

Another important feature is the integrated 24V DC brake. The brake can help hold the motor shaft when the servo system is not actively driving the motor. It is especially useful in applications where an external load could cause unwanted movement after power is removed.

The motor features a keyless shaft extension, providing a specific mechanical interface for compatible coupling arrangements. Proper coupling selection remains important to prevent excessive mechanical loading or alignment problems.

The SpeedTEC DIN connector is positioned at a right angle and can be rotated, providing additional flexibility when routing cables around the motor. This can be helpful when the servo motor is installed inside a compact machine enclosure.

The 100 mm frame provides a useful combination of compact installation size and industrial servo performance. For OEMs and automation maintenance teams, this makes the MPL-B310P-HK74AA an attractive choice for suitable MP-Series motion applications.

Technical FAQs

1. What type of motor is the Allen Bradley MPL-B310P-HK74AA?

The MPL-B310P-HK74AA is a low-inertia brushless AC rotary servo motor from the Allen Bradley MP-Series MPL family. It is intended for closed-loop industrial motion-control systems.

2. What is the frame size of the MPL-B310P-HK74AA?

The motor has a 100 mm frame size. This compact frame configuration is suitable for industrial machinery where available installation space is an important consideration.

3. What is the maximum speed of the MPL-B310P-HK74AA?

The motor has a maximum speed of 5000 RPM. The actual operating speed depends on the servo drive, load, motion profile, duty cycle, and machine configuration.

4. What feedback device does this servo motor use?

The MPL-B310P-HK74AA uses a 2000-line incremental encoder. The encoder supplies feedback to the servo control system for closed-loop motion control.

5. Does the MPL-B310P-HK74AA have a holding brake?

Yes. This model is equipped with a 24V DC brake. The brake can be used to hold the shaft when the motor is not being actively driven.

6. What should be checked if the motor does not rotate after installation?

Check the motor power connections, feedback wiring, servo-enable signal, drive status, alarm codes, control commands, and brake-release circuit. A brake that has not released correctly can also prevent normal motor rotation.

7. What can cause excessive vibration during servo operation?

Possible causes include incorrect servo tuning, mechanical resonance, improper coupling, excessive load inertia, loose mounting hardware, incorrect gain parameters, or feedback-related problems.

8. How should the 24V DC brake be controlled?

The brake should be controlled according to the servo system's operating sequence so that it releases before significant motor movement and engages appropriately when the motor needs to be held. The brake should not normally be used as the primary dynamic stopping device.

9. Can this motor directly replace another 100 mm servo motor?

Not necessarily. A matching frame size does not guarantee compatibility. Voltage, feedback, shaft configuration, brake option, connector arrangement, motor characteristics, and servo-drive compatibility should all be checked.

10. What should be checked when an encoder fault occurs?

Inspect the encoder cable and connectors for damage or loose connections. Also verify the drive configuration, feedback settings, grounding, electrical noise conditions, and diagnostic information provided by the servo system.
