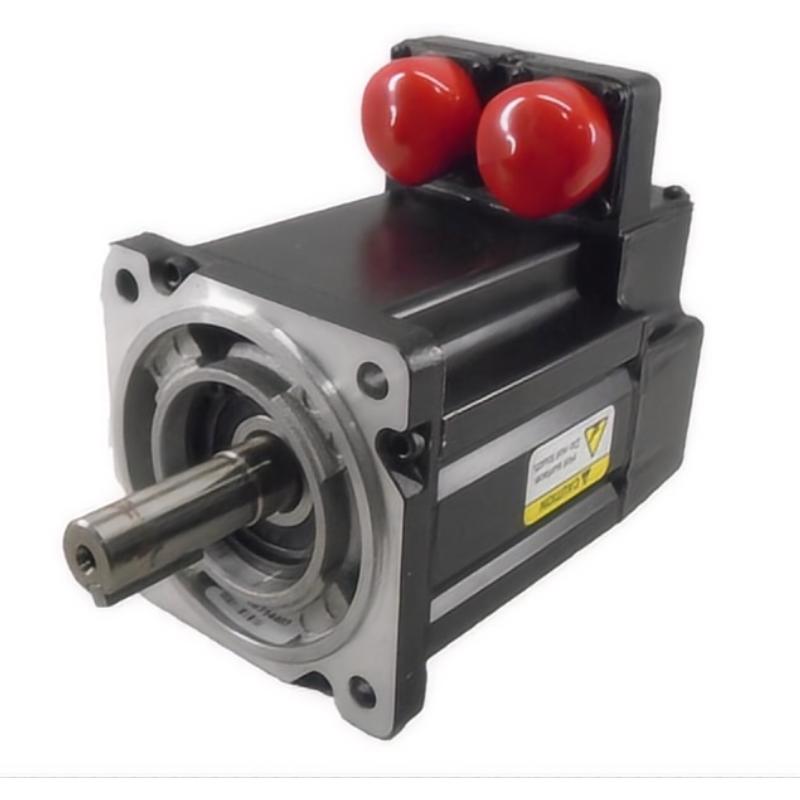

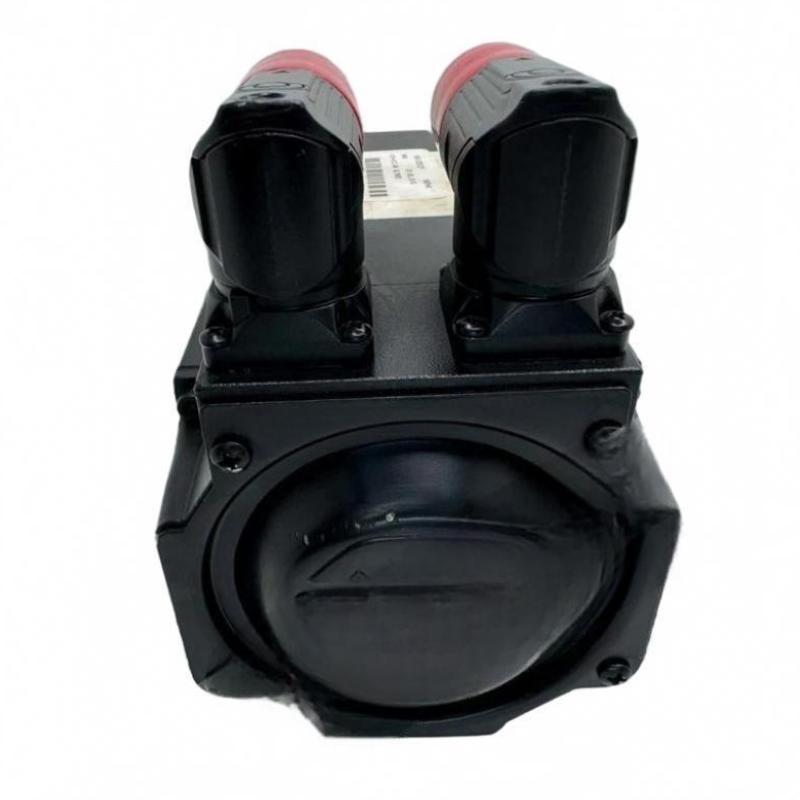

Allen Bradley MPL-B310P-MJ72AH Servo Motor

Applications

The Allen Bradley MPL-B310P-MJ72AH Servo Motor is a low-inertia brushless AC rotary servo motor designed for industrial automation and precision motion-control applications. With a compact 100 mm frame size and a 2.7 kg overall weight, it is suitable for machinery where controlled movement, responsive operation, and efficient installation are important.

The MPL-B310P-MJ72AH can be used in automated assembly equipment, packaging machinery, material handling systems, printing and converting machines, indexing equipment, machine tools, and other industrial production systems that require accurate rotary motion.

For packaging equipment, the servo motor can support repeated acceleration, deceleration, and positioning operations. Its compact construction makes it practical for machine axes where available installation space is limited.

The motor can also be applied to automated positioning systems where the servo drive and controller continuously manage motor speed and position. With appropriate system configuration and tuning, the motor can provide consistent motion performance across repeated production cycles.

For existing Allen Bradley MP-Series installations, the MPL-B310P-MJ72AH can also be considered for maintenance and replacement projects. Engineers should verify the complete motor catalog number, feedback configuration, shaft arrangement, brake configuration, connector type, and servo-drive compatibility before replacement.

Advantages

The MPL-B310P-MJ72AH features a low-inertia servo motor design, making it suitable for applications that require frequent acceleration and deceleration. Lower inertia can help the motion system respond efficiently to changes in commanded movement when the servo parameters are properly configured.

Its 100 mm frame size provides a compact mechanical footprint while maintaining the characteristics expected from an industrial servo motor. This can be beneficial for OEM machine builders working with restricted installation space.

The motor is designed for high-speed motion applications, making it suitable for automated machinery where fast rotary movement and short positioning cycles are important.

Another important characteristic of this model is its multi-turn high-resolution absolute feedback configuration. Absolute feedback provides detailed position information to the motion-control system and can be useful in applications requiring reliable position monitoring.

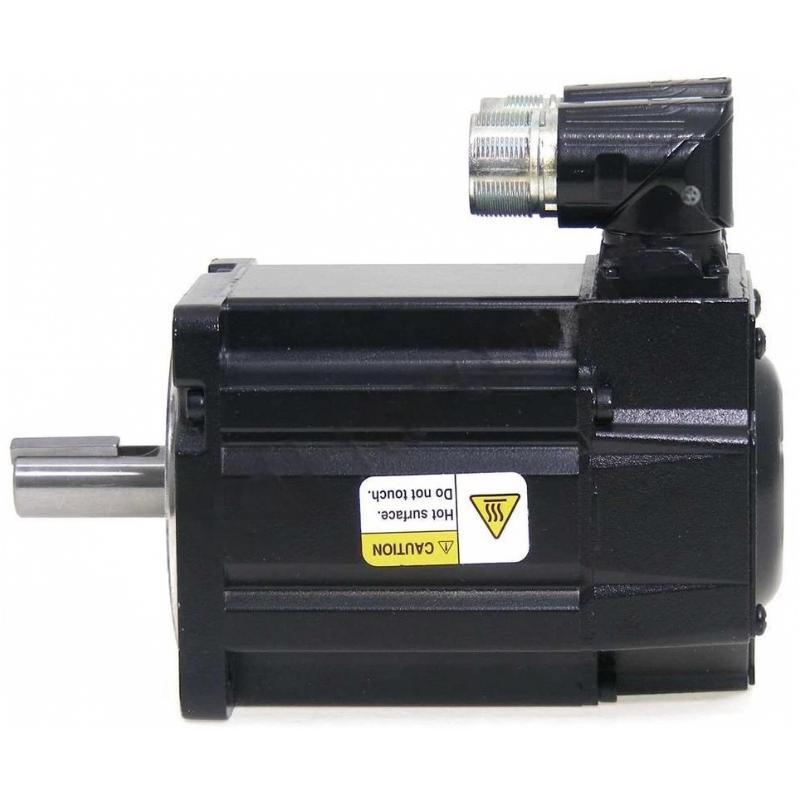

The MPL-B310P-MJ72AH uses a keyed shaft extension, providing a defined mechanical interface for suitable keyed couplings and transmission components. Proper shaft alignment and coupling selection remain important during installation.

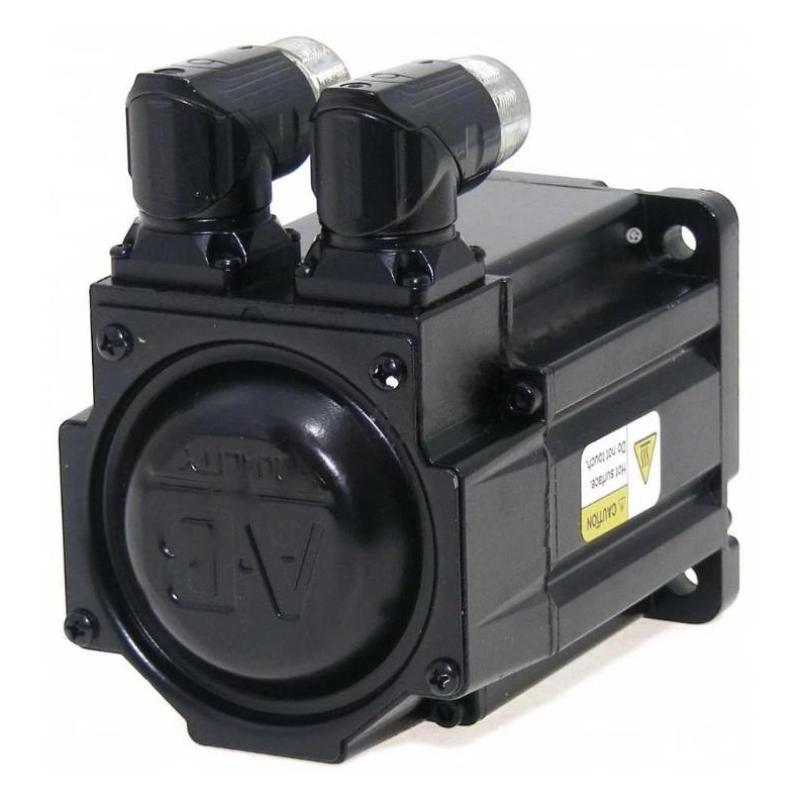

The motor also uses a right-angle SpeedTEC DIN connector with rotational flexibility. This can help machine designers manage motor cables more effectively when the servo motor is installed inside compact equipment.

The MPL-B310P-MJ72AH is configured without a brake, making it suitable for applications where a dedicated holding brake is not required. For vertical axes or loads that must remain mechanically stationary after power removal, the machine design should include an appropriate external holding solution.

Technical FAQs

1. What type of motor is the MPL-B310P-MJ72AH?

The MPL-B310P-MJ72AH is an Allen Bradley MP-Series MPL low-inertia brushless AC rotary servo motor designed for industrial closed-loop motion-control applications.

2. What is the frame size of the MPL-B310P-MJ72AH?

The motor has a 100 mm frame size. This provides a compact installation format for a wide range of industrial automation equipment.

3. What type of feedback does the motor use?

The MPL-B310P-MJ72AH uses multi-turn high-resolution absolute feedback. The feedback system provides the motion controller and servo drive with position information for closed-loop operation.

4. Does the MPL-B310P-MJ72AH include a brake?

No. This motor configuration does not include a mechanical holding brake. Applications requiring load holding after power removal should be evaluated for an appropriate external mechanical solution.

5. What type of shaft does the motor have?

The MPL-B310P-MJ72AH uses a keyed shaft extension. The coupling or transmission component should be selected to match the shaft configuration and mechanical requirements.

6. What should be checked before connecting the motor to a servo drive?

Verify the motor catalog number, motor voltage, feedback configuration, power wiring, feedback wiring, connector arrangement, drive compatibility, and required motor parameters before commissioning.

7. What can cause positioning errors with this servo motor?

Positioning errors can be caused by incorrect servo tuning, mechanical backlash, coupling problems, excessive load inertia, incorrect scaling, feedback problems, or unsuitable acceleration and deceleration parameters.

8. Why is servo tuning important for the MPL-B310P-MJ72AH?

Servo tuning determines how the drive responds to changes in commanded speed and position. Proper tuning can improve response, stability, positioning accuracy, and overall machine performance.

9. What should be checked if an absolute feedback alarm occurs?

Check the feedback cable, connector, grounding, drive configuration, feedback settings, and diagnostic information. Damaged cables, loose connections, electrical interference, or incorrect configuration can cause feedback-related alarms.

10. Can the MPL-B310P-MJ72AH replace another 100 mm servo motor?

Not necessarily. Frame size alone does not establish compatibility. Feedback type, shaft configuration, brake arrangement, voltage, connector configuration, motor characteristics, and servo-drive compatibility should all be verified before selecting a replacement.
