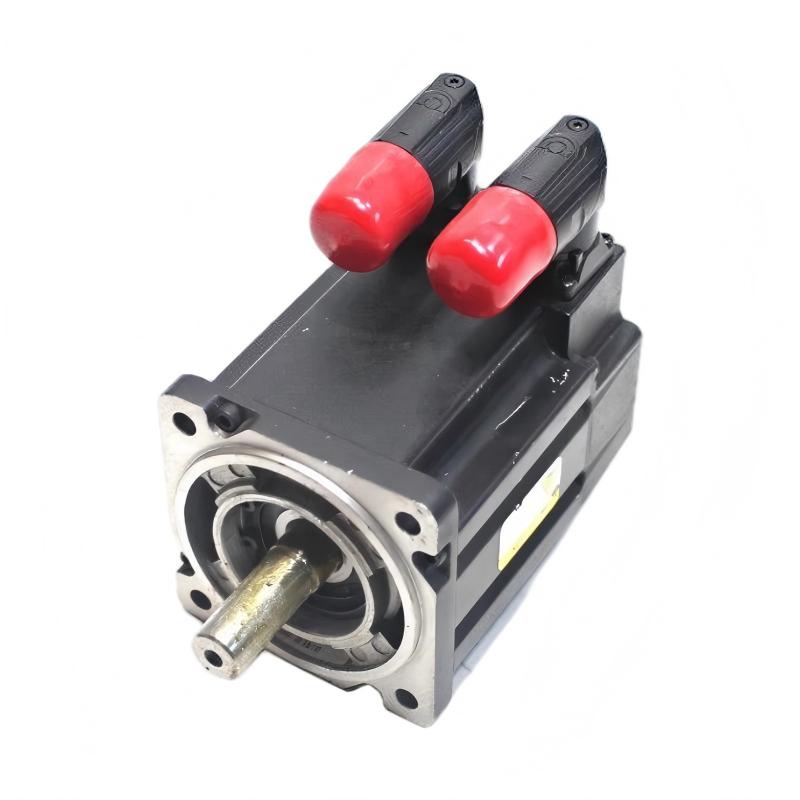

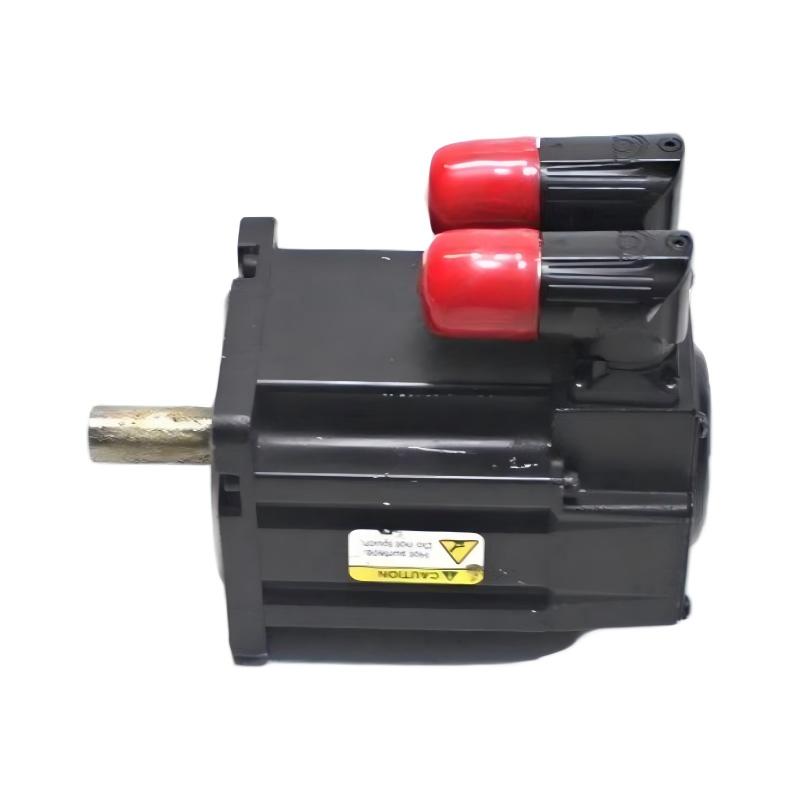

Allen Bradley MPL-B310P-RK74AA Servo Motor

Applications

Packaging Equipment

The MPL-B310P-RK74AA is suitable for automated packaging machinery involving indexing, feeding, cutting, sealing, labeling, and other repetitive rotary movements. Its low-inertia design supports quick changes in speed and position during production cycles.

Material Handling Systems

The motor can be applied to conveyors, indexing mechanisms, transfer units, and positioning equipment where controlled servo movement is required. The integrated brake can provide useful holding capability when the servo axis is disabled.

Automated Assembly Machinery

Assembly equipment often requires repeatable positioning and coordinated axis movement. The resolver feedback system allows the motor to operate within compatible closed-loop motion architectures.

Printing and Converting Equipment

The motor can support rotary axes used in printing, winding, feeding, slitting, and converting machinery where stable speed regulation and repeatable movement are important.

Vertical and Load-Holding Axes

The 24 V DC holding brake makes this model particularly relevant to applications where a stationary load needs additional mechanical holding when servo torque is removed. Brake control must be properly integrated into the machine safety and motion sequence.

Industrial Retrofit Projects

The RK74AA is a practical consideration for replacement applications where the existing motor uses resolver feedback, a keyless shaft, and a holding brake. Matching these characteristics can simplify retrofit evaluation.

Advantages

Low-Inertia Servo Construction

The MPL-B310P-RK74AA uses a low-inertia permanent-magnet servo motor design. Lower rotor inertia can help the motor respond quickly to command changes, which is beneficial in indexing and high-cycle machinery.

2-Pole Resolver Feedback

The motor uses a 2-pole resolver rather than an incremental or absolute encoder. Resolver feedback is well suited to compatible industrial servo architectures and can provide robust position feedback in demanding operating environments.

5000 RPM Rated Speed

The motor supports a rated speed of up to 5000 RPM, making it suitable for many high-speed automated machine axes.

Integrated 24 V DC Holding Brake

The RK74AA includes a 24 V DC brake. This provides a mechanical holding function when the motor is not actively controlling the load and is especially useful for applications where unintended axis movement must be minimized after servo disable.

Keyless Shaft Configuration

The keyless shaft eliminates the need for a conventional shaft key and is suitable for compatible clamping-type couplings. Proper shaft alignment and coupling installation are important for reliable operation.

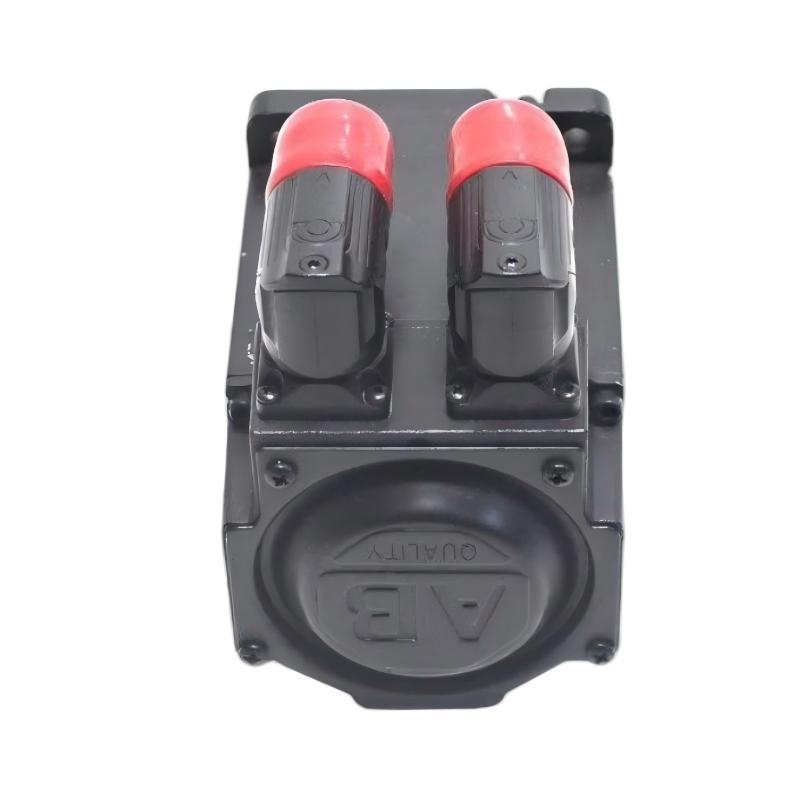

Flexible Connector Orientation

The right-angle SpeedTEC DIN connector can rotate up to 180 degrees, helping installers adapt cable routing to the available machine space.

IEC Metric Mounting

The 100 mm IEC metric mounting arrangement provides a standardized mechanical interface for industrial machine integration.

Technical FAQs

1. What feedback device is used in the MPL-B310P-RK74AA?
The motor uses a 2-pole resolver for feedback. The servo drive must provide the appropriate resolver interface and be configured for the correct motor feedback system.

2. What is the rated speed of the RK74AA?
The MPL-B310P-RK74AA has a rated speed of 5000 RPM. Actual operating speed depends on drive configuration, mechanical load, duty cycle, and machine operating requirements.

3. Does the MPL-B310P-RK74AA include a brake?
Yes. It has a 24 V DC holding brake. The brake is designed primarily for holding the axis when servo torque is unavailable and should not normally be used as the primary dynamic stopping method.

4. What type of shaft does the RK74AA use?
The motor has a keyless shaft extension. A suitable clamping hub or coupling should be selected based on the motor shaft specifications and the mechanical transmission requirements.

5. Can the RK74AA replace an encoder-based MPL motor?
Not as a direct electrical substitution. The RK74AA uses resolver feedback, so the connected drive and motion-control system must support the resolver interface. Feedback technology should always be verified before replacement.

6. What should be checked before commissioning the motor?
Verify the motor catalog number, drive compatibility, resolver configuration, power wiring, brake wiring, shaft coupling, motor direction, feedback response, and servo parameters. Initial testing should be performed under controlled conditions.

7. How should the 24 V DC brake be integrated into the motion sequence?
Brake release should be coordinated with servo enable and sufficient motor torque. During shutdown, the servo should normally manage deceleration before the mechanical brake is applied. The exact sequence depends on the machine and safety architecture.

8. What can cause resolver feedback errors?
Potential causes include incorrect resolver wiring, damaged feedback cables, loose connectors, inadequate shielding, grounding problems, electrical interference, or incorrect drive configuration. Both electrical diagnostics and physical inspection should be performed.

9. What could cause excessive vibration at higher speeds?
Possible causes include shaft or coupling misalignment, mechanical imbalance, incorrect servo tuning, resonance, excessive load inertia, damaged bearings, or feedback-related control problems. High-speed vibration should be investigated before continued operation.

10. What maintenance is recommended for this servo motor?
Regularly inspect the motor mounting, keyless coupling, power connections, resolver cable, connectors, and brake operation. Monitor temperature, vibration, noise, and changes in servo performance. Any abnormal condition should be investigated before it develops into an unplanned machine failure.
