Brand:Siemens Item No.:6AG1155-5AA01-7AB0 Product Origin:Germany Product Dimensions:35 × 147 × 129 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

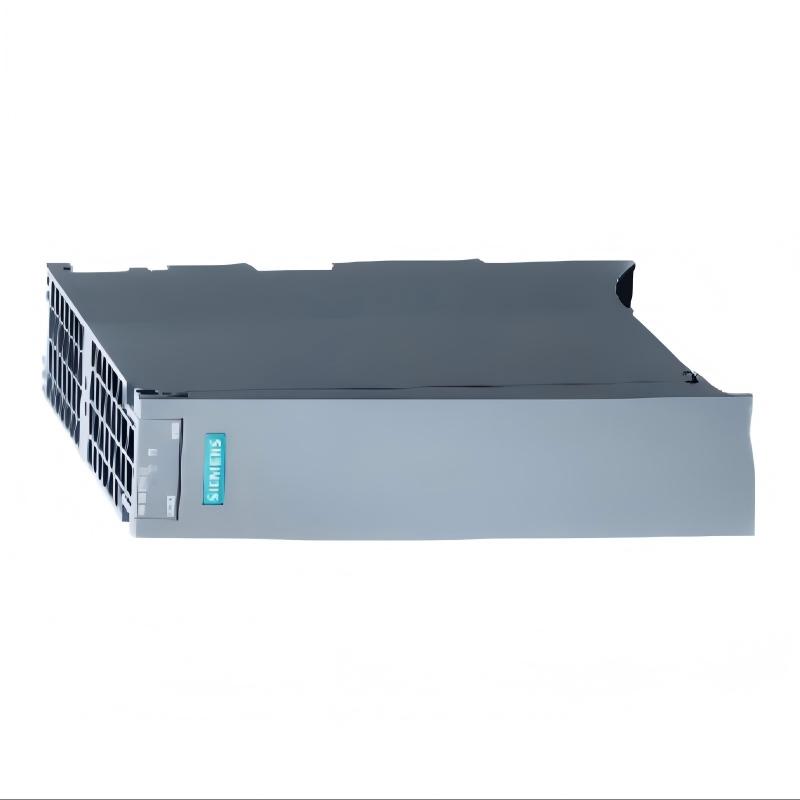

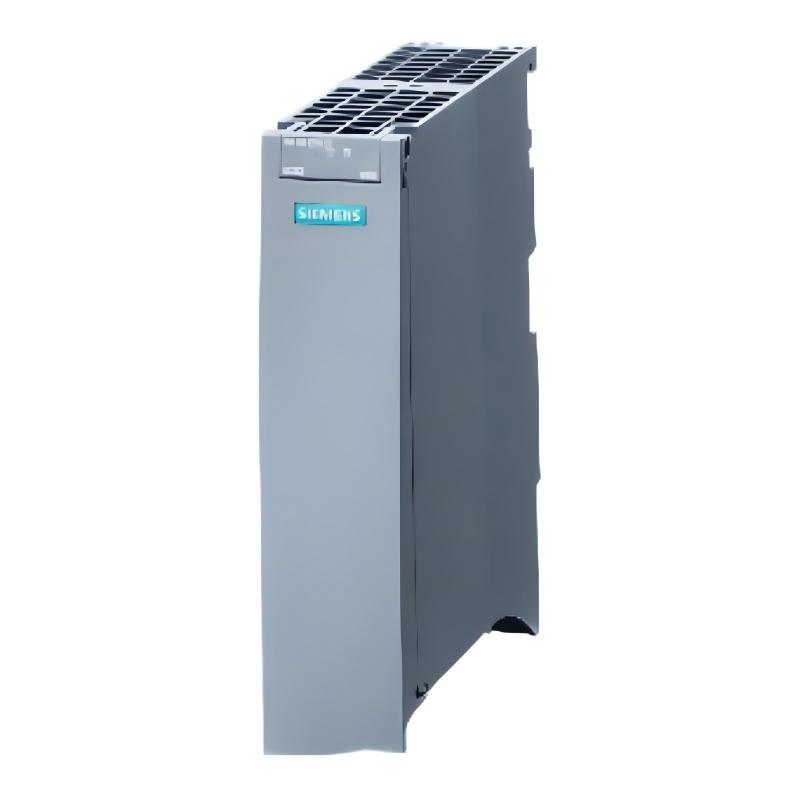

The Siemens 6AG1155-5AA01-7AB0 Interface Module is part of the SIPLUS ET 200MP product family and is designated as IM 155-5 PN ST. It provides the communication interface required for connecting ET 200MP distributed I/O modules to a PROFINET IO network.
The module is based on the standard 6ES7155-5AA01-0AB0, but the SIPLUS version incorporates conformal coating to improve suitability for demanding environmental conditions. Its extended temperature capability makes it especially useful for industrial installations where standard automation equipment may require additional environmental protection.
Communication is provided through two RJ45 Ethernet ports and an integrated switch. The interface supports PROFINET IO, MRP, IRT, Shared Device, TCP/IP, SNMP, and LLDP functions. These capabilities allow the module to fit into a variety of modern industrial Ethernet architectures.
The 6AG1155-5AA01-7AB0 can support up to 12 I/O modules without an additional power supply, with expansion to 30 I/O modules when additional power supplies are installed. This provides flexibility when designing distributed I/O stations of different sizes.
Another important feature is its support for isochronous operation and IRT, with a shortest clock pulse of 250 μs. This makes the module suitable for applications where deterministic communication and synchronized process data are important.
For industrial automation projects, the module offers a useful combination of ET 200MP modularity, PROFINET communication, network redundancy, and SIPLUS environmental protection. It is therefore a practical choice for demanding distributed I/O applications and for replacement projects involving existing SIPLUS ET 200MP installations.
Technical Specifications
Specification
6AG1155-5AA01-7AB0
Brand
Siemens
Product Family
SIPLUS ET 200MP
Product Type
PROFINET IO Interface Module
Product Designation
IM 155-5 PN ST
Article Number
6AG1155-5AA01-7AB0
Based On
6ES7155-5AA01-0AB0
Communication
PROFINET IO
PROFINET Interfaces
1 interface, 2 ports
Ethernet Ports
2 × RJ45
Integrated Switch
Yes
Transmission Rate
100 Mbit/s Full Duplex
MRP
Supported
IRT
Supported
Isochronous Mode
Supported
Shortest Clock Pulse
250 μs
Shared Device
Supported
Maximum Shared Controllers
2
PROFINET Device
Yes
PROFIsafe
Supported
PROFIBUS
Not supported
EtherNet/IP
Not supported
Supply Voltage
24 V DC
Permissible Supply Range
19.2–28.8 V DC
Rated Current Consumption
0.2 A
Maximum Current Consumption
1.2 A
Typical Power Loss
4.5 W
Backplane Bus Power
14 W
I/O Modules Without Additional PS
Up to 12
I/O Modules With Additional PS
Up to 30
Permissible Power Segments
3
Conformal Coating
Yes
Operating Temperature
-40 to +70 °C
Width
35 mm
Height
147 mm
Depth
129 mm
Dimensions
35 × 147 × 129 mm
Weight
0.25 kg (0.55 lb)
Mounting
S7-1500 mounting rail
Recommended Related Models
Model
Product Type
Key Configuration
6ES7155-5AA01-0AB0
ET 200MP Interface Module
IM 155-5 PN ST standard version
6AG1155-5AA01-7AB0
SIPLUS ET 200MP Interface Module
IM 155-5 PN ST, conformal coating
6AG1155-5AA00-2AC0
SIPLUS ET 200MP Interface Module
IM 155-5 PN HF, enhanced environmental version
6ES7155-5AA00-0AC0
ET 200MP Interface Module
IM 155-5 PN HF standard version
6AG1155-5AA00-7AC0
SIPLUS ET 200MP Interface Module
IM 155-5 PN HF variant
6ES7155-5BA00-0AB0
ET 200MP Interface Module
IM 155-5 DP ST
6AG1155-5AA00-7AB0
SIPLUS ET 200MP Interface Module
SIPLUS PROFINET interface variant
Popular Related Models
Model
Product Family
Typical Application
6ES7155-5AA01-0AB0
SIMATIC ET 200MP
Standard PROFINET distributed I/O
6ES7155-5AA00-0AC0
SIMATIC ET 200MP
High-function PROFINET distributed I/O
6AG1155-5AA00-2AC0
SIPLUS ET 200MP
Enhanced-environment PROFINET I/O
6AG1155-5AA00-7AC0
SIPLUS ET 200MP
SIPLUS IM 155-5 PN HF applications
6ES7155-5BA00-0AB0
SIMATIC ET 200MP
PROFIBUS DP distributed I/O
6AG1155-6AU00-2CN0
SIPLUS ET 200SP
Enhanced-environment distributed I/O
6AG1155-6AU00-7CN0
SIPLUS ET 200SP
SIPLUS PROFINET distributed I/O
The Siemens 6AG1155-5AA01-7AB0 is a strong choice for ET 200MP systems that require PROFINET IO communication, modular I/O expansion, MRP networking, IRT capability, and enhanced environmental protection. Its conformal-coated SIPLUS construction makes it especially valuable for industrial installations where temperature and environmental conditions are more demanding.
Applications
Distributed ET 200MP I/O Systems
The primary role of the 6AG1155-5AA01-7AB0 is to provide the communication interface between an ET 200MP station and a PROFINET IO controller. It allows connected I/O modules to exchange process data with the higher-level automation system.
Factory Automation
The module can be installed in distributed machine-control architectures where I/O modules are positioned close to sensors, actuators, valves, drives, and other field equipment.
Industrial Process Equipment
Its SIPLUS conformal-coated construction makes the module suitable for demanding industrial environments where humidity, condensation, dust, salt mist, or chemically active substances may be concerns.
Machine Building
Machine builders can use the IM 155-5 PN ST as the communication head of an ET 200MP station. The modular architecture makes it easier to build scalable I/O systems.
PROFINET Network Applications
The integrated two-port switch supports practical PROFINET network topologies and simplifies Ethernet connections between distributed automation stations.
High-Speed Synchronized Automation
The module supports IRT and isochronous communication with a shortest clock pulse of 250 μs, making it suitable for applications where deterministic cyclic communication is required.
Advantages
SIPLUS Conformal-Coated Construction
The 6AG1155-5AA01-7AB0 is a SIPLUS version with conformal coating. This provides enhanced resistance to challenging environmental conditions and makes the module suitable for specialized industrial installations.
Wide Temperature Capability
The module is designed for an extended operating temperature range of approximately -40 to +70 °C, providing additional flexibility for equipment installed in areas with significant temperature variation.
Integrated Two-Port Ethernet Switch
Two RJ45 Ethernet ports are provided through an integrated switch. This allows convenient connection to the PROFINET network and supports common line-based network arrangements.
PROFINET IO Device Support
The interface module operates as a PROFINET IO device interface for ET 200MP electronic modules, enabling distributed I/O communication with compatible Siemens controllers.
MRP Support
Media Redundancy Protocol allows the module to participate in compatible PROFINET ring networks. This can improve network availability when a suitable redundant topology is implemented.
IRT and Isochronous Operation
The module supports Isochronous Real-Time communication with a shortest clock pulse of 250 μs. This is useful for automation applications requiring tightly synchronized cyclic data exchange.
Flexible I/O Expansion
An ET 200MP station can support up to 12 I/O modules without an additional system power supply, or up to 30 I/O modules when additional power supplies are used.
Shared Device Support
The module supports Shared Device operation, allowing suitable ET 200MP I/O configurations to be shared by up to two PROFINET IO controllers.
Technical FAQs
1. What is the function of the Siemens 6AG1155-5AA01-7AB0?
It is the SIPLUS ET 200MP IM 155-5 PN ST interface module. Its primary function is to connect ET 200MP electronic modules to a PROFINET IO network.
2. What standard Siemens module is the SIPLUS version based on?
The 6AG1155-5AA01-7AB0 is based on the standard 6ES7155-5AA01-0AB0. The SIPLUS version adds conformal coating and enhanced environmental capability.
3. How many Ethernet ports does the module have?
The module has two RJ45 Ethernet ports connected through an integrated two-port switch. The interfaces support PROFINET communication at 100 Mbit/s full duplex.
4. How many I/O modules can be connected to the interface module?
The station can support up to 12 I/O modules without an additional power supply and up to 30 I/O modules when additional system power supplies are used. The actual configuration must respect the power and system-segmentation requirements.
5. Does the 6AG1155-5AA01-7AB0 support PROFINET MRP?
Yes. The module supports Media Redundancy Protocol (MRP), allowing it to participate in suitable PROFINET ring architectures.
6. Does the module support IRT communication?
Yes. The IM 155-5 PN ST supports Isochronous Real-Time (IRT) communication. The shortest documented clock pulse is 250 μs, with the complete system determining the achievable synchronization performance.
7. What supply voltage does the interface module use?
The module uses a 24 V DC power supply, with a permissible supply range of approximately 19.2 to 28.8 V DC.
8. How should a PROFINET communication fault be diagnosed?
Check the 24 V DC supply, Ethernet cables, RJ45 connectors, LINK indicators, PROFINET device name, IP/network configuration, and controller diagnostics. If MRP is being used, also check the ring configuration and network status.
9. Can the module be used with Shared Device configurations?
Yes. The module supports Shared Device functionality and can support up to two PROFINET IO controllers in the appropriate configuration.
10. What should be checked when replacing this module?
Verify the complete order number, firmware and hardware compatibility, PROFINET configuration, connected ET 200MP modules, power segmentation, network topology, and environmental requirements. The SIPLUS environmental specification should be maintained when selecting a replacement.
